Wide mode

When using a
wide screen (16:9)
In case of displaying
the 16:9 picture on
the whole of the 16:9
screen.
: Picture area
The specifications of the lens shift function are the same as
the standard lens. Refer to the "Setting Up the Screen"
section in the Projector Operation Manual.

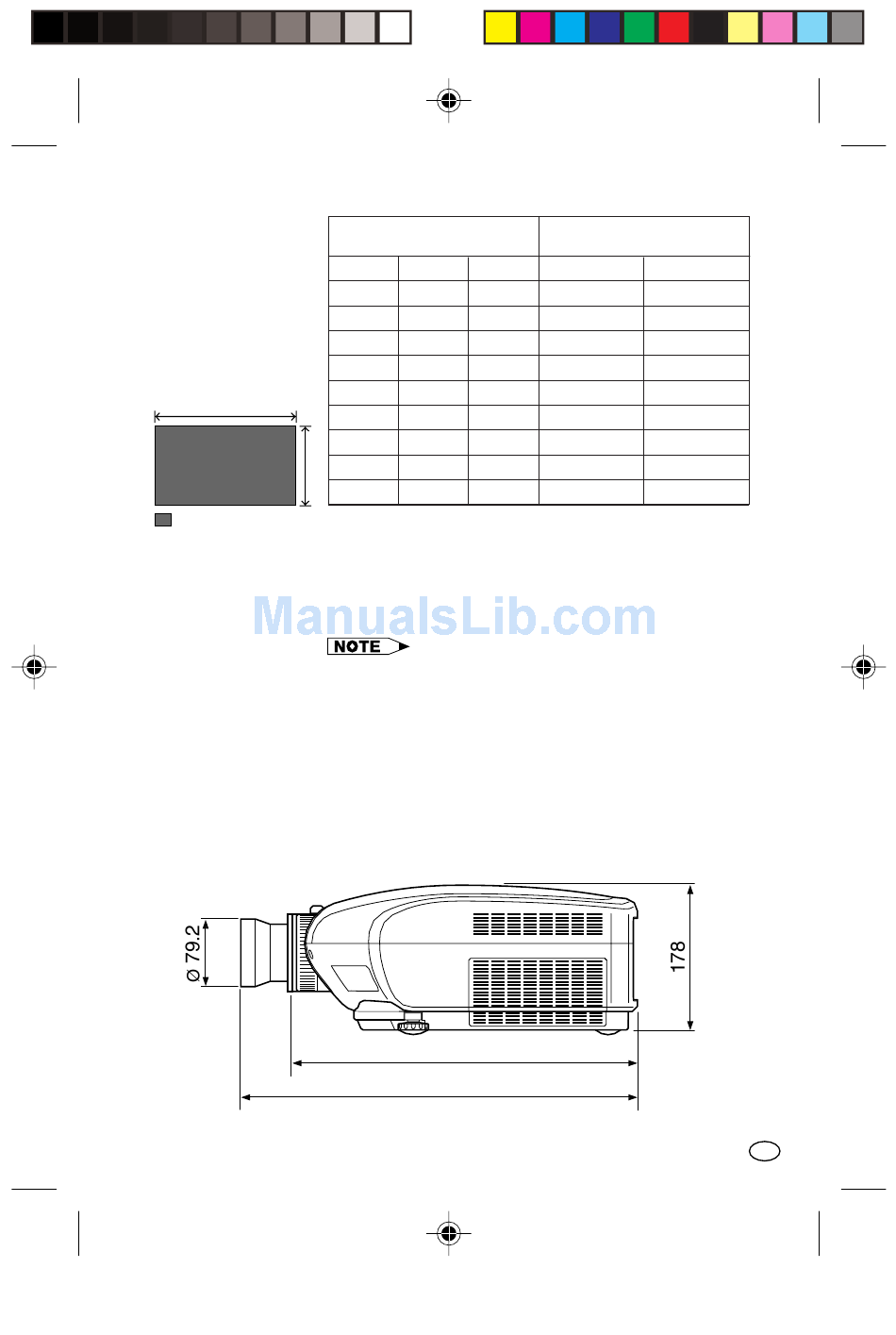

Set-up Dimensions

AN_W9Z(E)#p02-05.pm6
Screen size (16:9)
Diag.
150"
133"
106"
100"
92"
16
84"
72"
60"
9
50"
The fomula for screen size and projection distance
y1 = (0.04423x – 0.06883) × 3.28
y2 = (0.03268x – 0.06882) × 3.28
x : Screen size (diag.) (inches)
y : Projection distance (feet)
• There is an error of ±3% in the formula above.
5
Projection Distance (y)
Width
Height
Maximum (y1)
131"
74"
21'6" (6.6 m)
116"
65"
19'1" (5.8 m)
92"
52"
15'1" (4.6 m)
87"
49"
14'3" (4.4 m)
80"
45"
13'1" (4.0 m)
73"
41"
11'12" (3.6 m)
63"
35"
10'3" (3.1 m)
52"
29"
8'6" (2.6 m)
44"
25"
7' (2.1 m)
406
452.3
Minimum (y2)
15'1" (4.8 m)
14'1" (4.3 m)
11'1" (3.4 m)
10'6" (3.2 m)
9'7" (2.9 m)
8'9" (2.7 m)
7'6" (2.3 m)
6'2" (1.9 m)
5'2" (1.6 m)
Unit: mm
5
GB
