- Page 1 DuoFern Standard manual transmitter Operating instructions ..............27 Item no. 3248 03 66/3248 03 61 VBD 473-2 (05.13)
-
Page 2: Dear Customer
…in purchasing this DuoFern Standard manual transmitter, you have decided on a quality product manufactured by RADEMACHER. We would like to thank you for your confidence. This manual transmitter has been developed with such aspects as optimum operability and convenience in mind, as well as those of solidity and durability. -
Page 3: Table Of Contents
DuoFern Standard manual transmitter ....34 CE Mark and EC Conformity ......51 Register DuoFern end devices Warranty conditions ........52 (applies to item nos. 3248 03 66) ....36 Register DuoFern end devices (applies to item nos. 3248 03 61) ....38 Delete DuoFern end devices ......40 End point setting..........41... -
Page 4: General View/Operating Elements

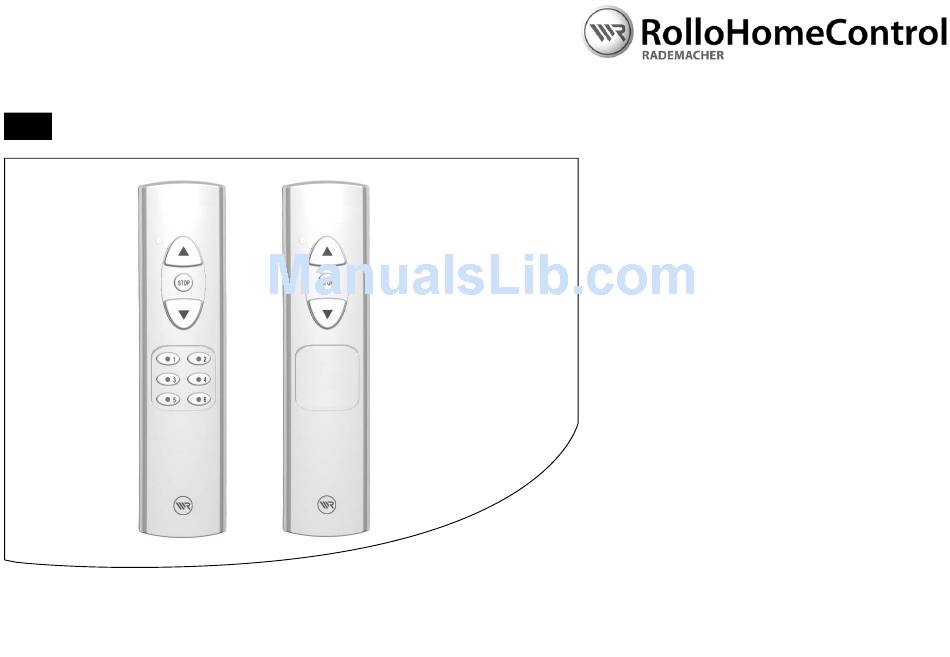

General view/Operating elements LED-status green orange UP (on/off) STOP (off) DOWN (on/off) * Switching jog mode Device buttons or on/off group buttons . . . Item no.: Item no.: 3248 03 66 3248 03 61 30 30... -
Page 5: Rear Side Of Device
Rear side of device Item no.: 3248 03 66 3248 03 61 Space for note Example of identification plate Fixing screw for Item no. 3248 03 66 Disconnect Connect button button Disconnect mode Registering mode Reversal of rotational direction End point setting... -
Page 6: Key To Symbols
Key to symbols this concerns your safety. Please pay particular attention to and carefully follow all instructions with this symbol. this symbol advises of malpractices that may cause damage to people and property. STOP NOtE NOtE/IMPORtANt/cAutION This heading indicates information that is important to the proper functioning of the device. General safety advice Improper use increases risk of injury. -
Page 7: Proper Use / Operating Conditions
Proper use / operating conditions use the DuoFern Standard manual transmitter only for the remote control of: ◆ Roller shutters ◆ Electrical consumers (e.g. lighting) Operating conditions ◆ The DuoFern radio system may only be operated with and installed in systems and devices in which transmitter or receiver faults do not present any danger to persons or property or for which these hazards are removed by the use of other safety equipment. -
Page 8: Short Description Of The Duofern Standard Manual Transmitter
Device buttons or group buttons (only for item nos. 3248 03 66) DuoFern Standard manual transmitter 3248 03 66 has 6 device or group buttons (see page30) which you can allocate to any DuoFern end device (see table on page 35). In this way it is possible to have an individual as well as a group control of various devices (see page 37). - Page 9 You can call up the following functions with the disconnect button: ◆ Disconnect mode Disconnect DuoFern end devices from manual transmitter. ◆ End point setting Set the end points of RADEMACHER electronic tubular motors. ◆ Reset Resetting to factory settings. Status LED The two-coloured status LED shows whether all DuoFern end devices have received and confirmed the switch signal.
-
Page 10: Register Duofern End Devices
Register DuoFern end devices (applies to item no. 3248 03 66) In order to be able to operate a DuoFern end device with the DuoFern Standard manual transmitter, this must be registered with the DuoFern end device concerned. Use a thin, not too sharp object to press the connect button. - Page 11 Register DuoFern end devices (applies to item no. 3248 03 66) . . . Press the desired device button that you wish to use later to select the device. Observe the status LED Green: The registration was successful. Orange: The button is already fully allocated.
-
Page 12: (Applies To Item Nos. 3248 03 61)
Register DuoFern end devices (applies to item no. 3248 03 61) No devices or group buttons can be selected or pressed for DuoFern Standard manual transmitter 3248 03 61. The registered actuators are automatically allocated to the only existing group. NOtE ◆... -
Page 13: Register Duofern End Devices
Register DuoFern end devices (applies to item no. 3248 03 61) Switch the desired DuoFern end device or DuoFern actuator to registering mode. (see corresponding operating instructions) Switch the DuoFern Standard manual transmitter to registering mode. In order to do so, briefly press the ”connect” button. Observe the status LED Green: The registration was successful. -
Page 14: Delete Duofern End Devices
Delete DuoFern end devices Switch desired DuoFern end devices to delete mode. (see corresponding operating instructions) Switch the DuoFern Standard manual transmitter to delete mode. In order to do so, briefly press the ”disconnect” button. If the deletion is successful the green status LED lights up. -
Page 15: End Point Setting
; if more than one component is registered within the selected group then the function is blocked. ◆ The end point setting can only be made for RADEMACHER electronic tubular motors from 2000 onwards that are controlled with a correctly installed DuoFern actuator. - Page 16 End point setting the status LED flashes (approx. twice per second) on successful activation. Set the upper end point. Keep the button pressed until the desired end point is reached. Release the button as soon as the upper end point is reached.
-
Page 17: Reversal Of Rotational Direction
Reversal of rotational direction You can subsequently set or correct the rotational direction of connected tubular motors using this function. Alternative use for reversal of directional rotation: Switch over between lighting function and device function In case of universal actuators for lighting or for devices (e.g. DuoFern universal actuator or DuoFern socket actuator), reversing the rotational direction switches over between the lighting function and the device function. - Page 18 Reversal of rotational direction . . . Select the desired DuoFern end device. Activate the “reversal of rotational direction” func- 2 x / second tion. In order to do so, press the “connect” button twice in short succession within one second (similar to the double-click of a computer mouse).
-
Page 19: Activate "Purge" Function
Activate “purge“ function This function deletes all DuoFern end devices that are registered but that no longer react. This could be necessary, for example, in the case of a faulty device which can no longer be deleted as described above. NOtE ◆... -
Page 20: Manual Operation Of Actuators With Several Channels
Manual operation of actuators with several channels When registering actuators with several channels, all channels in the group are always registered for DuoFern Standard manual transmitter 3248 03 61 (1 group). Operation of single channels is therefore not possible using these manual transmitters. Manual operation Press the desired device or group button . -
Page 21: Controlling Blinds And Dimmers In Jog Mode
controlling blinds and dimmers in jog mode Functional description of jog ◆ If the UP and DOWN buttons are pressed briefly in jog mode, a jog command is transmitted. This mode enables convenient adjustment of Venetian blind slats, as the motor only runs briefly. ◆... -
Page 22: Delete Settings (Reset)
Delete settings (Reset) Press the “disconnect” button for approx. 5 seconds until the orange status LED flashes. The status LED flashes orange Let go of the „disconnect button“ as soon as the orange status LED is permanently lit up All settings on the DuoFern Standard manual transmitter are deleted. -
Page 23: Technical Data
- item no. 3248 03 66: - item-no. 3248 03 61: Max. number of end devices: - Item no. 3248 03 66/3248 03 61: Permissible ambient temperature: + 5 °C bis + 40 °C Dimensions L x W x H:... -
Page 24: Battery Change
Battery change If the battery is almost empty, the status LED flashes orange when you operate the DuoFern Standard manual transmitter. ◆ The battery can be found in the battery compartment on the rear of the DuoFern Standard manual transmitter. ◆... -
Page 25: Ce Mark And Ec Conformity
Mark and Ec conformity The DuoFern Standard manual transmitter (item no. ) complies with the requirements of the current 3248 03 66/3248 03 61 European and national directives. 1999/5/Ec R&ttE directive Conformity has been verified. The corresponding declarations and documentation are available on file at the manufacturer’s premises. -
Page 26: Warranty Conditions
◆ Dysfunction due to superimposed radio frequencies and other radio disturbances. Any defects occurring within the period of guarantee will be rectified by RADEMACHER at no cost either by repairing or replac- ing the parts concerned or by delivery of a device of the same value or a new replacement. Generally the original guarantee period will not be extended because of replacement delivery or repair resulting from the guarantee.
