TINPLATE TRADITIONS

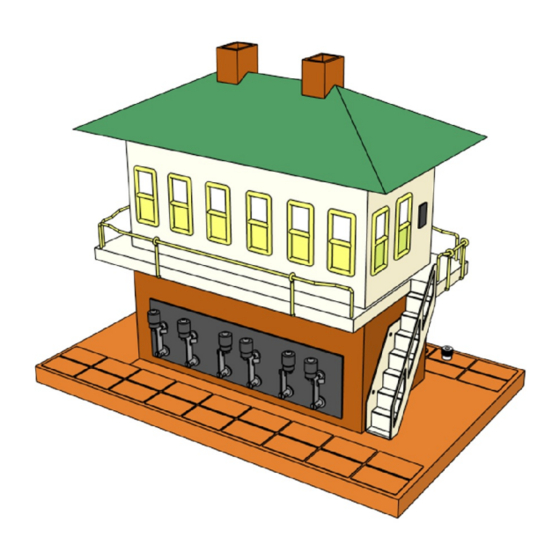

Standard Gauge Switch Tower

Operating Instructions

™

Thank you for purchasing the TINPLATE TRADITIONS Standard Gauge

Switch Tower by M.T.H. Electric Trains. This tinplate model combines the

designs of yesteryear with the quality and craftsmanship of today's M.T.H.

Products.

The Standard Gauge Switch Tower is illuminated with two internal 18-volt

lamps and six knife switches capable of controlling up to 6 electrical

accessories such as building lights, street lights and etc. Please refer to the

following diagrams for illuminating the switch tower and suggestions for

connecting your electrical accessories to get the greatest amount of

enjoyment from your switch tower and standard gauge train layout.

Page 1: Operating Instructions
TINPLATE TRADITIONS Standard Gauge Switch Tower Operating Instructions ™ Thank you for purchasing the TINPLATE TRADITIONS Standard Gauge Switch Tower by M.T.H. Electric Trains. This tinplate model combines the designs of yesteryear with the quality and craftsmanship of today’s M.T.H. Products.
Page 2 Sample Wiring Instructions To turn on your building lights or street lights on or off just connect or disconnect the knife switch.
Page 3 Wiring Interior Lights Lamp Replacement In the event that the lamps in your Switch Tower burn out, please refer to this diagram for light replacement. Please call the M.T.H. Service Department (410-381-2580) for replacement lamps (part # TP-MS00018)
Page 4 SERVICE & WARRANTY INFORMATION HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED ONE YEAR WARRANTY For warranty repair, do not return your product to the place of purchase unless it was purchased from MTH Electric Trains in Columbia, MD. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
