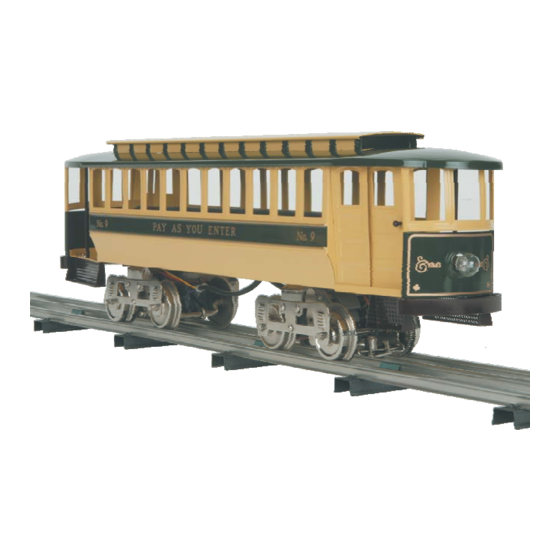

No. 9
Pay As You Enter
Trolley
OPERATOR'S MANUAL
Advertisement
Table of Contents
Related Manuals for M.T.H. No. 9 pay as you enter
Summary of Contents for M.T.H. No. 9 pay as you enter

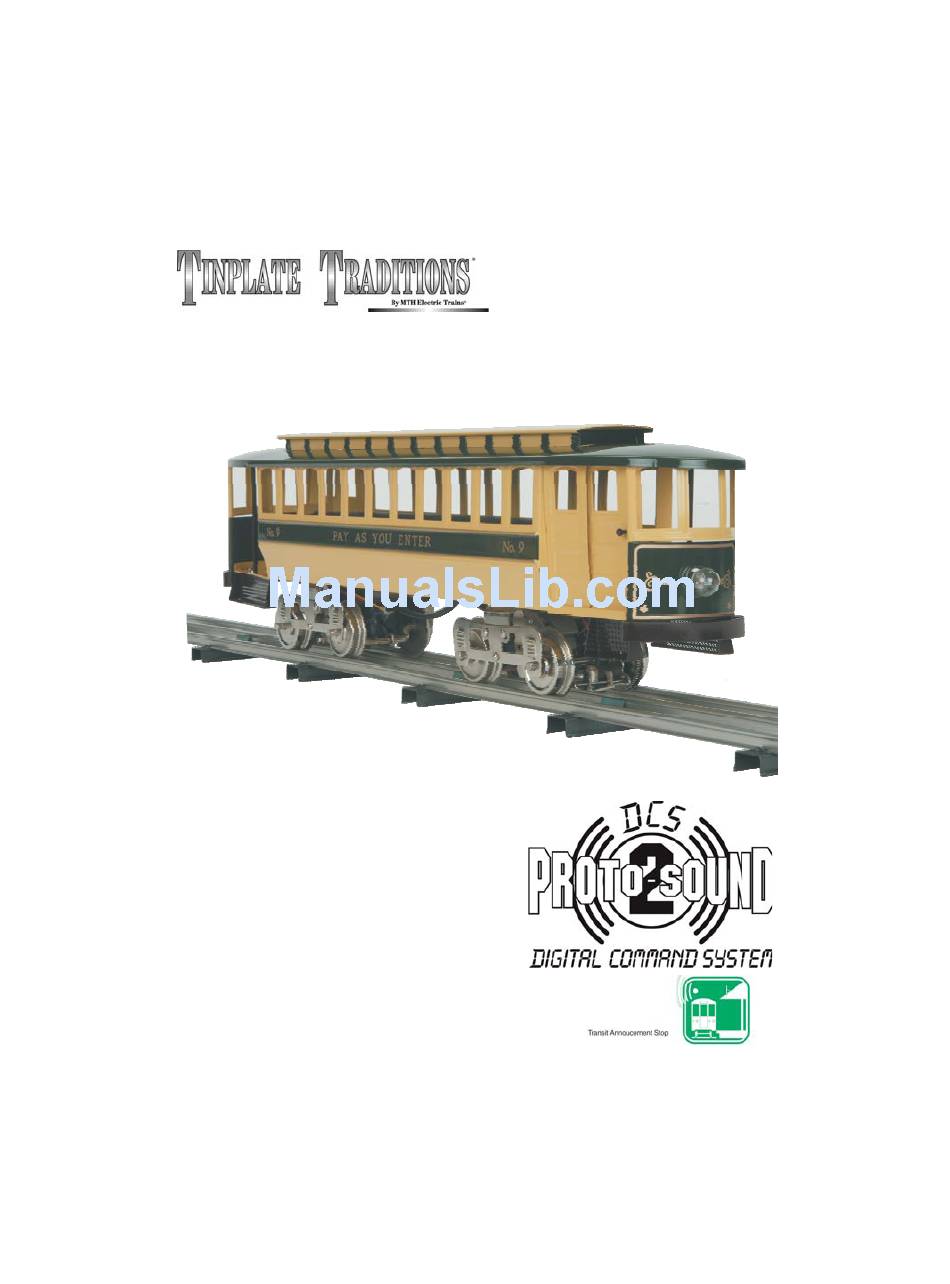

- Page 1 No. 9 Pay As You Enter Trolley OPERATOR’S MANUAL Compatibility This engine will operate on any traditional 42″ STD Gauge track system, including traditional tubular track. It is also compatible with most standard AC transformers. (See page 17 for a complete list of compatible transfomers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist....................3 Lubrication.....................3 Checking The Battery................3 Basic Operation.....................4 Activating Features.................4 Proto-Sound 2.0 Operating Instructions............5 Activating Proto-Sound 2.0 Conventional Mode Features....5 Operating Modes..................6 Manual Modes..................6 Transit Announcement Stops (TAS)............6 Learn Mode....................7 Auto Mode..................... 9 Speed Control..................10 Locking Locomotive Into A Direction.......... -
Page 3: Set Up Checklist
Set Up Checklist • Lubricate the locomotive • Check to see whether the battery needs to be charged for full sound effects • Apply power to run as described in the Basic Operating Section of this manual DO NOT DO NOT Lubrication OVER OIL OVER OIL... -
Page 4: Basic Operation
Basic Operation Throttle Throttle up the power to your track. Advance the throttle until 12 – 16 volts is applied, then put the subway set into forward motion by either firmly pressing the Direction button on your transformer or remote once or dropping and advancing the throttle. -
Page 5: Proto-Sound 2.0 Operating Instructions
Proto-Sound 2.0 Operating Instructions This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment. Activating Proto-Sound 2.0 Conventional Mode Features Because Proto-Sound 2.0 is an all-new system developed by M.T.H.'s own research and development team, it operates differently from original Proto-Sound. -
Page 6: Operating Modes
Operating Modes 1. Manual Mode Upon initial power application, the engine will start up in manual mode. The chart below lists the features available to the operator when in Manual Mode. Different features are available when operating in Learn and Auto Modes, which are described later. Feature to Be Activated Button Code: Transit Announcement Sounds (TAS) -
Page 7: Learn Mode
2. Learn Mode In Learn Mode, the engine may be programmed with either an "Out & Back" route or a "Loop" route. An "Out & Back" route begins at the 1st station (as programmed by the operator), stops at intermediate stations, ends at the last station, then reverses its route until it reaches the 1st station. - Page 8 2. Enter Learn Mode by pressing Horn-Bell-Bell-Bell-Bell. The train will then announce that you have entered Learn Mode. 3. Press and hold the Bell button to scroll through the available stations until you hear the one that you would like to be your first stop. Release the button quickly as soon as you have heard the desired stop name.
-
Page 9: Auto Mode
Auto Mode When you have finished programming your stations in Learn the car will be in Manual Mode. Running in Forward, stop the car at the location of the first programmed station by pressing the Direction button. Press Bell-Horn-Horn to put the train into Auto Mode. Press the Direction button again to begin operation in Auto Mode. -
Page 10: Speed Control
Speed Control M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. -
Page 11: Locking Locomotive Into A Direction
Locking Locomotive Into A Direction You can lock your engine into a direction (forward, neutral, or reverse) so that it will not change directions. To do this, put the engine into the direction you want (or into neutral to lock it into neutral), run it at a very slow crawl (as slowly as it will move without halting), and quickly but firmly tap the Horn button once followed by three quick taps of the Bell button, allowing approximately ½... -
Page 12: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and pickup rollers to prevent squeaking. Use light household oil, such as that found in DO NOT DO NOT M.T.H.'s maintenance kit. -
Page 13: Cleaning The Wheels And Track
Cleaning The Wheels and Track Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction as well as prematurely wear out the neoprene traction tires. Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction and prematurely wear out the neoprene traction tires. -
Page 14: Lightbulb Replacement Instructions
Lightbulb Replacement Instructions Headlights Unscrew the bulb couner-clockwise to remove the burned out bulb (See Figure 4). Figure 4 Replacement bulbs and wire ties are available from the M.T.H. Parts Department (order online: www.mth-railking.com; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532; FAX: 410-381-6122). -
Page 15: Self Charging Battery Back-Up
Self Charging Battery Back-Up The two special AA size 1.5v NiCad self-charging batteries recharges continuously during train operation and should last for up to five years. The batteries are dry battery that should not leak or cause any damage to your engine. Depending upon when your engine was built, they may need to be charged right out of the box. -
Page 16: Troubleshooting Proto-Sound® 2.0 Problems
Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580;... -
Page 17: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 18: Additional Features Accessible Of Dcs Remote Control System
Additional Features Accessible With The DCS Remote Control System (Additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders. -
Page 19: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H. - Page 20 AUTHORIZED SERVICE CENTER AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING N.A.S.C. RETAILER LIST CATOCTIN MOUNTAIN TRAINS FAIRCHANCE PHARMACY CANADA & HOBBIES FAIRCHANCE TOY TRAIN WORKSHOP THURMONT 724-564-7817 CUMBERLAND 301-694-8331 613-833-8331 TOBY TYLER'S HOBBY CENTER MICHIGAN...
