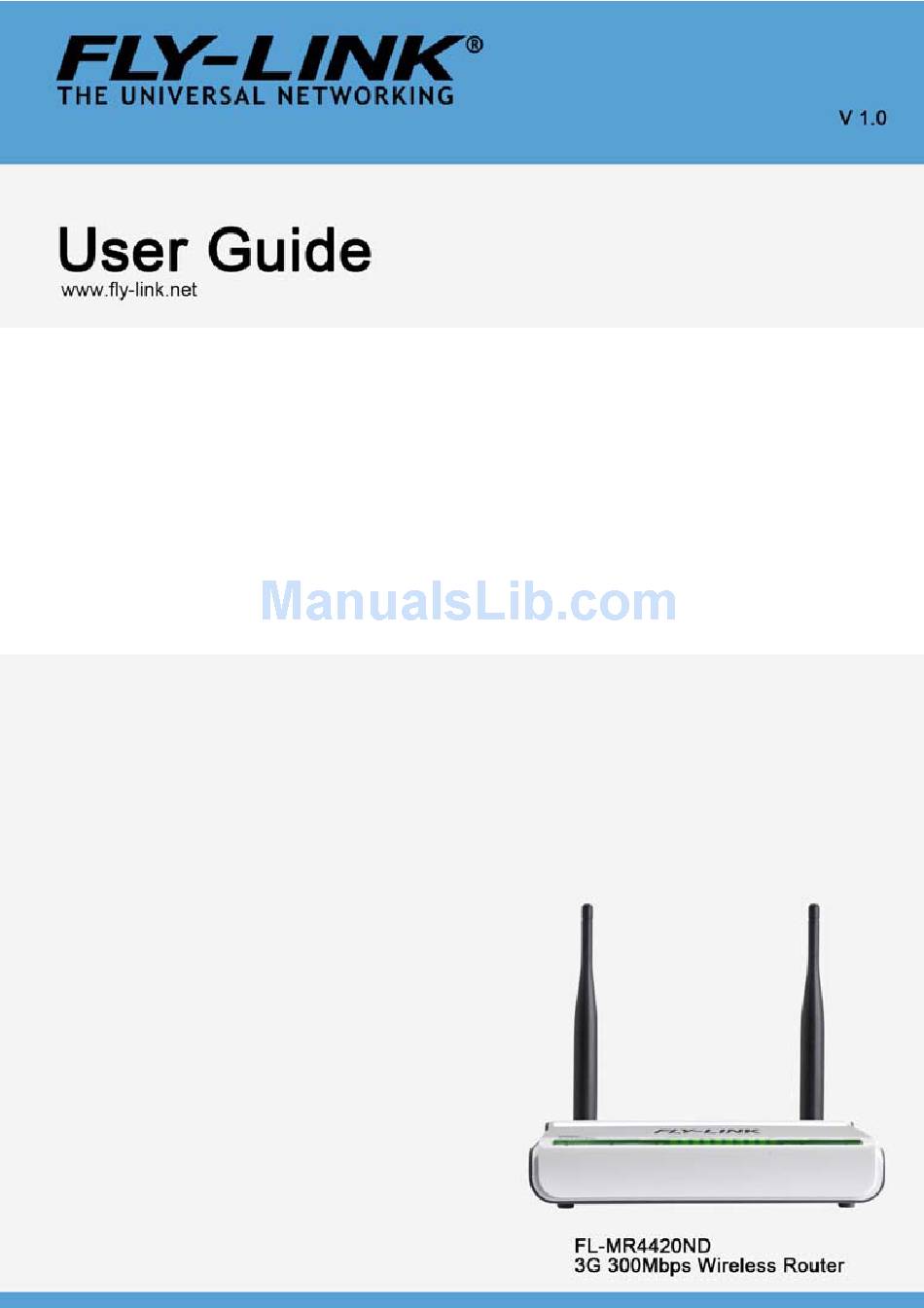

Fly-Link FL-MR4420ND User Manual

3g 300mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL-MR4420ND and is the answer not in the manual?

Questions and answers

Summary of Contents for Fly-Link FL-MR4420ND

  • Page 2: Copyright Statement

    As the upgrade of software and hardware, there will be changes. And if there are changes, Fly-link is not responsible for informing in advance. If you want to know more about our product information, please visit our website at...

  • Page 3: Table Of Contents

    CONTENTS Chapter 1 Introduction ......1 Product Features......2 Package Contents ......4 LED Indicator and Port Description ..4 Chapter 2 Hardware Installation ....8 2.1 How to Install the Router ..... 8 2.2 Network Application Plan ....10 Chapter 3 How to Login to the Router ..
  • Page 4 7.1 Basic Settings ........41 7.2 Wireless Security Setting ....44 7.3 Advanced Settings ......52 7.4 WPS Settings ........53 7.5 WDS Settings........56 7.6 Wireless Access Control ..... 57 7.7 Connection Status ......58 Chapter 8: DHCP Server ......59 8.1 DHCP Settings........
  • Page 5 12.2 URL Filter Settings ......76 12.3 MAC Address Filter ......78 12.4 Prevent Network Attack ....79 12.5 Remote Web Management....80 12.6 Local Web Management ....81 12.7 WAN Ping ........82 Chapter 13 Routing Setting ....83 13.1 Routing Table .........

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Thank you for purchasing Fly-link FL-MR4420ND 300Mbps Wireless Router! FL-MR4420ND is a high speed 3G 300Mbps Wireless Router, which complies with the latest IEEE802.11n and IEEE802.11b/g standards and provides up to 300Mbps wireless receiving and transmitting rate with its wireless transmitting distance 6 times farther than G-products.

  • Page 7: Product Features

    Then, the included “Setup Wizard” is developed by Fly-link especially for less IT-savvy users to install the device within seconds. In a word, FL-MR4420ND is your premier choice to share the Internet via 3G, wireless broadband, and wired broadband access ways.
  • Page 8 3G 300Mbps Wireless Router Ethernet WAN port Provides four 10/100Mbps Auto-Negotiation Ethernet LAN ports Provides one USB 2.0 port for 3G modem card connection Supports xDSL/Cable MODEM, static and dynamic IP in community networking Supports remote/local Web management Supports WMM to better smooth your voice and video Supports wireless...

  • Page 9: Package Contents

    One Quick Installation Guide One Power Adapter One CD-ROM If any of the listed items are missing or damaged, please contact the Fly-link reseller from whom you purchased for replacement immediately. LED Indicator and Port Description Front Panel and LED Indicator Show...
  • Page 10 3G 300Mbps Wireless Router LED indicator description on front panel: (from R to L) POWER When turns green, Always ON indicates the power connects well. When blinking, it indicates the device is negotiating with client in WPS mode. When turns green, blinking indicates the system runs well.
  • Page 11 3G 300Mbps Wireless Router Back Panel Show： Rear Panel From L to R ：（ ） POWER The port is for power adapter connection. Please use the included DC 12V 1.5A power adapter. RESET The system reset button. Press this button for 7 seconds, the settings configured in this device will be deleted and it will restore the settings to the default one.
  • Page 12 3G 300Mbps Wireless Router It is always connected with DSL Modem, Cable Modem, or direct Internet line provided by ISP to access the Internet. LAN (1, 2, 3, 4) 4 10/100Mbps Ethernet ports can be connected with Ethernet switch, Ethernet router and NIC card. Wi-Fi Protected Setup button.

  • Page 13: Chapter 2 Hardware Installation

    3G 300Mbps Wireless Router Chapter 2 Hardware Installation 2.1 How to Install the Router After you unpack the box, please follow the steps below to connect the device. For better wireless performance, please put the device in the middle of wireless coverage area.
  • Page 14 3G 300Mbps Wireless Router 3. Connection between the Router and Network A. If you have a 3G USB modem card, please connect it to the Router's USB port to share 3G network. B. If you are provided the wired broadband by your ISP to access the Internet, please connect the Router's WAN port with the Internet access line.

  • Page 15: Network Application Plan

    3G 300Mbps Wireless Router 4. Please insert the included CD-ROM into the CD-ROM drive. You can run the “Setup Wizard” automatically or click the “Setup” button manually and then follow the instructions to finish installation or enter the Router’s Web-based utility to set the device. (For more details please refer to chapter 3.) 2.2 Network Application Plan Usually Wireless LAN Network is deployed in a planned...
  • Page 16 3G 300Mbps Wireless Router 1. Application Plan for 3G Network Connection 2. Application Plan for Wired Broadband Connection 3. Application Plan for Wireless Broadband Connection...

  • Page 17: Chapter 3 How To Login To The Router

    3G 300Mbps Wireless Router Chapter 3 How to Login to the Router The chapter mainly presents how to enter the Router’s Web page. After you have finished the hardware installation (Please refer to chapter2.), the following steps will assist you to set the network configurations for you computer.
  • Page 18 3G 300Mbps Wireless Router 2. Right click “Local Area Network Connection” and select “Properties”. Select “Internet Protocol (TCP/IP)” and click ． “Properties”.
  • Page 19 3G 300Mbps Wireless Router 4． Select “Obtain an IP address automatically” or select “Use the following IP address (S)”. A. “Obtain an IP address automatically” as the following diagram: B. “Use the following IP address (S)” IP Address: 192.168.0.XXX: (XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1...

  • Page 20: Login To The Router

    3G 300Mbps Wireless Router Tip: If you are not sure of the DNS server address, we recommend you to select “Obtain an IP address automatically (O)” and “Obtain a DNS server address automatically”. 3.2 Login to the Router 1．To access the Router’s Web-based interface, launch a web browser such as Internet Explorer and enter the Router’s default IP address, http://192.168.0.1.
  • Page 21 3G 300Mbps Wireless Router 3. If you enter the correct user name and password, the screen will be the next one.

  • Page 22: Chapter 4 Wan Medium Type

    3G 300Mbps Wireless Router Chapter 4 WAN Medium Type 4.1 WAN Medium Type The Router provides three access medium types. If you are provided the 3G broadband by your ISP to access the Internet, you can connect the 3G USB modem card to the Router’s USB port and select 3G WAN to set the device.
  • Page 23 3G 300Mbps Wireless Router port on the Router’s rear panel. The default type is wired WAN. Wireless WAN: If you are provided the wireless WAN to access the Internet or you want to amplify the wireless signals, you can use this type. Please select the different WAN medium type according to the different access ways provided by your ISP.

  • Page 24: Chapter 5 Quick Setup Guide

    3G 300Mbps Wireless Router Chapter 5 Quick Setup Guide This chapter deals with how to access the Internet quickly. After you enter the Router’s Web-based interface from the Internet Explorer, please select the access medium type provided by your ISP in “WAN Medium”. After saving and rebooting, please select your connection type (PPPOE, Dynamic IP, and Static IP etc.) provided by your ISP to finish the basic settings.
  • Page 25 3G 300Mbps Wireless Router During the installation, please select the type of 3G modem card and enter the basic parameters provided by your 3G ISP. Generally speaking, “Access Point Name” and “Dial” are the necessary settings, but some other modem cards need to set “PIN Code” or “User name/ Password”.
  • Page 26 3G 300Mbps Wireless Router 3G USB Modem card in the compatible products list to download the corresponding upgrading firmware. If you still can’t access the Internet, please contact the 3G modem card reseller and provide the Model No. of the 3G modem card you have, we’ll try our best to help you to solve the problem.
  • Page 27 3G 300Mbps Wireless Router The screen will show as the diagram below. The Router supports multiple access ways such as ADSL PPPOE Dial, Dynamic IP, static IP, etc. In this chapter, we introduce you three common access way settings. If you are not sure of your access way, you can enable the auto-detect function to select your access way.
  • Page 28 3G 300Mbps Wireless Router Dynamic IP (via DHCP) If your connection mode is Dynamic IP, it means your IP address keeps changing every time you connect. You do not need to enter the information like other modes. Click “Next” and “Apply” to finish the settings. Static IP In this screen, fill the network address information from your ISP in the IP Address, Subnet Mask, Gateway and...
  • Page 29 3G 300Mbps Wireless Router follows： IP Address 192.168.1.2 ： Subnet Mask： 255.255.255.0 Gateway： 192.168.1.1 Primary DNS Server： 192.168.1.2 Alternate DNS Server： 202.96.134.133 Click “Apply” to complete the setup wizard. The Router will record the settings you made. To activate the settings, it is recommended to select “Reboot the Router”...
  • Page 30 3G 300Mbps Wireless Router between the Router and ISP device. If the status information of the WAN port appears as the diagram show, it means you have finished the Router’s basic settings and you can surf on line now. If you want to configure more, please refer to the following chapters.
  • Page 31 3G 300Mbps Wireless Router Please enter the wireless SSID, MAC address, channel, security mode parameters provided by your Wi-Fi ISP. If you are not clear, please click” Auto Scan” to finish the settings. Select and save the settings, and you will enter the Router’s Web interface again after rebooting the Router.
  • Page 32 3G 300Mbps Wireless Router are not sure of your ISP access way, you can enable the auto-detect function to select your access way. ADSL Virtual Dial-up (via PPPoE) This way is used when the Router is connected to the wireless modem or you want to amplify wireless signals and share the Internet with multiple computers.
  • Page 33 3G 300Mbps Wireless Router Dynamic IP (via DHCP) If you are provided the Dynamic IP connection mode by your ISP or you want to amplify wireless signals, please select “Obtain the IP address automatically”. Click “Next” and “Save” to finish settings. If the IP address of the WAN port is not 0.0.0.0 on the Router’s running status Web page, it means you can access the Internet now.
  • Page 34 3G 300Mbps Wireless Router attention to the IP address the previous router distributed. If the IP address belongs to the range: 192.168.0.x, you need to change the LAN IP address to different range such as 192.168.2.1. Only this way, you can amplify the wireless signals and access the Internet.
  • Page 35 3G 300Mbps Wireless Router Click “Save” to complete the setup wizard. The Router will record the settings you made. To activate the settings, it is recommended to select “Reboot the Router” from “System Tool” of the left menu. It is rebooting now, please wait for a few minutes and DO NOT power off it.
  • Page 36 3G 300Mbps Wireless Router configure more, please refer to the following chapters. Notice: The difference between wired WAN and wireless WAN is the connection medium type. Generally speaking, the standard twisted-pair is used to connect the Router’s WAN port in wired WAN connection type.
  • Page 37 3G 300Mbps Wireless Router computer with a 3G modem card to access the Internet. If the signals are OK and the speed is fast at the place, you can connect the wireless Router here to share 3G connection and access the Internet.

  • Page 38: Chapter 6 Advanced Settings

    3G 300Mbps Wireless Router Chapter 6 Advanced Settings 6.1 LAN Settings LAN Settings are for the basic TCP/IP parameters of LAN ports. MAC Address: The Router’s physical MAC address as seen on your local network is unchangeable. IP Address: The Router’s LAN IP addresses (not your PC’s IP address).

  • Page 39: Wan Settings

    3G 300Mbps Wireless Router 6.2 WAN Settings After you have selected the ISP connection type in “Setup Wizard” and you want to modify the related settings, here you can modify and configure the settings in details. Virtual Dial-up PPPoE （ ）...
  • Page 40 3G 300Mbps Wireless Router application software can not be open or enabled, you can have a try to change the MTU value as 1450, 1400, etc. Service Name: It is defined as a set of characteristics that applied to a PPPoE connection.
  • Page 41 3G 300Mbps Wireless Router Static IP If your connection mode, static IP is chosen, you can modify the following addressing information. IP Address: Here enter the WAN IP address provided by your ISP. Subnet Mask: Enter the WAN Subnet Mask here.

  • Page 42: Network Settings

    3G 300Mbps Wireless Router 3G Broadband: Network settings 3G modem card type: choose the Model No. of your 3G USB modem card. Authentication method: access authentication methods include SIM card type and Username/Password type. PIN code: SIM card personal identification code. Enter them provided by your ISP.
  • Page 43 3G 300Mbps Wireless Router Access Point Name: Enter them provided by your ISP. Advanced PPP Settings User Name: PPP Authentication User Name. Some ISP need to enter this value. Password: PPP Authentication Password. Some ISPs need to enter this value. If your ISP doesn’t offer you the related parameters, you do not need to enter them.

  • Page 44: Mac Address Clone

    3G 300Mbps Wireless Router 6.3 MAC Address Clone This page is for the Router’s MAC address to WAN. Some ISPs require end-user's MAC address to access their network. This feature copies the MAC address of your network device to the Router. MAC Address: The MAC address to be registered with your Internet service provider.
  • Page 45 3G 300Mbps Wireless Router DNS: Click the checkbox to enable the DNS server. The Router’s DHCP sever will answer the client’s requests and distribute DNS address. Primary DNS Address: Enter the necessary address provided by your ISP. Secondary DNS Address: Enter the second address if your ISP provides, which is optional.

  • Page 46: Chapter 7 Wireless Setting

    3G 300Mbps Wireless Router Chapter 7 Wireless Setting 7.1 Basic Settings Enable Wireless: Check to enable the Router’s wireless features; uncheck to disable it. Network Mode ： Select one mode from the following. The default is 11b/g/n mode.
  • Page 47 3G 300Mbps Wireless Router 11b mode： Allow the wireless client to connect with the device in 11b mode at the maximum speed of 11Mbps. 11g mode： Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps. 11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and 11n...
  • Page 48 3G 300Mbps Wireless Router via wireless adapter, and configure PC1 and PC2 in the same segment. After the feature is enabled, two PCs can not communicate and share network resource each other, but they can communicate with wireless clients connected with AP2. This feature is to isolate the communication of wireless clients connected with the same SSID.

  • Page 49: Wireless Security Setting

    3G 300Mbps Wireless Router Standard Channel：Specify the effective channel (from 1 to 13\Auto) of the wireless network. Extension Channel：To increase data throughput of wireless network, the extension channel range is used in 11n mode. Channel Bandwidth ： Select channel bandwidth to improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M;...
  • Page 50 3G 300Mbps Wireless Router WPA Algorithms：Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]. Pass Phrase: Enter the encrypted characters with 8-63 ASCII characters. Key Renewal Interval ： Set the key’s renewal period. 7.2.2 WPA2- Personal WPA2 (Wi-Fi Protected Access version 2) provides higher security than WEP (Wireless Equivalent Privacy) (Wi-Fi Protected...
  • Page 51 3G 300Mbps Wireless Router WPA Algorithms：Provides TKIP [Temporal Key Integrity Protocol], AES [Advanced Encryption Standard] or TKIP&AES mixed mode. Pass Phrase ： Enter the encrypted characters with 8-63 ASCII characters. Key Renewal Interval ： Set the key’s renewal period. 7.2.3 Mixed WEP WEP (Wired Equivalent Privacy), a basic encryption method, usually encrypts wireless data using a series of digital keys (64 bits or 128 bits in length).
  • Page 52 3G 300Mbps Wireless Router Select SSID ： Select the SSID (main SSID or minor SSID) to configure security setting from the drop-down menu. Security Mode：From the drop-down menu select the corresponding security encryption modes. WEP Key： Set the WEP key with the format of ASCII and Hex.
  • Page 53 3G 300Mbps Wireless Router 7.2.4 WPA- Enterprise This security mode is used when a RADIUS server is connected to the device. Select “WPA-Enterprise” from the drop-down menu to enter the following window: WPA Algorithms：Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard].
  • Page 54 3G 300Mbps Wireless Router Session Timeout ： The authentication interval period between the Router and authentication server. 7.2.5 WPA2-Enterprise This security mode is based on Radius authentication server and WPA2 encryption method. WPA2 is used when a RADIUS server is connected to the device. Select “WPA2-Enterprise”...
  • Page 55 3G 300Mbps Wireless Router period. Radius Server Address：Enter the IP address of the Radius server. Radius Server port ： Enter the authentication port of the Radius server. The default is 1812. Shared Key ： Enter shared authentication server with 8~63 ASCII characters. Session Timeout ：...
  • Page 56 3G 300Mbps Wireless Router WEP：Click “Enable/Disable” to enable or disable the WEP algorithm. Radius Server Address：Enter the IP address of the Radius server. Radius Server Port ： Enter the authentication port of the Radius server. The default is 1812. Shared Key ：...

  • Page 57: Advanced Settings

    3G 300Mbps Wireless Router (Disable), WPA-Personal-AES, PA2-Personal-AES. Other encryption methods nonstandard. There may be compatibility problems among different manufacturers. 7.3 Advanced Settings This section is to configure the advanced wireless setting of the Router, including the BG Protection Mode, Basic Data Rates, Fragmentation Threshold, RTS Threshold, and WMM etc.

  • Page 58: Wps Settings

    3G 300Mbps Wireless Router wireless radio. Default value 100. recommended not to modify this value. Fragment Threshold: fragmentation threshold defines the maximum transmission packet size in bytes. The packet will be fragmented if the arrival is bigger than the threshold setting. The default size is 2346 bytes.
  • Page 59 3G 300Mbps Wireless Router method and secret keys by manual. In the “Wireless settings” menu, click “WPS settings” to enter the next screen. WPS settings：To enable or disable WPS function. The default is “disable”. WPS mode：Provide two ways: PBC (Push-Button Configuration) and PIN code.
  • Page 60 3G 300Mbps Wireless Router means the WPS connection is completed. If more clients are added, repeat the above steps. At present, the WPS supports up to 32 clients access.) PIN：If this option is enabled, you need to enter a wireless client’s PIN code in the field and keep the same code in the WPS client.

  • Page 61: Wds Settings

    3G 300Mbps Wireless Router be turned off. AP will not respond the WPS client’s requests and the set the security mode as WPA mode. 7.5 WDS Settings WDS (Wireless Distribution System) is used to expand wireless coverage area. This Router provides three modes: Lazy, Bridge and Repeater.

  • Page 62: Wireless Access Control

    3G 300Mbps Wireless Router or scanner to enlarge and extend the wireless radio. Encrypt Type: Select one from WEP, TKIP, AES for security here. Pass phrase: Enter the encrypted key for wireless devices. AP MAC Address: Input the MAC address of another (opposing) wireless router you want to connect.

  • Page 63: Connection Status

    3G 300Mbps Wireless Router address filter. Select “off” to malfunction MAC address; “disable” to prevent the MAC addresses in the list from accessing the wireless network; “Allow” to allow the MAC address in the list to access the wireless network. MAC Address Management ：...

  • Page 64: Chapter 8: Dhcp Server

    3G 300Mbps Wireless Router Chapter 8: DHCP Server 8.1 DHCP Settings DHCP (Dynamic Host Control Protocol) is to assign an IP address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP Address Automatically”.

  • Page 65: Dhcp List And Binding

    3G 300Mbps Wireless Router 8.2 DHCP List and Binding The Static IP assignment is to add a specifically static IP address to the assigned MAC address. You can view the related information in the DHCP server list. IP Address: Enter the IP address which needs to be bound.

  • Page 66: Chapter 9 Virtual Server

    3G 300Mbps Wireless Router Chapter 9 Virtual Server 9.1 Single Port Forwarding The Router can be configured as a virtual server on behalf of local services behind the LAN port. The given remote requests will be re-directed to the local servers via the virtual server.
  • Page 67 3G 300Mbps Wireless Router Internal Port: This is the port number of LAN computer set by the Router. The Internet traffic from the external port will forward to the internal port. For example：you can set the internal port NO.66 to act as the external port NO.21 for ftp service.

  • Page 68: Port Range Forwarding

    3G 300Mbps Wireless Router NOTE: If you set the virtual server of the service port as 80, you must set the Web management port on Remote Web Management page to be any value except 80 such as 8080. Otherwise, there will be a conflict to disable the virtual server.
  • Page 69 3G 300Mbps Wireless Router which ranges the External ports used to set the server or Internet applications. IP Address: Enter the IP address of the PC where you want to set the applications. Protocol: Select the protocol (TCP/UDP/Both) for the application. Delete/Enable: Click to check it for corresponding operation.

  • Page 70: Alg Service Settings

    3G 300Mbps Wireless Router 9.3 ALG Service Settings In the context of computer networking, an ALG or application layer gateway consists of a security component that augments a firewall or NAT employed in a computer network. It allows customized NAT traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data"...

  • Page 71: Dmz Settings

    3G 300Mbps Wireless Router Usually allowing client applications to use dynamic ephemeral TCP/ UDP ports to communicate with the known ports used by the server applications, even though a firewall-configuration may allow only a limited number of known ports. In the absence of an ALG, either the ports would get blocked or the network administrator would need to explicitly open up a large number of ports in the firewall;...

  • Page 72: Upnp Settings

    3G 300Mbps Wireless Router DMZ Host IP Address: The IP address of the computer you want to expose. Enable: Click the checkbox to enable the DMZ host. For example: Set the computer at the IP address of 192.168.0.10 in LAN as a DMZ Host to intercommunicate with another host on the Internet.
  • Page 73 3G 300Mbps Wireless Router Enable UPnP: Click the checkbox to enable the UPnP.

  • Page 74: Chapter 10 Traffic Control

    3G 300Mbps Wireless Router Chapter 10 Traffic Control 10.1 Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration.

  • Page 75: Traffic Statistics

    3G 300Mbps Wireless Router IP Starting Address: The first IP address for traffic control. IP Ending Address: The last IP address for traffic control. Uploading/Downloading: To specify the traffic heading way for the selected IP addresses: uploading or downloading. Bandwidth: To specify the uploading/downloading Min.
  • Page 76 3G 300Mbps Wireless Router Enable traffic statistics: check to enable traffic statistics. Usually traffic statistics is disabled, which can improve the Router’s data handling. The default is disabled. If it is enabled, the page will update the PC’s traffic information automatically and be refreshed every 5 seconds.

  • Page 77: Chapter 11 Url Monitor

    3G 300Mbps Wireless Router Chapter 11 URL Monitor 11.1 URL Monitor This feature is used to record user’s Internet activity, so in terms of this feature, the administrator can check out and control what they can do and have done. Enable URL Monitor: After checking this feature, the Router will record LAN computer’s URL information, including the...
  • Page 78 500 entries. Receive E-mail Address: Input the received E-mail’s address here. For example: Fly-link@sina.com.cn SMTP Server Address: Input the SMTP server address here. If you are not clear what your SMTP server’s address is, you can find them from Help page of the registered e-mail.
  • Page 79 3G 300Mbps Wireless Router Entry Triggering Interval: To set sending e-mail’s entry interval. The entry ranges from 100 to 500. For example: If you input 100 here, it means the Router will send an email from “Send Email Address” to “Receive Email Address”...

  • Page 80: Chapter 12: Security Settings

    3G 300Mbps Wireless Router Chapter 12: Security Settings 12.1 Client Filter Settings To benefit your further management to the computers in the LAN, you can control some ports access to Internet by data packet filter function. Client Filter: Check to enable client filter. Access Policy: Select one number from the drop-down menu.

  • Page 81: Url Filter Settings

    3G 300Mbps Wireless Router Policy Name: Enter a name for the access policy selected. IP Start/End: Enter the starting/ending IP address. Port No.: Enter the port range based over the protocol for access policy. Protocol: Select one protocol (TCP/UDP/Both) from the drop-down menu. Times: Select the time range of client filter.
  • Page 82 3G 300Mbps Wireless Router URL Filter: Check to enable URL filter. Access Policy: Select one number from the drop-down menu. Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all settings for the policy. Filter Mode: Click one radio button to enable or disable to access the Internet.

  • Page 83: Mac Address Filter

    3G 300Mbps Wireless Router Days: Select the day(s) to run the access policy. Save: Select Save to enable the settings. For example: If you want the computer at the IP address of 192.168.0.123 to access the Internet from 9：00 to 18： 00 everyday and only can search the WEB pages contain the strings such as sina, sohu, and yahoo, you need to set the packet filtering list as the above diagram.

  • Page 84: Prevent Network Attack

    3G 300Mbps Wireless Router MAC Address Filter: Check to enable MAC address filter. Access Policy: Select one number from the drop-down menu. Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all settings for the policy. Filter Mode: Click one radio button to enable or disable to access the Internet.

  • Page 85: Remote Web Management

    3G 300Mbps Wireless Router Prevent Network Attack: Check to enable it for attack prevention. 12.5 Remote Web Management This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside the local network, please select the “Enable”.

  • Page 86: Local Web Management

    3G 300Mbps Wireless Router Note： 1. If you want to login the device’s Web-based interface via port 8080, you need use the format of WAN IP address: port (for example http://219.134.32.101: 8080) to implement remote login. 2. If your WAN IP address starts and ends with 0.0.0.0, it means all hosts in WAN can implement remote Web management.

  • Page 87: Wan Ping

    3G 300Mbps Wireless Router Enable: Check to enable the local web management. MAC Address: Enter the MAC addresses of LAN computers. Note ： 1. In the default state, this feature is not enabled. All computers in the LAN can login the Web.

  • Page 88: Chapter 13 Routing Setting

    3G 300Mbps Wireless Router Chapter 13 Routing Setting 13.1 Routing Table The main duty for a router is to look for a best path for every data frame, and transfer this data frame to a destination. So, it’s essential for the router to choose the best path, i.e.
  • Page 89 3G 300Mbps Wireless Router Destination LAN IP. Gateway: The gateway of the next hop, usually the Router or host’s IP address. Note： 1. The gateway must keep the same segment with the Router’s LAN IP address. 2. If the destination IP address is one host’s IP address, the Subnet mask should be 255.255.255.255.

  • Page 90: Chapter 14 System Tools

    3G 300Mbps Wireless Router Chapter 14 System Tools 14.1 Time Settings This section is to select the time zone for your location. If you turn off the Router, the settings for time disappear. However, the Router will automatically obtain the GMT time again once it has access to the Internet.

  • Page 91: Ddns

    3G 300Mbps Wireless Router 14.2 DDNS DDNS (Dynamic Domain Name System) supported in this Router. It is to assign a fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind the Router.
  • Page 92 3322.org as follows: User name Fly-link Password 123456 Domain Name Fly-link.vicp.net After mapping the port in the virtual server, setting account information in DDNS server and in the address field entering http://Fly-link.3322.org, you can access the Web page.

  • Page 93: Backup/Restore Settings

    3G 300Mbps Wireless Router 14.3 Backup/Restore Settings The device provides backup/restore settings, so you need set a directory to keep these parameters. Backup Setting： Click “Backup” button to back up the Router’s settings and select the path for save. Click “Save” to save the configuration files.
  • Page 94 3G 300Mbps Wireless Router Restore Setting： Click “Browse” button to select the backup files. Click “Restore” button to restore previous settings.

  • Page 95: Restore To Factory Default Setting

    3G 300Mbps Wireless Router 14.4 Restore to Factory Default Setting This button is to reset all settings to the default values. It means the Router will lose all the settings you have set. So please Note down the related settings if necessary.

  • Page 96: Upgrade Firmware

    14.5 Upgrade Firmware The Router provides the firmware upgrade by clicking the “Upgrade” after browsing the firmware upgrade packet which you can download from www.fly-link.net. Browse: click this button to select the upgrade file. Upgrade: click this button to start the upgrading process.

  • Page 97: Password Change

    3G 300Mbps Wireless Router 14.7 Password Change This section is to set a new user name and password to better secure your router and network. User Name: Enter a new user name for the device. Old Password: Enter the old password. New Password: Enter a new password.

  • Page 98: System Log

    3G 300Mbps Wireless Router 14.8 System Log The section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically. Refresh: Click this button to update the log.

  • Page 99: Appendix Ⅰ：glossary

    3G 300Mbps Wireless Router Appendix Ⅰ：Glossary 3G, the 3rd Generation, refers to the third digital communication technology. It can manage multi-media such as image, audio, and video streams etc. and provide different communication services such as web browse, telephone session, and electronic business etc. CDMA2000 CDMA2000 ,also called CDMA Multi-Carrier, is one of the current three 3G standards in the world which was put...
  • Page 100 3G 300Mbps Wireless Router Channel An instance of medium use for the purpose of passing protocol data units (PDUs) that used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference.
  • Page 101 3G 300Mbps Wireless Router data. Therefore, all devices on a wireless network must use the same key and same type of encryption. There are 2 methods for entering the KEY; one is to enter a 16-bit HEX digit. Using this method, users must enter a 10-digit number (for 64-bit) or 26-digit number (for 128-bit) in the KEY field.
  • Page 102 3G 300Mbps Wireless Router 802.1x Authentication Static WEP key is difficult to manage. When you change the key, you need to inform everyone. Once the key is disclosed, there is no security. In addition, since static WEP encryption has serious security holes, the WEP key can be decrypted by receiving multiple data.

  • Page 103: Appendix Ⅱ: Troubleshooting

    In this part some questions and problems shown during the Router’s usage and installation will be given suggesting answers. If your problems are not in the list, please log into our website www.fly-link.net or send an E-mail to support@fly-link.net, and we will reply you in the earliest time.
  • Page 104 3G 300Mbps Wireless Router 2. Forget the login password and can not enter the setting page. What can I do? Press the “RESET” button for 7 seconds to restore the Router to default settings. 3. The computer connected with the Router shows IP address conflict.
  • Page 105 3G 300Mbps Wireless Router address to the bind21ing PC’s MAC address. Select “MAC Address Clone” in “Advanced Setting” to input your computer’s MAC address and click “Apply” to activate it. 6. How to share my computer’s source with other users in Internet？ If you want Internet users to access the internal server via the Router such as e-mail server, Web, FTP, you can configure the “Virtual Server”...

  • Page 106: The Internet

    3G 300Mbps Wireless Router application and service port: Server Protocol Service Port WEB Server FTP Server Telnet NetMeeting 1503、1720 File Send:6891-6900(TCP) TCP/UDP Messenger Voice:1863、6901(TCP) Voice:1863、5190(UDP) PPTP VPN 1723 Iphone5.0 22555 SMTP POP3 7. Why can’t I use my 3G Modem Card to connect the Internet? Please make sure that you have inserted a SIM card into your 3G Modem Card, you have enabled...
  • Page 107 3G 300Mbps Wireless Router is compatible with the Router. You can search the related model No. on the compatible product list. Please make sure that the 3G modem card model selected in the 3G Web interface matches the practical product and the settings you entered match the parameters by your ISP.
  • Page 108 3G 300Mbps Wireless Router d. Please do not detach any antenna of the wireless Router when you are using the Router. After trying all the above steps, if you still can’t access the Internet, you can contact us for support. 9．Why do the charges increase after using a 3G Modem Card? a.
  • Page 109 EU Declaration or Declaration of Conformity Hereby, FLY-LNK, declares that this 3G 11N Wireless Router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. www.fly-link.net...
