Summary of Contents for Sceptre E22

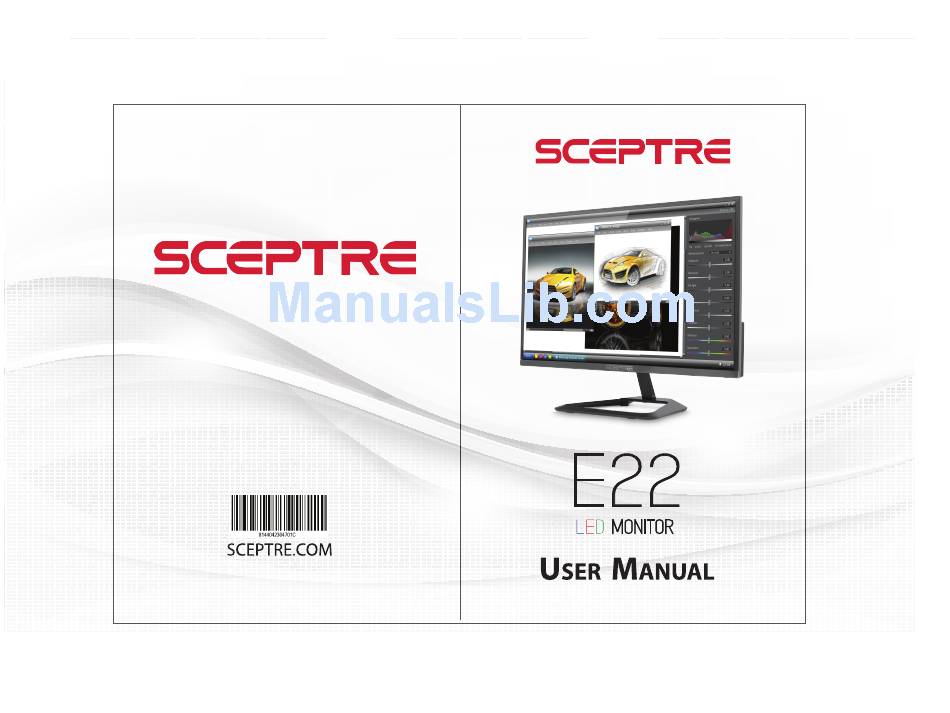

- Page 1 284mm 213mm 8144021020008...
-
Page 2: Safety Instructions
- 1 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 3: Safety Instructions
No naked flame sources, such as lighted candles, should be placed on the ap paratus. 10. Operating environment: temperature: 5° C~35° C, Humidity: 10% to 90% non- condensing, altitude: 0~2,000 m. - 2 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 4: Important Information
IMPORTANT INFORMATION - 3 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... - Page 5 This UL mark is certify of product compliance with UL energy efficiency certification. This mark is to certify the AC adapter from this product complies with the definition of Limited Power Source. - 4 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual...
-
Page 6: Safety Instructions
Do not place the display on cloth or sure of the type of power supplied to other materials that may be located your home, consult your dealer or local power company. - 5 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... - Page 7 Operating environment: Temperature: immediately. Do not try to repair the 5° C ~ 35° C, Humidity: 10% to 90% product yourself. non-condensing, Altitude: 0~2,000 m. - 6 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual...

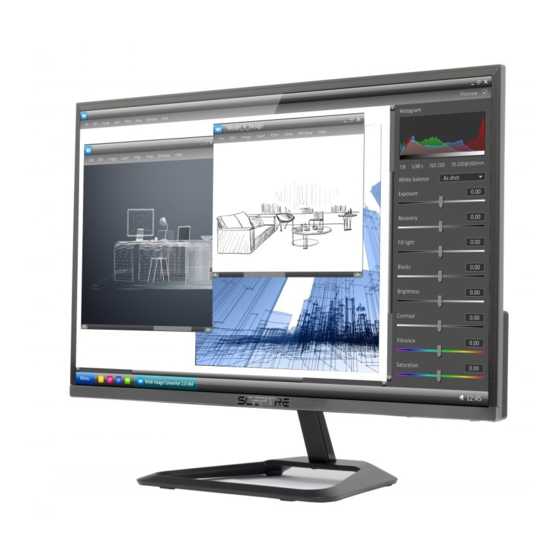

- Page 8 Dear Sceptre Customer, Congratulations on your new SCEPTRE E22 LED monitor purchase. Thank you for your support. To ensure safety and many years of trouble free operation of your LED monitor, please read the manual carefully before making any adjustments, and keep them in a safe place for future reference.
-
Page 9: Opening The Package
Opening the Package The SCEPTRE display is packaged in a carton. The size and weight of the product might be too heavy for 1 person to handle. In the event of that happening; it is recommended that the display package must be handled by a minimum of 2 or more persons. -
Page 10: Attaching The Base
Make sure the wall is structurally safe for the weight of the display Make sure the wall mount kit is compatible with the display Read and follow all instructions provided by the wall mounting kit. Securely install all screws and connections. - 9 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 11: Removing The Base
To remove the stand, lay the display with the screen portion facing down. Look at the back of the monitor and pull open the plastic cover on the neck from the left side. Unscrew the 2 screws and you can take apart the stand. - 10 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 12: Table Of Contents
How do I clean the LED Monitor? ................28 Specification ........................ 29 LIMITED PRODUCT WARRANTY ................30 Disclaimer, Trademarks, Icons & Copyright Information ..........32 FCC Compliance Statement ..................33 - 11 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 13: Identifying Front And Rear Panel
Please Note: The 10mm length of screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws, you should add the original 5mm to the thickness of your mounting plate in order to get the total screw length. - 12 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 14: Rear Control Buttons
– This button switches between all the different inputs of the display. When the OSD is active, this button acts as the EXIT button and exits out of the option or OSD. – This button turns the display on or off. - 13 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 15: Rear View Connections
HDMI video output. WARNING: This monitor is not equipped with built in speakers. The [audio in] connection is used to transfer audio signal to the [audio out] port. - 14 - www.SCEPTRE.com SCEPTRE E22 FHD Display User Manual... -
Page 16: Connections
Obtain the VGA cable and connect to the VGA connection on your PC. Connect the other end of the cable to your E22 LED MONITOR. Turn on the power of both the E22 LED MONITOR and the PC. Please Note: ... -
Page 17: If You Have Hdmi Connection On Your Cable Or Satellite Box
2. Obtain a HDMI cable and connect one end to the back of the monitor and the other end to the back of the cable or satellite box. 3. Turn on the power of both the E22 LED MONITOR and the cable or satellite box. -
Page 18: On Screen Display (Osd) Menu
▲ ▼ select the option you want to adjust. Use the buttons to adjust each option’s values. When you want to exit press the button. - 17 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 19: Luminance
PRESET – This option lets the user select pre-calibrated options of brightness and contrast. DCR – This option automatically adjusts the contrast for you depending on the graphics displayed at the time. - 18 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 20: Image
Always use auto adjust first to adjust the image. This option is only available with a VGA connection. The image option will be disabled if you are using HDMI. - 19 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 21: Color Adjust
USER COLOR – This option lets the user adjust the white balance by tweaking the RED, GREEN, and BLUE color. If you have selected the BLUE LIGHT SHIFT option, it will adjust the level of blue light on the display. - 20 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 22: Osd Settings
TRANSPARENCY – This option adjusts the transparency of the OSD menu. Please Note: Changing the language of the OSD will alter all the messages and OSD ・ language of the monitor. - 21 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 23: Reset
VGA. RESET – This option reset all settings under the OSD. Please Note: IMAGE AUTO ADJUST and COLOR AUTO ADJUST only available under the input VGA. - 22 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 24: Other
SIGNAL SOURCE – This option lets users change the source of their video. - 23 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 25: Supported Pc (Vga) Resolution
1080p *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. **Specifications are subject to change without notice. - 24 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 26: Troubleshooting
Click on OK 2-3 times to finalize your change. If you do NOT have a CRT monitor or it’s already broken, please make sure both the E22 LED monitor and your computer is turned off. Turn on the LED monitor and the computer. - Page 27 HOW DO I RESET Make sure there is a valid video signal to the monitor and THE MONITOR press menu to open the OSD. Look for ALL RESET under RESET options. - 26 - www.SCEPTRE.com E22 Series FHD Display User Manual...
- Page 28 I CAN’T GET TO THE Make sure you are using a VGA video connection. If you IMAGE OPTION have HDMI, that option will be disabled because it only UNDER THE OSD adjusts analog signals. - 27 - www.SCEPTRE.com E22 Series FHD Display User Manual...
-
Page 29: How Do I Clean The Led Monitor
Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. - 28 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 30: Specification
Neck Screws Features VGA, HDMI (HDCP supported), AUDIO IN/OUT FCC, cTUVus, Energy Star V7.0, RoHS, Compliance MS WHQL, ISTA 3A V7.0 Energy Star *Specifications are subject to change without notice. - 29 - www.SCEPTRE.com E22 Series FHD Display User Manual... -
Page 31: Limited Product Warranty
(SCEPTRE reserves the right to determine “wear and tear” on any and all products); unsatisfactory visual or audio performance not caused by a manufacturing defect;... - Page 32 Dead Pixel Policy SCEPTRE sets limit on the LCD at 3 dead pixels in a cluster adjacent to each other, or 5 dead pixels in a combination of color and brightness. Any number of dead or bad pixels under the limit is considered to be within normal performance specification of the LCD and is not considered defective.
-
Page 33: Disclaimer, Trademarks, Icons & Copyright Information
SCEPTRE is a trademark or registered trademark of Sceptre Group. Sceptre, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 34: Fcc Compliance Statement
European Notice Products with the CE marking comply with both the EMC Directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. - 33 - www.SCEPTRE.com E22 Series FHD Display User Manual...
