Installing the Module

Delivery Check
The OTAC-01 module package contains:
• OTAC-01 module
• Warning stickers in several languages
• This manual
Mounting
WARNING! Follow the safety instructions given in this guide and in the
ACS550 User's Manual.

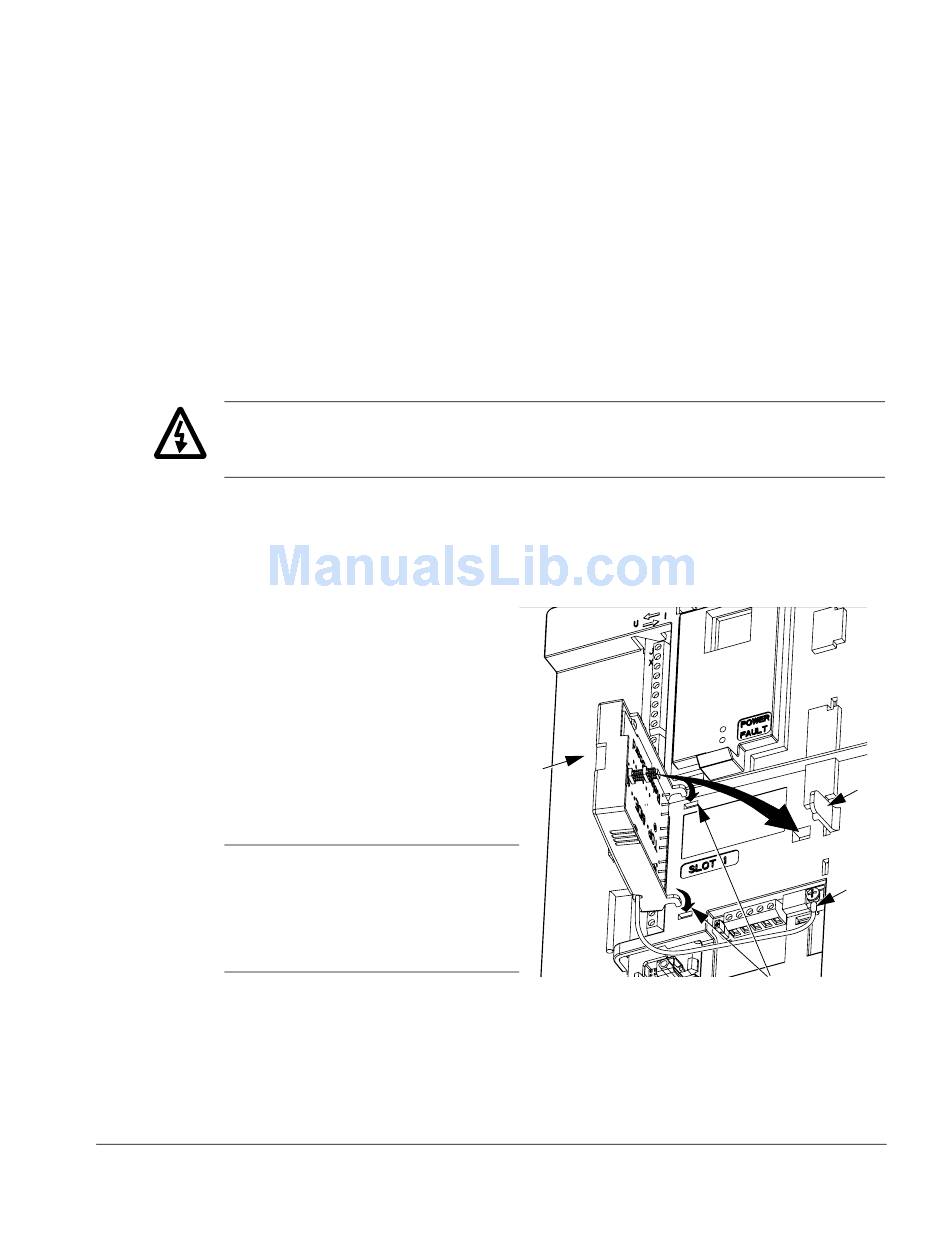

To mount the OTAC-01 module:
1. If not already off, remove mains power from the drive.
2. Remove the drive cover. (See instructions in the drive User's Manual.)
3. Insert the OTAC-01 module's
plastic hooks into the front of
the drive at SLOT 1.
4. Carefully fit the connector at
the other end of the module
into the drive connector.
5. Press until the retaining clip
locks the module into position.
NOTE! Signal and power
connections to the drive are
automatically made through a
6-pin connector.
6. Connect the ground lead to
the chassis screw terminal on the drive.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
7
5
5
4
6
3
X0062
Installation
