Headphone
On the front panel (19), you can connect a headset with a 6.3 mm jack connection.
Inside Converto installed a solid state amplifier of high quality to be able to listen to through headphones or
digital sources, selecting the input 4 dedicated analog source.
The headphone amplifier is equipped with three sound adjustment: Volume, Gain and Balance.

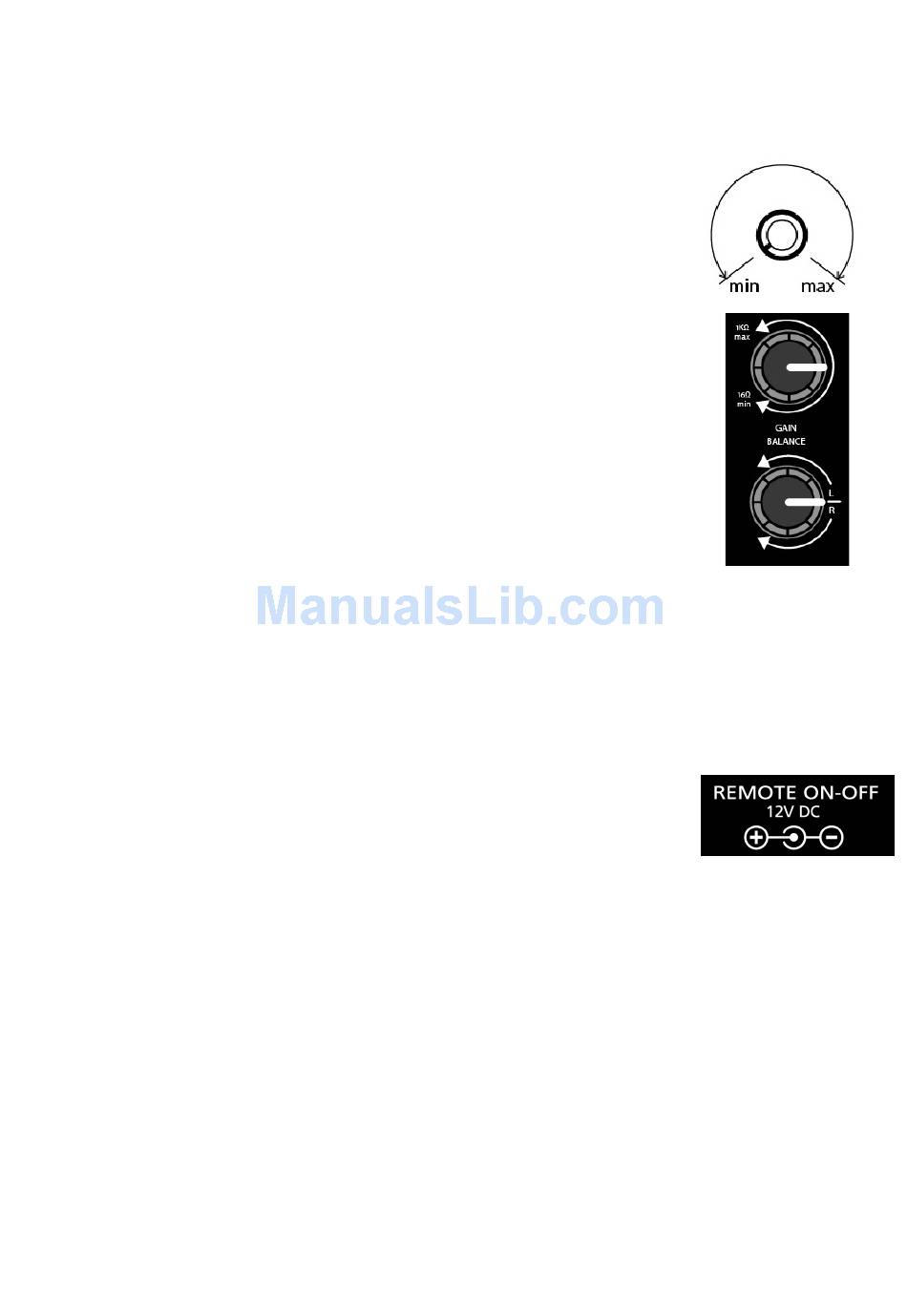

Volume:
Through the knob on the front panel (18) you can adjust the volume from the
minimum (mute) to the maximum.
The adjustment is made through the 270° rotation of the knob.
The adjustment is made through the rotation of 270° of the knob
Gain:
Through the knob on the rear panel (2) you can select the output gain in the
headphone.
Given the large difference in impedance and sensitivity of the headphones on the
market (from 16 to 1000 ohms) you need to adjust the gain to decrease if you use a
low-impedance headphones, or increase it if you use a headset at high impedance.
For the correct adjustment Volume / Gain Pathos recommend the following
procedure:
- Lower the gain to a minimum before connecting a headset
- Set the master volume at half scale
- Increase the gain in order to perceive a good listening volume.
By doing so you will have the perfect flexibility of using the volume knob on the front panel, preventing
excessive volume
Balance:
using the knob on the rear panel (3) it is possible to balance the output left / right to adapt to all possible
needs.

Remote ON/OFF

Converto is provided with two connectors for switching on/off via remote.
Remote ON/OFF IN: unit switches on when reaching 12VDC on the connector.
When at 0 the unit will switch off.
Remote ON/OFF OUT: when unit is on, 12VDC are on the connector to turn on other machines provided
with compatible remote.
