- Page 1 E C O L O G I C A L C O O L E R S INTELLIGENT PLUS User’s Manual www.safertransamerica.com / 714-457-1046...
- Page 2 IMPORTANT Installation requires an experienced mechanic with specific knowledge in the installation of the VIESA Ecological Cooler. Installation, disassembly, repairs and maintenance must be performed by an Authorized Installer. Authorized Installer must use proper protective equipment when installing the system.

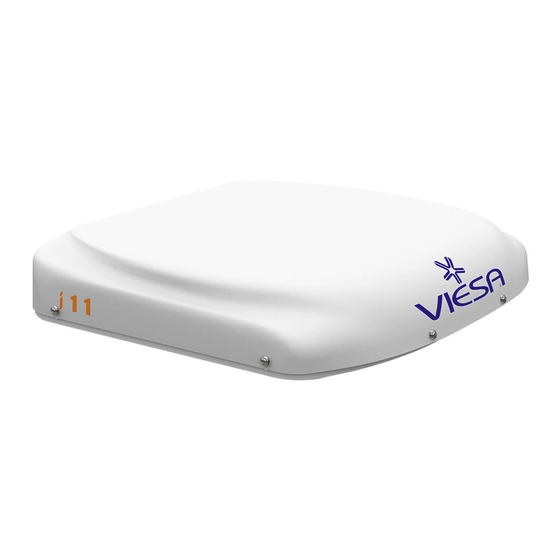

- Page 3 Function VIESA Intelligent Plus is a roof mounted cab cooler that delivers cool air to the truck's cabin using evaporative cooling and without running the truck's engine. Operation Cooling is generated by vaporized cool water delivered by a self-contained electrical motor. During operation it only consumes water and it makes no use of internal combustion engines, nor does it use chemical coolants or emit gases into the atmosphere.
- Page 4 BOARD INDICATIONS Important: before switching on the equipment: With parked vehicle: Open one of the windows 2 to 3 cms. With the vehicle in motion: Open one of the windows 2 to 3 cms and close all other air entrances to the cabin so that hot air does not enter from exterior. BOARD WATER PUMP SYSTEM ON –...
- Page 5 3 seconds, the word will appear. Press the or the key until the display shows Wait for 3 seconds. Spanish language is now stored. Important: If the Viesa system is disconnected from the vehicle’s battery, all set-up functions will revert to default.
- Page 6 Please refer to the list below to change LANGUAGE to ENGLISH English French Portuguese German Italian Spanish Duch Turbo Fan By pressing the ON-OFF switch, turbo fan and water pump are activated. The L.C. display will show FAN ON and speed. There are 8 fan speeds which can be selected by pressing the k eys.
- Page 7 If the water pump is disconnected, a message and sound alarm will result. Alarm and message will disappear as soon as switch is pressed. the pump is re-connected or the pump on-off Important: “WATER TANK EMPTY” and “PUMP DISCONNECT” messages and alarm will only appear with the water pump ON.
- Page 8 Wait for 3 seconds or press the menu key to move to minutes. Press the keys to set the minutes and wait 3 seconds or press the menu key to finish. Note: To fast-scroll press and hold the up or down key. Alarm Clock To set the alarm clock, select this function with the menu key and wait...
- Page 9 Note: When the alarm clock is activated, both system lights will turn on automatically in the dim position for one minute and then turn off. To switch lights off immediately, press any key on the key. control panel or remote control and use the In 24H mode, the alarm clock is cancelled by entering zero values for hours and minutes.
- Page 10 If self power on is active, a flashing “e” will appear instead of the semi-colon in the L.C. display clock. Note: When both alarm clock and self power on are active, “d” and “e” will flash alternatively. In 24H mode, self power on is cancelled by entering zero values for hours and minutes.
- Page 11 If self power off is active, a flashing “a” will appear instead of the semi-colon in the L.C. display clock. Note: When alarm clock, self power on and self power off are all active ”a”, “d” and “e” will flash alternatively. In 24H mode, self power off is cancelled by entering zero values for hours and minutes.
- Page 12 Temperature This function allows selecting the outside temperature display in degree Celsius (°C) or Fahrenheit (°F). Select this and wait for 3 seconds. function with the menu key Press key to select °C or °F and wait for 3 seconds. Note: Below -5°C (23°F) or above 70°C (158°F), the display will show The temperature sensor is placed inside the system’s roof mounted unit.
- Page 13 - Drain all the water from the tank by removing the drain plug. - Rinse with clean water thoroughly . - Pour one bottle of Viesa Scented Cleansing Fluid. - Fill-up the tank with clean water. Each 6 months change the package of granulated Calfa Bas crystals.
- Page 14 LIMITED WARRANTY This limited warranty is provided to the original buyer only and covers the VIESA ECOLOGICAL CAB COOLER (the "Product") manufactured by Col-Ven S.A. (the "Manufacturer") and distributed by RCR Systems Limited (the "Distributor"). The warranty period is two years from date of original purchase by the buyer. During this period, if the product is found to be defective in mechanical or electrical materials or workmanship during normal use, it will be repaired or replaced at no charge to the buyer.
