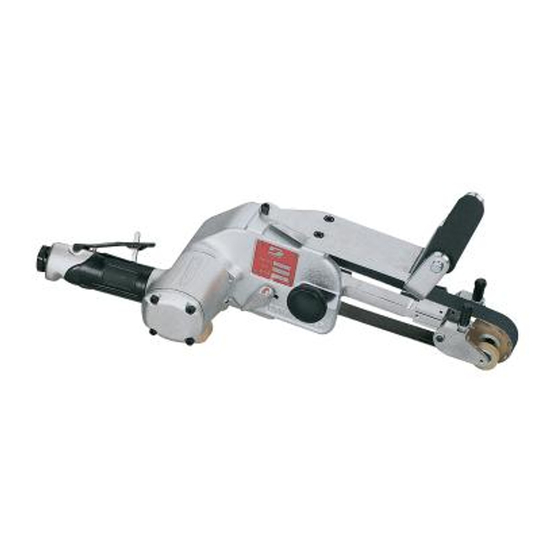

Dynabrade Dynabelter 11486 Operating, Maintenance And Safety Instructions

Dynabelter
For 1" Wide Abrasive Belts
1
G
2
5
6
7
9
G
2

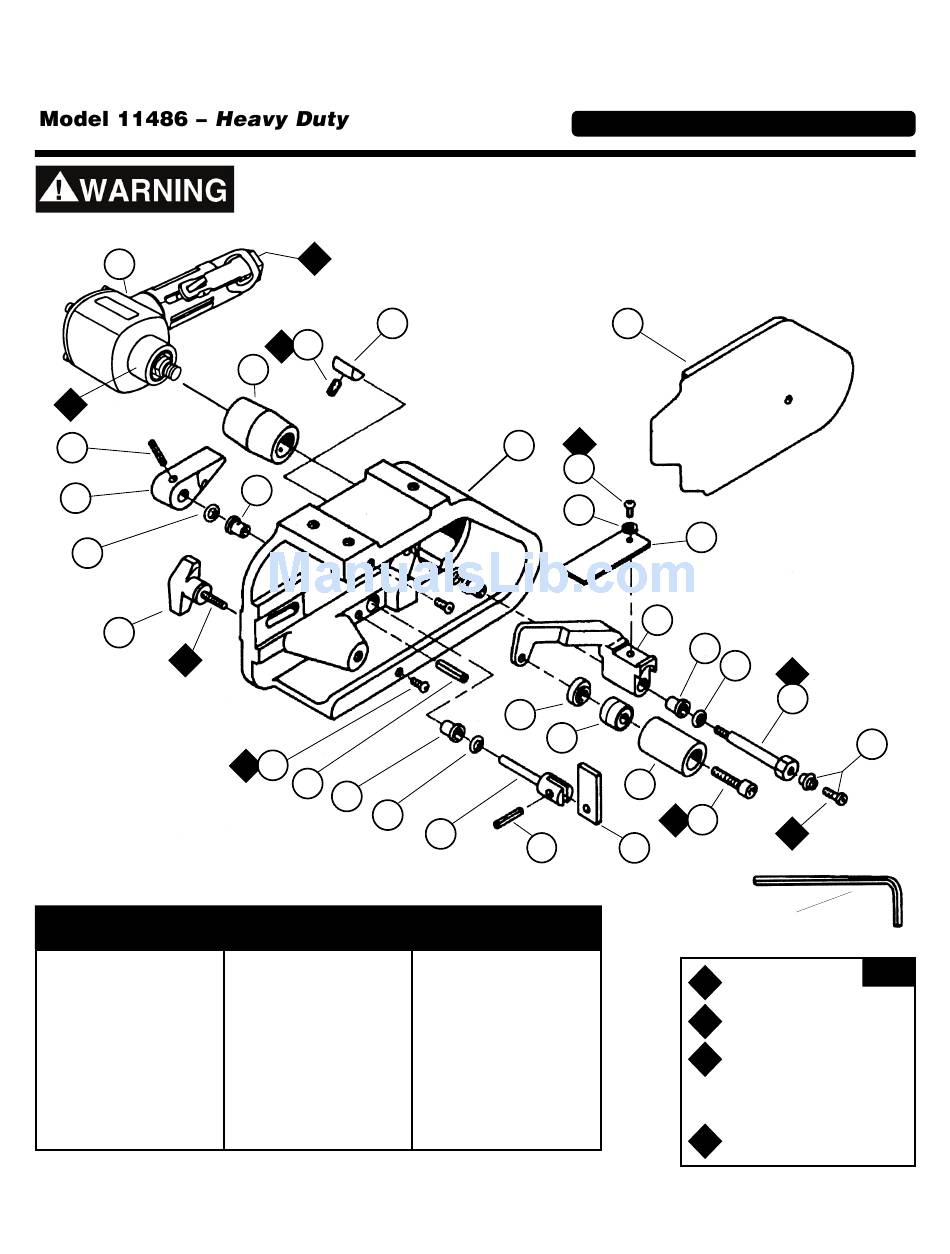

Index Key

No. Part # Description
1 07100 Air Motor
2 11518 Drive Wheel
3 95392 Set Screw
4 11801 Motor Lock
5 95240 Roll Pin
6 11551 Belt Tension Lever
7 95226 O-Ring (4)
8 11519 Flange Bearing (4)
9 95419 Knob
(Incl. 95417 Washer)
Note: To order replacement parts specify the model and serial number of your machine.
*See page 2 for 07100 Motor Assembly and Standard Contact Arm Assembly.
See page 3 for Important Operating / Maintenance and Safety Instructions before operating this tool.
Accu-Grinder
®
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
O
1
4
G 3
2
2
8
A 11
3
12
8
7
10 11516 Housing
11 95207 Screw (2)
12 95454 Pin
13 11547 Shaft
14 95216 Pin
15 11545 Tension Wiper
16 95239 Screw
17 11531 Idler Wheel
18 11016 Bearing (2)
For Serial No. P-AG1AW1085 and Higher
A
10
3
25
24
19
18
13
14
19 11017 Spacer
20 11577 Button Latch Assy.
21 11575 Tension Lever Screw
22 11517 Idler Arm
23 11539 Tension Spring
24 95146 Washer
25 95235 Screw
26 11592 Cover Guard
Supersedes PD01.05
26
23
22
8
7
A
3
21
17
A
16
3
A
3
15
95048 Wrench
Fits 95392 Screw for
adjusting motor position.
Oil: O = Air Lube
O
1
Grease: G = Loctite #771
G
2
Adhesive: A
A
1
A
2
A
3
A
6
A
8
Torque: N•m x 8.85 = In. - lbs.
T
PD13.31
October, 2013
20
KEY
= Loctite #609
= Loctite #271
= Loctite #243
= Loctite #380
= Loctite #567
