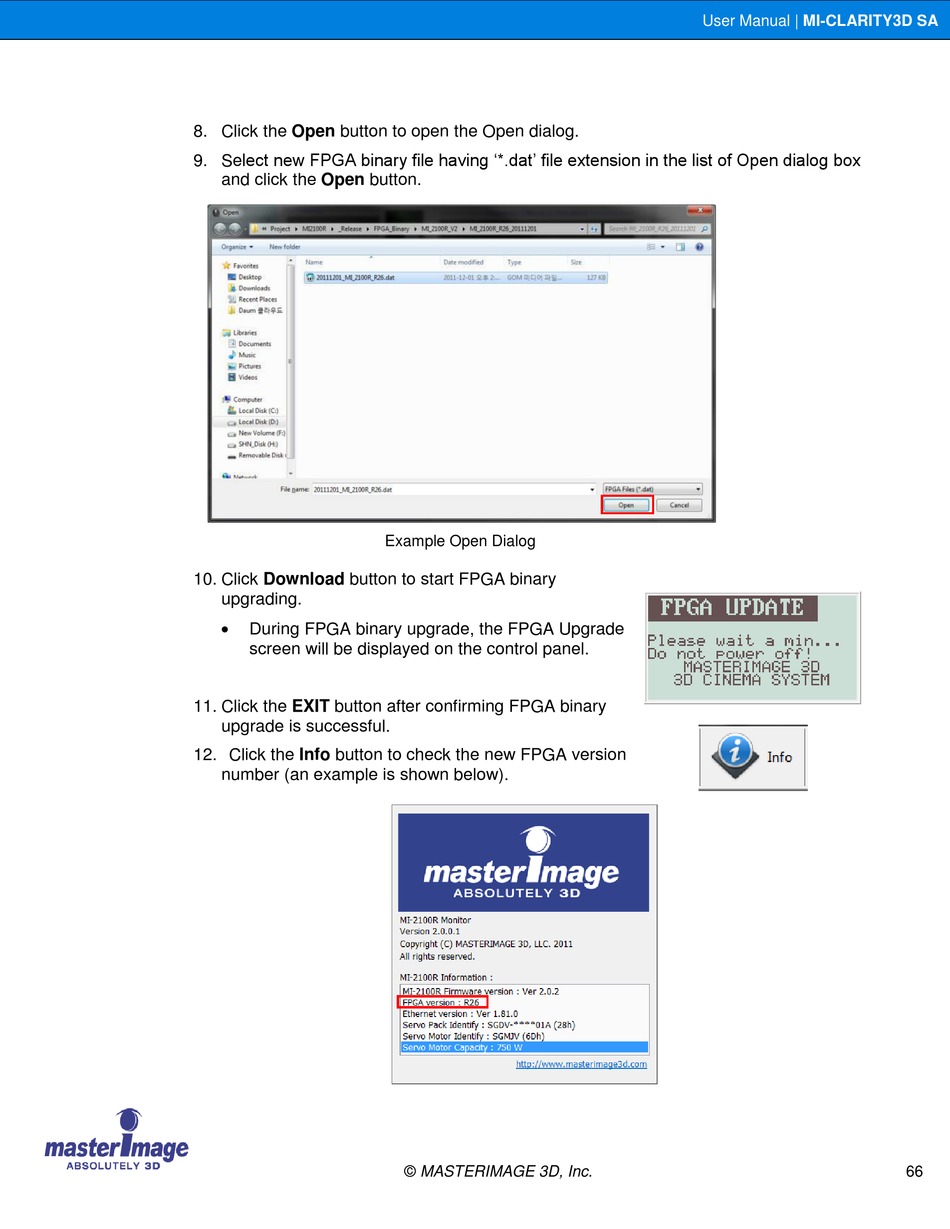

8. Click the Open button to open the Open dialog.
9. Select new FPGA binary file having '*.dat' file extension in the list of Open dialog box
and click the Open button.
10. Click Download button to start FPGA binary
upgrading.

During FPGA binary upgrade, the FPGA Upgrade
screen will be displayed on the control panel.
11. Click the EXIT button after confirming FPGA binary
upgrade is successful.
12. Click the Info button to check the new FPGA version
number (an example is shown below).
Example Open Dialog
