CONTROL CONNECTION OF REMOTE DISTANCE (OPTION)

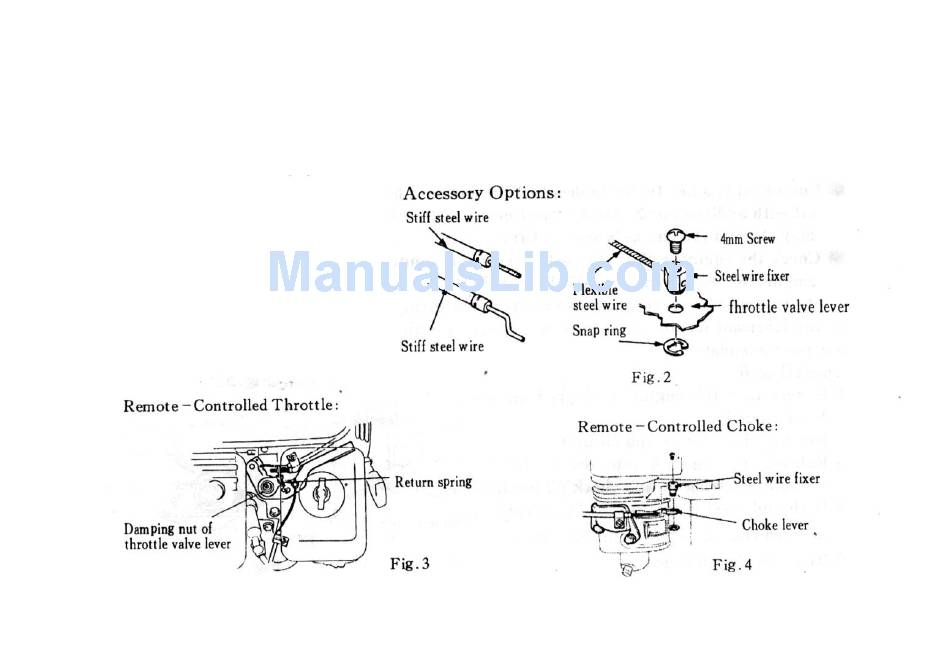

The holes in levers of both the choke and throttle valve are used for mounting optioned steel
wires. Fig.2, 3 ＆ 4 shown illustrate how to mount a solid steel wire and a meshed steel wire. If
choosing a meshed steel wire, a return
spring is added.
If necessary, you may unscrew the
damping nut on the throttle valve lever
slightly when controlling the throttle
valve by a remote-controlled steel wire.
- -
10
