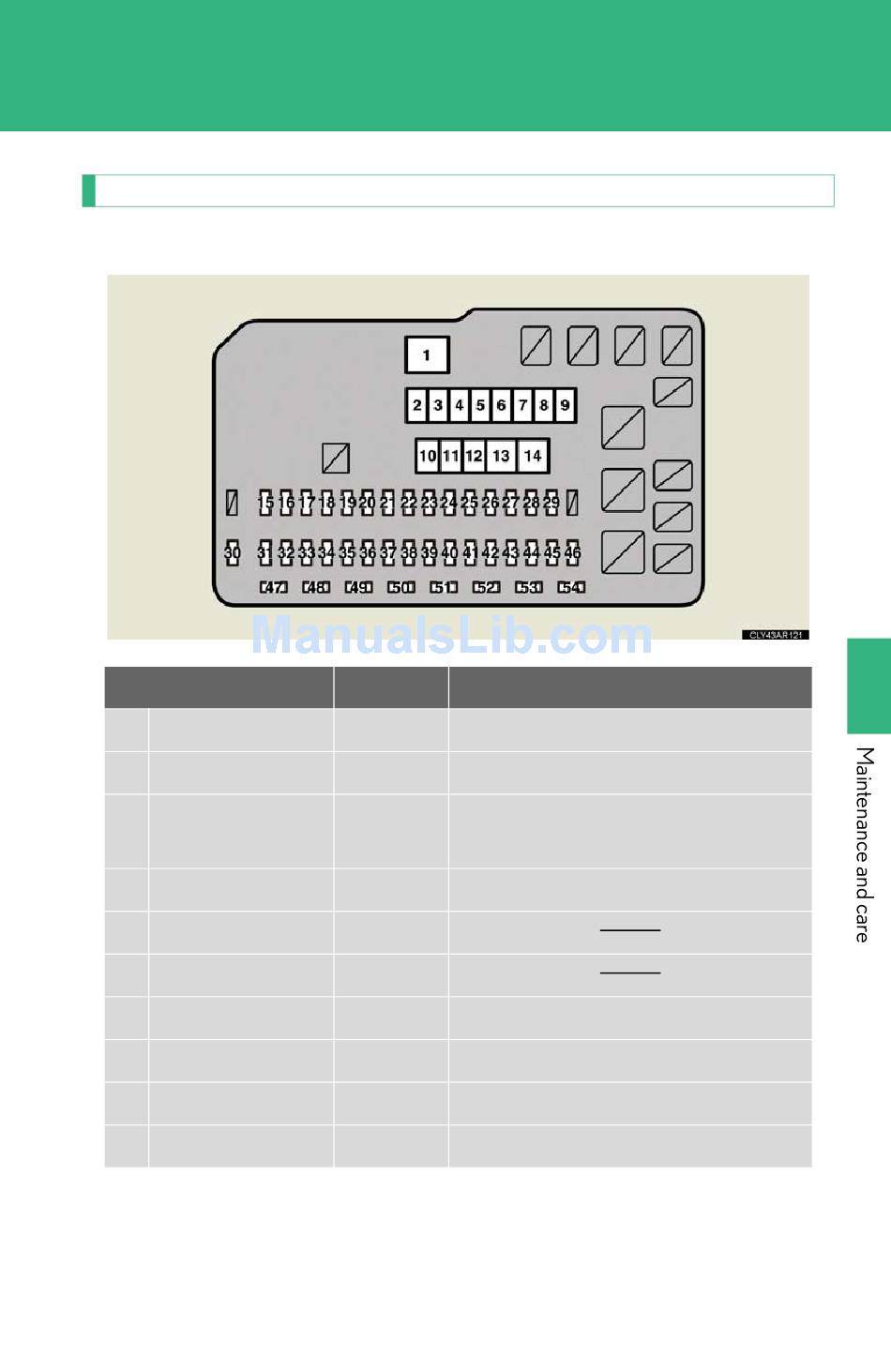

Fuse layout and amperage ratings

■ Engine compartment
Fuse
RDI FAN NO. 1
1
RR DEF
2
AIR SUS
3
HTR
4
SPARE
5
SPARE
6
ABS NO. 2
7
H-LP CLN
8
PBD
9
ST
10
Ampere
80 A Electric cooling fans
50 A Rear window defogger
Electronically modulated air suspen-
50 A
sion system
50 A Air conditioning system
30 A
40 A
30 A Anti-lock brake system
30 A Headlight cleaner
30 A Power back door system
30 A Starter system
4-3. Do-it-yourself maintenance
Circuit
4
493
