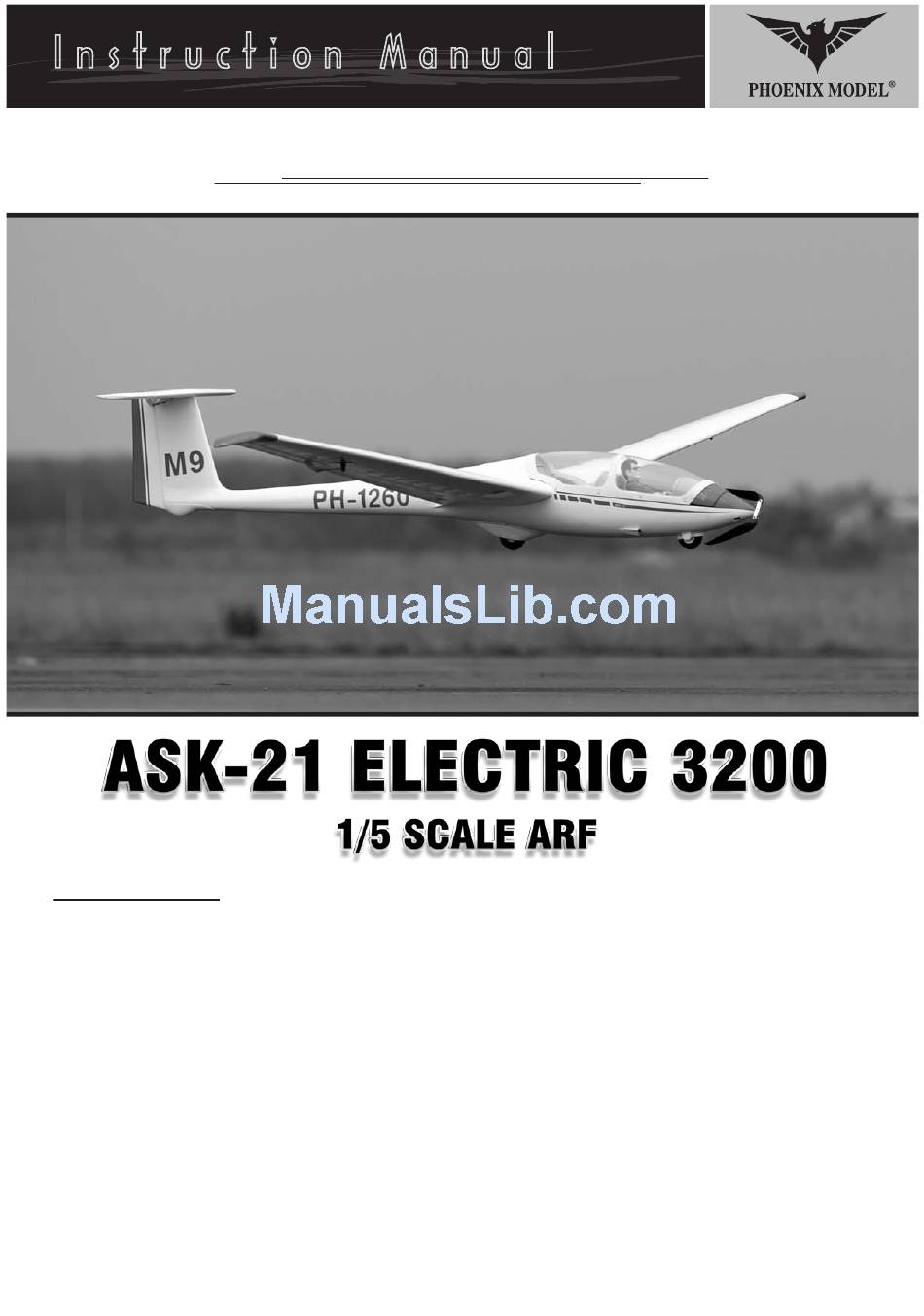

I n s t r u c t i o n M a n u a l
SPECIFICATION
- Wingspan: 3200mm (125,9 in)
- Length: 1650mm (64,9 in)
- Flying weight: 3000gr – 3200gr
- Wing area: 64.5 dm2
- Wing loading: 46g/dm2
- Wing type: HQ profile
- Radio: 4 channel – 4 mini hi-torque servo :
2 aileron; 1 elevator; 1 rudder (not included)
- Servo mount : 12mm X 24mm
- Flap: 2 electric flaps 440mm (not included)
- Spinner size: Aluminum H hub propeller
holder, shaft 6mm (not included)
- Propeller: suit with your engine
- Gravity CG: 75 mm (2.95 in) Back from the
leading edge of the wing, at the fuselage

Instruction Manual

- Control throw Ailerons: Low: 10mm up/down,
10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 8mm up/down,
12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left,
15% expo; High: 55mm right/left, 15% expo
- Motor: brushless outrunner 700-800 W, 750 KV
- Experience level: Intermediate
- Plane type: Scale sailplane
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: OS OMA – 3825-750 (Not included)
- Propeller: 12x8 ; 13x8 (not included)
- Lipo cell: 3-4 cells / 2400 – 3000mAh (not included)
- Esc: 50-80 A (not included)
