Summary of Contents for Covert Scouting Cameras Covert Extreme TLV
- Page 1 Infrared Digital Scouting Camera User’s Manual Covert Extreme Covert Extreme TLV (optional)
-
Page 2: Table Of Contents
Content Instruction ..........................1 General Description ......................1 Application ........................1 Camera Interface ......................1 Saving Images or Videos ....................3 Cautions ........................... 4 Quick Start Guide ..............Error! Bookmark not defined. Power Supply ........................5 Insert the SD-card ......................5 Power on and Entering into the ON Mode .............. -
Page 3: Instruction

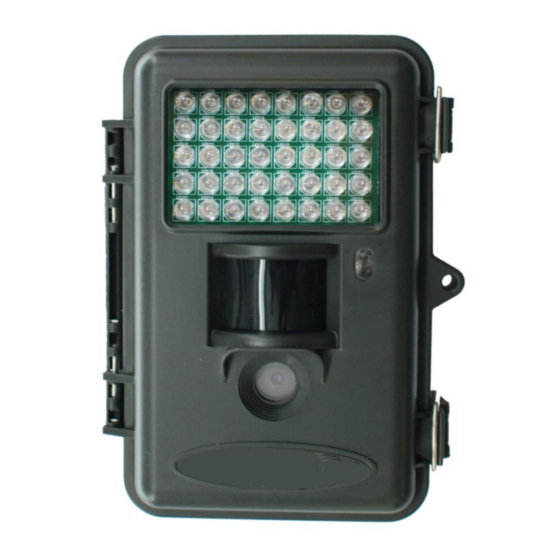

Covert Extreme 1 Instruction 1 Instruction 1.1 General Description The Covert Extreme is a digital infrared surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 5M pixels) or records video clips (VGA) according to default settings or preset customer settings. - Page 4 Covert Extreme 1 Instruction IR Flash Indication LED Lens Lock Figure 1: Front view Display Screen Battery Depot Operation panel Lock Hole Power Switch Figure 2: Operation interface DC In SD-card Slot Bottom Screw DC Hole and Stopper TV Out Figure 3: Bottom view Page...
-
Page 5: Saving Images Or Videos
Covert Extreme 1 Instruction 1.3.2 Key Notes “MENU” : to enter the program menu in preview mode; “▲”“▼”“◄”“►”: for parameter settings as described in the user’s manual. “OK”: to save parameter settings and play back videos. “ ”: to exchange between playback mode and preview mode; “DEL”: to delete an image “... -
Page 6: Cautions
Covert Extreme 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card. ★... -
Page 7: Quick Start Guide
There are 3 states in SETUP Mode: preview state (preview the scene in the front of the camera), setting state (make custom settings), and playback state (view Photos or videos via 2.0” TFT display). (Note: Only the equipped Covert Extreme TLV model has the preview and playback option.) 3.4.1 Preview After switching the camera to SETUP Mode, it enters into the preview state. -
Page 8: Customer Settings
Covert Extreme 3 Quick Introductions 3.4.2 Customer Settings Press MENU to manually customize the camera settings which are displayed on the screen or external TV monitor. The detailed operations will be described in “Advanced Operations” chapter. 3.4.3 Manual Capturing Press to manually capture photos or record videos. -
Page 9: Power Off
Covert Extreme 3 Quick Introductions 3.6 Power Off Switch the camera to the OFF position to power off the camera. Please note that even in the OFF mode, the camera still consumes a certain amount of power. Therefore, please remove the batteries if the camera will not be used for a length of time. -
Page 10: Advanced Operations
Covert Extreme 4 Advanced Operations 4 Advanced Operations After you’re familiar with the basic operations of the Camera, you are now ready for advanced operations，and the options and parameters of the Camera are explained in more detail. 4.1 Settings Menu To view the camera settings menu, press MENU in the SETUP mode (Power switch is at the SETUP position). -
Page 11: Set Video Size
Covert Extreme 4 Advanced Operations previous value is “5M Pixel” at MENU state: a) Press MENU to display the setting menu. b) Press “▲” or “▼” to select Photo Size. c) Press “►” to select 3MP. d) Press OK to save the current setting and the option will be un-highlighted. Press MENU to return to info display. -
Page 12: Set Pir Sensitivity
Covert Extreme 4 Advanced Operations This parameter is effective and can be adjusted only when the device in the video mode for the LIVE mode. Its value extends from 1 to 60 seconds with a step of one second. The default value is 10 seconds. Press “◄” and “►” to decrease or increase the value by 1 second. -
Page 13: Set Timer Triggering Interval
Covert Extreme 4 Advanced Operations Press MENU to cancel setting and return to info display. 4.1.10 Set Timer Triggering Interval (TLV version only) This TLV version is equipped with a timer function meaning the camera will capture images or videos at preset time intervals regardless of whether there are motions to detect or not. -
Page 14: Set Time Stamp
Covert Extreme 4 Advanced Operations Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display. 4.1.13 Set Time Stamp This parameter defines whether the date and time is stamped in the pictures and video clips or not. -
Page 15: Mounting The Camera
Covert Extreme 4 Advanced Operations 5 Mounting the Camera When you want to use the ON mode of the camera outside, such as hunting and monitoring the living habits of wild animals, you must mount the device on a certain place properly. -
Page 16: Appendixⅰ: Technical Specifications
Covert Extreme AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications 5MP Color CMOS Image Sensor F/NO=3.1mm Lens FOV(Field of View)=52° IR-Flash 12-15m 2.0” TFT Display Screen Memory Card From 8 MB to 8 GB 5MP = 2560 1920 × Picture Resolution 3MP = 2048 1536 ×... -
Page 17: Appendixⅱ: Parts List
Covert Extreme Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 15...
