1.3 Design of DENS

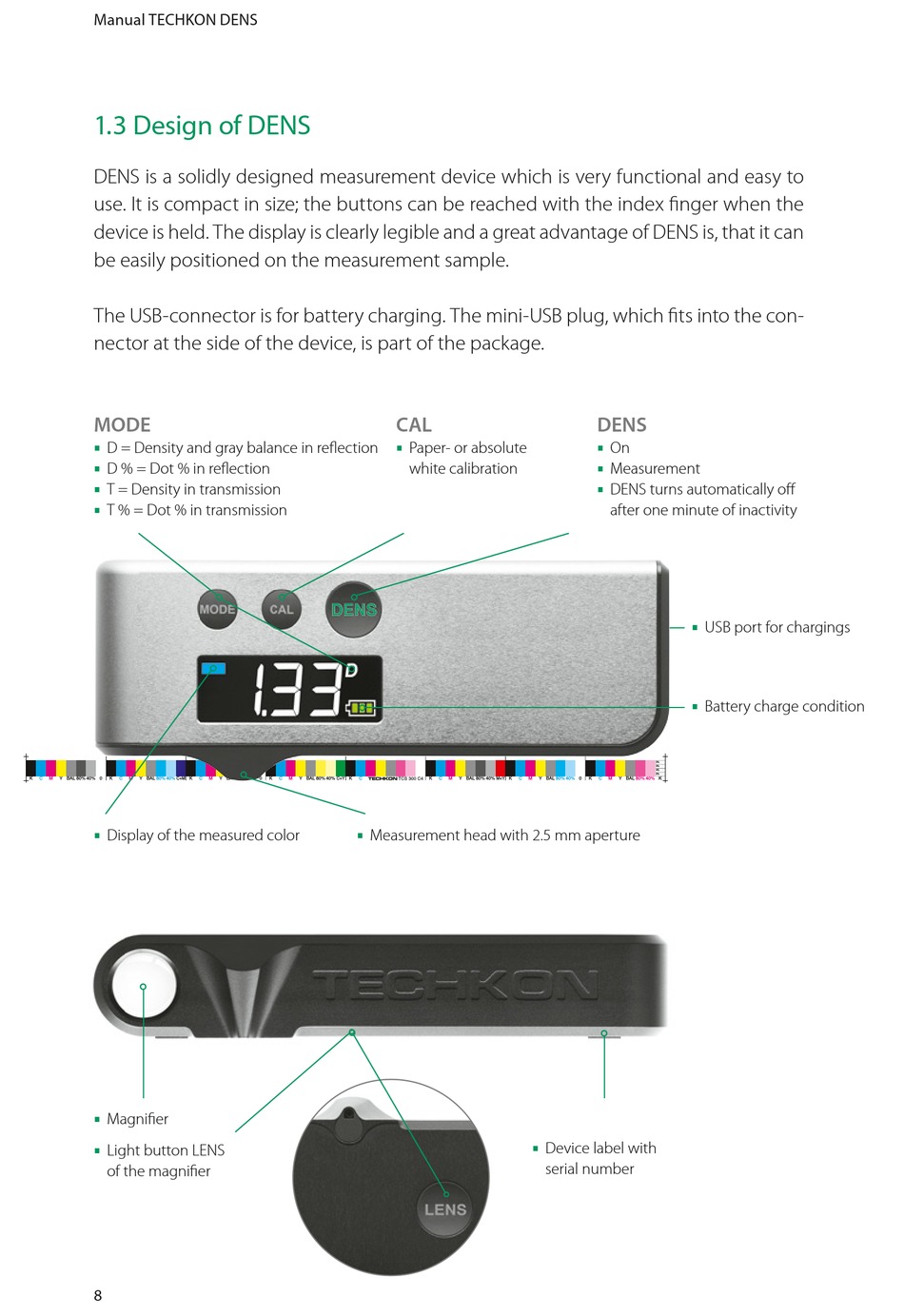

DENS is a solidly designed measurement device which is very functional and easy to
use. It is compact in size; the buttons can be reached with the index finger when the
device is held. The display is clearly legible and a great advantage of DENS is, that it can
be easily positioned on the measurement sample.
The USB-connector is for battery charging. The mini-USB plug, which fits into the con-
nector at the side of the device, is part of the package.
MODE
D = Density and gray balance in reflection

D % = Dot % in reflection

T = Density in transmission

T % = Dot % in transmission

K C M Y BAL 80% 40% 0 K C M Y BAL 80% 40% C+M K
Display of the measured color

Magnifier

Light button LENS

of the magnifier
8
C M Y BAL 80% 40% 0 K C M Y BAL 80% 40% C+Y K C

CAL
Paper- or absolute

white calibration
K C M Y BAL 80% 40% M+Y K C M Y
Measurement head with 2.5 mm aperture

DENS
On

Measurement

DENS turns automatically off

after one minute of inactivity
USB port for chargings

Battery charge condition

2%
3%
4%
5%
BAL 80% 40% 0 K C M Y BAL 80% 40% K
Device label with
serial number
