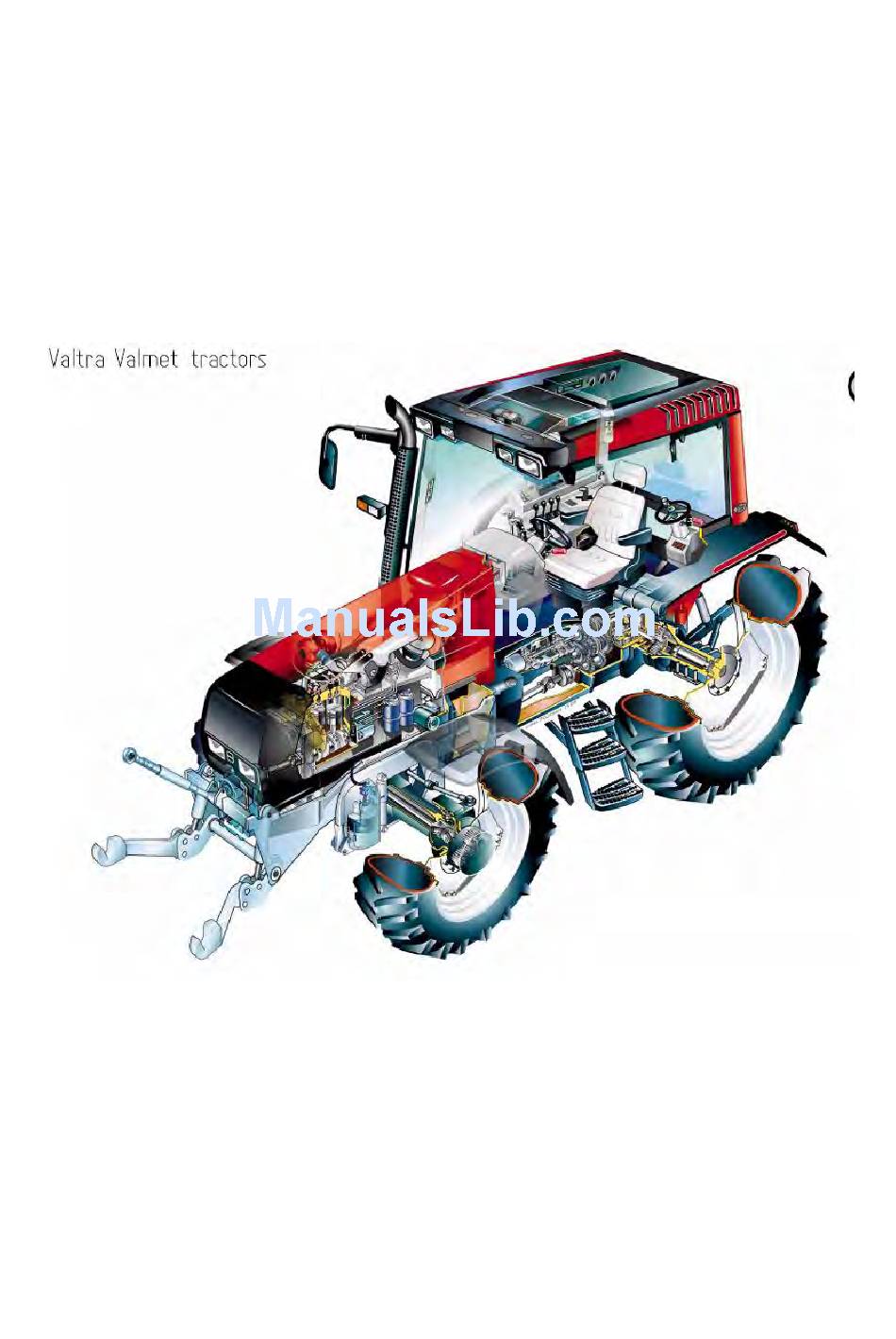

- Page 1 VALTRA – VALMET MEGA MEZZO HI-TEC WORKSHOP MANUAL...
-
Page 2: Power Transmission
General Engine Electrical system Power transmission Brake system Steering sys- tem and Front axle Frame and Wheels Service Manual Cab and Shields Tractors Groups 10---100 Hydraulics Valtra Inc. 44200 Suolahti, Finland Tools... - Page 3 Model Code Page 42 Gearbox 6000-- 8750 15. 5. 1993 Picture 23. Lubricating system of power transmission on tractors which have 3 ---step quick ---shift gear (Delta Powers- hift), 660071 ---. 1. Servo valve block, 660071 --- 2. Lubricating oil supply pipe 3.
- Page 4 Model Code Page 15. 5. 1993 42. Gearbox 6000-- 8400 1. 1. 1995...
- Page 5 Model Code Page 42. Gearbox 6000-- 8750 1. 1. 1995 0,025...0,075 mm 0,025...0,075 mm Celarance= 0 1,7...2,3 Nm 0,175...0,325 mm +0,6...1,7 Nm (Z7/40, Z8/42) +0,8...2,2 Nm (Z9/38) +1,0...2,8 Nm (Z11/37) 0,025...0,075 mm 1. Screw the nut fully home 2. Unscrew it then 1,5 turns...
- Page 6 Model Code Page 42. Gearbox 6250-- 8950 1. 6. 1999...
- Page 7 Model Code Page 42. Gearbox 6000-- 8750 8. 11. 1990 Selector forks (Op. no. 421) B. Adjusting selector forks 1. Adjusting selector forks 5. Fit the locking balls, springs and pins into their holes. Note! If the gear change mechanism does not function Note! The longer pins into the two upper holes and the properly (e.g.
- Page 8 Model Code Page 1. 1. 1995 42 Gearbox 6000-- 8750 15. 5. 1996 8. Take the hold of the rail and move it. It must move loosely. 21. Pour the oil into the gearbox.Test---drive the tractor and check that the gear change mechanism functions properly. 9.
- Page 9 Model Code Page 8. 11. 1990 42. Gearbox 6000-- 8750 1. 8. 1998 Reconditioning gearbox (Op. no. 423) 6 cm 1. Removing gearbox Note! The gearbox is easiest to remove if it is possible to remove the cabin (removing and fitting cabin, see Op. 811 1A).
- Page 10 Model Code Page 8. 11. 1990 42. Gearbox 6000-- 8750 1. 8. 1998 11. Disconnect the control valve solenoid wires on the gear- 19. Fit a steady trestle under the fuel tank. Fit a trestle fitted box side cover. Disconnect oil hoses from the pressure filter. with castors under the gearbox front edge and under the towing hook.
