Summary of Contents for i3 i3PROJECTOR

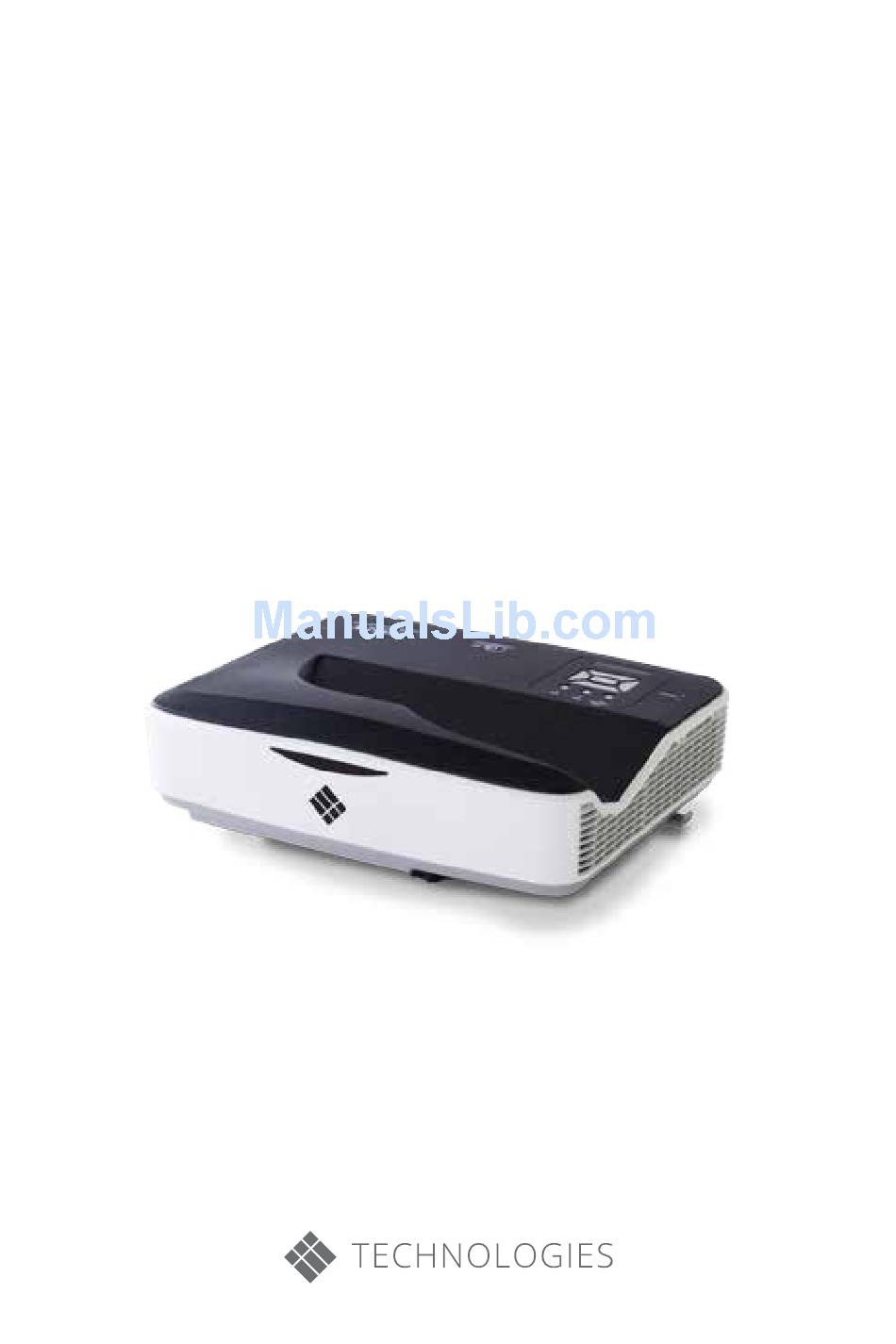

- Page 1 3303W UM USER MANUAL...
-
Page 2: Table Of Contents
On-screen Display Menus ....22 How to operate ........22 Picture ............ 23 Screen ............. 25 Setting ............. 27 Volume ........... 29 Options ........... 30 Options | Lamp Settings ...... 32 3D ............33 Interactive ..........34 LAN ............35 www.i3-learning.com... -
Page 3: Usage Notice
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock. 8. The unit should only be repaired by appropriate service personnel. i3PROJECTOR manual 3303W UM... -
Page 4: Precautions
“Lamp Warning: Exceed Service Life” message follow the will be shown on the screen. Please contact the lo- steps stated in cal dealer or service center to replace the lamp as “Replace the soon as possible. Lamp” on Pages 48-49. www.i3-learning.com www.i3-learning.com... - Page 5 5 - 40°C. Relative Humidity is 5 - 40°C, 80% (Max.), non-con- densing. - In areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field. - In direct sunlight. i3PROJECTOR manual 3303W UM...
-
Page 6: Introduction
VGA Cable (*) Projector Power Cord RGB1 HDMI1 RGB2 Video HDMI2 Due to different IR Remote Control CD-ROM 2 × AAA Batteries applica- (User’s Manual) tions in each country, some regions may have different accessories. www.i3-learning.com www.i3-learning.com... -
Page 7: Product Overview
The interface is subject to model’s specifications. 1. Control Panel 6. Speaker 2. Focus Switch 7. Power Socket 3. Ventilation (inlet) 8. Input / Output 4. IR Receiver Connections 5. Ventilation (outlet) 9. Lens 10. IR Camera i3PROJECTOR manual 3303W UM... -
Page 8: Control Panel
Control Panel 1. Power LED 2. Enter 3. Temp LED 4. Lamp LED 5. Menu 6. Signal source 7. Four Directional Select Keys 8. Power/Standby button 9. IR Receiver www.i3-learning.com www.i3-learning.com... -
Page 9: Interface
11. Audio Input Connector (microphone connector) 12. Audio Output Connector (3.5mm mini Jack) 13. Power Socket 14. Kensington Lock Port Monitor loop 15. USB Type A Connector through only 16. RJ45 Connector support in VGA1- 17. Laser Curtain In/YPbPr. i3PROJECTOR manual 3303W UM... -
Page 10: Remote Control
9. Auto Adjustment 10. Input 11. Zoom - 12. Volume +/- 13. Keystone +/- 14. Image 15. Blank 16. Aspect ratio 17. VGA1 18. HDMI1 19. VGA2 20. HDMI2 21. Video 22. Freeze 23. Numbered keypad (for password input) www.i3-learning.com www.i3-learning.com... -
Page 11: Installation
2 ......................USB Cable 3 ......................VGA Cable 4 ...................... HDMI Cable 5 ....................Audio Input Cable 6 ..................... Power Cable 7 ..................Audio Output Cable 8 ....................Audio Input Cable 9 ......................RJ45 Cable 10 ..................VGA Output Cable i3PROJECTOR manual 3303W UM... -
Page 12: Connect To Video Sources
Microphone different accessories 1 ..........15-Pin to 3 RCA Component/HDTV Adapter 2 ...................... HDMI Cable 3 ....................Audio Cable/RCA 4 ...................... Audio Cable 5 ..................... Power Cable 6 ...................Composite Video Cable 7 ....................Audio Cable/RCA 8 ....................Audio Input Cable www.i3-learning.com www.i3-learning.com... -
Page 13: Powering The Projector On / Off
“INPUT” button on the control panel or direct source keys on the remote control to switch between inputs. POWER/STANDBY ON(B) STANDBY(R) TEMP LAMP MENU INPUT Turn on the pro- jector first and then select the signal sources. Enter i3PROJECTOR manual 3303W UM... -
Page 14: Powering Off The Projector
Under normal conditions, the projector symptoms. can be switched back on. Unplug the power cord from the projector, wait for 30 sec- onds and try again. If the warning indicator light up again, please contact your nearest service center for assistance. www.i3-learning.com www.i3-learning.com... -
Page 15: Adjusting The Projected Image
1. Locate the adjustable feet you wish to modify on the underside of the projector. 2. Rotate the adjustable ring clockwise to raise the projec- tor or counter clockwise to lower it. Repeat with the remaining feet as needed. Tilt-Adjustment Feet Tilt-Adjustment Ring i3PROJECTOR manual 3303W UM... -
Page 16: Adjusting The Projector�S Focus
Adjusting the Projector�s Focus To focus the image, slide the focus lever to left/right until the image is clear. WXGA series: The projector will focus at distances from 1.499 to 2.06 ft. (0.457 to 0.628 meter). Focus Lever www.i3-learning.com www.i3-learning.com... -
Page 17: Adjusting Projection Image Size (Diagonal)
H (Height) 172.3 107.7 45.7 21.0 14.26 174.5 46.2 21.6 14.49 176.6 110.4 46.8 22.1 14.74 178.8 111.7 47.4 22.7 14.97 180.9 113.1 47.9 23.3 15.22 183.1 114.4 48.5 23.9 15.45 185.2 115.8 49.1 24.4 15.70 i3PROJECTOR manual 3303W UM... - Page 18 19.50 221.9 138.7 58.8 34.1 19.75 59.4 34.7 19.98 226.2 141.4 59.9 35.3 20.23 228.3 142.7 60.5 35.8 20.46 230.5 61.1 36.4 20.69 232.6 145.4 61.6 37.0 20.94 234.8 146.7 62.2 37.6 21.17 236.9 148.1 62.8 38.1 21.41 www.i3-learning.com www.i3-learning.com...
-
Page 19: User Controls
Press to select item. Select Keys This indicates the lamp status of the projec- LAMP LED tor. This indicates the lamp status of the projec- TEMP LED tor. ON/STANDBY This indicates the status of the projector. i3PROJECTOR manual 3303W UM... -
Page 20: Remote Control
Adjust the Volume. Use this function to choose your de- Aspect sired aspect ratio. Press “Menu” to launch the on-screen Menu display (OSD) menu. To exit OSD, press “Menu” again. Press “VGA1” to choose VGA IN 1 VGA1 connector. www.i3-learning.com www.i3-learning.com... - Page 21 Press “VGA2” to choose VGA IN 2 VGA2 connector. Press “Video” to choose Composite Video video source. Pause the screen image. Press again Freeze screen to resume the screen image. Select the color mode from Bright, Image PC, Movie, Game and User. i3PROJECTOR manual 3303W UM...
-
Page 22: On-Screen Display Menus
Press “Enter” to confirm, and the screen will return to the main menu. To exit, press “Menu” again. The OSD menu will close and the projector will automatically save the new settings. Main Menu Sub Menu Settings www.i3-learning.com www.i3-learning.com... -
Page 23: Picture
Adjusting the contrast changes the amount of black and white in the image. Press the ◄ button to decrease the contrast. Press the ► button to increase the contrast. i3PROJECTOR manual 3303W UM... - Page 24 Press the ◄ button to increase the amount of green in the image. Press the ► button to increase the amount of red in the im- age. Gamma This allows you to adjust the gamma value to obtain the better image contrast for the input. www.i3-learning.com www.i3-learning.com...
-
Page 25: Screen
Adjust to achieve an optimal image when there is a vertical flicker in the image. H. Position Press the ◄ button to move the image left. Press the ► button to move the image right. i3PROJECTOR manual 3303W UM... -
Page 26: Digital Zoom
Front Ceiling: This is the default selection. When selected, the image will turn upside down. Rear: When selected, the image will appear reversed. Rear Ceiling: When selected, the image will appear reversed in upside down position. www.i3-learning.com www.i3-learning.com... -
Page 27: Setting
Choose the menu location on the display screen. Closed Caption Use this function to enable close caption menu. Select an appro- priate closed captions option: Off, CC1, CC2, CC3, and CC4. VGA Output (Standby) Choose “On” to enable VGA OUT connection. i3PROJECTOR manual 3303W UM... -
Page 28: Test Pattern
Output: Choose “Output” to enable the VGA Out function once the projector is powered on. Test Pattern Display a test pattern. Reset Choose “Yes” to return the parameters on all menus to the fac- tory default settings. www.i3-learning.com www.i3-learning.com... -
Page 29: Volume
Press the ◄ button to decrease the volume. Press the ► button to increase the volume. Microphone Volume Press the ◄ button to decrease the microphone volume. Press the ► button to increase the microphone volume. i3PROJECTOR manual 3303W UM... -
Page 30: Options
3D is enabled. Input Before active this Press ► button to enable/disable input sources. The projector function, it is rec- will not search for inputs that are not selected. ommended that “Aspect Ratio” is set to the “Auto”. www.i3-learning.com www.i3-learning.com... -
Page 31: Lamp Settings
“Lamp counter after replacing or cleaning the dust filter. Power Mode” selection is not Information available. Display the projector information for model name, SNID, source, resolution, software version, and aspect ratio on the screen. i3PROJECTOR manual 3303W UM... -
Page 32: Options | Lamp Settings
Normal: Normal mode. ECO: Use this function to dim the projector lamp which will lower power consumption and extend the lamp life. Clear Lamp Hours Choose “Yes” to reset the lamp hour counter after replacing the lamp. www.i3-learning.com www.i3-learning.com... - Page 33 / “Side-by- 1080p@24 Side(Half)” / “Top Use this feature to select 96 or 144Hz refresh rate as using 3D and Bottom” are glasses in the1080p @ 24 frame packing. supported from HDMI 1.4a 3D input signals. i3PROJECTOR manual 3303W UM...
-
Page 34: Interactive
If “3D” or “Dy- namic Black” function is en- abling, “Interac- tive” feature is disabling. Interaction function: Please specify that the Interaction function is only for USTi model. The Interaction function is not available in the UST model. www.i3-learning.com www.i3-learning.com... -
Page 35: Lan
DNS configuration manually. IP Address Display an IP address. Subnet Mask Display the subnet mask number. Gateway Display the default gateway of the network connected to the projector. Display the DNS number. MAC Address Display the MAC address. i3PROJECTOR manual 3303W UM... -
Page 36: Projector Name
Group Name Display the group name. Projector Name Display the projector name. Location Display the projector location. Contact Display the contact information. www.i3-learning.com www.i3-learning.com... - Page 37 DNS Server below: Enabled (N/A) User Password New Password Confirm Enabled (N/A) Admin Pass- New Password word Confirm When you used the projector IP ad- dress, you will can not link to your service server. i3PROJECTOR manual 3303W UM...
- Page 38 Step 5: Click Use the following IP address, and type in as below: 1) IP address: 192.168.0.100 2) Subnet mask: 255.255.255.0 3) Default gateway:192.168.0.254 Step 8: Open your IE and type in the IP address of 192.168.0.100 in the URL then press “Enter” key. www.i3-learning.com www.i3-learning.com...
-
Page 39: Crestron Roomview Control Tool
Administrator. The Administrator can add, delete, or edit room information, contact information and events, which are logged automatically by the software for all users. (Operation UI as following image) 1. Main Screen 2. Edit Room i3PROJECTOR manual 3303W UM... - Page 40 3. Edit Attribute 4. Edit Event For further information, please visit: http://www.crestron.com & www.crestron.com/getroomview. www.i3-learning.com www.i3-learning.com...
-
Page 41: Multimedia
2. Press “INPUT” on the remote control or on the control panel to turn on the projector. When the Input menu appears, press the ▲▼ keys to select “Multimedia” and the “Enter” key to confirm. i3PROJECTOR manual 3303W UM... - Page 42 4. On the initial connection, you will be prompted to enter a password. Enter the password. 5. Launch “EZview” application and enter the PCTOOL password. 6. Wait until the connection is established. The media files on your mobile device or tablet PC can be accessed using the projector. www.i3-learning.com...
- Page 43 4. Open your web browser and enter the IP address. Then select “Wifi” on the left side of the screen and install application required by the operation system. 5. Launch “EZview” application and enter the control code shown on the right-bottom side of the screen. i3PROJECTOR manual 3303W UM...
- Page 44 To access the media files stored on your desktop, do the folllowing: 1. On Multimedia menu, select Desktop. 2. Open your web browser and enter the IP address. Then select “Wifi” on the left side of the screen and install application required by the operation system. www.i3-learning.com...
- Page 45 AVI, MOV, MP4, RM, RMVB, DAT, MPG, ISO, TS, MKV, VOB, and WMV Document WORD, EXCEL, PPT, PDF 1. On Multimedia menu, select USB Disk. 2. Use the keys to select the file category and press the ▲▼ “Enter” key. i3PROJECTOR manual 3303W UM...
- Page 46 3. Use the keys to select the file to view/play and press ▲▼ the “Enter” key to confirm. Configuring Multimedia Settings To change the settings, do the folllowing: 1. On Multimedia menu, select Settings. www.i3-learning.com...
- Page 47 Music: Select this option to set the repeat mode . WiFi: Select this option to configure the Wi-Fi connection. 3. Use the keys to select the adjust/select the setting and ▲▼ press the “Enter” key to confirm. i3PROJECTOR manual 3303W UM...
-
Page 48: Replace The Lamp
Warning: To reduce the risk of personal injury, please prevent the lamp module from falling down and avoid touching the lamp. If the lamp falls down, it may be broken up, which may cause injury. www.i3-learning.com www.i3-learning.com... -
Page 49: Appendices
8. After the lamp module is replaced, switch on the projector and reset the lamp hour counter. To reset the lamp, please finish the following steps: (i) Press to open the “Service” menu. (ii) Select “Reset Lamp Hours”. (iii) Press “OK” to confirm the selection. i3PROJECTOR manual 3303W UM... -
Page 50: Installing And Cleaning The Optional Dust Filter
Follow the aforesaid steps in the reverse order to install the filter. 2 To install the filter, please return to the previous step. 5. Turn on the projector and reset the filter usage counter after the dust filter is replaced. www.i3-learning.com www.i3-learning.com... -
Page 51: Compatibility Modes
46.9 800x600 53.7 800x600 77.4 Apple, Mac II 832x624 49.1 1024x768 48.4 1024x768 56.5 1024x768 1024x768 68.7 1024x768 Apple, Mac II 1152x870 68.7 1280x1024 SXGA 1280x1024 1280x1024 1280x960 QuadVGA 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 i3PROJECTOR manual 3303W UM... - Page 52 480i 59.94(29.97) 15.7 (1440x480) 720x576 576i 50(25) 15.6 (1440x576) 480p 720x480 59.94 31.5 576p 720x576 31.3 720p 1280x720 720p 1280x720 37.5 1080i 1920x1080 60(30) 33.8 1080i 1920x1080 50(25) 28.1 1080p 1920x1080 23.98/24 1080p 1920x1080 67.5 1080p 1920x1080 56.3 www.i3-learning.com www.i3-learning.com...
-
Page 53: Hdmi Digital
46.9 800x600 53.7 800x600 77.4 Apple, Mac II 832x624 49.1 1024x768 48.4 1024x768 56.5 1024x768 1024x768 68.7 1024x768 Apple, Mac II 1152x870 68.7 1280x1024 SXGA 1280x1024 1280x1024 1280x960 QuadVGA 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 i3PROJECTOR manual 3303W UM... - Page 54 1080p 1920x1080 67.5 1080p 1920x1080 56.3 d. HDMI 1.4a mandatory 3D timing- Video Signal V.Frequency H.Frequency Modes Resolution [Hz] [KHz] 720p Frame 720p 59.94/60 Packing 1080p 23.98/24 1080i Side-by-Side 1080i 59.94/60 720p Top-and- 720p 59.94/60 Bottom 1080p 23.98/24 www.i3-learning.com www.i3-learning.com...
-
Page 55: Rs232 Commands And Protocol Function List
Communication Method Asynchronous Communication Bits per seconds 19200 Data bits 8 bits Parity None Stop bits Flow control None RS232 Signals Connection RS232 shell is grounded. Computer COM Port Projector COM Port (D-Sub 9pin connector) (D-Sub 9pin connector) i3PROJECTOR manual 3303W UM... -
Page 56: Commands Set List
Write Video only 1 : Auto 2 : 4:3 Screen Aspect Ratio 1 ~ 4 Write 3 : 16:9 4 : 16:10 / Ultra Wide 0 : Zoom- Screen Zoom 0 ~ 1 Write 1 : Zoom+ -40 ~ Screen Keystone Write www.i3-learning.com www.i3-learning.com... - Page 57 : 1/2/3/4 = Auto / Screen Read Read 4:3 / 16:9 / 16:10 n : 0/1/2/3/4/5/6 = Input Source None / VGA1 / VGA2 Options Read (curr. src) / HDMI1 / HDMI2 / Video / Multimedia i3PROJECTOR manual 3303W UM...
- Page 58 Sofware Options Read Okddd ddd : FW version Version a : Power Status / b : LD Hour / c : Okabbbb Options Information Read Input Source / d : ccdddee Firmware Version / e : Color mode www.i3-learning.com www.i3-learning.com...
-
Page 59: List Of Specifications
2)Supports High bandwidth Digital Content Protection – HDCP Standard 1.3 of December 2006 VGA Audio X1: Stereo mini jack X1: Stereo mini jack Composite Video X1: RCA (yellow) Composite Audio X2: RCA for both left and right i3PROJECTOR manual 3303W UM... - Page 60 RS232 DB9 Male terminal RJ45 RJ45 for LAN control ※ Based on IS021118: the nominal value represents average value of the product during mass production. The minimum factory value of the product is 80% of the nominal value. www.i3-learning.com www.i3-learning.com...
-
Page 61: Wall Mount Installation
382.44 2. Be sure to keep 130.00 at least 10 cm gap between the ceiling and the bottom of the projector. 3. Avoid installing the projector near a heat source. Unit: mm i3PROJECTOR manual 3303W UM... -
Page 62: Regulation & Safety Notices
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this projector. www.i3-learning.com www.i3-learning.com... -
Page 63: Operation Conditions
• R & TTE Directive 1999/5/EC (if product has RF function) Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it. i3PROJECTOR manual 3303W UM... - Page 64 AUTHORISED RESELLER WWW.I3-TECHNOLOGIES.COM INFO@I3-TECHNOLOGIES.COM...
