Page 1: Sound Bar

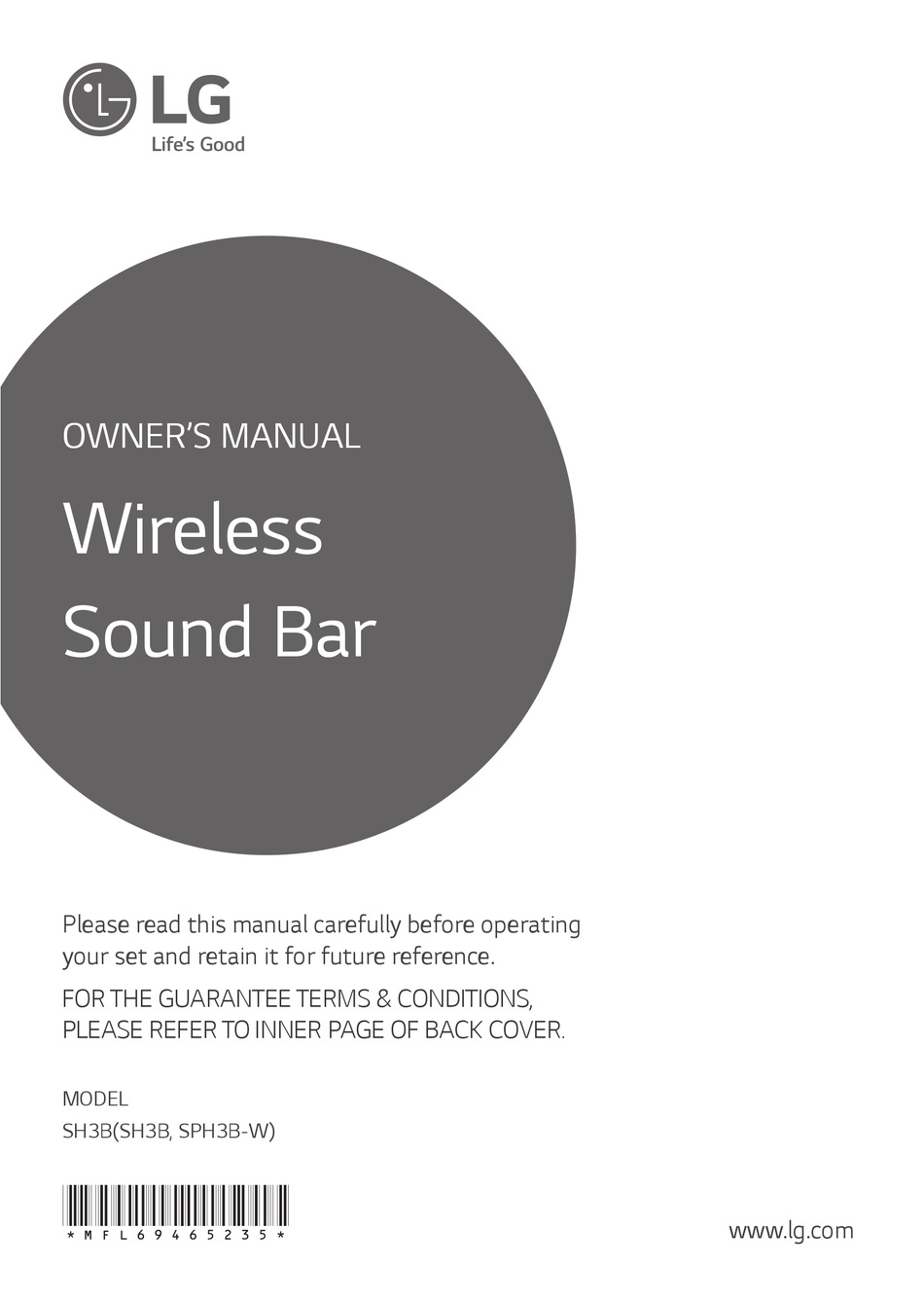

OWNER’S MANUAL Wireless Sound Bar Please read this manual carefully before operating your set and retain it for future reference. FOR THE GUARANTEE TERMS & CONDITIONS, PLEASE REFER TO INNER PAGE OF BACK COVER. MODEL SH3B(SH3B, SPH3B-W) *MFL69465235* www.lg.com... - Page 2 Getting Started Safety Information CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock. CAUTION CAUTION: No naked flame sources, such as lighted candles, should be placed on the apparatus. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: Do not block any ventilation openings.
- Page 3 Getting Started POWER: This unit operates on a mains supply of This device is equipped with a portable battery or accumulator. 200 - 240 V ~, 50 / 60 Hz. Safety way to remove the battery from the Wiring: This unit is supplied with a BS 1363 equipment: Remove the old battery or battery pack, approved main plug.
- Page 4 Your old LG Electronics European Shared Service Center B. V . appliance may contain reusable parts that could be Krijgsman 1 used to repair other products, and other valuable...
-
Page 5: Table Of Contents
– DRC (Dynamic range control) – Auto power down – Turn off the sound temporarily – Portable In – Auto LED Off – LG Sound Sync – Using your TV remote control Introduction – AUTO POWER On/Off – Symbols used in this manual –... -
Page 6: Getting Started
Listen to music from your portable device. (MP3 player, Notebook, Smart phone, etc..) LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. Introduction Symbols used in this manual Note Indicates special notes and operating features. -
Page 7: Remote Control
Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power): Switches the unit ON or OFF. F : Changes input sources. -
Page 8: Front Panel
Getting Started Front panel D E F A 1/! (Standby/On) F Function LED B F (Function) G Speakers Selects the function and input source. C p/o (Volume) Adjusts volume level. D Standby LED It lights up in red on standby mode. E Remote sensor Rear panel A PORT.IN : Portable input... -
Page 9: About Led Condition
About LED condition Condition Description OPTICAL LED turns on. OPTICAL function is selected. OPTICAL LED blinks twice and LG Sound Sync (Optical) function is turns on. selected. Bluetooth LED turns on. Paired with Bluetooth device. Bluetooth LED blinks. Waiting for Bluetooth connection. -
Page 10: Installing The Sound Bar
Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want. -
Page 11: Connecting
Connecting Wireless subwoofer 3. If the LED of the wireless subwoofer already blinks in yellow-green continually, you can skip connection this step. Press and hold PAIRING on the back of the wireless subwoofer for more than 5 seconds. LED indicator of wireless subwoofer LED Color Status Yellow green... -
Page 12: Connecting To Your Tv
Connecting Note Connecting to your TV y Before connecting the optical cable, be sure to remove the protection plug cover if your cable has the cover. Using an OPTICAL cable y You can enjoy the TV audio through the speakers of this unit. In the case of some TV 1. -
Page 13: Optional Equipment Connection
Connecting Optional equipment PORT. IN connection connection OPTICAL IN connection Connect an optical output jack of external devices to the OPTICAL IN jack. MP3 player, etc... Optical cable To the digital optical output jack of external device Listening to music from your portable 1. -
Page 14: Operating
2 seconds. Then Auto LED Off function is turned on. (Default : ON) Auto power down OPTICAL, LG TV : If there is no key input for about 20 seconds, function LED will turn off. This unit will be off itself to save electric consumption... -
Page 15: Auto Power On/Off
However the unit can be turned on Sound Sync (Wireless connection), this unit changes by AUTO POWER function when optical signal the function to LG TV. You can hear the sound from comes in after 5 seconds of no signal. your TV. -
Page 16: Lg Sound Sync
Operating LG Sound Sync With wired connection 1. Connect your LG TV to the unit by using an optical cable. You can control some functions of this unit by your TV's remote control with LG Sound Sync. It is compatible with an LG TV that supports LG Sound Sync. -
Page 17: Using Bluetooth® Technology
Cascade if the connection depending on the type of Bluetooth device. was made via Bluetooth wireless technology. Your unit appears as “LG SH3B (XX)” . y Available Devices : Mobile phone, MP3, Laptop, Note PDA etc. -
Page 18: Using Bluetooth App
Operating Note Using BLUETOOTH App y When using Bluetooth technology, you have to make a connection between the unit and Note the Bluetooth device as close as possible and keep the distance. Only Android OS is available to use “Music Flow However it may not work well in the case Bluetooth”... -
Page 19: Activate Bluetooth With "Music Flow Bluetooth" App
Operating Note Install “Music Flow Bluetooth” App through “Google Android Market y “Music Flow Bluetooth” app will be available in the software version as follow; (Google Play Store)” - Android O/S : Ver 4.0.3 (or later) 1. Tap the “Google Android Market (Google Play y If you use “Music Flow Bluetooth”... -
Page 20: Sound Adjustment
Operating Sound adjustment Setting the surround mode This system has a number of pre-set surround sound fields. You can select a desired sound mode by using each sound mode button. Sound effect Description Analyzes the property of input sound and provides the sound (Adaptive Sound optimized for the content in Control) -
Page 21: Troubleshooting
Depending on the connected device, this function may not operate. work. y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does y Check connection of LG Sound Sync (Optical or wireless). not work. -
Page 22: Notes To Use Wireless
Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y Switch [ON] state of DRC function to [OFF] by using remote controller. y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on When you feel the TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM]. -
Page 23: Appendix
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories. -
Page 24: Specifications
Appendix Specifications General Power requirements Refer to main label. Refer to main label. Power consumption Networked standby : 0.5 W (If all network ports are activated.) Dimensions (W x H x D) Approx. 950 mm x 71 mm x 47 mm Net Weight Approx. -
Page 25: Maintenance
Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit. -
Page 26: Warranty
2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.
