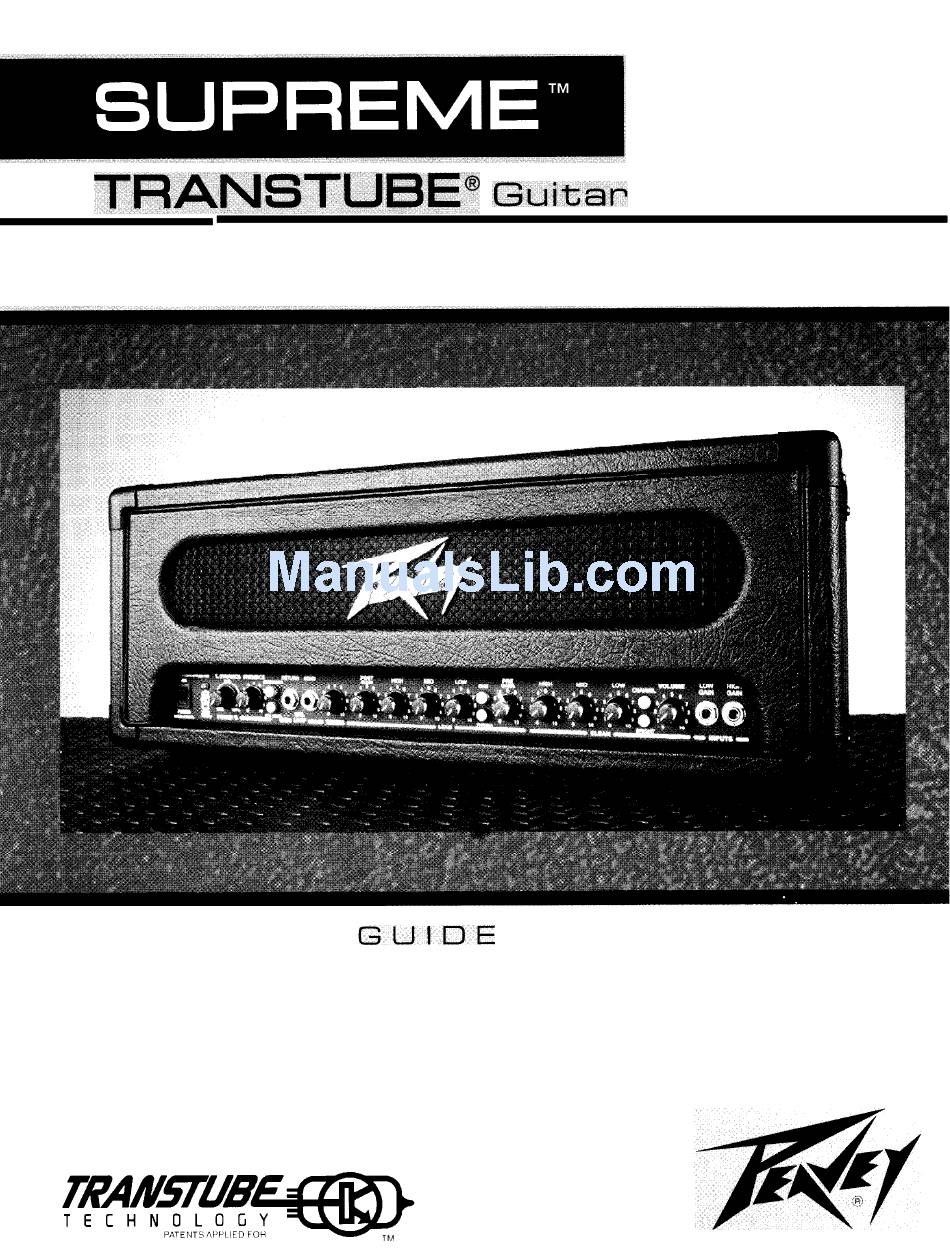

  • Page 1 TRAN8TUB~~ ~G-;u~x;EsP A m p H e a d O P E R A T I N G GLHDE...
  • Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 3 Congratulations on your purchase of the all new Supreme TM TransTube@ Series. This amp represents years of research on vacuum tube emulation, resulting in a totally new Supreme. The preamp has been rede- signed, using patent-applied for technology that redefines tubelike distortion and harmonic generation in solid-state amps.
  • Page 4 EFFECTS SEND (8) Output for supplying signals to external low-level effects or signal processing equipment. REVERB LEVEL (9) Controls the overall reverb level. POST GAIN (10) Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired sound has been achieved.
  • Page 5 (+or -) or until the noise is minimized. NOTE: Should the noise problem continue, consult your Authorized Peavey Dealer, the Peavey Factory, or a qualified service technician. THE GROUND SWITCH IS NOT FUNCTIONAL ON 220/240 VOLT MODELS.
  • Page 6: Specifications

    Rated Power & Load: Power specs measured with T. Dynamics @ 10% 100 W RMS into 16, 8, or 4 ohms Power @ Clipping: (typically) (5% THD, 1 kHz, 120 V AC line) 100 W RMS into 16, 8, or 4 ohms Frequency Response: +O, 3 dB, 60 Hz to 20 kHz,...
  • Page 7 Flowchart HIGH GAIN VOICING EFX, &%HBYpASS LEAD SWITCH PUSH INPUT LOGIC THRASH RETURN SEND RESONANCE SWITCH CLEAN IMPEDANCE SWITCH T.DYNAMICS Tone Settings ,.LAD Cl.liAN - INPU’IS P O W E R m, - - L O O P - HI~VI’RB “OUT”...
  • Page 8 Consulte 10s diagramas de1 panel delantero en la seccih de ingl6s de este manual. Felicitaciones por la adquisicion del nuevo miembro de la serie TransTube@, el amplificador SupremeTM. Este novisimo amplificador representa aRos de investigation en el campo de la emulation del sonido generado por 10s tubos de vacio.
  • Page 9 REVERB LEVEL (Nivel de reverberation) (9) Controla el nivel global de la reverberation. POST GAIN (Control de ganancia posterior del preamplificador) (10) Controla el volumen general del canal solista. El ajuste final de nivel debe hacerse despues de que se haya obtenido el sonido deseado.
  • Page 10 Tablero Trasero: EXTERNAL SPEAKER JACKS (Enchufes hembra de altavoz externo) (21) Se suministra para la conexion de bafles externos. La impedancia minima del altavoz externo es de 8 ohms (4 ohms de impedancia total). IMPEDANCE SELECTOR SWITCH (Interruptor del selector de impedancia) (22) Se usa para seleccionar la impedancia adecuada para la(s) caja(s) de altavoces.
  • Page 11 Veuillez vous r6f6rer au “front panel line art” situ6 dans la section en langue anglaise de ce manuel. Felicitations pour votre achat du Supreme TM TransTube@ nouvelle serie. Cet amplificateur, entierement novateur, est le fruit d’annees de recherche sur I’emulation de tube a vide. La nouvelle conception du preamplificateur s’appuie sur une technologie (brevet en instance) qui redefinit la distorsion de type tube et la g&-&ration d’harmoniques dans les amplificateurs a transistor.
  • Page 12 REVERB LEVEL (Niveau de reverberation) (9) Controle le niveau de reverberation global. POST GAIN (10) Commande le volume general du canal “Lead”. Le reglage final de niveau doit etre effectue apres avoir obtenu la sonorite dosiree a I’aide des autres reglages. LOW, MID, &...
  • Page 13 Panneau Arriere: EXTERNAL SPEAKER JACKS (Prises pour haut-parleur externe) (21) Sortie pour branchement d’une enceinte de haut-parleur separee. Impedance de haut- parleur externe minimale : 8 ohms (impedance totale de 4 ohms). IMPEDANCE SELECTOR SWITCH (Interrupteur de selection d’impedance) (22) Sert a selectionner I’impedance appropriee pour la ou les enceintes de haut-parleurs.
  • Page 14 Siehe Diagramm der Frontplatte im englischen Teil des Handbuchs. Wir begluckwunschen Sie zum Erwerb dieses Verstarkers aus der neuen SupremeTM Serie. Der neue Supreme ist das Ergebnis langjahriger Forschungsarbeit auf dem Gebiet der Hochvakuumrohrenemulation. Dieser Vorverstarker wurde unter Zuhilfenahme einer zum Patent angemeldeten Technologie konstruiert, die rohrenahnliche Verzerrung und Oberwellenerzeugung in Festkorperversttirkern neu definiert.
  • Page 15 POST GAIN (10) Regelt die Gesamtlautstarke das “Lead”-Kanal. Die endgiiltige Lautstarkeeinstellung sollte erst dann vorgenommen werden, wenn der gewunschte Klang erreicht ist. LOW, MID, & HIGH EQ (Tiefen, Mittleren und htihen-equalizerregler) (11,15) Hierbei handelt es sich urn passive Klangregler, die tiefe, mittlere und hohe Frequenzen entsprechend regeln fur das “Lead”- und “Clean”-Kanals.
  • Page 16 Riickplatte: EXTERNAL SPEAKER JACKS (Buchsen fur externe lautsprecher) (21) AnschluObuchse fur einen zusatzlichen Lautsprecher. Die Mindestimpedanz fur externe Lautsprecher betragt 8 Ohm (4 Ohm Gesamtimpedanz). IMPEDANCE SELECTOR SWITCH (Impedanz-Wahlschalter) (22) Dient zur Wahl der passenden lmpedanz fur den oder die Lautsprecher. Wenn zwei Lautsprecherboxen gleicher Impedanz eingesetzt werden, muf3 der Schalter auf den halben Wert eingestellt werden (d.h.
  • Page 17 For further information on other Peavey products, ask your Authorized Peavey Dealer for the appropriate Peavey catalog/publication: Bass Guitars Guitars Bass Amplification Guitar Amplification Sound Reinforcement Enclosures Microphones Keyboards Lighting Mixers, Powered/Non-Powered Accessories/Cables Effects Processors Axcess’” Wear The Peavey Beat’”...
  • Page 18 PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is also...
  • Page 19: Important Safety Instructions

    The user should not attempt to service this equipment. All service work should be done by a qualified service technician. This product should be used only with a cart or stand that is recommended by Peavey Electronics. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.
  • Page 20 Features and specifications subject to change without notice. Peavey Electronics Corporation 711 A Street / Meridian, MS 39301 / U.S.A. / (601) 483-5365 / Fax 486-1278 Printed in U.S.A. l/96 #I80300272 01996...
