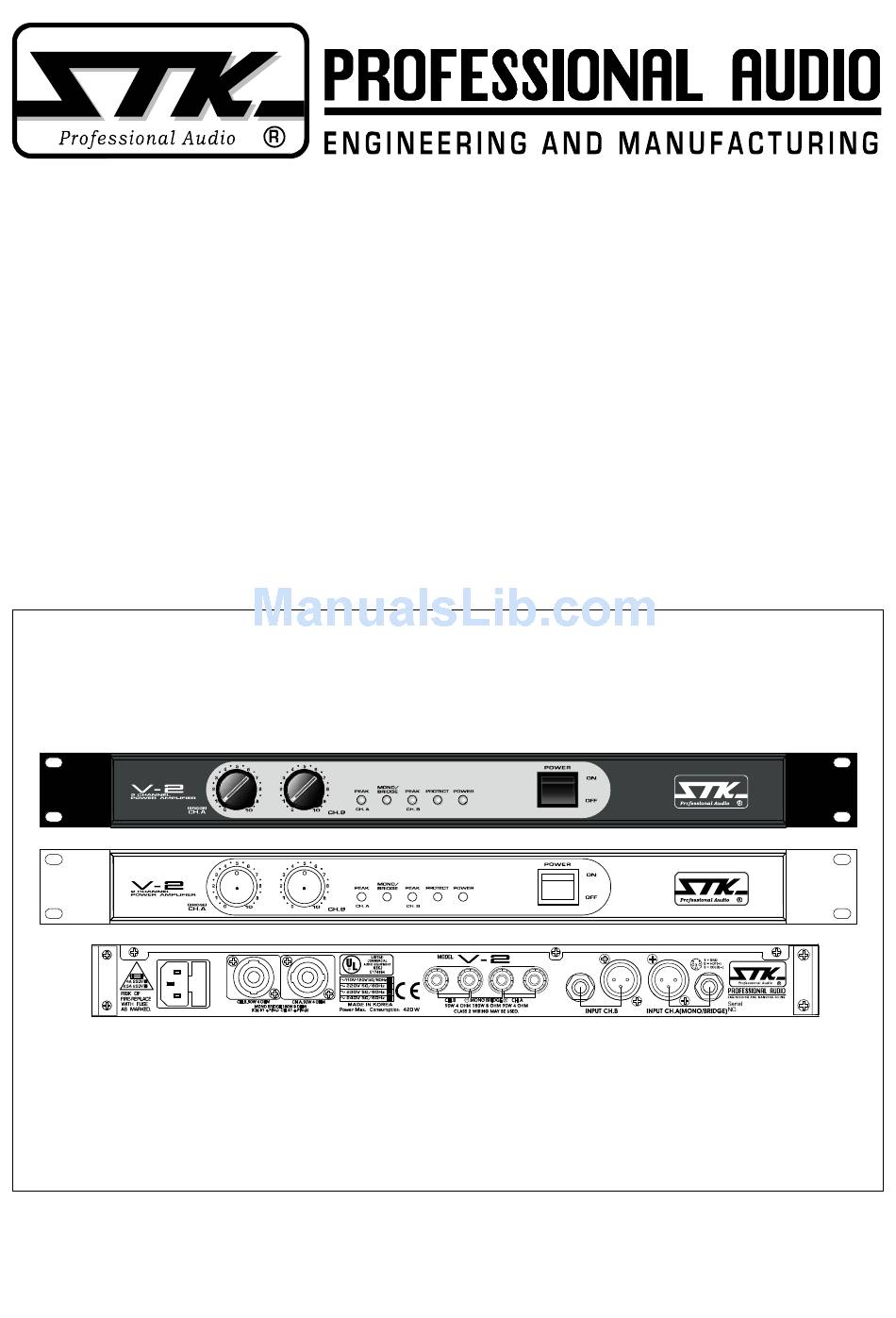

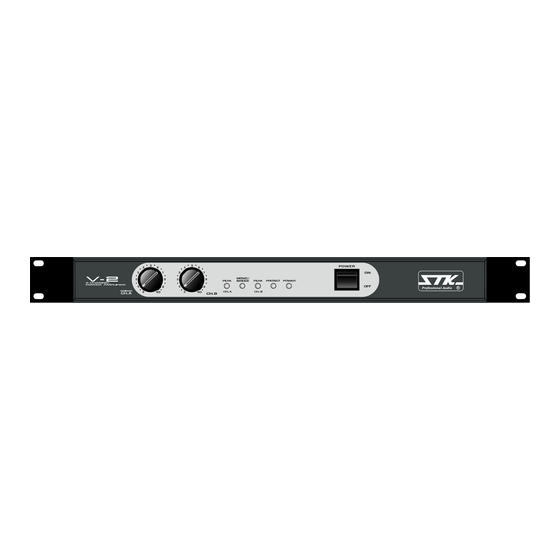

  • Page 1 2 Channel Power Amplifier 2 채널 파워 앰플리파이어 OWNER'S MANUAL 사용설명서...
  • Page 2: Channel Power Amplifier

    The V-2 features oversized skive fin stock type heat sinks for efficient convection cooling. In addition, the V-2 has a heavy duty aluminum rack handles which adds thermal efficiency. A full complement of LED indicators monitor functions and performance conditions.
  • Page 3: Important Safety Instructions

    STK V-2 파워 앰프는 스튜디오 모니터와 소규모 공간에 알맞는 정밀한 제품으로 프로페셔널용 라 이브 사운드 및 시스템 시공 설치 사용을 위해 설계된 최신 성능의 고품질 제품입니다. V-2 파워 앰프는 제품 밑면의 스위치로 스테레오 모드와 모노 브릿지 방식으로 앰프의 출력 상태 를 조건에 따라 선택하여 사용하실 수 있습니다.
  • Page 4 Ⅱ 안전을 위한 주의사항 Important Safety Instructions the plug fully into the outlet, try reversing 대한 주의사항을 반드시 지켜주세요. the plug. if the plug should still fail to fit, 9. 접지 플러그에 대한 주의- 만약 전원기구가 3선 contact your electrician to replace your 접지...
  • Page 5: For Your Records

    For more information about warranty repair, shipping carton and packing materials are please contact: Customer Service Dept., not available for inspection by the carrier. The STK Professional Audio. Save all packing materials until the claim has been settled. FOR YOUR RECORDS...
  • Page 6 재료들을 보관해 주십시오. 이 보증은 국가에 따라 달라질 수 있습니다. 만약 제품에 충격이 가해졌을 시에는 즉시 판매원 더 자세한 정보를 원하신다면 STK Professional Audio 고객 서비스 팀에 문의해 주 에게 알려 빠른 조치가 가능하도록 해주십시오. 십시오.. 운송업자와의 상품 인수 과정에서 손상된 포장용...
  • Page 7: 각 부의 명칭

    Ⅳ Panel Descriptions / 각 부의 명칭 FRONT PANEL / 전면부 1. 음량 조절 장치 1. Input Level Attenuator 2. 클립 표시등 2. Clip Indicator LED 앰프의 채널이 일반 출력의 한계치를 넘어서서 일그러짐 Indicates when distortion is present. 이 발생하면 점등됩니다. 3.
  • Page 8 참고: 채널 B는 모노/브릿지 모드에서는 비활성화 됩니 다. 13. 브릿지 모드 선택 스위치 13. Mono/ Bridge Mode Switch V-2 앰프를 1 채널 모노 앰프로 전환시킵니다. Convert V-2 into a single channel amplifier. Speakon Type / 스피콘 타입 스피콘 컨넥터 사용시 연결...
  • Page 9 Ⅳ Panel Descriptions / 각 부의 명칭 Connection Table / 출력별 연결표 출력기능 컨넥터 핀 Output Function Connector Pins Left 좌 1+, 1- Right 우 1+, 1- Bridged Mono 브릿지 모노 스테레오 모드(2 채널)를 위한 연결 Connection for Stereo(Two-Channel) Operation 왼쪽...
  • Page 10: Operating Precautions

    Read and follow all of the safety warnings on page 3 of this manual and on the separate safety precautions page 의사항을 반드시 읽고 숙지하시기 바랍니다. enclosed with the unit. Do not expose the V-2 to water 본 제품이 물이나 다른 액체에 젖지 않도록 주의해 주십 or other liquids.
  • Page 11: Stereo Operation

    The method of operation bridges inputs and outputs and can be used with 8 ohm or higher applications only. 입니다. The allows the V-2 to be used as a high power, V-2가 모노럴 또는 싱글 채널로 변환되면 8Ω의 부하에 monophonic or single channel amplifier, providing 200 200와트의...
  • Page 12: Input/Output Connections

    E. 입출력 단자 연결 E. INPUT/OUTPUT CONNECTIONS STK V-2 파워 앰프는 가능한 다양한 응용이 가능하도 The STK V-2 power amplifier is designed to be as 록 설계되었습니다. 다음의 입출력 연결에 대한 설명은 versatile as possible. The following descriptions of the 기기의...
  • Page 13: Power Requirements

    G. 전면부의 표시등 G. FRONT PANEL INDICATORS 전면부의 여러 표시등들은 앰프의 상황 별 여러 동작 The front panel of the V-2 has several indicators to alert 상태를 알려줍니다. you to the status of various operating conditions. 여러 표시등의 의미를 정확히 알면 앰프 사용이 훨씬...
  • Page 14 Ⅴ Connecting Your System / 올바른 설치 방법 2. 모노/브릿지 표시등 2. Mono/Bridge LED 모노/브릿지 표시등은 앰프 밑면부의 모노/브릿지 스위치 The mono/bridge LED will light when you have set the 를 모노/브릿지 모드에 위치 시켰을 때 켜집니다. bottom panel switch to the mono/bridge position for 앰프의...
  • Page 15: System Hookup Diagram

    Ⅵ System Hookup Diagram / 시스템 연결 구성도 STEREO PA SYSTEM 스테레오 라이브/PA 시스템...
  • Page 16 Ⅵ System Hookup Diagram / 시스템 연결 구성도 NEAR FIELD STUDIO MONITOR SYSTEM 니어필드 스튜디오 모니터 시스템...
  • Page 17 Ⅵ System Hookup Diagram / 시스템 연결 구성도 STEREO BI AMP SYSTEM 스테레오 바이 앰프 시스템...
  • Page 18: Block Diagram

    Ⅶ Block Diagram / 회로의 구성도...
  • Page 19: Specifications

    Ⅷ Specifications / 제품규격 모델 MODEL Output Power / 정격 출력 at 1㎑ / THD ≤ 1.0% EIA 4 Ω 2×100W 2× 70W 8 Ω 8 Ω Bridged 1×200W Total Harmonic Distortion / 왜율 <0.05% f=1 ㎑, at rated power IMD-SMPTE / 혼합변조왜율...
  • Page 20 Owner s Manual for The STK V 2 2 Channel Power Amplifier Printed In Korea DEC. 2010 STK Professional Audio...
