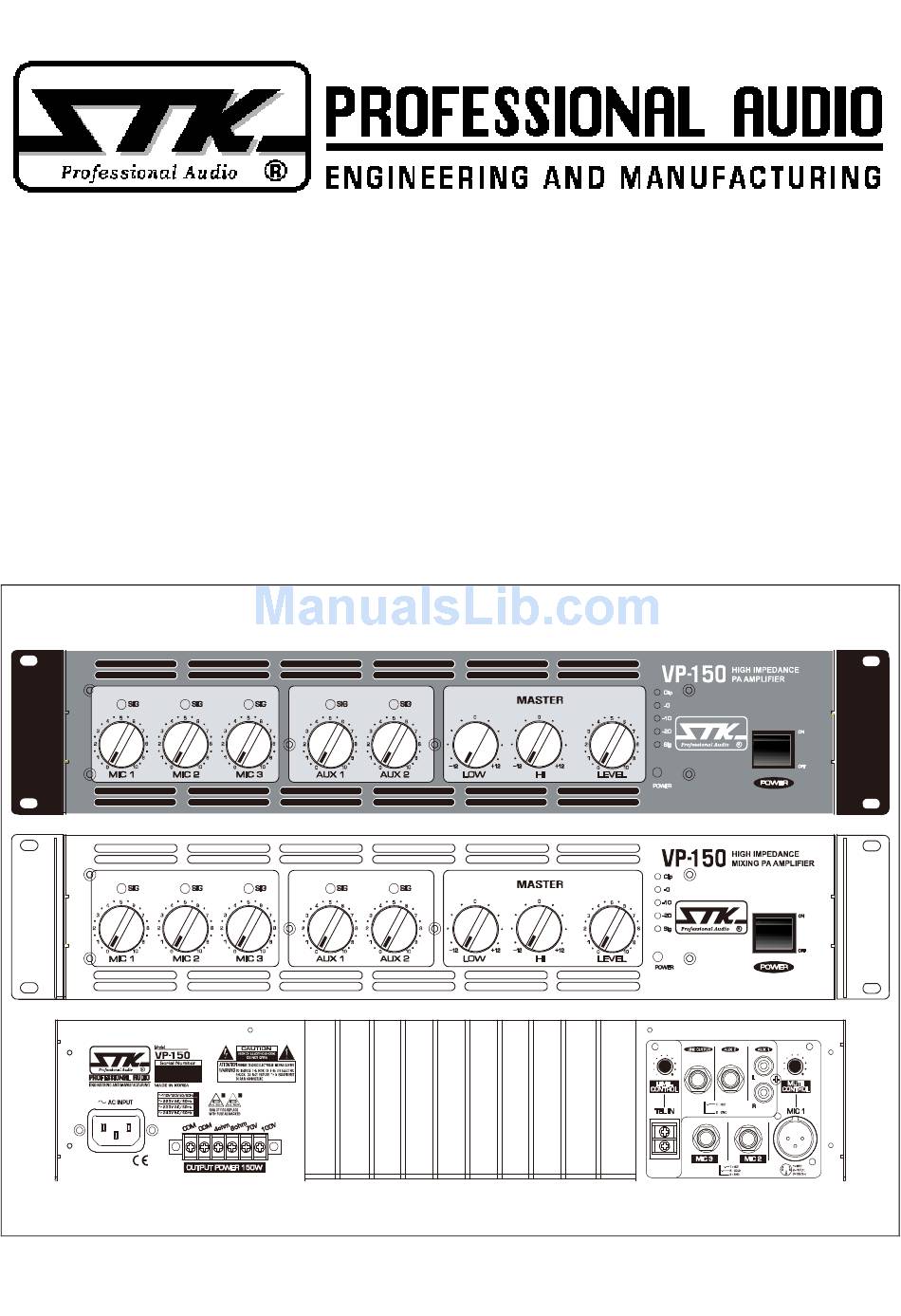

X-Formers. The VP-150 has attractive front panel with a full complement of LEDs channel input monitoring and output level condition. And including rack ears for mounting to the 19” standard rack case.
Ⅱ Important Safety Instructions 1. Read Instructions- All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions- The safety and operating instructions should be read before the appliance is operated should be retained for future reference. 3.
For more information about warranty repair, notified and if the shipping carton and please contact: Customer Service Dept., packing materials are not available for The STK Professional Audio. inspection by the carrier. Save all packing materials until the claim has been settled. FOR YOUR RECORDS...
1. AC Power Cord 2. Speaker Output terminal The VP-150 utilize six screw terminal for speaker connection. Two terminals are common output terminals. Another 4 terminals are 4 ohm, 8 ohm, 70V and 100V output terminals. For any configuration common terminal will be use with another terminal for speaker connections.
C. VP-150 OPERATION 1. Input Connections With the power off, connect your input source lines to channels 1 and 2 on the VP-150. 2. Connect Speaker Systems Connect speaker systems to speaker outputs as shown figure for low and high impedance output.
Page 7
Connecting Your System D. INPUT/OUTPUT CONNECTIONS The STK VP-150 PA amplifier is designed to be as versatile as possible. The following descriptions of the input and output connections are designed to help you maximize the unit's potential. 1. XLR Input Jacks Electronically balanced inputs accepts a standard XLR male connector.
F. FRONT PANEL INDICATORS The front panel of the VP-150 has several indicators to alert you to the status of various operating conditions. Knowing what these indicator LEDs are telling you will help you to use your STK amplifier.
