DYNAMIX VC-MP/SP
Master/Slave Ethernet Extender
with Remote Power
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-MP/SP and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynamix VC-MP/SP

  • Page 1 DYNAMIX VC-MP/SP Master/Slave Ethernet Extender with Remote Power USER’S MANUAL...
  • Page 2 The Dynamix VC-MP/SP with remote power provide extended-length power and Ethernet connections over one pair Cat 3 or above twisted pair phone cable. The Master / Slave Ethernet extender with remote power work as Ethernet to / from VDSL subscriber site conversion bridge.
  • Page 3: Safety Warnings

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Safety Warnings For your own safety, make sure to read and follow all warning notices and instructions before using the device. • DO NOT open the unit or device. Opening or removing the covers can expose you to dangerous high voltage points or other risks.
  • Page 4: Table Of Contents

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Table of Contents Safety Warnings...................................2 1. Unpacking Information ..............................5 Check List ....................................5 2. Installing the Modem ................................6 Hardware Installation ................................6 Pre-installation Requirements ..............................6 General Rules..................................7 Connecting the Master / Slave Ethernet extender with remote power .................7 Connecting the Line / Ethernet Ports ...........................9...
  • Page 5 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Product Specification ................................23 Appendix D: Troubleshooting ...............................26 Diagnosing the Modem’s Indicators .............................26 System Diagnostics ................................28 Appendix E: Compliance and Safety Information.........................30 Warranty ....................................32...
  • Page 6: Unpacking Information

    Carefully unpack the package and check its contents against the checklist. Package Contents • 1 x Dynamix VC-MP (Master) + 1 x Dynamix MP VC-SP (Slave) with Remote Power Modem Kit • 2 x 48V / 0.4A Power Adapter • 2 x AC To DC Power Cord •...
  • Page 7: Installing The Modem

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 2. Installing the Modem Hardware Installation This chapter describes how to install the modem and establishes network connections. You may install the modem on any level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements before you begin.
  • Page 8: General Rules

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 General Rules Before making any connections to the modem, please note the following rules: • Ethernet Port (RJ-45) All network connections to the modem Ethernet port must be made using Category 5 UTP for 100Mbps, Category 3, 4 UTP for 10Mbps.
  • Page 9 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Figure1: Master / Slave Ethernet extender with remote power straight connection Figure 2: Master / Slave Ethernet extender with remote power cross-over connection...
  • Page 10: Connecting The Line / Ethernet Ports

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Connecting the Line / Ethernet Ports 1. The modem’s line port supports max distance of 1km at 5M / 5M or max speed of 25M symmetrically with distance up to 500m for data service across existing phone wiring. It is easy-to-use which do not require installation of additional wiring.
  • Page 11 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Notes: Be sure each twisted-pair Ethernet cable does not exceed 100 meters (328 feet). Line port must use 24 ~ 26 gauge phone wiring, we do not recommend 28 gauge or above. We advise using Category 3, 4, 5 cables for cable modem or router connections to avoid any confusion or inconvenience in the future when you attached to high bandwidth devices.
  • Page 12: Hardware Description

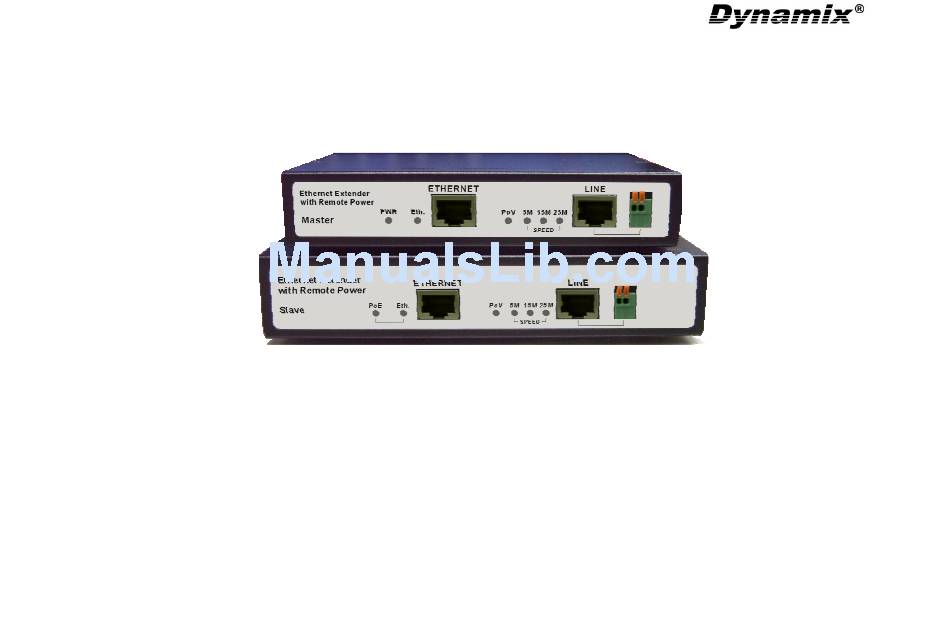

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 3. Hardware Description This section describes the important parts of the modem. It features the front panel and rear connectors. Master Ethernet extender with remote power detailed view Figure 4: Master Ethernet extender with remote power detailed view...
  • Page 13: Slave Ethernet Extender With Remote Power Detailed View

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Slave Ethernet extender with remote power detailed view Figure 5: Slave Ethernet extender with remote power detailed view...
  • Page 14: Front Panel

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Front Panel The figure shows the front panel. (Figure 6) Figure 6: Front Panel of Ethernet extender for Master and Slave respectively At a quick glance of the front panel, it is easy to tell if the modem has power, if it has signal from its Ethernet RJ-45 port, if it is either providing or receiving power and if there is line signal on line port.
  • Page 15: Front Indicators

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Front Indicators The modem has LED indicators. The following table shows the description. (Table 2) Table 2: LED Indicators Description and Operation LEDs Color Status Descriptions PWR (Power LED The system power is normal and functioning properly.
  • Page 16: Rear Panel

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Rear Panel The following figure shows the rear connectors. (Figure 7) Figure 7: Rear connectors of Ethernet extender for Master and Slave respectively At quick glance, you can see the DIP switch setting at default mode, where it is in auto-speed and interleave delay is set to...
  • Page 17 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 To set the data speed to 25Mbps, pin2 must be switch ON while pin1 is OFF. For 15Mbps, pin1 must be switch ON while pin2 is OFF. And for 5Mbps, both pins1 and 2 must be switch ON.
  • Page 18: Firmware Description

    Auto and manual data speed selector description: Dynamix VC-MP/SP with Remote Power solution supports real plug & play and can do auto and manual selection of the data speed, the setting of the data speed depends on the phone cable limit length, they can support 5M/15M/25Mbps symmetrical data service.
  • Page 19 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Note: We recommend phone cable that must meet Cat 5 standard or above and without clustering, otherwise the above guarantee will be void.
  • Page 20: Appendix A: Cable Requirements

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Appendix A: Cable Requirements A CAT 3, 4 or 5 twisted pair cable is typically used to connect the Ethernet device to the modem. A 10Base-T cable often consists of four pairs of wires, two of which are used for data transmission and the other two pairs are used for power transmission.
  • Page 21 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Standard telephone wire of any gauge or type-flat, twisted or quad is used to connect the modem to the telephone network. A telephone cable typically consists of three pairs of wires, one of which is used for transmission. The connector at the end of the telephone cable is called RJ-45 connector and it consists of eight pins.
  • Page 22: Appendix B: Ieee 802.3Af Pse And Powered Device Power Classifications

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Appendix B: IEEE 802.3af PSE and Powered Device Power Classifications Table 6: IEEE 802.3af PSE and Powered Device Power Classifications Class Usage Minimum Power Levels Output at the PSE Maximum Power Levels at the Powered Device Default 15.4W...
  • Page 23: Appendix C: Product Specification

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Appendix C: Product Specification Key Features & Benefits • Supports Plug & Play (UPnP) • Compliant with IEEE802.3 10BASE-T, IEEE802.3u, 100BASE-TX and IEEE802.3af Ethernet PD class 0, 1, 2, or 3 standards • Compliant with ETSI, ITU and ANSI standards •...
  • Page 24: Dynamix Vc-Mp/Sp User's Manual Ver

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Product Specification Standard Compliant: IEEE802.3 standard IEEE802.3u standard IEEE 802.3af PoE standard ITU-G993.1 EMC Compliant: CE,FCC,VCCI Safety Compliant: EN60950, Environmental Protection Compliant: RoHS Interface: 1 x RJ-45 for fast Ethernet port with power injector (Slave only)
  • Page 25 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Power Protection: OTP(Over Temperature Protection) OVP(Over Voltage Protection) OCP(Over Current Protection) Robust short circuit protection VDSL and Ethernet surge protection System Management: Provides DIP Switch for changing speed mode (Master only) Cable Connection: Ethernet: Category 3, 4, 5 UTP/STP...
  • Page 26 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Power Injector (Slave only): Using CAT 5 UL standard twisted-pair phone cable Max. 15.4W within 500m (1640ft) Max. 12W within 600m (1968ft) Max. 8W within 800m (2624ft) Max. 5.5W within 1000m (3280ft) Note: Real output power depends on slave side (power splitter) power transmission efficiency.
  • Page 27: Appendix D: Troubleshooting

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Appendix D: Troubleshooting Diagnosing the Modem’s Indicators The modem can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems that hub may encounter. This section describes common problems you may encounter and possible solutions.
  • Page 28 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 2.6 Make sure that the phone wire must be connected between the master and the slave first, when both are to be powered on. 2.7 Replace the defective modem or cable if necessary. 3. Symptom: Speed link cannot be established.
  • Page 29: System Diagnostics

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 System Diagnostics Power and Cooling Problems If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply as explained in the previous section. However, if the unit power is off after running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the fan on back of the unit is unobstructed and running prior to shutdown.
  • Page 30 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Physical Configuration If problems occur after altering the network configuration, restore the original connections, and try to track the problem down by implementing the new changes, one step at a time. Ensure that cable distances and other physical aspects of the installation do not exceed recommendations.
  • Page 31: Appendix E: Compliance And Safety Information

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Appendix E: Compliance and Safety Information FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 32 Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service.
  • Page 33: Warranty

    Dynamix VC-MP/SP USER’S MANUAL Ver. A.2 Warranty The original owner that the product delivered in this package will be free from defects in material and workmanship for one year parts after purchase. There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical cooling devices.
