Control Data Corporation BR8 SERIES Hardware Maintenance Manual page 88

*Q -
~
FROM SHEET 3
*~
FROM SHEET 3
*Q-
\:V-
FROM SHEET 3
8-8
~
FROM SHEET 3
FROM SHEET 3
*~
®
FROM SHEET 3
*~
r
I
T
E IDENT
M NO DESCRIPTION
125 83427801 WRITE PROTECT ASM
127 77830690 DISKETTE DETECT ASM
147 77594901 TRACK SWITCH ASM
156 77830641 AC CONN & RELAY ASM
168 77594704 OPT TRACK SENSE ASSY
169 77594705 OPT TRACK SENSE ASSY
186 10125803 WASHERS SPR LOCK
213 24548313 WIRE ELEC
214 24548311 WIRE ELEC
237 93541002 TERMINAL
251 77832458 OPTICAL SWITCH
252 75293954 CONNECTOR
252 75293954 CONNECTOR
253 94245602 CONTACT
253 94245602 CONTACT
254 10125759 SCREW FLAT HD
258 93592164 SCR HX SELF TAP
258 93592164 SCR HX SELF TAP
259 77835305 LABEL
260 75791600 MOUNT
261 75724402 SWITCH
262 75293956 CONNECTOR
264 77594403 MOUNT
307 77830550 SOLID STATE RELAY
308 10127334 SCREW
309 10125105 NUT
324 75893025 MOUNT
354 09000004 SCREW BIND HEAD
355 75885407 OPTICAL SWITCH
374 94277400 TIE STRAP
386 10125102 SCR NUT HEX
387 10126100 WASH INT TOOTH LK
*
RECOMMENDED FIELD REPLACEMENT LEVEL.
ALL OTHER PARTS IN THESE VIEWS SHOULD
BE CONSIDERED REFERENCE DATA ONLY.

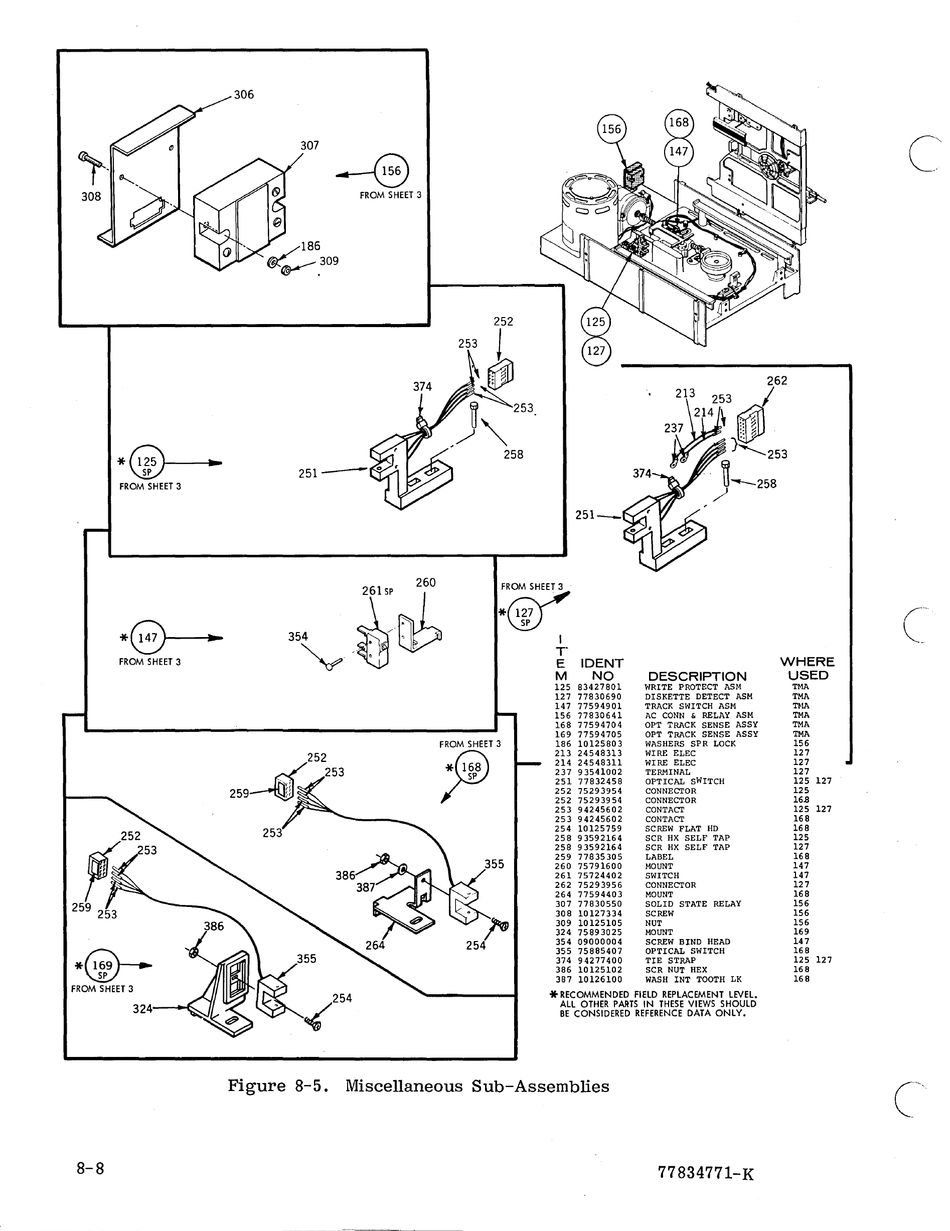

Figure 8-5. Miscellaneous Sub-Assemblies
77834771-K
