3.6.1 OPERATING FREQUENCY
If the required operating frequency is different than that which the unit is configured, the
procedure for converting operating frequencies using the dual diameter reversible pulley
is provided in Section 6, "Frequency Conversion" for applicable models.
PLUG:
AMP PN 1-480700-0
MPI PN 83435302-1
CONTACTS: (SOCKET)
\
I
_
_ _ ----" J
.--.
, . /
~-
---------'
,
,.--
(' (~---
' ' -.• __ I
CABLE CONNECTOR
MATING PLUG
RECEPTICLE:
AMP PN 1-480701-0
MPI PN 83435402-8
AMP PN 350536-1 (STRIP)
AMP PN 350550-1 (LOOSE)
MPI PN 83435507-5
CONTACTS: (PIN)
AMP PN 350547-1 (LOOSE)
AMP PN 350218-1 (STRIP)
MPI PN 83435501-8 (STRIP)
r - - -
'-
~~12.)
AC CABLE (75292202)
RECEPTICLE ON
FDD ASSEMBLY

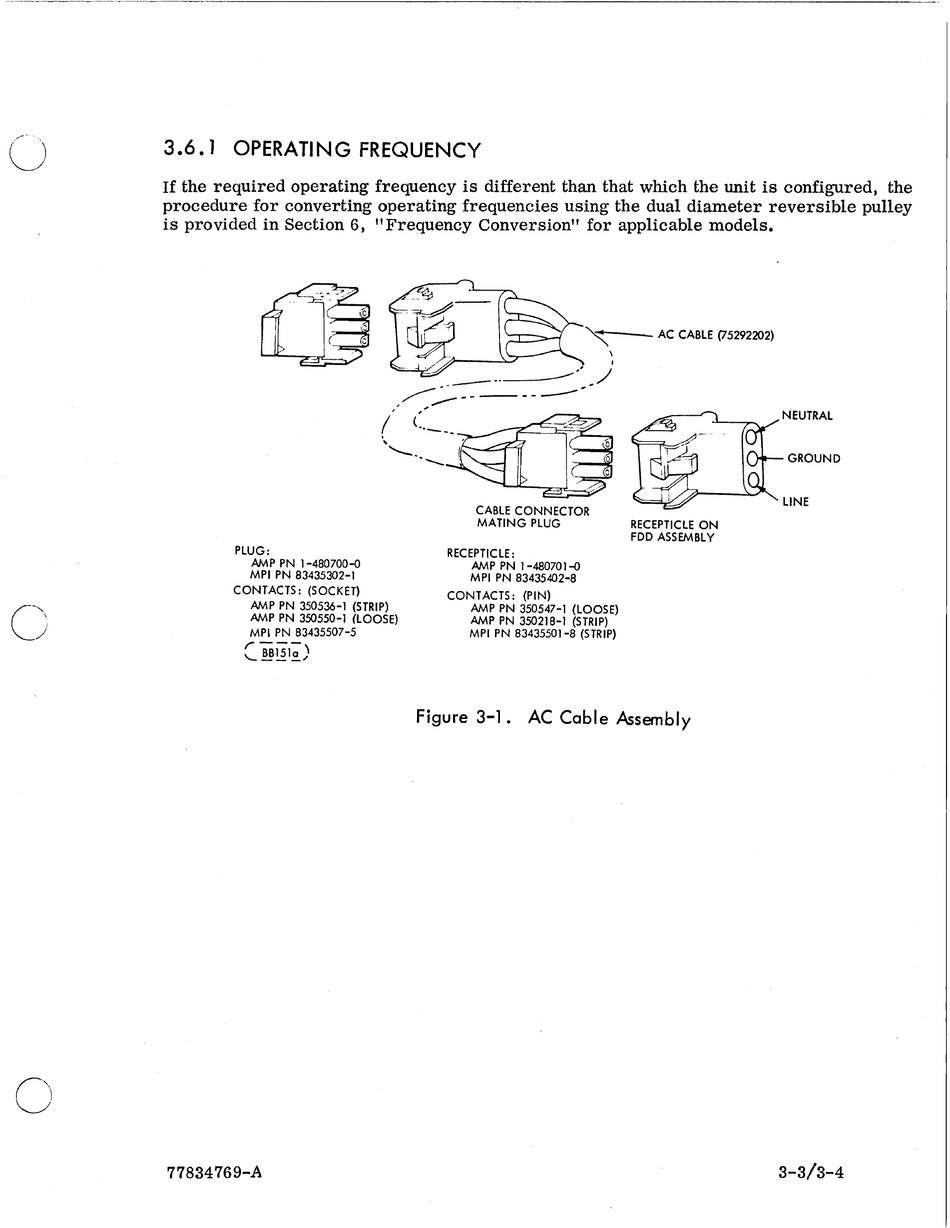

Figure 3-1. AC Cable Assembly
77834769-A
GROUND
LINE
3-3/3-4
