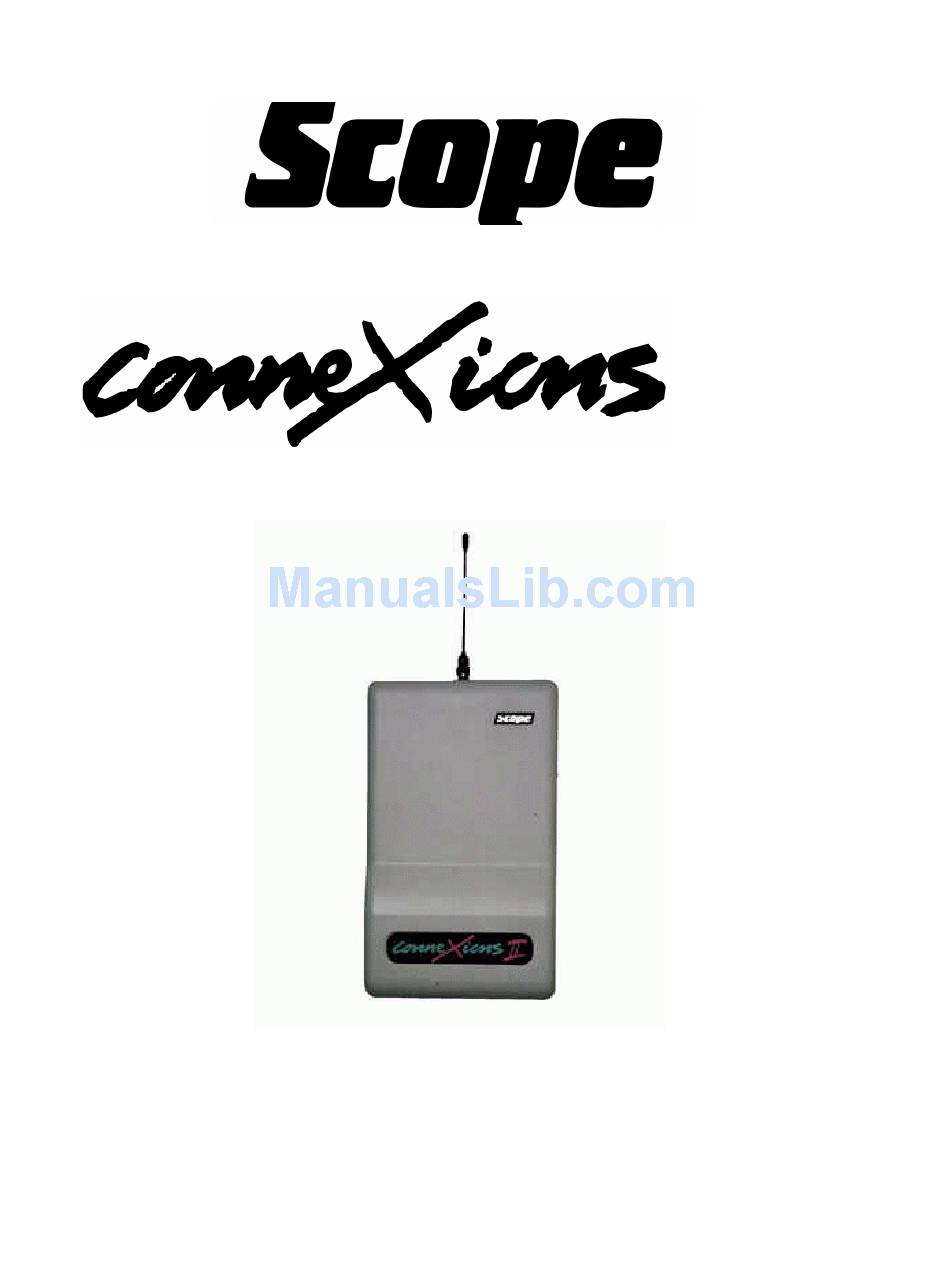

- Page 1 User & Installation Manual RS-232 Radio Paging System...
- Page 2 It is the purchasers’ responsibility to determine the suitability of this equipment and its derivatives for any given application, Scope cannot give specific advice in this manual, as each use will require independent evaluation. Scope has, wherever possible, employed extra safeguards or designed optional equipment to further monitor the system’s performance.
- Page 3 All applications should be thoroughly assessed by the installer in conjunction with the customer so as to minimize risk. Scope has no control of the use and application of the frequencies issued by the FCC. Some equipment that is individually licensed may have a greater degree of protection than other equipment that is operated on a FCC License Assignment basis.
- Page 4 There are no other expressed or implied warranties except as stated herein, and those excluded include those of merchantability and fitness for a particular purpose. In no event will Scope or any of its agents be liable for direct, indirect, special incidental or consequential damages resulting from any defect in the product, even if advised of the possibility of such damages.
-
Page 5: System Overview
ConneXions II V7 MAC US Multi Port, Mains, USA Version System Overview The Scope ConneXions II is a POCSAG data display radio paging system which can be used to transmit both text and numeric messages direct to pocket pagers carried by individuals or entire groups. Information is input by way of three RS232 serial ports. - Page 6 If in doubt, contact the supplier for further advice. Remove the cover from the ConneXions II transmitter unit by slackening the four Pozi head screws located at the top and bottom of the unit (see Diagram 1).
- Page 7 ConneXions II V7 MAC US Multi Port, Mains, USA Version Warning: Do not use the chassis plate as a template for drilling the holes into the wall. Hammer drills vibrating through the chassis may irreparably damage the quartz crystals on the printed circuit boards.
-
Page 8: Pin Description
ConneXions II V7 MAC US Multi Port, Mains, USA Version DESCRIPTION DEFAULT STATE DEFAULT MESSAGE DRY CONTACT NO. 1 NORMALLY OPEN ALARM 1 DRY CONTACT NO. 2 NORMALLY OPEN ALARM 2 DRY CONTACT NO. 3 NORMALLY OPEN ALARM 3 DRY CONTACT NO. 4... - Page 9 ConneXions II V7 MAC US Multi Port, Mains, USA Version 25-Pin D-Shell 9-Pin Connector 25-Pin Connector On ConneXions for Paging data input for Dry Contact Input 1 – N/C 1 – N/C 8 – N/C 9 – N/C 8 – N/C...
- Page 10 ConneXions II V7 MAC US Multi Port, Mains, USA Version CONV7MACUS 02/00 Issue 2...
-
Page 11: Section 2: System Operation
Check that the red power LED on the base of the ConneXions is lit. If not, isolate the power and check the fuse in the mains plug. The Scope mains input fuse on the integral power supply and the low voltage output fuse may also be checked by a suitably qualified technician. -
Page 12: Other Antennas
ConneXions II V7 MAC US Multi Port, Mains, USA Version Other Antennas The range and performance of this equipment can be improved by the addition of more efficient antennas*. These can be installed either inside or outside the building and are connected to the transmitter with 50 OHM coaxial cable. - Page 13 ConneXions II V7 MAC US Multi Port, Mains, USA Version DRY CONTACT MESSAGES (must be specified when ordering) MESSAGE (max 80 characters alphanumeric or 20 characters numeric) For information on individual pager types, refer to the appropriate pager manual For information on use with the telephone I/F, refer to the separate Telephone Interface manual.
-
Page 14: System Specification
Scope (default) " Footprint (mm): 328 (L) x 190 (W) x 75 (D) max dependent on system configuration " excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without notice CONV7MACUS 02/00 Issue 2... -
Page 15: Section 3: Technical Information
ConneXions II V7 MAC US Multi Port, Mains, USA Version Section 3: Technical Information This section provides a more in depth understanding of how messages are formatted for serial communication from a host. It need only be studied by those intending to write their own serial communication software. - Page 16 ConneXions II V7 MAC US Multi Port, Mains, USA Version Numeric Pagers Example serial message string:- N0012300A1234567890<CR> The ‘N’ informs the transcoder that this message is destined for a Numeric pager. Any data not preceded by this will be ignored.
- Page 17 Appendix A Industry Communications Protocols This section deals with the serial data formats commonly used within the On-site Paging Industry. Scope has its own proprietary protocol, but can for certain systems provide a number of other industry- recognized protocols. Warning! Check the protocols available for any given unit before quoting for a specific application.
- Page 18 Comp 2 can also provide message prioritization on certain Scope systems equipped with message buffering. This utilizes the A,B,C,D beep type to set the level of priority. Certain Scope products will also accept this format without the beep type included in the message string. This will invoke a default beep type being inserted by the transcoder.
- Page 19 These 'retry' numbers and time limits are the other 'flexible' options in the TAP protocol. The Scope system allows the installer to specify these values for themselves to suit the application to which the protocol is applied.
- Page 20 ConneXions II V7 MAC US Multi Port, Mains, USA Version Appendix A Example of typical Command-Acknowledge Sequence: CALLER RECEIVING STATION <CR> every 1 second unit….. <ESC>PG1<CR> <ESC>[p<CR> <STX>1<CR>TEST<CR><ETX>190<CR> (“TEST” is the message) Processing-Please Wait<CR><ACK><CR> (“190” is the Checksum) +++,,,,,,,,,,ATHO<CR> Carrier Drop...
- Page 21 ConneXions II V7 MAC US Multi Port, Mains, USA Version Serial Cable 9-9Pin ConneXions Issue 7 Supplied Single or Triple RS232 Ports VSP12860V VSP12824V SDCPROG Serial Cable 9-9 Pin Computer Paging using 10-Voltage Free Contacts Network or Standalone And RS232 Input using Paging Software PL1 of a 3-Port Unit.
