Connecting EMD

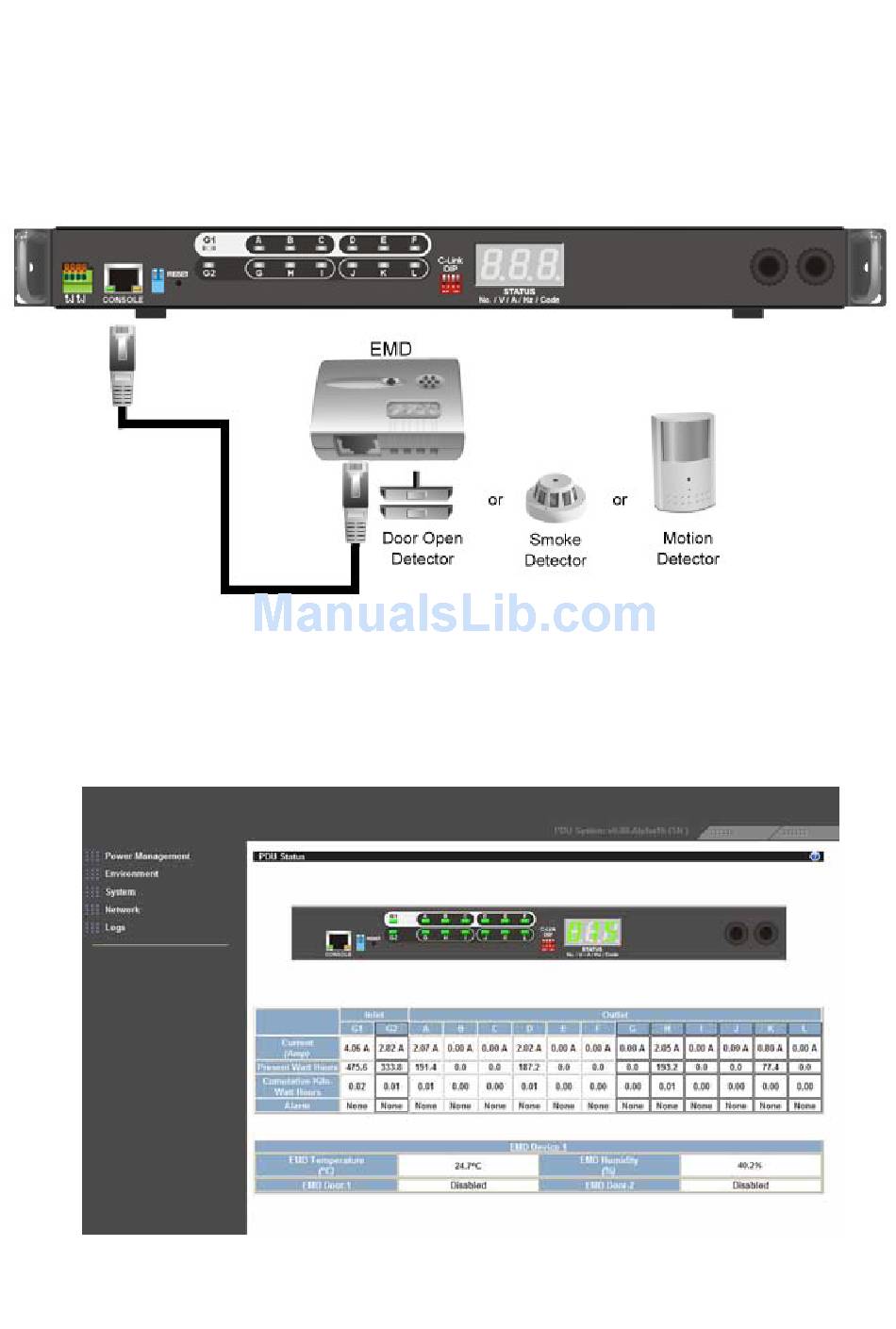

An Environmental Monitored Device (EMD) that is connected to sensors for detecting temperature,
humidity, water level, and so on can be connected to the iPoMan II 1200 with the console port. The EMD
can also be connected to alarms or indicators and controlled through the iPoMan II 1200. Connect the
EMD to the console port as shown:
If applicable, connect external contact closure inputs to the screw terminals on the EMD. Just like
sensor detector or any device with normally-open or closed.
After connecting to EMD, open a browser from a PC in the network. The temperature and humidity
status is automatically displayed on the PDU Status page.
~iPoMan II 1200 Quick Installation Guide~
- 3 -
