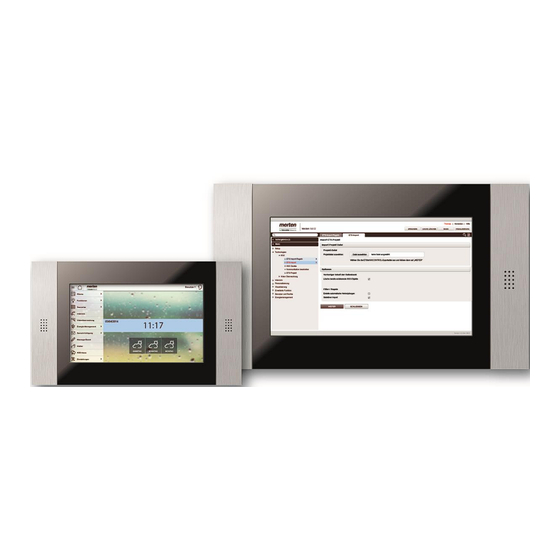

Page 1 U.motion U.motion KNX Server Plus, Touch 10 U.motion KNX Server Plus, Touch 15 Installation Manual Art. no. MEG6260-0410 | MEG6260-0415 04/2014 VERSION 1.0.1 www.merten.com...
Page 2 U.motion KNX Server Plus, Touch Installation Manual ENERAL NFORMATION Schneider Electric GmbH c/o Merten Gothaer Straße 29, 40880 Ratingen www.merten.com www.merten-austria.at Customer care centre: Phone: +49 2102 - 404 6000 Operating instructions, manuals and software are protected by copyright. All rights are reserved. Copying, multiplication, translation and conversion, either partially or as a whole, is not permitted.
Page 3 U.motion KNX Server Plus, Touch Installation Manual AFETY INSTRUCTIONS The present operating instructions contain those safety instructions that are required to safely operate the machine. All persons working with the machine must heed the present operating instructions, especially the safety instructions. In addition, all local stipulations governing the prevention of accidents must be heeded.
Page 4: Table Of Contents
U.motion KNX Server Plus, Touch Installation Manual NDEX First Commissioning ________________________________________ - 9 - Introduction ___________________________________________________________________ - 9 - Content of the Packaging _____________________________________________________ - 9 - Installation, Connection and Commissioning ______________________________ - 10 - 1.3.1 Installation and Connection _________________________________________________ - 10 - 1.3.2 Environmental Conditions __________________________________________________ - 10 - 1.3.3 Commissioning _____________________________________________________________ - 10 - Network Connection ________________________________________________________ - 10 -...
Page 5 U.motion KNX Server Plus, Touch Installation Manual Setup _______________________________________________________ - 27 - Introduction _________________________________________________________________ - 27 - Language ____________________________________________________________________ - 27 - Network ______________________________________________________________________ - 28 - Update _______________________________________________________________________ - 29 - Backup/Restore ______________________________________________________________ - 29 - Date/Time ___________________________________________________________________ - 30 - 3.6.1 Date/Time Configuration ___________________________________________________ - 30 - 3.6.2 Timezone Settings __________________________________________________________ - 30 - 3.6.3 Online Update ______________________________________________________________ - 30 -...
Page 6 U.motion KNX Server Plus, Touch Installation Manual KNX Object Properties ______________________________________________________ - 50 - 5.7.1 KNX Object Details __________________________________________________________ - 50 - 5.7.2 KNX Group Addresses ______________________________________________________ - 52 - 5.7.3 Rooms and Connected Scenarios ___________________________________________ - 53 - 5.7.4 Active and Passive Events ___________________________________________________ - 53 - KNX Scenarios _______________________________________________________________ - 54 - Physical Address of U.motion KNX Server Plus Touch ____________________ - 55 - 5.10 ETS Gateway _________________________________________________________________ - 56 -...
Page 7 U.motion KNX Server Plus, Touch Installation Manual Links _______________________________________________________ - 85 - 10.1 Introduction _________________________________________________________________ - 85 - 10.2 Creation of Links ____________________________________________________________ - 85 - 10.3 Integration into the Visualisation __________________________________________ - 87 - 10.4 Handling inside the Visualisation ___________________________________________ - 87 - Advanced Functions ______________________________________ - 88 - 11.1 Introduction _________________________________________________________________ - 88 - 11.2 Logics ________________________________________________________________________ - 88 -...
Page 8 U.motion KNX Server Plus, Touch Installation Manual Users _____________________________________________________ - 122 - 14.1 Introduction ________________________________________________________________ - 122 - 14.2 Users and User Groups _____________________________________________________ - 122 - 14.3 Create new Users ___________________________________________________________ - 122 - 14.4 User Groups and Permissions ______________________________________________ - 124 - Remote Access ___________________________________________ - 126 - 15.1 Introduction ________________________________________________________________ - 126 - 15.2 Remote Access through Internet __________________________________________ - 126 -...
Page 9: First Commissioning
U.motion KNX Server Plus, Touch Installation Manual IRST OMMISSIONING 1.1 I NTRODUCTION U.motion KNX Server Plus Touch is a Touch-PC for monitoring and visualising home & building Automation systems, which have been realized on the base of the worldwide KNX standard. The configuration and use of U.motion KNX Server Plus Touch takes place directly through its web interface, which can be accessed through a conventional browser (from any device / operating system).
Page 10: Installation, Connection And Commissioning
U.motion KNX Server Plus, Touch Installation Manual 1.3 I NSTALLATION ONNECTION AND OMMISSIONING 1.3.1 I NSTALLATION AND ONNECTION U.motion KNX Server Plus Touch fits into the available mounting units. For a correct function, the following connections must be guaranteed: Power supply 230V AC •...
Page 11 U.motion KNX Server Plus, Touch Installation Manual The following screenshots show how to change the network settings on Windows XP: Once the network settings have been changed, open a browser on your PC (Google Chrome preferred) and enter the following URL into the address bar of the browser: http://192.168.0.110/umotion/modules/system/externalframe.php?context=configuration This link will open directly the configuration menu of U.motion KNX Server Plus Touch;...
Page 12: Access
U.motion KNX Server Plus, Touch Installation Manual Note: U.motion KNX Server Plus Touch is limited to only one remote access from another PC (Desktop, Laptop), which is meant for programming the device. The access from mobile devices or U.motion Client Touch 7 through the U.motion Control-App is not limited! The maximum comfort for using/programming U.motion KNX Server Plus Touch can be achieved with the following browsers:...
Page 13: Administration And Visualisation Area
U.motion KNX Server Plus, Touch Installation Manual 1.6 A DMINISTRATION AND ISUALISATION The interface of U.motion KNX Server Plus Touch is split into two areas: “ADMINISTRATION” or “BACKEND”: Configuration area, in which (depending on the users permissions) each • aspect of the web server and visualisation can be modified “VISUALISATION”: Visualisation area, designed for being used by the final user.
Page 14 U.motion KNX Server Plus, Touch Installation Manual Hint: On U.motion KNX Server Plus Touch itself only the VISUALISATION is accessible, the ADMINISTRATION cannot be accessed directly on the display of U.motion KNX Server Plus Touch. To save time during configuration, both areas can be displayed simultaneously in different tabs of the browser, which makes it faster to switch between the areas.
Page 15: General Overview
U.motion KNX Server Plus, Touch Installation Manual ENERAL OVERVIEW 2.1 I NTRODUCTION This chapter gives an overview of the ADMINISTRATION area of U.motion KNX Server Plus Touch and explains different tools and menus, which can be used to configure the web server. 2.2 A DMINISTRATION NTERFACE...
Page 16: Toolbar
U.motion KNX Server Plus, Touch Installation Manual The following screenshot shows the single sections of the ADMINISTRATION area: Toolbar Search function Workspace Menu 2.3 T OOLBAR Following functions are always present in the toolbar: SAVE Allows saving all changes into the flash memory of U.motion KNX Server Plus Touch, what will preserve the data even if the web server is powered off.
Page 17: Navigation Menu
U.motion KNX Server Plus, Touch Installation Manual 2.4 N AVIGATION 2.4.1 U SAGE The navigation menu is a typical tree-view-menu. After accessing the ADMINISTRATION area all the main entries are shown; the sub-menus are accessed by extending the corresponding main menu. The navigation in this menu is done entirely with a mouse.
Page 18 U.motion KNX Server Plus, Touch Installation Manual When an object is cloned, not only the objects itself is duplicated, but also all of its connections / relations with other objects. This means that the cloned object will be contained in the same rooms, logics, scenarios etc.
Page 19 U.motion KNX Server Plus, Touch Installation Manual As mentioned before, some of the entries of the navigation menu permit to create submenus or to insert new objects. This is done using the NEW button in the TOOLBAR: by pressing this button a new object (the object type depends on the selected entry) will be created and selected automatically.
Page 20: Menu Structure
U.motion KNX Server Plus, Touch Installation Manual For rooms it’s also possible to create further sub-menus following the same procedure (as in the further course of this manual will be explained); the resulting tree-structure can so also be used in the visualisation. The DELETE button removes the selected entries from the project.
Page 21: Technologies - Video Surveillance
U.motion KNX Server Plus, Touch Installation Manual 2.4.5 T – V ECHNOLOGIES IDEO URVEILLANCE In this section IP cameras can be integrated into the visualisation; they can be reached inside the visualisation by clicking on the related icon in the navigation menu. 2.4.6 T ECHNOLOGIES NTERCOM...
Page 22: Visualisation - Rooms
U.motion KNX Server Plus, Touch Installation Manual system entry access, which is not desired, can be easily hidden from the navigation menu; in this way the VISUALISATION can be directly adapted to the customer’s needs. 2.4.10 ISUALISATION OOMS This section allows the configuration of the rooms inside the visualisation. This section is initially empty and allows the creation of new rooms (from a technical point of view objects of type "GROUP"), which can contain other rooms or other objects supported by U.motion KNX Server Plus Touch.
Page 23: Visualisation - Links
U.motion KNX Server Plus, Touch Installation Manual Furthermore, the order of the single entries can be changed. Click on the grey ORDER-button of an entry, drag it up or down to the desired position and drop it there to fix the entry in the new position. The new sequence is shown in the VISUALISATION after accessing the FUNCTIONS menu again.
Page 24: Search Function
U.motion KNX Server Plus, Touch Installation Manual 2.5 S EARCH UNCTION By entering one or more keywords into the search box in the upper left corner, the software searches for all objects, which include the specified keyword in their names or other primary properties. The results are displayed in the left area instead of the navigation menu, which is minimized for this purpose: The results are shown together with the following information: NAME...
Page 25: Workspace
U.motion KNX Server Plus, Touch Installation Manual The TOOLBAR can show the following action buttons: EDIT Opens the configuration window of the selected objects DELETE Removes the selected objects from the project CLONE Clones the selected objects The CLONE-action creates a one-on-one copy of the selected objects. After the execution of this command, the search results are refreshed and also the cloned objects will be shown (can be recognized from the prequel “Copy of ...”).
Page 26: Usage Of The Tabs
U.motion KNX Server Plus, Touch Installation Manual 2.6.2 U SAGE OF THE All opened tabs are displayed in the TAB-BAR of in the upper area of the WORKSPACE: If a large number of tabs is opened, they are not all represented in the TAB-BAR. The hidden tabs can be accessed through the button at the right end of the TAB-BAR, which on click shows a complete list of all opened tabs.
Page 27: Setup
U.motion KNX Server Plus, Touch Installation Manual ETUP 3.1 I NTRODUCTION This chapter explains the configuration pages for installation, commissioning and maintenance of U.motion KNX Server Plus Touch. All sections and menus described in this chapter can be found in the SETUP section of the navigation menu. To have access to all of these settings, you must be logged in as administrator.
Page 28: Network
U.motion KNX Server Plus, Touch Installation Manual 3.3 N ETWORK This page allows the configuration of the network parameters of U.motion KNX Server Plus Touch: The available parameters are: IP ADDRESS IP address of U.motion KNX Server Plus Touch; this address must be present in the network only once and must be compatible with the IP addresses of the other devices inside the same network (if unsure, please contact your network administrator)
Page 29: Update
U.motion KNX Server Plus, Touch Installation Manual 3.4 U PDATE This menu permits to update the software version of U.motion KNX Server Plus Touch; please use only official update packages published by the manufacturer, in order to avoid malfunctions. To update U.motion KNX Server Plus Touch, please proceed as follows: Save the update package (downloaded from homepage or received via mail) on your PC without unpacking •...
Page 30: Date/Time
U.motion KNX Server Plus, Touch Installation Manual In addition, U.motion KNX Server Plus Touch can be reset to factory settings (the IP address will NOT be affected by the reset). After the desired action has been selected (and in case of the import action a suitable backup has been selected), click on "EXECUTE"...
Page 31: Display
U.motion KNX Server Plus, Touch Installation Manual 3.7 D ISPLAY In this section all the settings for the display of U.motion KNX Server Plus Touch can be configured and also the calibration of the touchscreen can be started. 3.7.1 P OWER ANAGEMENT AND CREENSAVER...
Page 32: Touchscreen
U.motion KNX Server Plus, Touch Installation Manual 3.7.3 T OUCHSCREEN Through the calibration the touchscreen can be optimized for the customer: CALIBRATION A single click on the button „CALIBRATE NOW“ starts the calibration procedure on the display of U.motion KNX Server Plus Touch. During this procedure, 4 crosses appear on the display of U.motion KNX Server Plus Touch, which must be pressed by the customer one after another.
Page 33: Customization
U.motion KNX Server Plus, Touch Installation Manual USTOMIZATION 4.1 T HEMES U.motion KNX Server Plus Touch offers different themes for changing the design of the VISUALISATION; in this page one can choose which theme should be used for the VISUALISATION of U.motion KNX Server Plus Touch: - 33 -...
Page 34: Navigation Menu
U.motion KNX Server Plus, Touch Installation Manual 4.2 N AVIGATION This page permits to personalize the navigation menu. The individual links can be defined, as well as their order within the navigation menu itself. If the EXPERT mode is active, all personalization options of the navigation menu are accessible: Through the option "VISIBLE"...
Page 35: Options
U.motion KNX Server Plus, Touch Installation Manual In this configuration window the list with the favourites can be modified: Objects can be deleted from the list with the DELETE button • The order of the single objects can be changed by dragging them (using the grey ORDER button) to the desired •...
Page 36: Mail
U.motion KNX Server Plus, Touch Installation Manual 4.4.2 M This section allows configuring all parameters required for sending mails through U.motion KNX Server Plus Touch: SMTP SERVER SMTP-Server for sending mails USERNAME Username for accessing the SMTP server PASSWORD Password for accessing the SMTP server ACTIVATE AUTHORIZATION Defines whether for the communication with the SMTP server a user authentication is required or not...
Page 37: Internet Bookmark
U.motion KNX Server Plus, Touch Installation Manual Parameter Value Feed 1 - Title Feed 1 - URL http://feeds.bbci.co.uk/news/rss.xml Feed 2 - Title Sports Feed 2 - URL http://feeds.bbci.co.uk/sport/0/rss.xml?edition=uk The following screenshot shows the result of a correct configuration of the RSS feeds: To get the appropriate feed URL check out the homepage of the provider of the feed.
Page 38: Display-Interaction
U.motion KNX Server Plus, Touch Installation Manual 4.4.7 D ISPLAY NTERACTION This page contains different options regarding the usage / interaction of the software on client devices. The following options are currently available: ON-SCREEN- Permits to enable – both locally (U.motion Builder, U.motion KNX Server Plus Touch) or remote via KEYBOARD network –...
Page 39: Knx
U.motion KNX Server Plus, Touch Installation Manual 5 KNX 5.1 I NTRODUCTION The following chapters will show in detail how U.motion KNX Server Plus Touch has to be configured in order to work in a KNX system. Prerequisite for creating the VISUALISATION on U.motion KNX Server Plus Touch is a KNX project that has been programmed either with ETS3 or ETS4.
Page 40: Ets Import Rules
U.motion KNX Server Plus, Touch Installation Manual 5.3 ETS I MPORT ULES Before the KNX project is imported into U.motion KNX Server Plus Touch, you should just think about the usage of the ETS import rules. The administration of the ETS import rules can be found in the ADMINISTRATION of U.motion KNX Server Plus Touch under "TECHNOLOGIES"...
Page 41: Ets Import
U.motion KNX Server Plus, Touch Installation Manual The ETS import rules are used by U.motion KNX Server Plus Touch as follows: during the import process, all group addresses within the import file are scanned and for each address a KNX object is created. If at least one of the keywords defined in an ETS import rule is found in the name of a KNX object, U.motion KNX Server Plus Touch checks whether the data length of this object matches the one defined in the ETS import rule ("TYPE").
Page 42 U.motion KNX Server Plus, Touch Installation Manual In BASE mode the following options are available: DELETE EXISTING KNX-OBJECTS If this option is enabled, all KNX objects present in the database will be deleted before the ETS-Import. CREATE AUTOMATIC RELATIONS This option enables / disables the automatic recognition of relations between individual group addresses in the ETS-project and the creation of the same relations in the U.motion KNX Server database, for example for updating statuses of individual objects across multiple group addresses (e.g.
Page 43 U.motion KNX Server Plus, Touch Installation Manual As soon as the project is imported, U.motion KNX Server Plus Touch checks if the single KNX objects are matching an ETS import rule. If for a KNX object at least one ETS import rule is matching, it will be applied; no additional configuration of these objects will be necessary.
Page 44 U.motion KNX Server Plus, Touch Installation Manual The available options are the same as you can define in the ETS import rules: encoding related to the settings inside the ETS project, function and icon (the shown icons depend on the selected encoding and function for the related object): The selection of the icon during this phase can more be seen as the definition of the ”graphical function“...
Page 45 U.motion KNX Server Plus, Touch Installation Manual At this stage it is also possible to modify the ETS import rules again. This is very useful if the list shows a lot of KNX objects that have similar keywords in their names and could use the same configuration settings. In this case the appropriate ETS import rule could be added in the following way: By clicking “CUSTOMIZE RULES”...
Page 46: Selective Import Of An Ets Project
U.motion KNX Server Plus, Touch Installation Manual 5.5 S ETS P ELECTIVE MPORT OF AN ROJECT It is possible to import only a part of the selected ETS project. In this case, you can select manually the group addresses that should be imported into U.motion KNX Server Plus Touch. This can be an advantage in certain cases: The project has already been imported in the past and now a version with new group addresses should be •...
Page 47: Import Of Acsv File
U.motion KNX Server Plus, Touch Installation Manual Now you can select between the following actions: Automatic integration of the missing group addresses by clicking the link in the message box • Manual selection of the related group addresses or deselection of group addresses that are causing the warning •...
Page 48 U.motion KNX Server Plus, Touch Installation Manual This file can be created as well manually (for example using Microsoft Excel) as also exported directly from ETS. In the second case, please proceed as listed below: Please select the group addresses that you want to export (by right-clicking on their middle or main group) •...
Page 49 U.motion KNX Server Plus, Touch Installation Manual After the successful creation of the file, please select “ETS IMPORT” from the “KNX” section in the administration menu and load the file in the same way as described for the ETS import: After starting the import procedure by clicking on the “NEXT”...
Page 50: Knx Object Properties
U.motion KNX Server Plus, Touch Installation Manual 5.7 KNX O BJECT ROPERTIES 5.7.1 KNX O BJECT ETAILS If a KNX object is selected in the navigation menu or through the search function and the EDIT button is clicked, the following screen will appear: This page allows modifying all settings of the selected object and its relations to other objects present in the visualisation.
Page 51 U.motion KNX Server Plus, Touch Installation Manual Enabling the EXPERT mode, the following additional options are available: ETS NAME Name of the related group address from the imported ETS project; this name can be used as keyword in the search engine to find the object. ETS ENCODING This setting determines which encoding U.motion KNX Server Plus Touch must use to communicate with the related group address via the KNX bus.
Page 52: Knx Group Addresses
U.motion KNX Server Plus, Touch Installation Manual 5.7.2 KNX G ROUP DDRESSES This section is only visible in the EXPERT mode and allows the handling of the group addresses that are associated to an object. Depending on how the imported ETS project is structured, not only the main group address, from which the object was created during the ETS import, but also additional group addresses can be found here, whose can update the state of the object in the VISUALISATION (state feedback, central functions, etc.) .
Page 53: Rooms And Connected Scenarios
U.motion KNX Server Plus, Touch Installation Manual 5.7.3 R OOMS AND ONNECTED CENARIOS The section "ROOMS, TO WHICH THE OBJECT BELONGS" includes all rooms of the software, in which the object is visible and accessible through the VISUALISATION. An object can exist in several rooms, but also in none; after the first ETS import an object belongs to no room, since the single rooms have to be created before an object can be assigned to them.
Page 54: Knx Scenarios
U.motion KNX Server Plus, Touch Installation Manual 5.8 KNX S CENARIOS Objects of type 1 byte during the ETS import can be defined as KNX scenarios. With these objects no status feedbacks or single commands are transferred, but a number, usually between 1 and 64, which tells the installed devices the KNX sce- ne they should load from their memory;...
Page 55: Physical Address Of U.motion Knx Server Plus Touch
U.motion KNX Server Plus, Touch Installation Manual 5.9 P KNX S HYSICAL DDRESS OF MOTION ERVER OUCH Through the menu „CONFIGURE COMMUNICATION“ under „TECHNOLOGIES“ → „KNX“ you can change the physical address of U.motion KNX Server Plus Touch, used for the communication with the KNX bus. The address must be entered in the format X.Y.Z, respecting the limitations given by the KNX specification: First number between 0 and 15 •...
Page 56: Ets Gateway
U.motion KNX Server Plus, Touch Installation Manual 5.10 ETS G ATEWAY U.motion KNX Server Plus Touch offers the possibility to use the integrated KNX interface as a gateway, in order to use it as local programming interface in ETS. In this way, the web server can be used to program KNX devices or to start diagnostic actions locally on the bus, without needing an additional interface (e.g.
Page 57 U.motion KNX Server Plus, Touch Installation Manual When using ETS4, please follow the steps below: In the main menu, please click on “Settings” • In the lateral menu, click on “Communication“ • Click on “New” in order to open the popup “New connection”; enter a name for the connection, •...
Page 58 U.motion KNX Server Plus, Touch Installation Manual After confirming through “OK”, the connection will be shown in the area “Configured connections”. • Please select the created connection and click on “TEST“ in order to check the connectivity; at positive result, click on „Select” in order to use U.motion KNX Server Plus Touch as active interface. The gateway function of U.motion KNX Server Plus Touch can only be used with the diagnostic function “GROUP MONITOR”;...
Page 59: Rooms
U.motion KNX Server Plus, Touch Installation Manual OOMS 6.1 I NTRODUCTION This chapter deals with the creation and customization of rooms, in which the various objects are grouped in the VISUALISATION. Normally it is recommended to keep the structure of the rooms similar to the structure of the building itself.
Page 60 U.motion KNX Server Plus, Touch Installation Manual The configuration page of the new created room looks like shown below: The settings for a new room are: NAME Name of the room that will also be shown in the VISUALISATION and the navigation menu of the VISUALISATION.
Page 61 U.motion KNX Server Plus, Touch Installation Manual Simply click on the desired icon inside the appearing pop-up window to select it for the current room. Enabling the EXPERT mode, the following additional options are available: DESCRIPTION Additional information that can simplify the search. VISIBLE Defines if the room is visible in the VISUALISATION.
Page 62 U.motion KNX Server Plus, Touch Installation Manual BACKGROUND GRID WITH IMAGE AT THE TOP - 62 -...
Page 63 U.motion KNX Server Plus, Touch Installation Manual GRID WITH IMAGE IN BACKGROUND GRID WITH IMAGE AT THE RIGHT - 63 -...
Page 64: Insert Objects Into Rooms
U.motion KNX Server Plus, Touch Installation Manual If the visualisation is accessed through mobile devices, the layout, in which a room is displayed, can differ from the defined template. U.motion KNX Server Plus Touch does an automatic resize of the layout in dependency of the display resolution of the used device.
Page 65: Deleting Rooms
U.motion KNX Server Plus, Touch Installation Manual Of course it is also possible to remove objects from a room. Simply press the DELETE-button of an object in the list and the object is removed from the room; however, this DOES NOT delete the object from the project! All sub-rooms contained in a parent room are listed in the same area as all the other objects.
Page 66: Functions
U.motion KNX Server Plus, Touch Installation Manual UNCTIONS 7.1 I NTRODUCTION This chapter describes how to navigate in the VISUALISATION with the help of the FUNCTIONS menu and provides information on how to optimally configure objects for the navigation with the FUNCTIONS. 7.2 A DMINISTRATION OF THE UNCTIONS...
Page 67: Functions In The Visualisation
U.motion KNX Server Plus, Touch Installation Manual It is recommended to switch to EXPERT mode for being able to see also hidden functions. In the displayed list following can be done: The names of the single functions can be changed •...
Page 68 U.motion KNX Server Plus, Touch Installation Manual Functions that contain a lot of objects easily result in complex pages in the VISUALISATION and especially on mobile devices their operation could become impractical. So you should take care about what kind of objects will be assigned to a function, in order to keep the number of objects per function at a comfortable level.
Page 69: Complex Objects
U.motion KNX Server Plus, Touch Installation Manual OMPLEX BJECTS 8.1 I NTRODUCTION This chapter deals with COMPLEX OBJECTS, which allow grouping different KNX objects in a single object. Different KNX objects, which are necessary for the operation of the same KNX device, can be combined into a single object with a special layout (e.g.
Page 70 U.motion KNX Server Plus, Touch Installation Manual The chosen TEMPLATE defines not only which icon the object should use for representation inside the VISUALISATION, but also which kind of sub-objects it can contain; the following TEMPLATES are available: DIMMER With this TEMPLATE the command “ON/OFF” and the percent value of a KNX dimming actuator can be controlled.
Page 71 U.motion KNX Server Plus, Touch Installation Manual WITH LAMELLAE THERMOSTAT Allows grouping of different commands and status feedbacks from KNX thermostats into one object; in the VISUALISATION itself only a small icon with the key information is shown; by clicking on the corresponding icon of such an object, a popup window containing all objects defined as visible in the COMPLEX OBJECT will appear.
Page 72 U.motion KNX Server Plus, Touch Installation Manual Allows grouping all necessary objects for the control of RGB lights in one object (control of the individual color channels, "ON / OFF" commands, color intensity, etc.) WEATHER STATION Permits to group all objects related to a weather station into one object. - 72 -...
Page 73: Object Assignment
U.motion KNX Server Plus, Touch Installation Manual MULTIROOM ZONE Permits to combine into a single pop-up all control objects of a Multiroom audio zone, connected via KNX: GENERIC Allows grouping several objects into a pop-up window, where the structure and the objects to be shown can be freely chosen (refer to the appropriate chapter of this manual) Depending on the selected TEMPLATE, only compatible objects can be added, since the COMPLEX OBJECT needs to...
Page 74: Generic Complex Object
U.motion KNX Server Plus, Touch Installation Manual Through the option "VISIBLE" it is possible to hide objects, which have been inserted in the COMPLEX OBJECT, in the rest of the VISUALISATION. Since the individual objects are now grouped in a COMPLEX OBJECT, it could be desired that they should not be visible in other pages of the VISUALISATION (this concerns mainly the FUNCTIONS page).
Page 75 U.motion KNX Server Plus, Touch Installation Manual Display Labels Main area Tab 1 Tab 2 Tab 3 The “DISPLAY” is an area for showing status and feedback information of KNX objects. It is divided in the following sections: DISPLAY-VALUE CENTER Value shown in the center of the display area DISPLAY-VALUE UP/LEFT Value displayed in the configured corner of the display area.
Page 76: Rgb Led Control
U.motion KNX Server Plus, Touch Installation Manual Even for complex objects with the TEMPLATE "GENERIC" always the same approach for adding objects is used: search the desired objects with the search function and pull them into the corresponding area; then select functionality, define the label (optional), if desired enable an object for scheduling and select the functionality;...
Page 77: Audio (Loudspeaker & Microphone)
U.motion KNX Server Plus, Touch Installation Manual 8.6 A & M UDIO OUDSPEAKER ICROPHONE 8.6.1 S YSTEM OLUME The system volume control of U.motion KNX Server Plus Touch directly controls the sound card of the device. The con- figured volumes are used for all kind of sounds and determinate the volume for any playback and recording operations on the device.
Page 78 U.motion KNX Server Plus, Touch Installation Manual Due to the different audio levels, which can occur when using different VoIP devices for communication, these values are only temporary adjustments that are lost when restarting the device. In the configuration area of the respective U.motion KNX Server Plus Touch, also default values for the speaker volume and the sensitivity of the microphone can be set and stored permanently;...
Page 79: Scenarios
U.motion KNX Server Plus, Touch Installation Manual CENARIOS 9.1 I NTRODUCTION This chapter describes the extensive possibilities offered by the SCENARIOS in U.motion KNX Server Plus Touch. With SCENARIOS, different sequences can be created, which can be launched manually, through a scheduling or depending on events.
Page 80 U.motion KNX Server Plus, Touch Installation Manual In the BASE mode the following settings are available: NAME Name of the SCENARIO inside the VISUALISATION ICON Graphical icon, through which the SCENARIO is displayed inside the VISUALISATION VISIBLE Defines whether the scenario should be visible or not within the visualisation EXECUTE AT STARTUP If enabled, the scenario will be started after the startup of the software.
Page 81: Add Actions To A Scenario
U.motion KNX Server Plus, Touch Installation Manual All SCENARIOS will be automatically included in the corresponding page of the VISUALISATION, which is accessible from the navigation menu; of course the single SCENARIOS can also be inserted into different rooms. 9.3 A CTIONS TO A CENARIO In order to add actions to a created SCENARIO, proceed as follows:...
Page 82: Scenarios With Wait Commands
U.motion KNX Server Plus, Touch Installation Manual An example of a SCENARIO with defined actions can be seen in the following screenshot: 9.4 S CENARIOS WITH OMMANDS It is possible to create a delay between the individual actions of a SCENARIO using WAIT COMMANDS, which cause the SCENARIO to pause for a certain period of time.
Page 83 U.motion KNX Server Plus, Touch Installation Manual The WAIT COMMANDS can be found only through the search function, because they are directly integrated inside the U.motion KNX Server Plus Touch software with the English name “wait”. If WAIT COMMANDS should be filtered by time in the results of the search function, the time unit "sec", "min" or "hour" must be added to the keyword “wait”, separated by a blank space.
Page 84: Customization Of The Wait Commands
U.motion KNX Server Plus, Touch Installation Manual 9.5 C USTOMIZATION OF THE OMMANDS Objects of the type “WAIT COMMAND”, which allow to insert delays into SCENARIOS, can be customized in the following way: Locate the desired WAIT COMMAND using the search function •...
Page 85: Links
U.motion KNX Server Plus, Touch Installation Manual 10 L INKS 10.1 NTRODUCTION Objects of type LINK permit to create page jumps within the visualisation of U.motion KNX Server Plus Touch. It is possi- ble to call as well pages of the visualisation (rooms) as also links to other web servers or web pages, which are in the connection directly accessible (without having to use the navigation menu).
Page 86 U.motion KNX Server Plus, Touch Installation Manual The new created LINK will appear in the navigation menu and can be opened in a new tab for configuration: Now the following properties can be changed: NAME Name of the LINK inside the VISUALISATION DESTINATION Page that is shown as soon as the LINK is clicked;...
Page 87: Integration Into The Visualisation
U.motion KNX Server Plus, Touch Installation Manual 10.3 NTEGRATION INTO THE ISUALISATION Once the link object has been created, it can be connected via Drag & Drop (using the search function) in the following ways:  Connection to a ROOM: ◦...
Page 88: Advanced Functions
U.motion KNX Server Plus, Touch Installation Manual 11 A DVANCED UNCTIONS 11.1 NTRODUCTION In this chapter, the ADVANCED FUNCTIONS of U.motion KNX Server Plus Touch are explained in detail; they can be used to expand the functionality of the bus system. These functions are mostly invisible for the end user in the VISUALISATION and therefore accessible only through the ADMINISTRATION menu.
Page 89 U.motion KNX Server Plus, Touch Installation Manual When creating the logical expression the following points must be considered: The evaluation of a logical expression is always done pairwise. At start, the first two objects with the specified • operator "AND" / "OR" will be evaluated. Then the results of this evaluation will be evaluated with the defined operator "AND"...
Page 90: Conditions
U.motion KNX Server Plus, Touch Installation Manual Below an example showing how a scenario is launched through a LOGIC: 11.3 ONDITIONS CONDITIONS are objects that permit to create value comparisons between one or more objects and can start events depending on the result of the comparison. In order to create a new CONDITION, please follow the steps below: Open the ADMINISTRATION area of U.motion KNX Server Plus Touch •...
Page 91 U.motion KNX Server Plus, Touch Installation Manual Now a REFERENCE OBJECT for the condition must be defined. Typically an object of the software is used for this purpose, that can be inserted into the corresponding field through drag&drop from the search engine. When an object was draged into the red dashed drop zone, its name is shown inside.
Page 92: Virtual Objects
U.motion KNX Server Plus, Touch Installation Manual At every change of the reference object (or comparison object, if present) the condition will be evaluated and the connected actions will take place. The action, in case of CONDITIONS, always have to be ACTIVE EVENTS and are configured in the same way as already mentioned a few time within this manual („drag and drop“...
Page 93: Integrators
U.motion KNX Server Plus, Touch Installation Manual In the expert mode, the additional settings are available: VISIBLE Sets the object visible in the VISUALISATION or not. WRITE ACCESS ACTIVE Enables commanding object VISUALISATION; if it is disabled it shows only the status of the object.
Page 94: Notifications
U.motion KNX Server Plus, Touch Installation Manual If the RESET button is pressed, the calculated value shown in the INTEGRATOR will be set to zero and the time integral will restart calculating from beginning. The calculation does not take place in real time, but periodically and whenever a value change of the object assigned to the INTEGRATOR is taking place.
Page 95 U.motion KNX Server Plus, Touch Installation Manual MAIL NOTIFICATIONS will always be re-sent, when the associated event is triggered by the corresponding object; U.motion KNX Server Plus Touch must be connected to internet in order to guarantee the MAIL NOTIFICATION function- ality.
Page 96: Log Notifications
U.motion KNX Server Plus, Touch Installation Manual Individual NOTIFICATIONS can be consulted in a special popup window; the NOTIFICATION popup window will be opened when the NOTIFICATION-icon in the navigation menu of the VISUALISATION is clicked: If the CONFIRM button of a single NOTIFICATION is pressed, the corresponding NOTIFICATION will vanish from the list of unread messages, but it will not be deleted from the U.motion KNX Server Plus Touch database.
Page 97: Clients And Page Jumps
U.motion KNX Server Plus, Touch Installation Manual For each message, the trigger time is displayed, and the time at which the message has been read. In addition it is possi- ble to change the status of a message from "READ" to "UNREAD" or from "UNREAD" to "READ" through the correspond- ing checkbox.
Page 98 U.motion KNX Server Plus, Touch Installation Manual Further information can be found in the INTERCOM manual of U.motion KNX Server Plus Touch. If the EXPERT mode is enabled, the visibility of the CLIENT object can also be set to “true”, in order to distinguish it from the non-used / unimportant CLIENT devices.
Page 99: Ip Cameras
U.motion KNX Server Plus, Touch Installation Manual 12 IP C AMERAS 12.1 NTRODUCTION U.motion KNX Server Plus Touch permits to integrate the stream of one or more IP cameras / videoserver within the pages of the visualisation. The cameras can be reached through the corresponding entry inside the NAVIGATION MENU of the visualisation area.
Page 100: Visualisation In Local Network
U.motion KNX Server Plus, Touch Installation Manual U.motion KNX Server Plus Touch already offers an integrated support for different camera brands present in the market. When using such a camera, the integration of it can simply be done by configuring the core parameters of the camera. Furthermore, also cameras of different brands can be integrated by using a generic camera template;...
Page 101: Axis Cameras And Videoserver
U.motion KNX Server Plus, Touch Installation Manual 12.3 AMERAS AND IDEOSERVER U.motion KNX Server Plus Touch offers native support for all cameras and videoserver of the brand AXIS; further details on the available models as well as the product catalogue can be found on http://www.axis.com. In order to configure an AXIS camera / videoserver in U.motion KNX Server Plus Touch, please follow the steps below: Please access the configuration area of U.motion KNX Server Plus Touch •...
Page 102: Mobotix Cameras
U.motion KNX Server Plus, Touch Installation Manual or configuration menu of the used camera / videoserver. IMAGE COMPRESSION [0-100] Allows to define the desired image compression. MAX. FPS The maximal frame rate (frames per second) can be defined here, that should be used to reproduce the video. APPEARANCE IN PLANVIEW Camera objects can also be used in rooms.
Page 103: Generic Video Format (Jpg)
U.motion KNX Server Plus, Touch Installation Manual Now configure the following parameters: • IP ADDRESS Local IP address of the camera / videoserver IP PORT IP port through which the video stream can be accessed. Please select port 80 for the HTTP protocol or 443 for the HTTPS protocol, except the camera is using a special configuration PROTOCOL...
Page 104: Visualisation
U.motion KNX Server Plus, Touch Installation Manual Since the JPG format is a generic format, the configuration window will show all parameters listed in the last chapters. Depending on the configuration of the used camera, single parameters can be necessary or not. The field “IP ADDRESS” in any case must contain the path to the still image (without prequel http://)! 12.6 ISUALISATION...
Page 105 U.motion KNX Server Plus, Touch Installation Manual If the cameras are also inserted into one or more rooms, their signal can also be shown directly inside the pages of the visualisation. If the room was created using the GRID view template, the camera is shown together with the “function boxes” of the other objects, with the difference that the camera object takes the place of 6 normal objects (3 rows, 2 columns), as shown in the screenshot on the next page: Depending on the resolution of the Client, the other objects are places around the video signal, occupying the free space...
Page 106 U.motion KNX Server Plus, Touch Installation Manual If the room uses the BACKGROUND view template, the video box can be freely positioned, as all other objects, too. Com- pared to other objects, which have a fixed size, the video box can also be resized in order to fit perfectly into the visuali- sation page.
Page 107: Energy Management
U.motion KNX Server Plus, Touch Installation Manual 13 E NERGY ANAGEMENT 13.1 NTRODUCTION This chapter explains in detail how to log and display energy consumption in U.motion KNX Server Plus Touch. For being able to measure energy consumption, appropriate KNX devices must be installed in the system and integrated in the ETS project of the system.
Page 108: Consumption
U.motion KNX Server Plus, Touch Installation Manual 13.3 ONSUMPTION 13.3.1 REATION OF A NEW NERGY OUNTER After selecting the entry “CONSUMPTION” from the “ENERGY” menu, one or more objects of the type ENERGY COUNTER can be created. These objects basically are a special type of COMPLEX OBJECTS, optimized for the visualisation of energy values received from a KNX counter hardware.
Page 109 U.motion KNX Server Plus, Touch Installation Manual GRAPHS SCALE FACTOR Permits to define a scale factor through which the representation of the selected graph can be adapted Default: 1 UNIT Permits to define a measuring unit, which is shown behind the energy values within the graph SHOW DATA IN GRAPH If this option is selected, the data of the ENERGY COUNTER will be shown in graph...
Page 110 U.motion KNX Server Plus, Touch Installation Manual inputs of the user (using VIRTUAL OBJECTS), received values of KNX OBJECTS etc. For this section, the following actions are available: Creation of a new sub object directly through the ADD button. In this case, a VIRTUAL OBJECT is created and •...
Page 111: Representation In The Visualisation
U.motion KNX Server Plus, Touch Installation Manual The following screenshot shows the configuration of an ENERGY COUNTER with connected sub-objects: 13.3.2 EPRESENTATION IN THE ISUALISATION In the VISUALISATION it is possible to access the consumption values by selecting the entries “ENERGY” -> “CONSUMPTION”...
Page 112 U.motion KNX Server Plus, Touch Installation Manual exceeded. If the limits were not configured in a static way, but using sub objects, you can click on one ENERGY COUNTER to open the following pop-up window, which provides the possibility to change the limits gives access to the configurable parameters, which are organized in different TABS: The sub-objects are (if present) arranged in the following tabs: Load control (priority, load over limit...)
Page 113 U.motion KNX Server Plus, Touch Installation Manual SHOW Shows / Hides the graph of the corresponding energy counter COMPARE Shows hides the comparison values, which are calculated from the average value of the lastly measured values RANGE Shows / Hides the colored area which marks the range between the minimum and maximum values of the energy counter (in dependence of the selected time period) The following screenshot shows an example, in which the options “COMPARE”...
Page 114 U.motion KNX Server Plus, Touch Installation Manual The following screenshot explains the different areas oft he energy graph: Legend with total power consumption of the corresponding time period Energy data of Average of Range of the corresponding the corresponding the corresponding time period time period time period...
Page 115: Power Calculation
U.motion KNX Server Plus, Touch Installation Manual 13.3.3 OWER ALCULATION In case the electrical power should not be available as a KNX objects, it is also possible to calculate it using a VOLTAGE object and one or more CURRENT objects. To achieve this, the flag “ENABLE POWER CALCULATION” must be checked; this causes the section “SUB-OBJECTS FOR POWER CALCULATION”...
Page 116 U.motion KNX Server Plus, Touch Installation Manual If the pre-configured LOAD CONTROL entry is selected and its properties window is opened, you will see the following screen: The section REPRESENTATION offers the following parameters: CYCLE TIME Time (in seconds) of the “base cycle” of the integrated load control logic. When this time expires, the loads are controlled, the configured limits are checked and eventual actions take place.
Page 117: Connection Of An Energy Counter
U.motion KNX Server Plus, Touch Installation Manual 13.4.2 ONNECTION OF AN NERGY OUNTER In order to work correctly, each load control must be connected to an ENERGY COUNTER. In order to achieve this, please follow one of the steps below: Either use an existing ENERGY COUNTER (check out previous chapter) and drag it into the corresponding section •...
Page 118: Connection Of One Or More Loads
U.motion KNX Server Plus, Touch Installation Manual The load control logic uses a two-level limit in order to prevent hysteresis phenomena (continuous switching of loads); with one-level limits, the total load would fall back under the limit immediately after switching off a single load, what would just cause the logic to turn the load back on again.
Page 119 U.motion KNX Server Plus, Touch Installation Manual The base state of the object is not changed by the priority control, which helps avoiding • erroneous control (like unwanted activation) of the loads • LOAD AUTO/MAN If present, this object permits the user to independently define through the VISUALISATION whether a load should be controlled by the load control (AUTOMATIC) or should permit only manual control;...
Page 120 U.motion KNX Server Plus, Touch Installation Manual The ENERGY COUNTER in detail shows the following information: Current power value Min. and max. limit The loads instead are shown in the following way: Priority Auto/Man Current power consumption (if available) - 120 -...
Page 121 U.motion KNX Server Plus, Touch Installation Manual Even in this case a click on the ENERGY COUNTERS will open a pop-up window, which permits to adapt the settings of the load control; furthermore, additional details regarding the general consumption or the single loads / consumers can be viewed.
Page 122: Users
U.motion KNX Server Plus, Touch Installation Manual 14 U SERS 14.1 NTRODUCTION In this chapter the user management of U.motion KNX Server Plus Touch is explained and the possibilities of personalization of each user are presented, which allow a safe and convenient use of the VISUALISATION. 14.2 SERS AND ROUPS...
Page 123 U.motion KNX Server Plus, Touch Installation Manual The following settings will be available for each USER: NAME Identifies the USER inside the U.motion KNX Server Plus Touch database (not used for the login) USERNAME Username for the authentication on the system – must consist of alphanumeric characters only PASSWORD Password for the authentication on the system –...
Page 124: User Groups And Permissions
U.motion KNX Server Plus, Touch Installation Manual The following screenshot shows an example configuration, in which the room "ALARM CENTRAL" should be opened at every condition change of the object "ALARM", in fact exclusively on the client devices that are currently running with the chosen user: The configuration of EVENTS for single USERS is very similar to the configuration of EVENTS for objects of type CLIENT (please refer to chapter 11.7 of this manual);...
Page 125 U.motion KNX Server Plus, Touch Installation Manual Furthermore, each USER GROUP can be connected to one or several objects of the VISUALISATION; this has to the consequence that these objects from now on belong to the USER GROUP and consequently can only be seen by users that belong to the chosen group.
Page 126: Remote Access
U.motion KNX Server Plus, Touch Installation Manual 15 R EMOTE CCESS 15.1 NTRODUCTION This chapter explains how to configure the network for allowing remote access to U.motion KNX Server Plus Touch and therefore be able to check out the VISUALISATION also from outside of the building. 15.2 EMOTE CCESS THROUGH...
Page 127: Notes
U.motion KNX Server Plus, Touch Installation Manual OTES - 127 -...
