  • Page 1 U.motion U.motion Client Touch 10 U.motion Client Touch 15 Technical Manual Art. no. MEG6260-0310 | MEG6260-0315 04/2014 Version 1.0.1 www.merten.com...
  • Page 2: General Information

    U.motion Client Touch 10 / 15 Technical Manual ENERAL NFORMATION Schneider Electric GmbH c/o Merten Gothaer Straße 29, 40880 Ratingen www.merten.com www.merten-austria.at Customer care centre: Phone: +49 2102 - 404 6000 Operating instructions, manuals and software are protected by copyright. All rights are reserved. Copying, multiplication, translation and conversion, either partially or as a whole, is not permitted.
  • Page 3: Safety Instructions

    U.motion Client Touch 10 / 15 Technical Manual AFETY INSTRUCTIONS The present operating instructions contain those safety instructions that are required to safely operate the machine. All persons working with the machine must heed the present operating instructions, especially the safety instructions.
  • Page 4: Table Of Contents

    U.motion Client Touch 10 / 15 Technical Manual ONTENTS General Information Conventions Safety instructions Contents A. Product description A1. Front view - U.motion Client Touch A2. Interfaces - U.motion Client Touch A3. Scope of delivery B. Commissioning B1. Grounding – (chapter valid only for U.motion Client Touch 15) B2.
  • Page 5: Product Description

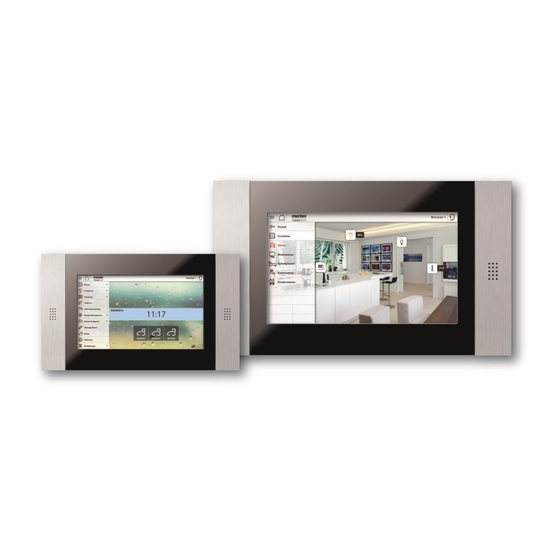

    U.motion Client Touch 10 / 15 Technical Manual A. P RODUCT DESCRIPTION A1. Front view - U.motion Client Touch ● U.motion Client Touch Image: with U.motion Touch Design element side-view mounted Image: U.motion Client Touch 15...
  • Page 6: A2. Interfaces - U.motion Client Touch

    U.motion Client Touch 10 / 15 Technical Manual A2. Interfaces - U.motion Client Touch The U.motion Client Touch has various connection possibilities on his back side. All necessary interfaces can be found there. Detailed information about all interfaces of the U.motion Client Touch are described in the technical manual of the motherboard manufacturer.
  • Page 7: Commissioning

    U.motion Client Touch 10 / 15 Technical Manual B. C OMMISSIONING B1. Grounding – (chapter valid only for U.motion Client Touch 15) The following must be heeded to ensure that all electrical interference is safely absorbed: Connect the unit and the wall mount kit with a central grounding point using the shortest possible distance.
  • Page 8: The Operating System

    U.motion Client Touch 10 / 15 Technical Manual Caution! Permanent operation of the hard disk can cause damages. To prevent this, the power management set up must be enabled. When running 24 hours a day, the hard disk should be parked at least once a week.
  • Page 9 U.motion Client Touch 10 / 15 Technical Manual IP address: 192.168.0.100 • Subnet mask: 255.255.255.0 • Gateway: 192.168.0.130 • Save the new settings; depending on the installed OS a restart can be necessary. • The following screenshots show how to change the network settings on Windows XP:...
  • Page 10: C3. Access

    U.motion Client Touch 10 / 15 Technical Manual Alternatively you can also access the configuration area locally on the U.motion Client Touch (the same login window will be shown). As long as no U.motion KNX Server Plus has been configured in the configuration area, U.motion Client Touch will always load its configuration area.
  • Page 11: C4. Administration Area Interface

    U.motion Client Touch 10 / 15 Technical Manual Note: The users of U.motion Client Touch can be edited, but it is not possible to change their access rights or to create completely new users. Since for the configuration and usage no further users on client side are required, this minimalistic user management is enough for U.motion Client Touch.
  • Page 12: C5. Toolbar

    U.motion Client Touch 10 / 15 Technical Manual C5. Toolbar Following functions are always present in the toolbar: SAVE Allows saving all changes into the flash memory of U.motion Client Touch, what will preserve the data even if the device is powered off. The button turns red whenever changes are made, but not saved yet.
  • Page 13: C6.2 Menu Structure

    U.motion Client Touch 10 / 15 Technical Manual If the properties window of an entry is opened through the EDIT-action, the entry will show an arrow-icon instead of 3 points (“…”) on the right side. This icon will be displayed until the configuration window of the entry is closed and shall facilitate the navigation if multiple tabs are opened in the workspace: C6.2 Menu structure...
  • Page 14: C7.1 Language

    U.motion Client Touch 10 / 15 Technical Manual BACKUP/RESTORE Permits to reset the database to factory settings DATE/TIME Permits to configure date/time of the device and all date/time related settings DISPLAY Allows the configuration of the screensaver and display power-off settings of the device.
  • Page 15: C7.3 Update

    U.motion Client Touch 10 / 15 Technical Manual The available parameters are: U.MOTION KNX SERVER IP IP address of the U.motion KNX Server Plus, to which the U.motion Client ADDRESS Touch should be connected. As long as this field is not compiled, the U.motion Client Touch will only load its own configuration menu.
  • Page 16: C7.4 Backup/Restore

    U.motion Client Touch 10 / 15 Technical Manual The update process runs completely automatically; please wait for feedback from the page without performing other tasks or exiting the browser (risk of data loss / malfunction). Depending on the configuration and software version, the update may take several minutes.
  • Page 17: C7.6 Display

    U.motion Client Touch 10 / 15 Technical Manual C7.5.1 Date/Time configuration Permits to manually adjust the system time of the U.motion Client Touch. C7.5.2 Timzone settings Allows configuring the time zone in which U.motion Client Touch is located. C7.5.3 Online update Allows defining a time server and a time interval to update automatically the system time;...
  • Page 18 U.motion Client Touch 10 / 15 Technical Manual C7.6.1 Power management and screensaver The following options are available: SCREENSAVER If for the defined timeout the touchscreen of U.motion Client Touch is not operated, TIMEOUT the screensaver function will start. POWER SAVING This enables / disables the power saving mode.
  • Page 19: C8. Administration And Visualisation Area

    U.motion Client Touch 10 / 15 Technical Manual Through the „UPLOAD“-button further pictures can be uploaded to U.motion Client Touch. Through the “X”-button the corresponding picture can be removed from U.motion Client Touch. C7.6.3 Touchscreen Through the calibration the touchscreen can be optimized for the customer: CALIBRATION A single click on the button „CALIBRATE NOW“...
  • Page 20: C9. First Access After Configuration

    U.motion Client Touch 10 / 15 Technical Manual As long as no server has been configured in the configuration area of the U.motion Client Touch, no visualisation area can be loaded and therefore after each reboot the U.motion Client Touch will just load its own configuration area.
  • Page 21 U.motion Client Touch 10 / 15 Technical Manual Normally after the initial loading process a login window is shown, through which the U.motion Client Touch must register on the connected server: To do so, simply highlight the box named "USERNAME" and enter the username with which you want to login.
  • Page 22: Technical Data

    U.motion Client Touch 10 / 15 Technical Manual D. T ECHNICAL DATA D1. Mechanical data Outside dimensions U.motion Touch Design element: 10“ 15“ width (d): 40 mm 58 mm height (e): 201 mm 306 mm Cut-out dimensions U.motion Touch Cavity wall set: 10”...
  • Page 23: D2. Maintenance And Upkeep

    U.motion Client Touch 10 / 15 Technical Manual D2. Maintenance and upkeep The U.motion Client Touch is normally a completely fanless system, a fact that reduces strongly the necessary maintenance expense. Note. Additional information about the components which are used in U.motion Client Touch you will find in the original documentation of the manufacturer.
