655 Eisenhower Drive
Owatonna, MN 55060 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063

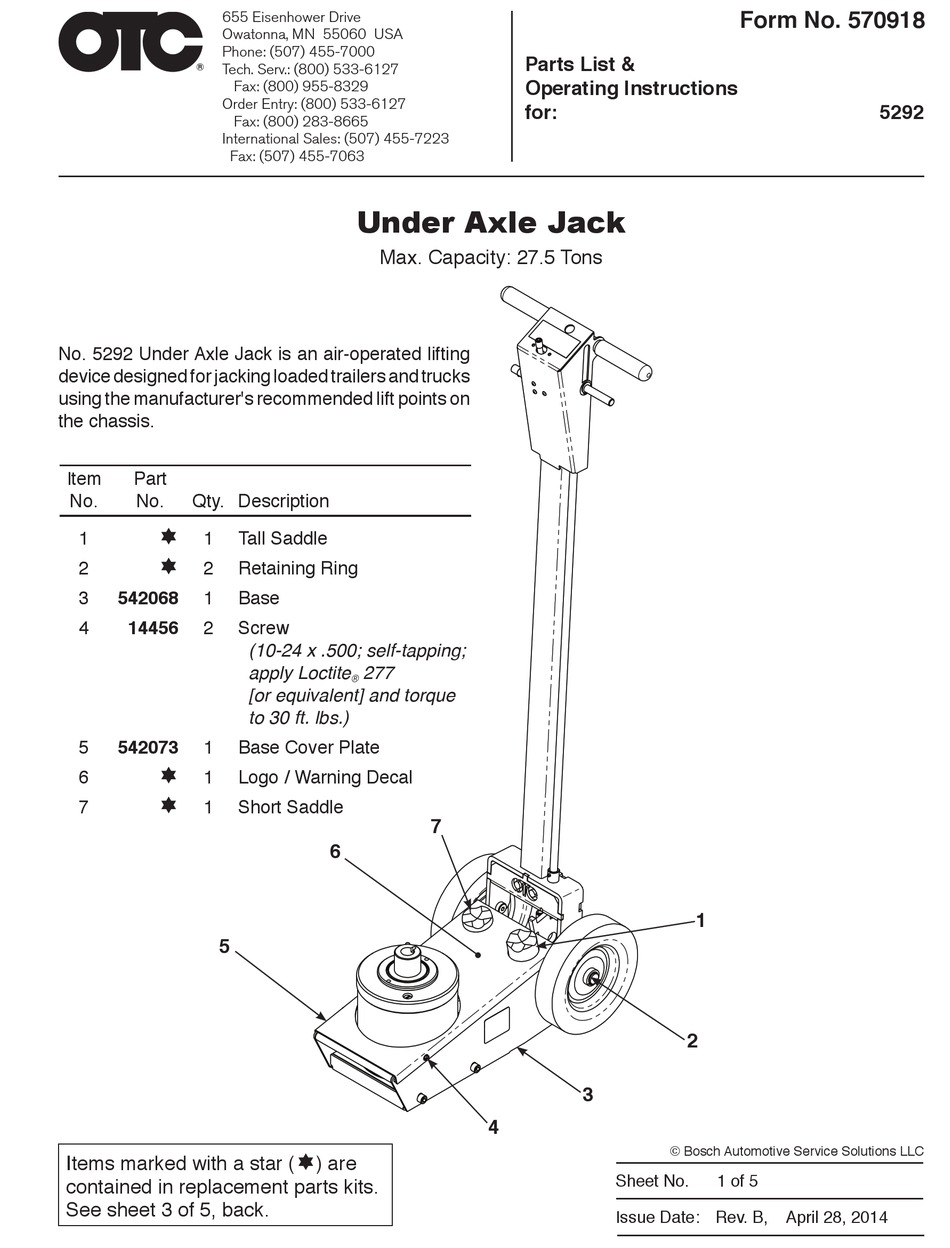

No. 5292 Under Axle Jack is an air-operated lifting
device designed for jacking loaded trailers and trucks
using the manufacturer's recommended lift points on
the chassis.
Item
Part
No.
No.
Qty. Description
1
ì
1
Tall Saddle
2
2
Retaining Ring
ì
542068
3
1
Base
14456
4
2
Screw
542073
5
1
Base Cover Plate
6
1
Logo / Warning Decal
ì
7
1
Short Saddle
ì
5
Items marked with a star (
contained in replacement parts kits.
See sheet 3 of 5, back.
Under Axle Jack
Max. Capacity: 27.5 Tons
(10-24 x .500; self-tapping;
apply Loctite
277
®
[or equivalent] and torque
to 30 ft. lbs.)
6
) are
ì
Parts List &
Operating Instructions
for:
7
3
4
Form No. 570918
1
2
© Bosch Automotive Service Solutions LLC
Sheet No.
1 of 5
Issue Date: Rev. B,
April 28, 2014
5292
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OTC Tools 5292
Summary of Contents for OTC Tools 5292
- Page 1 International Sales: (507) 455-7223 Fax: (507) 455-7063 Under Axle Jack Max. Capacity: 27.5 Tons No. 5292 Under Axle Jack is an air-operated lifting device designed for jacking loaded trailers and trucks using the manufacturer's recommended lift points on the chassis.
- Page 2 Parts List & Operating Instructions Form No. 570918, Sheet 1 of 5, Back 14, 15, 16, 17 ì Items marked with a star ( ) are contained in replacement parts kits. See sheet 3 of 5, back. Item Part Item Part Qty.
- Page 3 Parts List & Operating Instructions Form No. 570918 No. 570911 Handle Assembly 24, 25 DETAIL X DETAIL x NOTE: Wrap 555032 tubing with 570915 black air line tube to protect it within the handle assembly. Item Part Item Part Qty. Description Qty.
- Page 4 Parts List & Operating Instructions Form No. 570918, Sheet 2 of 5, Back No. 542069 Hydraulic Assembly 52, 53 67, 68 58, 59 Item Part Item Part Qty. Description Qty. Description ì 566495 Fill Plug Gland Nut (torque to 100 ft-lbs) ì...
- Page 5 Parts List & Operating Instructions Form No. 570918 No. 568052 Air Motor Assembly Item Part Description 555014 Block Assembly 555016 Air Motor 555017 Air Motor Plunger Assembly 572561 Release Valve 555018 Air Motor Seal Kit © Bosch Automotive Service Solutions LLC Sheet No.
- Page 6 Parts List & Operating Instructions Form No. 570918, Sheet 3 of 5, Back Item Item Item No. Qty. Description No. Qty. Description No. Qty. Description No. 563502 No. 563504 No. 563506 Fastener Kit Handle Grip Kit Seal Repair Kit Socket Hd. Cap Screw Handle Grip O-ring (.375–16)
-
Page 7: Assembly And Setup
Parts List & Operating Instructions Form No. 570918 Assembly and Setup 1. Remove the wheels from the jack, leaving the spacer washers in place. 2. Using the hardware supplied, assemble the handle to the jack base. 3. Place the wheels back onto the wheel shaft. Verify the wheels do not rub on the frame and secure in place with a snap ring. -
Page 8: Safety Precautions
Parts List & Operating Instructions Form No. 570918, Sheet 4 of 5, Back Safety Precautions CAUTION: To prevent personal injury and damage to equipment, • Study, understand, and follow all instructions before operating this device. • Wear protective eyewear that meets the requirements of ANSI Z87.1 and OSHA. •... -
Page 9: Preventive Maintenance
Parts List & Operating Instructions Form No. 570918 Preventive Maintenance Important: The greatest single cause of failure in hydraulic units is dirt. Keep the under axle jack clean and well lubricated to prevent foreign matter from entering the system. If the jack has been exposed to rain, snow, sand, or grit, it must be cleaned before it is used.
