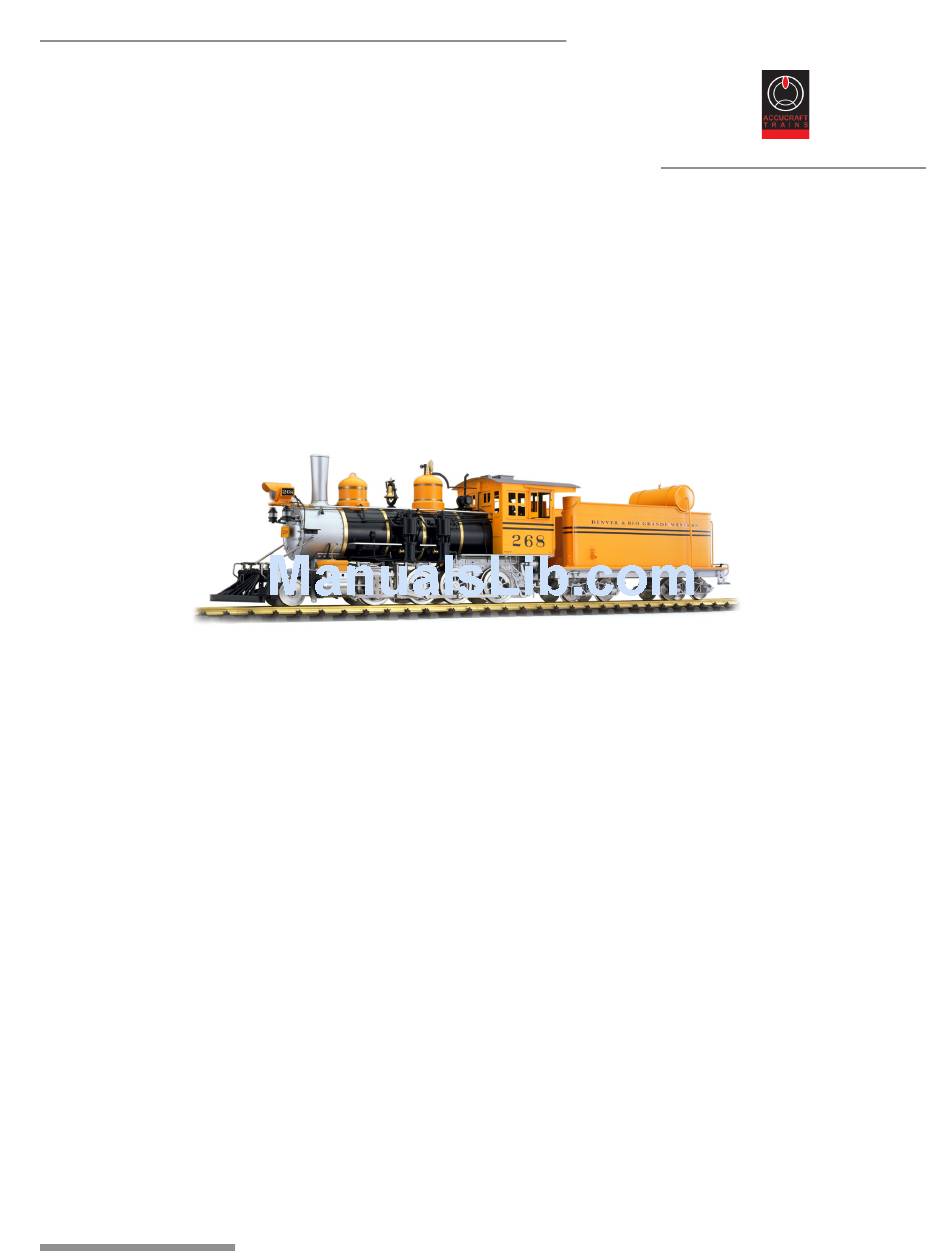

- Page 1 Instruction Manual - D&RGW C-16 Electric ACCUCRAFT TRAINS 33268 Central Avenue Union City, CA 94587, USA Tel: 510 324-3399 Fax: 510 324-3366 email: info@accucraft.com D&RGW C-16...
- Page 2 Denver & Rio Grande old or modern version of C16 2-8-0 locomotives. Your ACCUCRAFT Model is crafted in brass and is a precision piece of equipment. Like all fine equipment it must be properly maintained and cared for.
- Page 3 Instruction Manual - D&RGW C-16 Electric General Information General information about your “C16” Accucraft scale couplers are compatible with Kadee #835 couplers. Model is powered by Pittman DC gearhead motor, GM8712-31. Peak voltage 19.1V Gear ratio 60.5:1 Peak rated output torque 100 oz-in...
- Page 4 Instruction Manual - D&RGW C-16 Electric Pilot Installation (if needed) To avoid potential shipping damage, some pilots are moved from the model and installation is required. You should find a C16 pilot, hex-head M3 screws, and a hex-head screw driver inside the packing box.
- Page 5 Instruction Manual - D&RGW C-16 Electric Cab. Window Shade Installation (if needed) Window shades are provided with your C16 model. To Install: Cut the provided paper cloth to proper width (must be smaller than the window shade bracket) Decide the length of shade Cut the paper cloth to the length of shade + 10mm Fold 5mm on each end of the paper cloth Glue the edge of paper cloth with the frame wire in place...
- Page 6 Replace the cover exactly the way it was when you started. It is a good idea to wipe off all excess light oil when you complete the lubrication process. You have now completed the lubrication of your Accucraft “Consolidation”. THIS LUBRICATION SHOULD BE REPEATED EVERY 25 HOURS OF OPERATION!
- Page 7 Instruction Manual - D&RGW C-16 Electric Operation After following the recommended lubrication procedures your “C16” is ready to provide many years of reliable operation. We recommend that you use a D.C power supply with a capacity of 2.5 amps or larger. Always pick your model up by grasping it under the frame on both ends.
