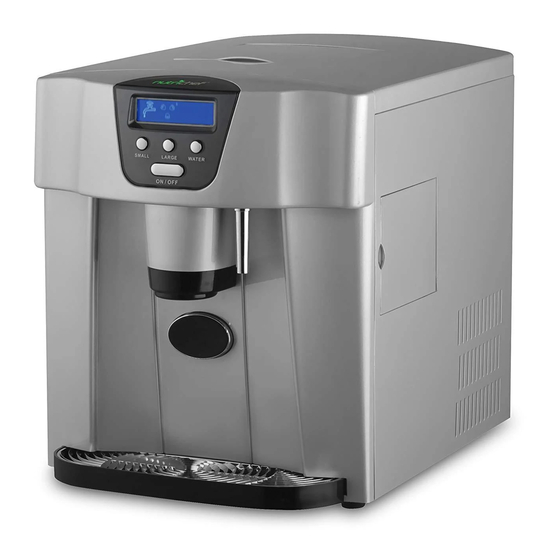

- Page 1 Ice Maker User Manual PICEM75 NutrichefKitchen.com...
- Page 2 Description 1 Viewing window 2 Front Cover 3 LCD Display 4 Control Panel 5 Ice cube dispenser shoot 6 Ice cube dispenser puncher 7 Water drip tray 8 Water Outlet 9 Fan Cover 10 Water reservoir access door 11 Side shell 12 Top cover 13 Back cover 14 Water inlet hole...
- Page 3 Control Panel Operation ZB-10A and ZB-10C ZB-10B Display Explanation Water is not enough in water reservoir, need to add water Ice on making, if S at right top hand of it, then means small size ice on making if M at right bottom hand, then means middle size ice on making if L at right bottom hand, then means large size ice on making Unit is on ice dropping process Ice is full...
- Page 4 Operating Instructions Step 1 Plug in the machine into the socket. Step 2 Open the water reservoir access door and add water as sketch A. If your unit is ZB-10B or ZB-10C, you can add water with both sketch A and sketch B. Sketch A Sketch B Add Water by Manual(All Three models)
- Page 5 Step 7 Once ice making cycle is finished, the water tray will tilt forward; the remaining water flows back to the water reservoir and the ice cubes will drop from the fingers. Step 8 In about 15-35 seconds, the water tray will tilt backward, ice in produced in previous cycle will be pushed to ice reservoir directly, unit back to work from step 4 to step 6 again Step 9 Push the ice cube dispenser puncher button(sketch 6) to get ice, the indicator...
- Page 6 Safety Notice In order to avoid any accidents, please refer to following operation: 1. Disconnect power before servicing. 2. Do not pull directly on wire when plugging or unplugging the unit. 3. If ice is abnormal, please call the seller. 4.
- Page 7 Troubleshooting 1. Please note, if a power failure occurs due to disconnection of the power cord, or the off power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam.
