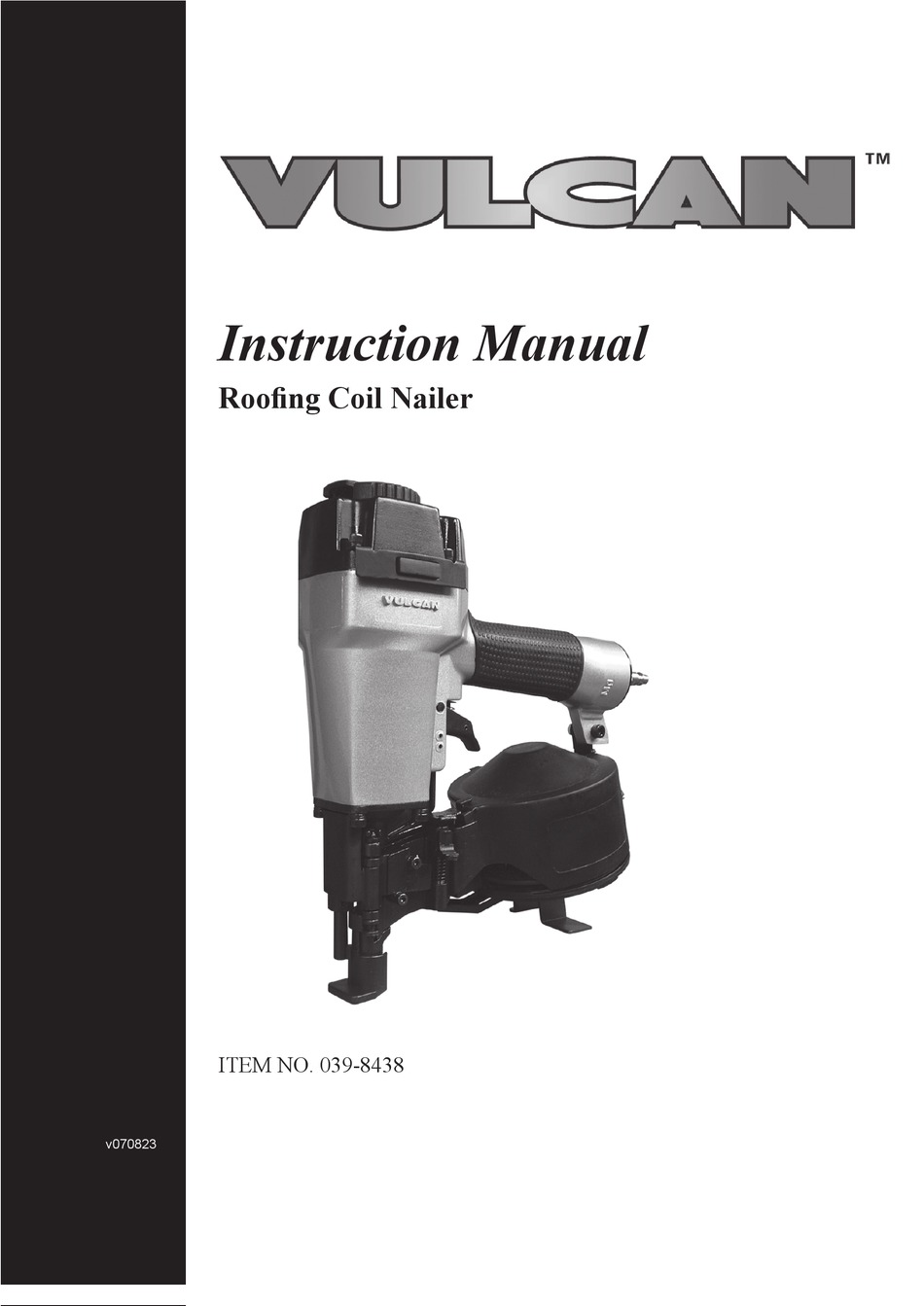

Page 1: Instruction Manual
Instruction Manual Manual de instrucciones Roofing Coil Nailer ITEM NO. 039-8438 ARTICULO No. OCN45R 000-0000 v070823... - Page 2 THANK YOU for your purchase of this Vulcan Air Tool. With proper care and use you can expect your purchase to provide years of trouble free service! SHOULD YOU HAVE A QUESTION OR A PROBLEM WITH YOUR VULCAN TOOL, PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT TOLL FREE AT: 1-800-482-0131 Please have the tool, model number and instruction manual at hand before calling.
-
Page 3: Safety Rules For All Tools
SAFETY RULES FOR ALL TOOLS Read and understand all instructions. Failure to follow all instructions listed WARNING below may result in serious personal injury. SAVE THESE INSTRUCTIONS Work Area Employers must enforce compliance with the safety warnings and all other instructions Keep work area clean and well lit. - Page 4 switch does not turn it on and off properly. return springs may be improperly mounted. User service. Some user-serviceable components When servicing tool, use only identical are described in the Troubleshooting section. We replacement parts. Follow instructions in cannot guarantee repairs made or attempted by the Maintenance section of this manual.
- Page 5 Do not drive fasteners on top of other Fire fasteners into work surface only and never fasteners, or with the tool at too steep an angle: into materials too hard to penetrate the fasteners can ricochet causing personal injury. Grip tool firmly to maintain control while Do not drive fasteners too close to the edge allowing the tool to recoil away from the work of the workpiece.
-
Page 6: Specifications
Nomenclature for No. 039-8438 Roofing Coil Nailer fig.1 F) Shingle guide A) Contact tip G) Lower nail housing B) Depth adjustment knob H) Upper nail housing C) 30 degree re-directable exhaust port Feed cover latch D) Trigger Feed cover plate... -
Page 7: Power Source
MANUAL. THIS WILL ALLOW FOR BEST USE AND MAXIMUM USER SATISFACTION. The Vulcan Model 039-8438 is a light duty, coil fed, pneumatic nailer, using compressed air as a power source. It is designed to install 7/8”– 1-3/4”, 11 ga. (0.120”) flat, full round-head roofing coil nails in 120 nail, 15 degree wire-collated rolls. -
Page 8: Loading Fasteners
LOADING FASTENERS After reading and understanding this entire manual, CAUTION Disconnect tool from the air supply. Keep the tool pointed away from yourself and others at all times. Do not load fasteners with safety or trigger depressed. Always wear approved safety glasses and hearing protection when preparing or operating this tool. -
Page 9: Using The Tool
Re-connect the tool to the air supply, being careful to aim the nosepiece in a safe direction, and careful to avoid touching the trigger or the safety mechanism. This is to prevent harm from fasteners accidentally discharging should the fastener driving mechanism cycle when the tool is connected to the air supply. -
Page 10: Maintenance
CLEARING A JAMMED FASTENER CAUTION Disconnect the tool from the air supply. Open the feeder cover and the magazine cover. Remove any remaining fasteners from the nailer. Use a slender, soft steel rod to push the drive blade to its uppermost position. Remove the jammed fastener with needle nose pliers. -
Page 11: Troubleshooting
parts. The exposed portion of the small piston rod and feed hook must be kept clean. = Inspect trigger and safety mechanism daily to assure system is complete and functional. = Keep all screws tight. Loose screws can cause personal injury or damage to the tool. - Page 12 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Failure to cycle Tool dry, lack of lubrication Use air tool lubricant Spring in cylinder cap is Replace spring damaged Head valve stuck in cap Disassemble, check, lubricate Fasteners Safety bracket position is Turn adjuster knob to lower driven too incorrect bracket...
- Page 13 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Small piston is dry Open nail housing, place several drops of air tool oil into the end cover hole of the small piston Small piston bumper is worn Replace bumper & lubricate & damaged small piston Feed hook is binding Clean feed hook &...
-
Page 14: Parts List
PARTS LIST Please refer to the schematic drawing on page 16 DESCRIPTION DESCRIPTION Screw Soft spacer Body Spring washer O-Ring 46 x 1.3 Bushing Restrictive washer Exhaust cover Washer O-Ring 8.3 x 1.8 Nose Screw Screw Spring washer Bracket Cylinder cap Spring Gaske O-Ring 36.3 x 2.5... - Page 15 PARTS LIST Please refer to the schematic drawing on page 16 DESCRIPTION DESCRIPTION Feed hook pin Screw Torsion spring Piston assembly Washer O-Ring 24.3 x 2.8 Connected plate Piston bumper Support Spring Bracket Cover Screw Locking washer Screw Screw Lower nail housing Spring pin Handle Adjuster bushing...
-
Page 16: Schematic Drawing
SCHEMATIC DRAWING...
