THANK YOU for your purchase of this Vulcan Air Tool. With proper care and use you can expect your purchase to provide years of trouble free service! SHOULD YOU HAVE A QUESTION OR A PROBLEM WITH YOUR VULCAN TOOL, PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT TOLL FREE AT: 1-800-482-0131 Please have the tool, model number and instruction manual at hand before calling.
SAFETY RULES FOR ALL TOOLS Read and understand all instructions. Failure to follow all instructions listed WARNING below may result in serious personal injury. SAVE THESE INSTRUCTIONS Work Area Employers must enforce compliance with the safety warnings and all other instructions Keep work area clean and well lit.
Page 4
switch does not turn it on and off properly. return springs may be improperly mounted. User service. Some user-serviceable components When servicing tool, use only identical are described in the Troubleshooting section. We replacement parts. Follow instructions in cannot guarantee repairs made or attempted by the Maintenance section of this manual.
Page 5
Do not drive fasteners on top of other Fire fasteners into work surface only and never fasteners, or with the tool at too steep an angle: into materials too hard to penetrate the fasteners can ricochet causing personal injury. Grip tool firmly to maintain control while Do not drive fasteners too close to the edge allowing the tool to recoil away from the work of the workpiece.

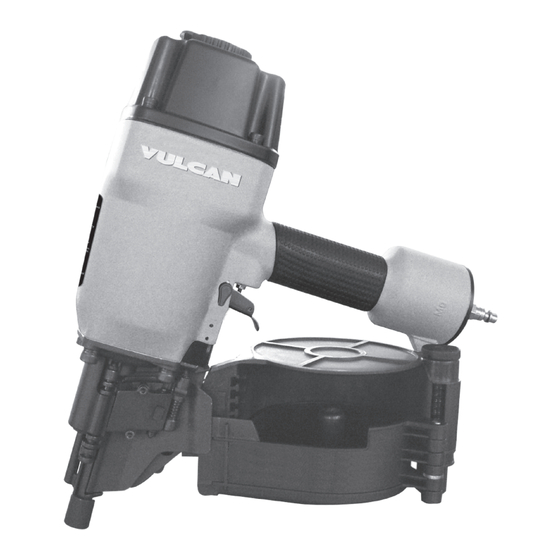

MANUAL. THIS WILL ALLOW FOR BEST USE AND MAXIMUM USER SATISFACTION. The Vulcan Model 019-4274 is a light duty, coil fed, pneumatic nailer, using compressed air as a power source. It is designed to install 2”– 3-9/16”, 11-1/2 ga. to 10-1/4 ga. spiral, ring or smooth wire-collated nails with a collation angle of 15 degrees.
LOADING FASTENERS After reading and understanding this entire manual, CAUTION = Disconnect the tool from the air supply. = Keep tool pointed away from yourself and others at all times. = Be sure the tool has an empty magazine when connecting to the air supply = Do not load fasteners with trigger or safety pressed.
Draw the nails out and position the second nail on to the feed hook (M, fig.4). Close cover-plate and latch (L, fig.3). 10. Rotate the directional exhaust deflector (C, fig.1), so that the exhaust air blast will be directed away from the operator. 11.
Page 10
CAUTION = Disconnect tool from air supply before loading fasteners, performing maintenance, clearing a jammed fastener, leaving working area, moving tool to another location or handing the tool to another person. = Clean and inspect tool daily. Carefully check for proper operation of trigger and safety mechanism.
CAUTION = Keep the tool pointed away from yourself and others at all times. = Always connect the tool to air supply before loading fasteners. = Do not load fasteners with safety or trigger depressed. = Always wear approved safety glasses and hearing protection when preparing or operating this tool.
TROUBLESHOOTING WARNING Stop using the tool immediately if any of the following problems occur. Serious personal injury may result. Any repairs or replacements must be done by qualified personnel or by an authorized service centre only. CAUTION = Disconnect the tool from air supply before performing any service procedure. = When inserting new or re-installing O-rings, make sure they are clean and lubricated with an O-ring lubricant.
Page 13
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Failure to start tool Tool dry, lack of lubrication Use pneumatic tool oil Spring in the cylinder cap is Replace spring in the damaged cylinder cap Valve sticks to cylinder cap Disassemble, clean & lubricate Blade driving Safety bracket position is Rotate depth adjustment fasteners too...
Page 14
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Small piston bumper is worn Replace bumper and and damaged lubricate small piston Feed hook is binding Clean feed hook and torsion spring Nail length does not correspond Adjust magazine height with height setting on lower adjusting knob on the lower magazine magazine...
PARTS LIST Please refer to the schematic drawing on page 17 DESCRIPTION DESCRIPTION Screw O-Ring Spring Washer Guide Washer Bushing Nose Exhaust Cover Spring Washer Seal Screw Screw Spring Spring Washer Bracket Assembly Cylinder Cap Adjuster Gasket Safetey Bracket Washer Spring Pin Valve Seat Guide Safe...
Page 16
PARTS LIST Please refer to the schematic drawing on page 17 DESCRIPTION DESCRIPTION Locking Washer Spring Washer Steel Ball Block Plate Spring Sping Washer Locking Washer Spring Pin Cover Handle Spring Piston Bumber Washer O-Ring 28.3 X 3 Piston Lower Nail Housing Torsion Spring Seal Adjusting Stem...
