AJA kumo 1604 Quick Start Manual
Hide thumbs
Also See for kumo 1604:
- Installation and operation manual (73 pages) ,
- Manual (108 pages) ,
- Quick start manual (20 pages)
Table of Contents
Advertisement
Quick Links
Introduction
1604 Router
Rear Panel
1616 Router
Rear Panel
3232 Router
Rear Panel
6464 Router
Rear Panel
KUMO
Control Panel
Typical Router
Front Panel
KUMO
Quick Start Guide
This Quick Start Guide provides a basic overview of KUMO system configuration.

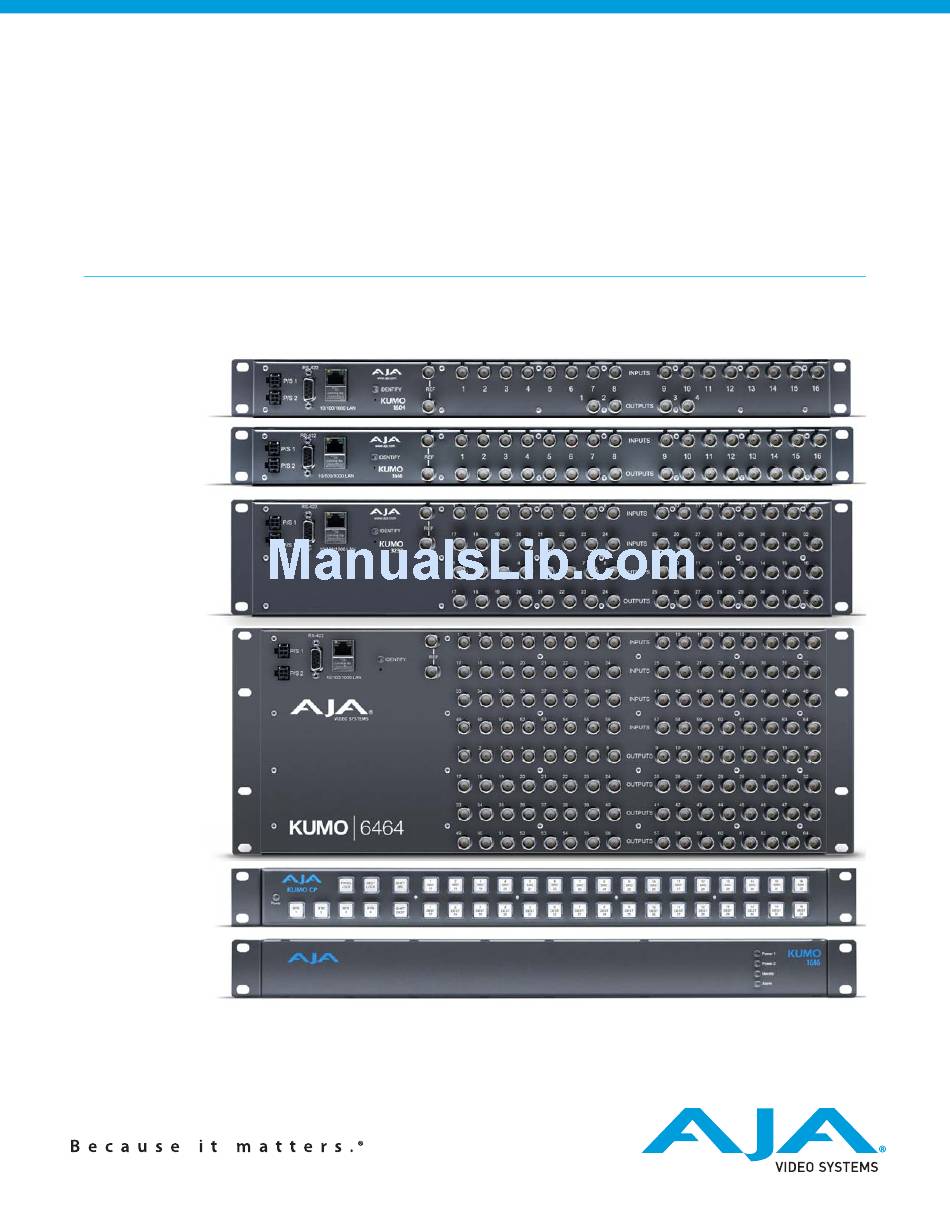

Figure 1. KUMO Devices
Version 4.0, November 18, 2016, Copyright © 2016 AJA Video Systems
Advertisement
Table of Contents
Related Manuals for AJA kumo 1604
Summary of Contents for AJA kumo 1604
-
Page 1: Quick Start Guide
This Quick Start Guide provides a basic overview of KUMO system configuration. Figure 1. KUMO Devices 1604 Router Rear Panel 1616 Router Rear Panel 3232 Router Rear Panel 6464 Router Rear Panel KUMO Control Panel Typical Router Front Panel Version 4.0, November 18, 2016, Copyright © 2016 AJA Video Systems... -
Page 2: Kumo Router Connections
If no reference is present, the KUMO will switch at random times. Video Inputs and Outputs Depending on your KUMO model, up to 64 SDI video inputs and outputs can be connected to the video input and output BNC connectors. KUMO SDI Router v4.0 www.aja.com... -
Page 3: Kumo Control Panel Connections
Default Auto Configure KUMO Router and CP If you purchased a KUMO CP along with a KUMO 1604, 1616, or 3232 router, the easiest way to get your system operating is to simply direct connect them with a single Ethernet cable and power up both units. -
Page 4: Computer Auto Discovery
(directly to a Mac or via LAN). 2. Start Safari browser on a Mac. 3. Click on the top menu Bookmark->Bonjour->Webpages drop-down and click on a listed AJA KUMO router or control panel. NOTE: If Bonjour is not visible in the Bookmark drop-down, go to Safari->Preferences->Advanced and check the “Include Bonjour in the Bookmarks menu”... - Page 5 4. Start a web browser and enter 192.168.101.1 as the web address. This is the KUMO temporary static IP address. 5. Once you’ve connected using the static IP, you can then enter a desired network configuration using the KUMO device's Network tab. KUMO SDI Router v4.0 www.aja.com...
-
Page 6: Larger System Control Configurations
DHCP is the default initial configuration routine for KUMO devices. If you start up on a DHCP network, KUMO will accept assigned IP addresses. After DHCP initialization, use your zeroconf browser to view the KUMO webpage and view the assigned IP address. KUMO SDI Router v4.0 www.aja.com... -
Page 7: Static Ip Configuration
From the Home screen, use the pulldown menu in the upper left to see all of the KUMO devices present on the local LAN and select the router you want to control, or select the KUMO CP you want to use. Figure 7. KUMO Router Selection KUMO SDI Router v4.0 www.aja.com... -
Page 8: Assign Kumo Cp To Control Kumo Routers
Figure 9. KUMO Router Identify LEDs. Identify LED front panel Identify LED rear panel • On a KUMO CP, the Source and Destination button rows will flash alternately. Also, the Identify LED on the back of the panel will flash. KUMO SDI Router v4.0 www.aja.com...
