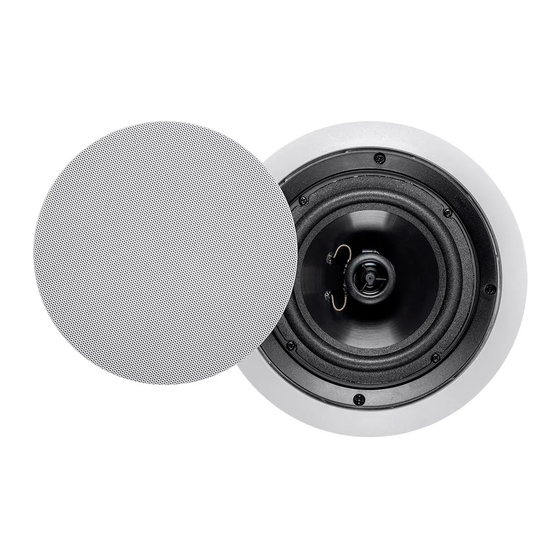

Aria polypropylene in-wall & in-ceiling speakers

Advertisement

Quick Links

Aria Polypropylene In-wall & In-ceiling Speakers
P/Ns 18586, 18587, 18588, 18589, 18590
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18586 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice 18586

  • Page 1 Aria Polypropylene In-wall & In-ceiling Speakers P/Ns 18586, 18587, 18588, 18589, 18590 User's Manual...
  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ................3 INTRODUCTION ........................ 4 FEATURES ......................... 4 CUSTOMER SERVICE ......................4 PACKAGE CONTENTS ......................5 IN-WALL VERSUS IN-CEILING SPEAKERS ................5 SPEAKER BREAK-IN ......................5 SPEAKER WIRE PREPARATION ................... 6 PAINTING ......................... 7 INSTALLATION ........................8 TECHNICAL SUPPORT ......................
  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES  These speakers are intended for indoor use only.  Do not expose these speakers to water or moisture of any kind.  If operating these speakers in a humid environment, ensure that no condensation occurs. Condensation could cause damage to the speaker cones and voice coils. ...
  • Page 4: Introduction

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 5: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 2x Aria polypropylene 2-way in-wall/in-ceiling speakers 2x Installation template/paint masks...
  • Page 6: Speaker Wire Preparation

    SPEAKER WIRE PREPARATION Before attempting to make any connections it is best to look at the situation, get all the necessary materials together, and then make all the connections at once. First, look at the back of your amplifier or receiver to determine what options it offers for making connections.
  • Page 7: Painting

    identifies a positive and negative side. Some common clearly positive and negative markings or identifiers are: Positive Negative Black Copper Silver ╋ ╋ ╋ ━ ━ ━ In many cases, the mark is a single stripe on the jacket of one of the connectors. In this case the side with the stripe is generally considered the positive side, but it really does not matter as long as you are consistent and always...
  • Page 8: Installation

    3. Remove the foam insert and set it aside. 4. Insert the paint mask, covering the speaker while leaving the frame exposed. 5. Paint the speaker frame and grille. It is best to use spray paint to avoid paint clogging the holes in the grille. 6.
  • Page 9 6. Remove the template from the wall and set it aside. 7. Use the level again to check the cut lines to ensure that they are level. Repeat steps 3-6 as necessary until the cut lines are level. 8. Drill a small hole in the middle of the cutout area. If the proposed installation location is not clear, you can more easily repair the small hole than if you cut without checking and find one or more obstructions.
  • Page 10: Technical Support

    Congratulations, your speaker is installed and ready for use! TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 11: Specifications

    SPECIFICATIONS Model 18586 18587 Speaker Type In-Ceiling In-Ceiling Woofer Type 5.25" polypropylene + mica 6.5" polypropylene + mica cone cone Tweeter Type 0.5" PEI dome 0.5" PEI dome Frequency Response 65 Hz ~ 20 kHz 55 Hz ~ 20 kHz Crossover Frequency 4.5 kHz...
  • Page 12 Model 18588 18589 Speaker Type In-Ceiling In-Wall Woofer Type 8" polypropylene + mica 5.25" polypropylene + mica cone cone Tweeter Type 0.5" PEI dome 0.5" PEI dome Frequency Response 48 Hz ~ 20 kHz 65 Hz ~ 20 kHz Crossover Frequency 4.2 kHz 3.5 kHz Nominal Impedance...
  • Page 13 Model 18590 Speaker Type In-Wall Woofer Type 6.5" polypropylene + mica cone Tweeter Type 0.5" PEI dome Frequency Response 50 Hz ~ 20 kHz Crossover Frequency 3.5 kHz Nominal Impedance 8 ohms Maximum Input Power (RMS) 40 watts Maximum Input Power (Peak) 80 watts Sensitivity 86dB...
