Summary of Contents for Audiovox Rampage ACC-52

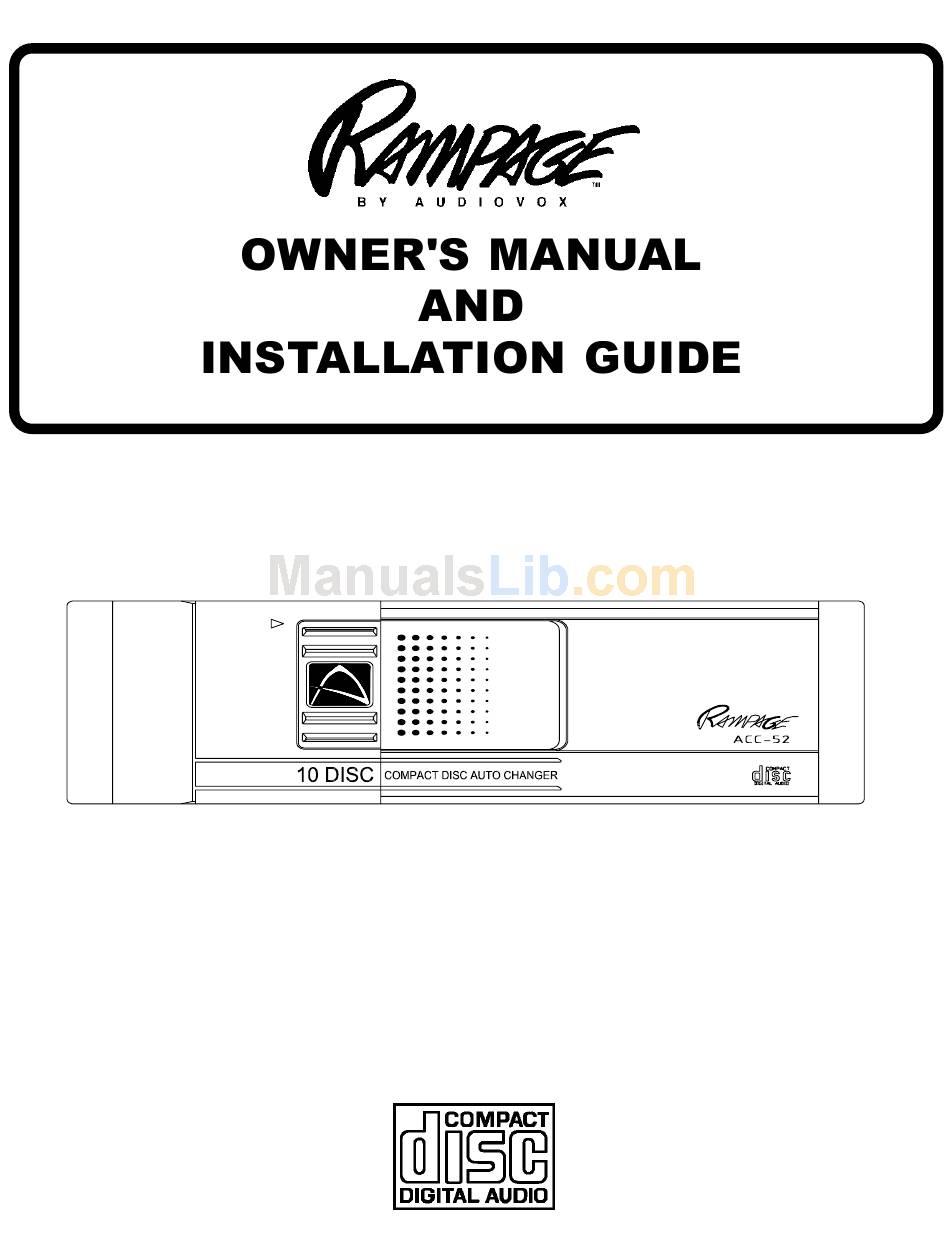

- Page 1 OPEN MODEL ACC-52 REMOTE-CONTROL 10-DISC CD CHANGER...
-
Page 2: Table Of Contents
INTRODUCTION Congratulations on your purchase of this remote mount 10 Disc CD Changer. It allows you to easily upgrade your existing car stereo system to the quality of Compact Disc entertainment. The entire system plays through your FM Stereo car radio and stereo speaker system - there’s nothing else to add or replace. Best of all, the CD Changer is easy to install. -
Page 3: Packing List
PACKING LIST MAIN UNIT Changer OPEN INSTALLATION PARTS Bracket (L) Bracket (R) 1 pc. 1 pc. Self-tapping screw (M5 x 12) 4 pcs. OTHER ACCESSORIES CD Magazine (P/N ACC-52MAZ) 1 pc. Remote Control Hexagonal bolt with washer Phillips Head Self-Tapping (M5 x 10) 7 pcs. -
Page 4: Before Installing The Unit
Additional CD magazines are available as an accessory item (Part No. ACC-52MAZ) from the store where your ACC-52 was purchased. If they are out of stock, you can order them direct from Audiovox. Send a check or money order (do not send cash) made payable to Audiovox Corp in the amount of $49.95 (U.S. -
Page 5: Where To Install The Changer
WHERE TO INSTALL THE CHANGER The ACC-52 changer is designed for horizontal (flat), vertical (upright) or 45-degree mounting. It must never be mounted upside-down or on either one of it's sides as explained previously. A few of the many mounting possibilities are shown below. -
Page 6: Installation
INSTALLATION The unit can be installed horizontally, vertically or at a 45° angle. The position of the built-in anti-vibration springs (left and right side), must correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration compensation will not be effective and vibration may cause the disc to skip. - Page 7 PROCEDURE FOR VERTICAL INSTALLATION NOTE: If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 3), start with step 2. Set the left and right anti-vibration springs to position "V". position "V" Determine the mounting location, and drill four mount- ing holes.
- Page 8 PROCEDURE FOR 45° ANGLE INSTALLATION NOTE: If the anti-vibration spring position has been changed and verified for 45° angle Set the left and right anti-vibration springs to position "45°". position "45°" 45° Determine the mounting location, and drill four mount- ing holes.
-
Page 9: Overall Wiring View
OVERALL WIRING VIEW This page is provided to give you a quick look at the entire wiring of the ACC-52. Use it to plan your wire routing paths and possible connection points. Detailed wiring is explained in the following pages. -
Page 10: Wiring The Cd Changer
WIRING THE CD CHANGER DATA CABLE The 15 foot data cable connects the changer to the FM module. First connect the end of the data cable labelled "TO CD CHANGER" to the socket on the left side of the changer. Route the other end of the cable up to the car’s dashboard area near your existing car radio and plug the data cable into the mating socket on the end of the FM module. - Page 11 You may also find some late model GM cars have an antenna plug that is too small to mate with the FM module. If this is found, call Audiovox’s Toll-Free Assistance for a special adaptor. This adap- tor can also be purchased at any car stereo installation center.
-
Page 12: Mounting The Remote Control
3/32" holes or use electricians tape or twist ties (not provided). ADJUSTMENT OF FM To operate your ACC-52, your car radio must be first tuned to the FM band at 89.1MHz. If you find interference on this frequency, you can change the output frequency from the FM module to 88.7 MHz., by moving the slide switch on the... -
Page 13: Remote Control Operating Instructions
4. Depress the “RESET” button control. Note: This is only required the First Time you use the Changer. 5. Turn on the CD player by pressing the Play/Pause button . The CD panel number 1 will begin play. 6. Adjust your car radio’s volume, balance and tone controls for desired sound. - Page 14 USE OF CONTROLS LCD DISPLAY The LCD Display Panel will illuminate when the CD changer is operating. Different symbols will appear depending on the function and operation in use. Each display is explained in the applicable function explanation below. PLAY / PAUSE ( Pressing this button turns on the CD changer, illuminates the LCD panel and begins play of disc #1 if a new CD magazine has been loaded into the changer.
-
Page 15: Hints For Correct And Safe Operation
CAUTION: When the CD magazine is ejected by the use of the Reset button, whichever disc was in play prior to depressing Reset will be left in the play position in the changer. It is critical that before re-inserting the CD magazine, you must REMOVE ALL DISCS from it. -
Page 16: Use Of The Cd Magazine
Such damage will not be covered by the Warranty on this product. Additional CD magazines are available as accessory item part number ACC-52MAZ from your Audiovox dealer, or you may contact us directly at: LOADING THE MAGAZINE INTO THE CHANGER Completely slide the door on the changer to the right as shown in Figure 4. -
Page 17: Cd Changer Operating Instructions
This CD Changer is designed to operate through a compatible Audiovox car stereo which incorporates the controls and display functions or through the FM section of any car stereo. Please check with your Audiovox stereo specialist for recommendations of the models that will work with this changer. The specific operating instructions for the changer will be contained within the Owner's Manual of the compatible unit. -
Page 18: Troubleshooting
TROUBLESHOOTING An error made in operation or during installation of this product may be mistaken for a system malfunction. Please perform the checks described below before contacting your dealer or service facility. Symptom No power Blown fuse Incorrect connection Magazine cannot be Magazine is inserted in wrong installed direction. -
Page 19: Month Limited Warranty
12 MONTH LIMITED WARRANTY AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 20 © 2001 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-6002...
