MODEL ACC-31
6-DISC CD CHANGER WITH
WIRED COMMANDER
COMPACT
DIGITAL AUDIO

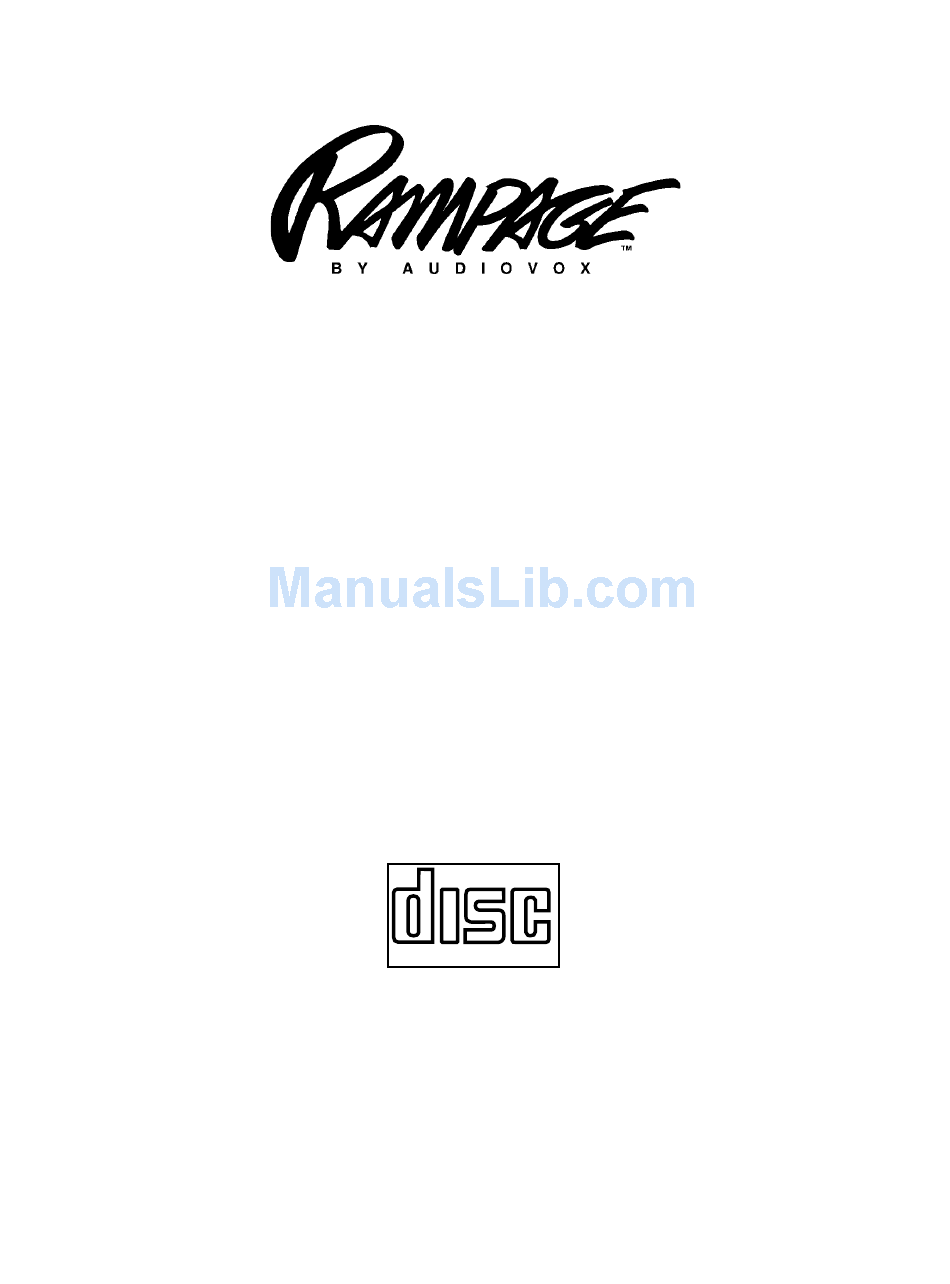

INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rampage ACC-31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox Rampage ACC-31

Summary of Contents for Audiovox Rampage ACC-31

  • Page 1 MODEL ACC-31 6-DISC CD CHANGER WITH WIRED COMMANDER COMPACT DIGITAL AUDIO INSTALLATION MANUAL...

  • Page 2: Packing List

    PACKING LIST MAIN UNIT CD Changer ACC31 DIGITAL AUDIO 6 DISC COMPACT DISC CHANGER BY AUDIOVOX INSTALLATION PARTS Changer Mounting Brackets Phillips Hex -Head Self-tapping screw Bolt (Small), w/Flat (M5 x 12), Washers and Lockwashers w/Lockwashers 8 pcs. each 6 pcs. each 1 each 5 Meter Din Cable Floor Mounting Brackets...

  • Page 3: Before Installing The Unit

    BEFORE INSTALLING THE UNIT Transport Lock Screws The mechanism in the CD changer is "locked" into place during shipment by the 4 transport screws, two on each side. Be sure to remove the screws prior to installation. Retain these screws for future use when transporting the unit for service/maintenance.
  • Page 4 INSTALLATION The unit can be installed horizontally (position H), or vertically at a 90° angle (position V). The position of the built-in anti-vibration springs (left and right side), must correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration compensation will not be effective and vibration may cause the disc to skip.
  • Page 5 PROCEDURE FOR VERTICAL INSTALLATION Note If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 4), start with step 2. Set the anti-vibration springs to position "V" as shown below . POSITION "V" Determine the mounting location and drill two mounting holes.
  • Page 6 VEHICLE COMPONENT LAYOUT NOTE: 1. Check with your Rampage/Audiovox audio dealer to 2. When used with Rampage Model AV-427 car be sure your stereo is directly compatible with this CD changer. stereo, be sure Changer Selector switch on bottom of radio chassis is set to position "B".
  • Page 7 © 2000 Audiovox Electronics Corporation, Happauge, N.Y. 11788 Printed in China 128-5943...
