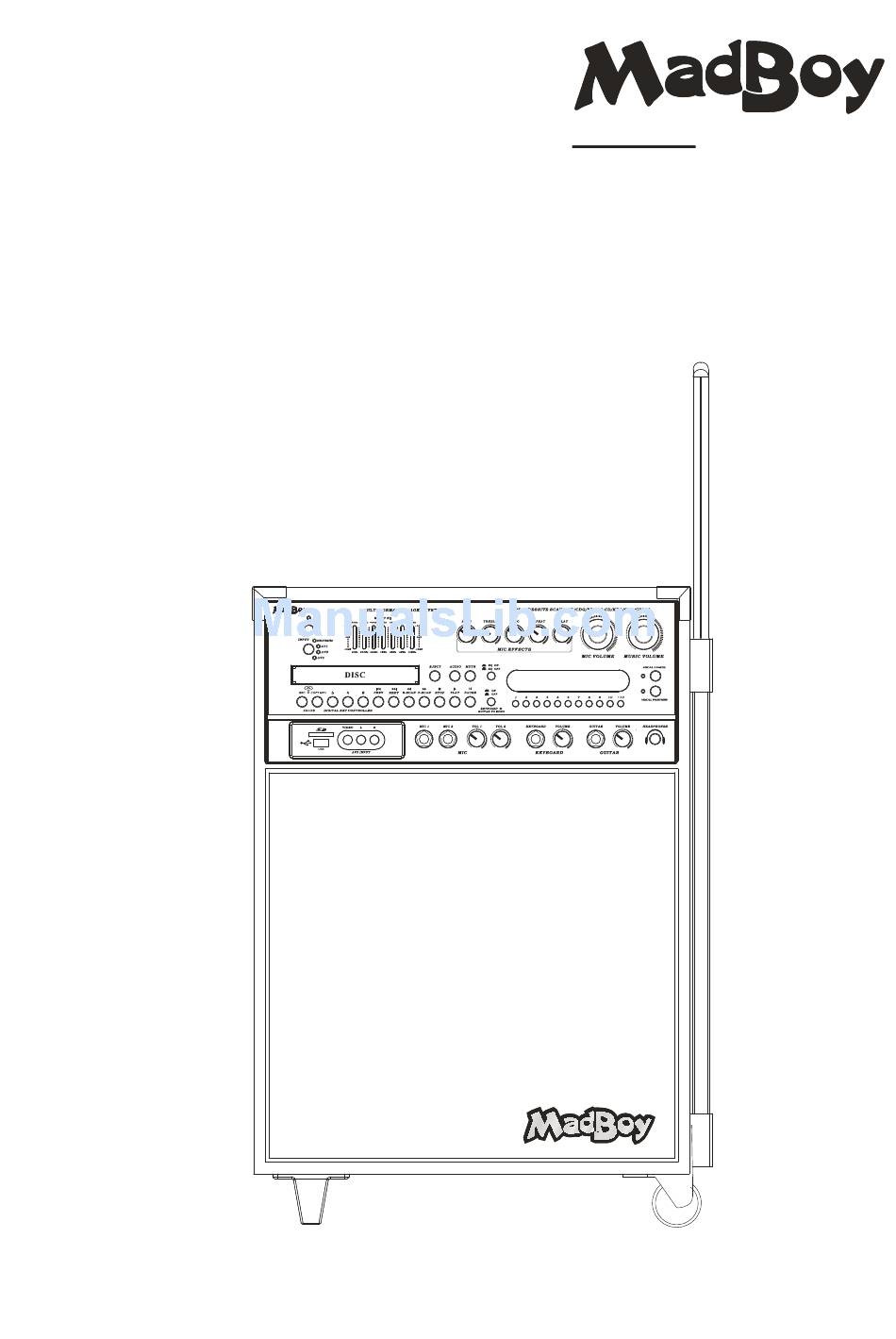

- Page 1 THUNDER MULTI-FORMAT KARAOKE SYSTEM USER MANUAL THUNDER...
-
Page 2: Table Of Contents
Headphones connections ..................Microphone/Instrument input Connections ............. General Operations: Turning the THUNDER On, Off and to Standby ............Input Channels ....................Adjusting the master Music Volume ............... Adjusting the master Microphone Volume ............... Adjusting the master MUSIC EQ ................) .............. - Page 3 Adjusting the GUITAR Volume ................Descriptions and Functions: Front Panel ......................Rear Panel ......................Remote Control ....................DVD System Setup Menu: System Setup ...................... Language Setup....................Audio Setup......................Video Setup......................Speaker Setup ..................... Digital Setup ....................... Troubleshooting ....................WWW.MADBOY-AUDIO.COM...
-
Page 4: Safety Instructions
11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. S3125A WWW.MADBOY-AUDIO.COM... - Page 5 PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. CAUTION: Invisible laser radiation when open. Do not stare into beam. Class II equipment symbol This symbol indicates that the unit has a double insulation system WWW.MADBOY-AUDIO.COM...
-
Page 6: Features
12. Inputs/Outputs: 3 RCA A/V (AV1,AV2 and AV3) inputs and 2 RCA A/V / One Balanced Audio outputs; 13. One stereo 1/4 inch audio pre-out,and DVD 5.1 AV outputs. 14. Remote Control for Easy Operation. 15. 115V/230V and NTSC-PAL Compatible for Worldwide Use. WWW.MADBOY-AUDIO.COM... -
Page 7: Specifications
Power cord AAA Batteries AC Power Cord(1) THUNDER A/V RCA Cable(1) COPY MP3 THUNDER THUNDER Unit(1) AAA Batteries(2) Remote Control(1) Note If you find that any of the items mentioned above are missing from the box, please contact MADBOY before proceeding. -
Page 8: Getting Connected
Getting Connected Since the THUNDER contains built-in power amplifiers, speakers, DVD/CDG/CD player, USB player, and SD card player, the THUNDER can be used as a self-contained sound system. However, the THUNDER contains various audio video outputs to allow the THUNDER to be connected to multiple TV sets, external sound systems, and/or multiple sound effect devices. -
Page 9: Connecting To An Audio Mixer Or Tv With Rca Audio Inputs
2.BALANCED AUDIO OUTPUT CONNECTIONS: Connect one end of the XLR cables to the left and right BALANCED AUDIO OUTPUT jacks on the THUNDER. Connect one end of the XLR cables to the left and right AUDIO/LINE/AUX INPUT jacks on the external device 3.¼... -
Page 10: Dvd Output Connections
General Connections The insert is a break point in the input channel signal path, It allows the signal to be taken out from this THUNDER through an external equipment such as a Limiter,Compressor,Equalizer, Effector,and then back to the THUNDER the input jack can be used with ¼... -
Page 11: General Connections
Using either an RCA-ended COAXIAL cable suited for digital audio use or an OPTICAL cable, connect one end to the appropriate jack on the THUNDER (COAXIAL or OPTICAL) and the other end to the appropriate jack (COAXIAL or OPTICAL). If you have both coaxial and optical inputs on your DTS decoder/receiver, it is recommended to use an optical connection as those cables eliminate the possibility of EMI (electromagnetic interference). -
Page 12: Headphones Connections
HEADPHONES jack on the front panel of THUNDER MICROPHONE/INSTRUMENT INPUT CONNECTIONS After completing your main system connections, it is time to get your microphones and instruments connected and ready for performing. Before you get started with your connections we recommend that you take the... -
Page 13: General Operations
General Operations Turning the THUNDER On, Off and to Standby Turning the THUNDER MAIN POWER switch to ON, Input Channels THUNDER has 4 available input channels: Disc USB SD Turns on the THUNDER ’s disc player for playing DVD, CD, CD+G, Mp3 and other discs... -
Page 14: Changing The Video Mode (Pal / Ntsc)
Loading a Disc 1.Press the OPEN/CLOSE button on the remote control or the EJECT button on the front panel of THUNDER to open the disc tray 2.Insert a disc 3.Press the OPEN/CLOSE button on the remote control or the EJECT button on the front panel of... -
Page 15: Viewing One Frame At A Time Using The Step Button
Select the title and then jump to a chapter within that title Title Time DVD only Select a title and then jump to a specific time within that title Chapter Time DVD only Select a chapter and then jump to a specific time within that chapter WWW.MADBOY-AUDIO.COM... -
Page 16: Viewing And Setting The On Screen Display Osd )
5.Press SETUP again on the remote control to close the Setup menu Operations (MP3 and AVI / DivX) When playing Mp3 and DivX files, the THUNDER must be connected to a TV in order to see and navigate through the file menu. -
Page 17: Repeat Options
Use the Directional Buttons to select videos music or images Press the Enter Button to play a selected video, music, or image. NOTE: The unit will play your VCD, MP3, WMA, AVI, MP4, DAT, MPG and JPG files . The different file types must be separated into folders for the unit to read them. THUNDER WWW.MADBOY-AUDIO.COM... -
Page 18: Microphone Operations
COPY MP3 either the front panel control or the remote control Front Panel Turn the MIC VOLUME control clockwise to raise the THUNDER volume and counter-clockwise to lower the volume Remote Control Press the MIC button to raise the volume... -
Page 19: Using Digital Echo
NOTE: KEYBOARD & GUITAR TO ECHO ON/OFF switch- This switch is used to turn the keyboard & guitar to Digital ECHO ON and OFF. Press the KEYBOARD & GUITAR TO ECHO ON/OFF switch in to activate the Digital ECHO. In the out position, the keyboard & guitar to Digital ECHO is OFF. WWW.MADBOY-AUDIO.COM... -
Page 20: Descriptions And Functions
Descriptions and Functions Front Panel THUNDER 1.INPUT - This button toggles through all the INPUT channels (Disc/USB/SD, AV 1/2/3) for available INPUT SOURCES. 2.POWER/STANDBY - This button is used to turn the THUNDER 'ON' or place it in STANDBY mode. - Page 21 Descriptions and Functions Front Panel 17 18 THUNDER 13.REC button - Under the disc play mode,Insert USB/SD card,press REC button change to record mode, the unit will automatically start record from the begining of the disired tracks, At this time, the record...
- Page 22 Descriptions and Functions Front Panel THUNDER 27. MIC BASS - This control increases/decreases the amount of LOW frequency response applied to the MASTER VOLUME output. 28.MIC TREBLE- This control increases/decreases the amount of HI frequency response applied to the MASTER VOLUME output.
-
Page 23: Rear Panel
Descriptions and Functions Rear Panel MULTI FORMAT KARAOKE SYSTEM MODEL:THUNDER Power Supply: ~115V/60Hz,230V/50Hz,<70W SERIAL NUMBER: CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUCT AC 115V/60Hz LUOKAN 1 LASER LAITE 230V/50Hz 70W KLASS 1 LASER APARTA 1.FUSE terminal - This terminal houses the THUNDER main system FUSE. - Page 24 NOTE: Do not connect any device with a power consumption level higher than 200W. 12.PRE-OUT jacks-Connect one end of ¼-inch cables to the left and right PRE-OUT jacks on the THUNDER. Connect one end of the ¼-inch cables to the left and right AUDIO/LINE/AUX INPUT jacks on the external device.
-
Page 25: Remote Control
Descriptions and Functions 1.OPEN/CLOSE button - This button is used to OPEN/CLOSE the DISC tray. 2.Power button - Turns the THUNDER On or to Standby mode. To turn the THUNDER completely off, use the power button on Remote Control the front panel. - Page 26 33.V-MODE - This button toggles between the different variants of component video, YUV (US), and S- Video. THUNDER 34.Clear button - Clears any numbers typed into a menu before a selection has been made.
- Page 27 Using the Remote Control When operating the remote control, point the top of the remote control toward THUNDER 's remote sensor on the front panel and ensure that there is a clear line of sight between the remote control and THUNDER void of obstacles in order to prevent signal deflection.
-
Page 28: Dvd System Setup Menu
The password to lock or unlock RATING setting is 0000. If you are a parent and want to limit the types of DVDs viewed with the THUNDER,type this password using the NUMBER keys on the remote, and press ENTER. You will see the padlock icon either open or close, affecting the ability of the user to make a selection in the RATING section. -
Page 29: Language Setup
With the THUNDER, you can output standard analog audio simultaneous with digital output by using the RCA L/R outputs and Coaxial output. When connecting the THUNDER to an external sound system with digital AUDIO SETUP inputs, choose between a) SPDIF/OFF to completely bypass digital audio, SPDIF/RAW for Dolby 5.1 or... -
Page 30: Speaker Setup
MONO L: Only plays the left audio channel. NOTE: For use only on Multiplex CD+G discs. MONO R: Only plays the right audio channel. NOTE: For use only on Multiplex CD+G discs. MIX MONO: Plays the left and right audio channels out of both sides. WWW.MADBOY-AUDIO.COM... -
Page 31: Troubleshooting
Troubleshooting 1.There is no power Make sure the power cord is firmly connected to the back of the THUNDER and to the power outlet If using a power strip/surge-protector, make sure that it is plugged in and switched on Make sure the Power button on the front panel is pushed in to the on position 2.There is no sound...
