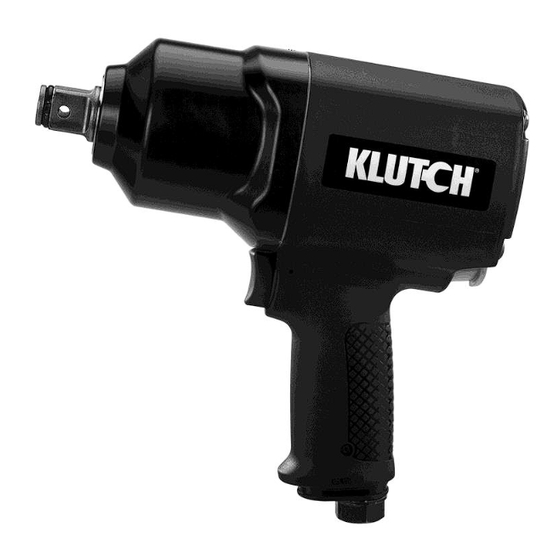

3/4" impact wrench

Advertisement

3/4" Impact Wrench
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item # 48092

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48092 and is the answer not in the manual?

Questions and answers

Summary of Contents for Klutch 48092

  • Page 1 3/4" Impact Wrench Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item # 48092...
  • Page 2 Thank you very much for choosing a Klutch product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
  • Page 3: Table Of Contents

    Table of Contents Intended Use ....................4 Technical Specifications ................. 4 Important Safety Considerations ..............5 Safety Signs and Labels ................8 Air Supply ....................... 9 Assembly ...................... 10 Lubrication ....................10 Before Each Use ..................10 Operating Instructions .................. 11 After Each Use .....................
  • Page 4: Intended Use

    Intended Use KLUTCH Impact Wrenches are designed for heavy duty general maintenance and automotive repair applications. These lightweight pistol grip impact wrenches feature a composite housing and handle, thumb operated forward and reverse switches, variable speed trigger, and a twin hammer clutch mechanism.
  • Page 5: Important Safety Considerations

    Important Safety Considerations  DO NOT modify the tool in any way. Unauthorized modification may impair the function and/or safety of the tool and could affect the life of the tool. There are specific applications for which the tool is designed. ...
  • Page 6: Personal Safety

    WORK AREA SAFETY  Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well lit. Cluttered, wet, or dark work areas can result in injury. Using the tool in confined work areas may put you dangerously close to other cutting tools and rotating parts. ...
  • Page 7: Tool Use And Care

    TOOL USE AND CARE  USE COMPRESSED AIR ONLY. Use clean, dry, and regulated compressed air to power the tool. Do not use oxygen, carbon dioxide, or any other bottled gas as a power source for this tool.  Lubricate the tool before its initial use and before and after each additional use. ...
  • Page 8: Safety Signs And Labels

    Safety Signs and Labels Revision 2 Page 8 of 18...
  • Page 9: Air Supply

    Air Supply WARNING: Operating the tool at pressures over the rated capacity may cause severe damage and/or personal injury. Do not exceed 90 PSI while operating the tool. Do not use an accessory rated at a lower maximum pressure than the tool itself. CAUTION: The air supply must be clean while operating the tool.
  • Page 10: Assembly

    Assembly Wrap the 3/8 in. air nipple with pipe thread seal tape (not included), and then thread it into the air inlet on the air tool. Connect the 1/2 in. I.D. air hose (not included) to a quick-connect coupler (not included) and then to the air nipple.
  • Page 11: Operating Instructions

    Operating Instructions  To start the tool, press the trigger. To stop the tool, release the trigger.  To switch between forward and reverse, release the trigger to stop the tool and then press the forward or reverse button on the back end of the tool. Do not attempt to switch direction when the tool is running.
  • Page 12: Troubleshooting

    Troubleshooting Problem Possible Cause Solution There is moisture There is water in the tank. Drain the tank. (See the air blowing out of the compressor manual for instructions.) tool's exhaust. Lubricate the tool again and run for 1- 2 seconds. The tool impacts The tool needs lubricating.
  • Page 13 Problem Possible Cause Solution The tool impacts The tool has a worn Replace the worn impact mechanism rapidly, but will not impact mechanism. components. remove bolts. Revision 2 Page 13 of 18...
  • Page 14: Diagram

    Diagram Revision 2 Page 14 of 18...
  • Page 15: Parts List

    Parts List Replacement Parts  For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.  Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. ...
  • Page 16: Limited Warranty

    Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the Klutch Air Tool product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
  • Page 17 Governing Law This limited warranty gives You specific legal rights, and You also may have other rights which vary from state to state. Some states do not allow limitations or exclusions on implied warranties or incidental or consequential damages, so the above limitations may not apply to You. This limited warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to conflicts of law.
  • Page 18 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are:  lead from lead-based paints, ...
