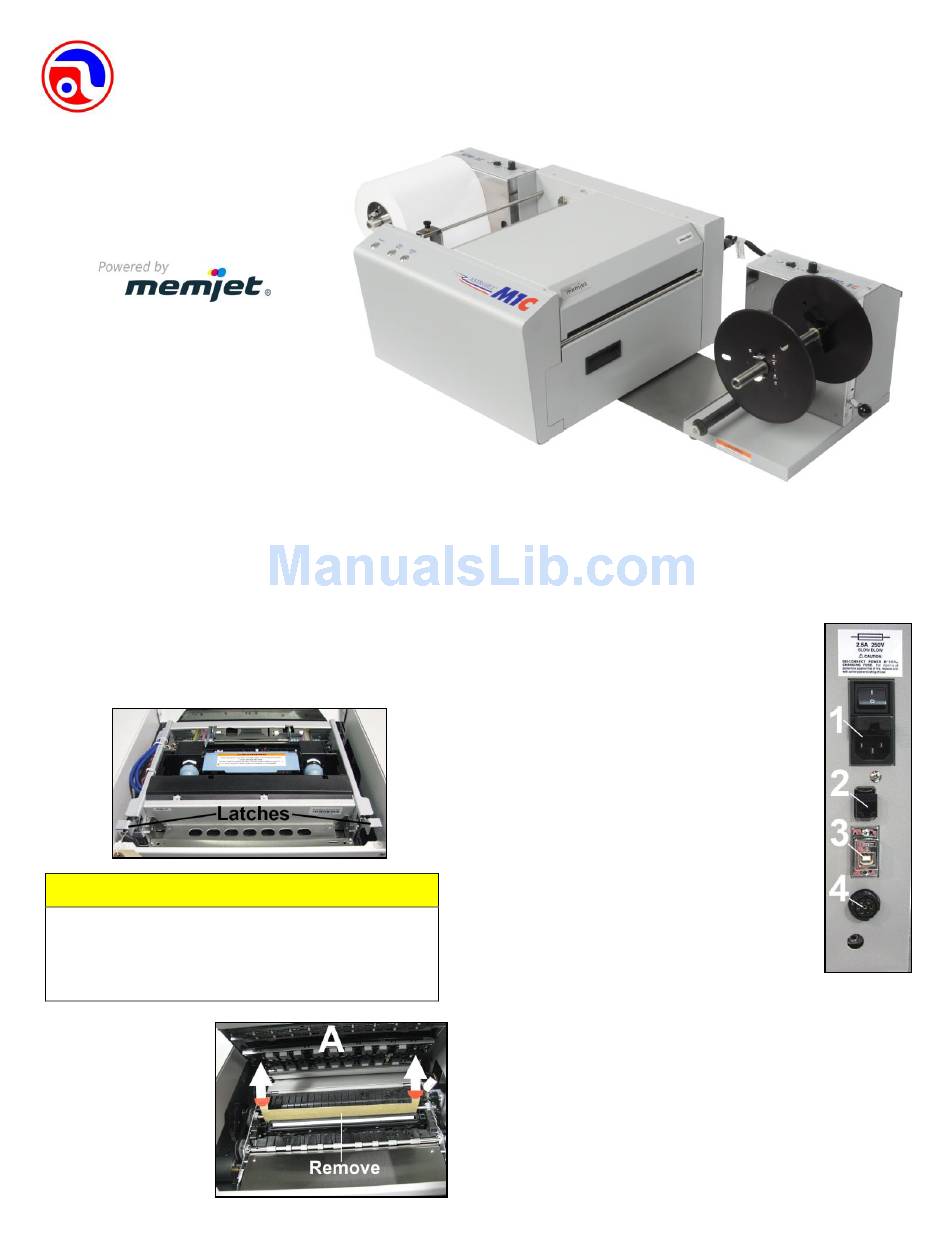

AstroJet

Quick Start Guide

Step 1
Remove Printer and
Accessories from packaging
Place Printer on a stable surface. Use
the Bubble Gauge mounted on the Print
Engine (or a small level) to make sure
the Printer is level.
Step 2
Remove Service Station Transport Tab and
Shipping Tape
1. Open Top Cover.
2. Open Print Engine Clamshell (2 latches).
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND
CLOSING CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM
CLOSED. A STOP LIMITS RAISING CLAMSHELL MORE
THAN 60°.
3. Remove
Transport Tab
Insert [A].
TM
M1C
Page 1
Step 3
Connect Power to Printer
1. Main Power Switch should be
turned OFF.
2. Power cord plugs into receptacle
[1]. (Located just below the power
switch.)
Connect Printer to Computer
USB cable from computer plugs into
the Printer's USB port [3].
Network port [2].
Unwinder Interconnect port [4].
(Located just below the USB port.)
DO NOT CONNECT USB CABLE OR
NETWORK CABLE YET.
DO NOT TURN PRINTER POWER
SWITCH YET.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AstroJet M1C and is the answer not in the manual?

Questions and answers

Related Manuals for Astro Machine AstroJet M1C

Summary of Contents for Astro Machine AstroJet M1C

  • Page 1: Quick Start Guide

    AstroJet Quick Start Guide Step 1 Remove Printer and Accessories from packaging Place Printer on a stable surface. Use the Bubble Gauge mounted on the Print Engine (or a small level) to make sure the Printer is level. Step 2 Step 3 Remove Service Station Transport Tab and Connect Power to Printer...
  • Page 2 3. License Agreement. Step 4 Check “I accept…” then click “Next>”. Print Driver Installation Minimum System Requirements:  Operating System: Windows XP, Windows Vista, Windows 7, Windows 8/8.1. Supports 32 and 64 bit systems. (Must have administrative privileges on the system.) NOTE: Win 8 and 8.1 will only work in desktop mode.
  • Page 3 Step 5 6. Connect Device Now. Switch Printer ON and Don’t click on either connect USB cable. button. Software will finish installing. Install Ink Tanks Printer uses one Printhead Cartridge and five Ink Tanks (two Black, one Cyan, one Magenta, and one Yellow). 1.
  • Page 4 5. Insert new Ink Tanks (label up) into appropriate Step 6 color slots [B]. Close three Ink Tank Latches. Install Printhead Cartridge Handle Printhead Cartridge with extreme care to avoid damage that could degrade print quality. CAUTION  Use ESD protection when handling. ...
  • Page 5 2. Carefully remove Printhead Cartridge from 4. Carefully insert Cartridge into compartment at an foil packaging. angle (as shown) [1], Once seated, gently tilt Cartridge back until it snaps into position [2]. DO NOT FORCE Cartridge into position. WARNING! TO AVOID ELECTRICAL SHOCK OR SHORTING: Before installing the Printhead, make sure nozzles are hydrated and contacts are DRY! 5.
  • Page 6 Printhead. This may take a few minutes. Make sure ink is flowing through hoses. For instructions on installing Accessories and Printer set- up or operation, please refer to “AstroJet M1C Color Label Printer Operator Manual”, included in CD supplied with Printer.
