Chapter 3: System Setup

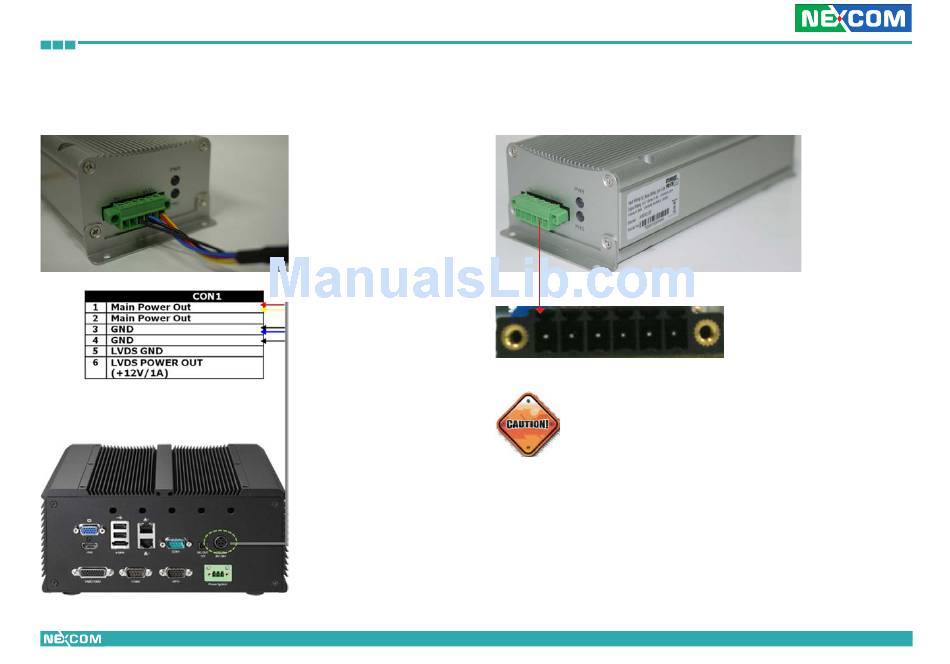

2. Connect the module's DC output to NViS 2280's DC input, refer to the
pin/wiring definition table below:
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Close-up view of the DC output:
6
Recommended wire gauge range: minimum of 16 AWG or
above, maximum length of 3 meters.
58
1
NViS 2280 User Manual
