Chapter 2: Jumpers and Connectors

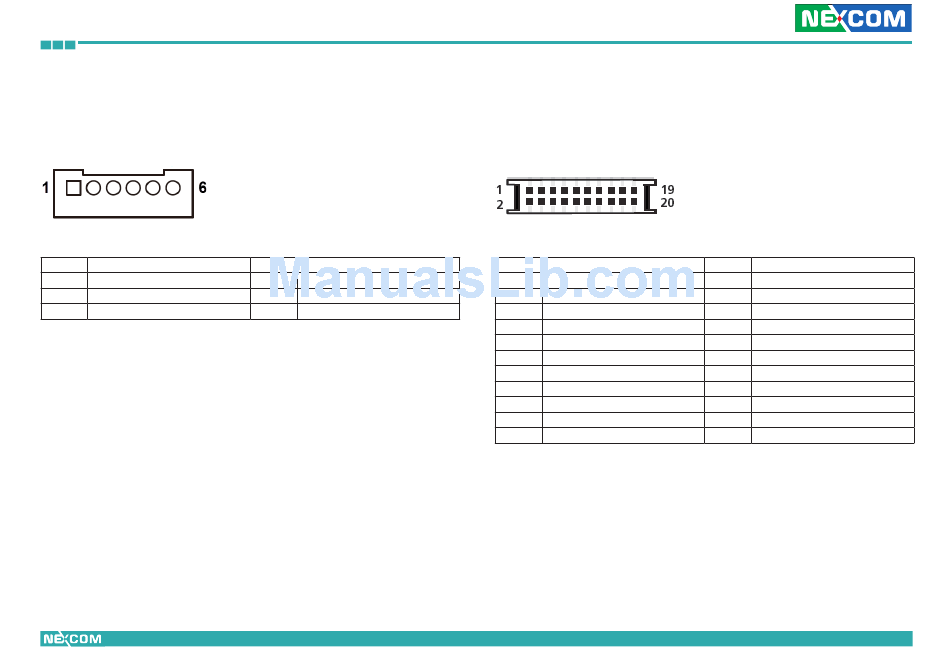

GPS Connector

Connector type: 1x6 6-pin header, 1.0mm pitch
Connector location: J8
Pin Definition
1 VCC3_A
3 TXD_C5
5 GND
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 GPS_LED#
4 RXD_C5
6 VCC3_S

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN7
Pin Definition
1 M_LVDSDDCCLK
3 VCC_LCD
5 LVDS_CH_TX3_P
7 LVDS_CH_TX3_N
9 GND
11 LVDS_CH _CLK_P
13 LVDS_CH _CLK_N
15 GND
17 LVDS_CH_TX2_P
19 LVDS_CH_TX2_N
MH1 GND
28
Pin Definition
2 M_LVDSDDCDATA
4 LVDS_CH_TX0_P
6 LVDS_CH_TX0_N
8 VCC_LCD
10 LVDS_CH_TX1_P
12 LVDS_CH_TX1_N
14 GND
16 V_INV(+12V)
18 V_INV (+12V)
20 GND
MH2 GND
