Summary of Contents for AKG CS 2

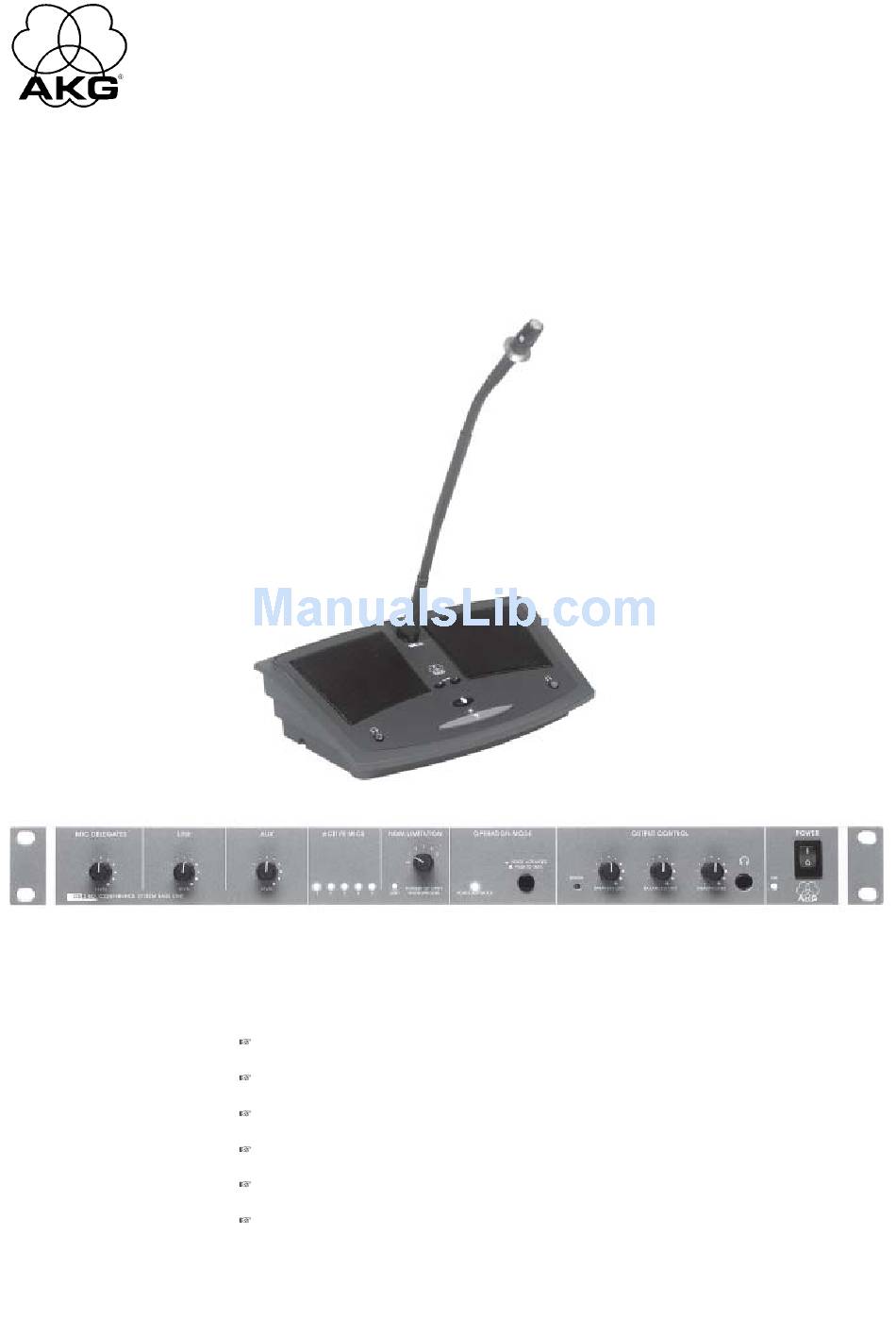

  • Page 1 CS 2 Bedienungsanleitung ... . S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! User Instructions ....p. 12 Please read the manual before using the equipment! Mode d’emploi.

  • Page 2: Table Of Contents

    7.2 CS 2 DU / CS 2 CU Microphone Stations .......

  • Page 3: Environment

    Microphone Stations, power supplies, goosenecks, and microphone capsules. The CS 2 BU Base Unit powers and controls up to 200 Microphone Stations. For systems with up to 40 Microphone Stations you will need a CS PS 20 power supply, while a CS PS 100 power supply can power systems with up to 200 Microphone Stations.

  • Page 4: Rear Panel

    +2 the Microphones Stations on LINE 3 and LINE 4. 2.5 Microphone Stations The CS 2 DU Delegate Station and CS 2 CU Chair Station provide basically the same functions and con- trols. In addition, the Chair Station features a priority button for muting all other microphones.

  • Page 5: Top Panel

    Trimmer pot P3: Sets the Microphone Station output level. The output level has been factory preset for optimum matching to the CS 2 BU Base Unit. Be sure not to change the setting of P3 because mis- matching may cause system malfunction.

  • Page 6: Setting Up

    3.1 Base Unit(s) The CS 2 BU Base Unit provides an internal equalizer (6-dB bass rolloff at 500 Hz) and an insert for an 3.1.1 Setting up the Base outboard equalizer or feedback killer. As delivered, the internal EQ affects the built-in loudspeakers on all Unit(s) Microphone Stations and the insert is ahead of the LINE OUTPUT.

  • Page 7: Installing "Cs 2 Du Fix" And Cs 2 Cu Fix" Microphone Stations

    The trimmer pot P3 sets the Microphone Station output level. The output level has been factory Important! preset for optimum matching to the CS 2 BU Base Unit. Be sure not to change the setting of P3 because mismatching may cause system malfunction.

  • Page 8: Connecting Microphones

    3 Setting Up (Acceptable) / Optimum Number of Microphone Stations Table 4: Maximum number and Power Supplies Total LINE 1 LINE 2 LINE 3 LINE 4 recommended distribution of 1 x CS PS 20 (40) / 10 (0) / 10 (0) / 10 (0) / 10 Microphone Stations vs.

  • Page 9: Operating Notes

    If the red ERROR LED illuminates, check the internal fuses and replace any blown fuses (refer to section 4.8). Should the ERROR LED illuminate again upon switching on, contact your nearest AKG Service Center. 1. To switch power to the (all) Base Unit(s) off, set the front panel POWER switch on the (master) Base 4.2 Powering Down...

  • Page 10: Replacing Internal Fuses

    4 Operating Notes 3. To calm down a heated discussion, the chairperson can press and hold down the priority button to mute all other microphones (except for those switched out of the priority bus). The microphones can not be activated before the chairperson releases the priority button. In a system with several Base Units, the priority key will mute only those microphones that are connected to the same Base Unit as the Microphone Station on which the priority button was pressed.

  • Page 11: Specifications

    CS MC AC-UK 6000H3604 K 11 single earphone 2724Z0011 7.2 CS 2 DU / CS 2 CU Microphone Stations Compatible microphones GN 30 CS or GN 50 CS with CK 31, CK 32, CK 33, CK 47, or CK 80 only...
