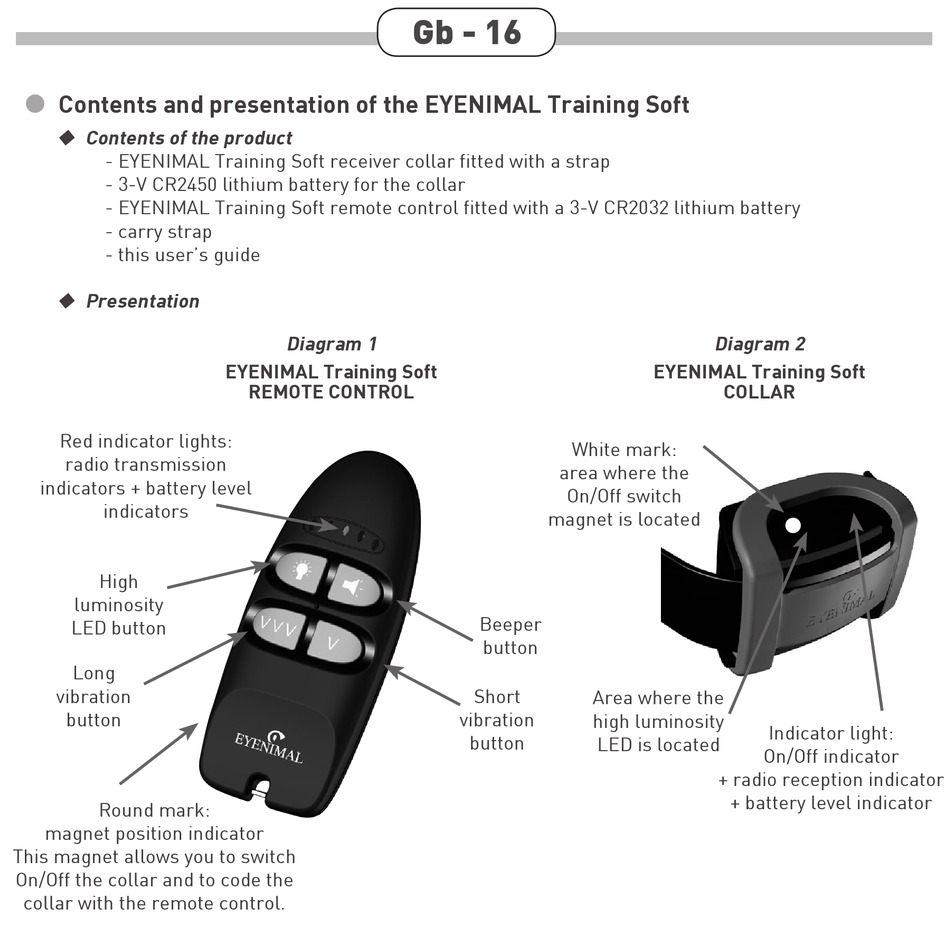

Contents and presentation of the EYENIMAL Training Soft

 Contents of the product
- EYENIMAL Training Soft receiver collar fitted with a strap
- 3-V CR2450 lithium battery for the collar
- EYENIMAL Training Soft remote control fitted with a 3-V CR2032 lithium battery
- carry strap
- this user's guide
 Presentation
Red indicator lights:
radio transmission
indicators + battery level
indicators
High
luminosity
LED button
Long
vibration
button
Round mark:
magnet position indicator
This magnet allows you to switch
On/Off the collar and to code the
collar with the remote control.
Diagram 1
EYENIMAL Training Soft
REMOTE CONTROL
Gb - 16
White mark:
area where the
On/Off switch
magnet is located
Beeper
button
Short
vibration
button
Diagram 2
EYENIMAL Training Soft
COLLAR
Area where the
high luminosity
Indicator light:
LED is located
On/Off indicator
+ radio reception indicator
+ battery level indicator
