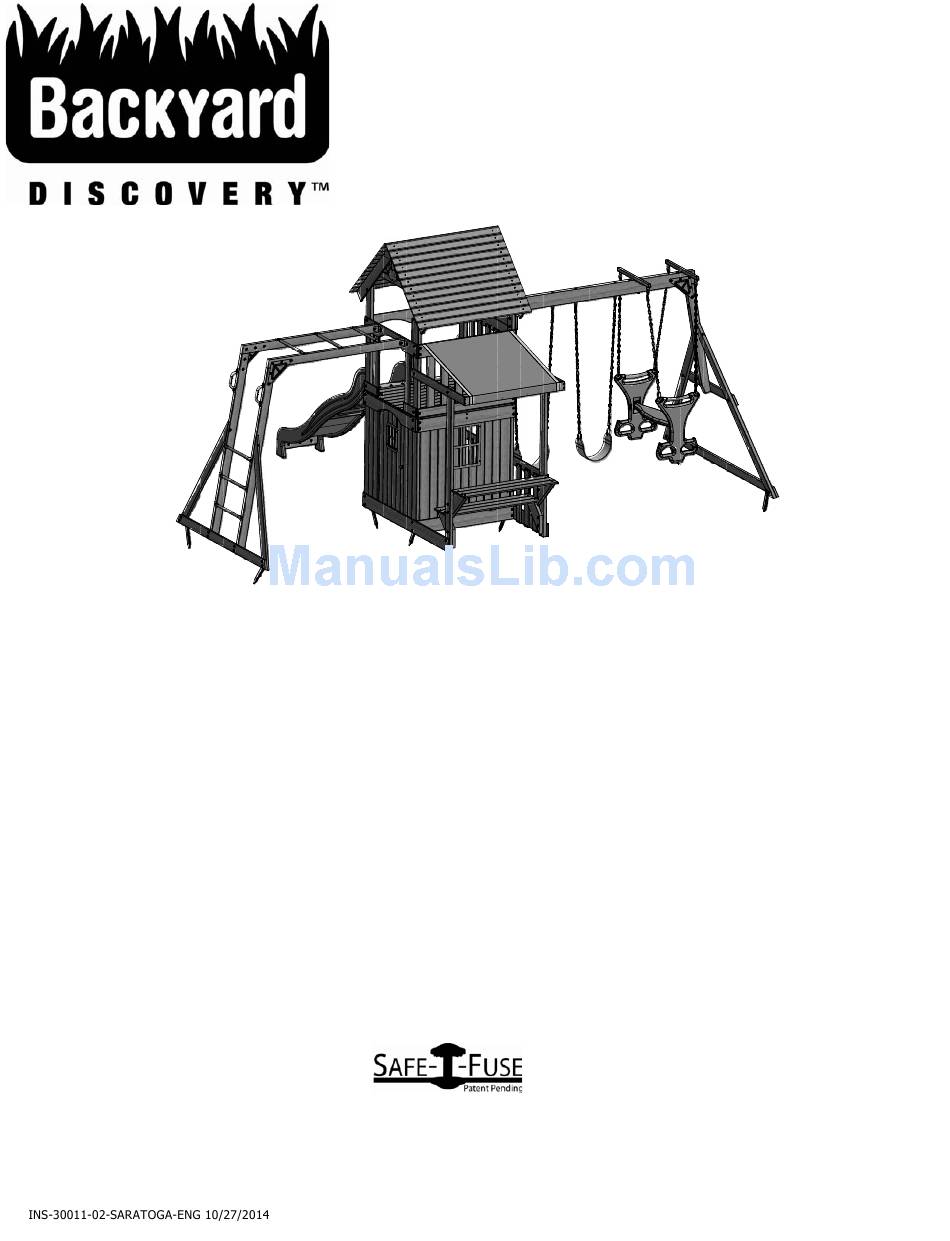

Backyard SARATOGA Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Manufacturer: Backyard Discovery
Register your new swing set on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
information to order replacement parts)
Features the
Save this assembly manual for future reference in the event that
SARATOGA
Wooden Swing Set
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
you need to order replacement parts.
Model: #30011
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the SARATOGA and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard SARATOGA

Summary of Contents for Backyard SARATOGA

  • Page 1 Model: #30011 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Manufacturer: Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new swing set on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com 1-800-856-4445 PLEASE READ THIS BEFORE STARTING ASSEMBLY...

  • Page 3: For Your Records

    Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.

  • Page 4: Positioning Your Playcenter

    Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation. 2.
  • Page 5 Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...

  • Page 6: Maintenance Instructions

    Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.

  • Page 7: Disposal Instructions

    Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
  • Page 8 Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. Rev5/09/12...
  • Page 9 The stakes provided should be used to secure it firmly to the ground. 2. What size area is recommended for the playset? Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the playset for maximum safety. 3. What age range is appropriate for the playsets? Backyard Discovery playsets are recommended for children ages 3 –...
  • Page 10 11. The end beam is not straight up and down. Why not? This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure possible. The slight angle adds strength and reduces rocking and twisting.

  • Page 11: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our swing sets. These tools are not included in the swing set purchase.) (Square) (Open End Wrenches 1/2") (Level 24") (3/8" Drive Ratchet, 1/2" STD (Tape Measure) (Claw Hammer) Sockets 1/2"...
  • Page 12 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. Safe Play Zone 223" [5.8 m] 50"...
  • Page 13 (NOT TO SCALE) K91 - ROOF SLAT - W100917 3/8"x3 3/8"x50" (11x86x1270) H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) SB74 - SWING BEAM - W102304 N6 - ANGLED SUNBURST - W100916 2"x5 1/4"x89 1/2"...
  • Page 14 (NOT TO SCALE) W71 - SWING BEAM SUPPORT - W102305 2"x3 3/8"x46 1/8" (50x86x1170) E78 - MONKEY BAR UPRIGHT - W102370 1 3/8"x3 3/8"x74 3/4" (36x86x1900) E77 - ANGLE BRACE - W100991 1 3/8"x3 3/8"x74 3/8" (36x86x1890) H82 - MONKEY BAR GROUND BOARD - W100994 1"x3 3/8"x70 3/8"...
  • Page 15 (NOT TO SCALE) G3 - CABIN ARCH - W101096 1"x5 1/4"x41 1/8" (24x134x1044) M2 - WALL RAIL - W101097 5/8"x3 3/8"x67 5/8" (16x86x1718) M7 - WALL RAIL - W101099 5/8"x3 3/8"x43" (16x86x1092) N2 - TIE SLAT - W101103 L2 - OUTER WALL SLAT - W101100 5/8"x2 3/8"x14 5/8"...
  • Page 16 (NOT TO SCALE) N1 - CENTER RAIL - W101113 5/8"x2 3/8"x25 5/8" (16x60x652) M14 - WALL SLAT - W101115 5/8"x3 3/8"x25 5/8" (16x86x652) M11 - WALL RAIL - W101116 5/8"x3 3/8"x41 1/8" (16x86x1044) M10 - PICNIC TABLE BOARD - W101118 5/8"x3 3/8"x41 5/8"...
  • Page 17 CX - SCREW PPH 4x5/8 (11) CM - BOLT WH 5/16x1/2 - H100115 (11) -H100127 AY - BOLT PTH 1/4x1 - H100061 CY - SCREW PWH 8x5/8 F - BOLT WH 5/16x1 - H100008 -H100128 AJ - BOLT HEX 5/16x1 1/4 - H100042 (46) H - BOLT WH 5/16x1 1/2 - H100010 (81)
  • Page 18 (258) BR - SCREW PFH 8x1 1/8 - H100088 CE - WASHER FLAT 9x18 - H100106 (52) BQ - SCREW PFH 8x1 1/4 - H100087 (86) BP - SCREW PFH 8x1 1/2 - H100086 CD - WASHER FLAT 8x27 (24) -H100105 BS - SCREW PFH 8x1 3/4 - H100089 (35)
  • Page 19 (NOT TO SCALE) EK - SLIDE RAIL 8' GREEN RIGHT - A100054 QZ - TRIANGLE PLATE 100° 5 HOLE -A100294 EL - SLIDE RAIL 8' GREEN LEFT - A100055 DE - TRIANGLE PLATE 90 5 HOLE BYD GREEN -A100011 EM - SLIDE BED 8' YELLOW - A100056 EA - HAND GRIP YELLOW PLASTIC -A100043 FB - SWING SEAT YELLOW - A100070...
  • Page 20 (NOT TO SCALE) GK - WINDOW 216x267 GREEN -A100146 JZ - PICNIC TARP - A100143 EB - WINDOW FRAME GREEN EY - TUBING CAP GLIDER SUPPORT 343x444.5 -A100067 -A100044 DL - GLIDER SEAT YELLOW - A100023 EX - GLIDER BUSHING BYD GREEN - A100066 DK - GLIDER ARM BYD GREEN - A100022 EW - GLIDER SUPPORT BYD GREEN - A100065 (2) FR - LEAF HINGE - A100093...
  • Page 21 8 FOOT SLIDE ASSEMBLY PHASE 1 Phase Notes DRILL 3 HOLES AT ONE END OF THE PLASTIC SLIDE BED USING A 5/16" DRILL BIT AND USING THE DIMENSIONS SHOWN BELOW. THIS END WILL BE THE TOP OF THE SLIDE. TAKE NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND. PLACE SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/4"...
  • Page 22 8 FOOT SLIDE ASSEMBLY PHASE 2 Phase Notes PLACE 1 SLIDE RAIL ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL. PUT SLIDE SUPPORT BOTTOM INTO THE SUPPORT POCKET AT THE BOTTOM OF THE RAIL AND HAVE A HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY.
  • Page 23 4 Ft Ladder Phase 1 & 2 Phase Notes DESCRIPTION LABEL • Assemble with hardware as shown. LEFT UPRIGHT • Center rungs in rail grooves. LADDER RUNG SCREW PFH 8x2 SCREW PFH 8x2 DESCRIPTION LABEL RIGHT UPRIGHT SCREW PFH 8x2 SCREW PFH 8x2...

  • Page 24: Rear Support

    4 Ft Ladder Phase 3 Phase Notes • Assemble with hardware as shown. SCREW PFH 8x2 DESCRIPTION LABEL REAR SUPPORT SCREW PFH 8x2...
  • Page 25 SB74 - SWING BEAM - W102304 2"x5 1/4"x89 1/2" (50x134x2274) GD - L BRACKET 66x66x127 - A100140 QZ - TRIANGLE PLATE 100° 5 HOLE - A100294 SWING BEAM ASSEMBLY STEP 1 BOLT WH 5/16x1 3/4 ATTACH (2) QZ TRIANGLE PLATES TO SB74 SWING BEAM USING BOLT HEX 1-3/4"...
  • Page 26 H79 - END SUPPORT - W100992 W71 - SWING BEAM SUPPORT - W102305 1"x3 1/2"x42" (24x86x1072) 2"x3 3/8"x46 1/8" (50x86x1170) E77 - ANGLE BRACE - W100991 H80 - GROUND BOARD - W100990 1 3/8"x3 3/8"x74 3/8" (36x86x1890) 1"x3 3/8"x87 3/8" (24x86x2218) SWING BEAM ASSEMBLY BOLT WH STEP 2...
  • Page 27 SWING BEAM ASSEMBLY STEP 3 ATTACH (2) QZ TRIANGLE PLATES TO W71 SWING BEAM SUPPORT USING (2) 1-3/4" BOLTS, LOCK WASHERS AND 7/8" BARREL NUTS (FIG.1). EW - GLIDER SUPPORT BYD GREEN - A100065 INSERT (4) SWING HANGER QUICK LINKS INTO (4) EX BUSHINGS AND THEN ATTACH SWING HANGER QUICK LINKS TO EW GLIDER SUPPORTS USING (4) FLAT WASHERS AND EX - GLIDER BUSHING BYD GREEN - A100066...
  • Page 28 YELLOW & GREEN GLIDER 38.5" Notes Assemble with accessories as shown. QTY. DESCRIPTION LABEL 5/16 LOCK NUT 8x27 FLAT WASHER BOLT WH 5/16x5-3/4 QUICKLINK GREEN ARM GLIDER YELLOW SEAT 38.5" GREEN CHAIN CHAIN GREEN 38.5" QUICK LINK BOLT WH 5/16x5-3/4 WASHER FLAT 8x27 NUT LOCK 5/16 GLIDER SEAT YELLOW...
  • Page 29 E71 - MONKEY BAR RAIL - W102369 EJ - L BRACKET 54x67 - A100053 1 3/8"x3 3/8"x60 5/8" (36x86x1539) QZ - TRIANGLE PLATE 100 5 HOLE - A100294 MONKEY BAR ASSEMBLY STEP 1 BOLT WH 5/16x1-1/2 BOLT WH 5/16x2 YOU WILL BUILD A LEFT AND RIGHT TOP RAIL IN THIS STEP. AFTER BUILDING LEFT ASSEMBLY AS SHOWN, REPEAT STEPS FOR A RIGHT ASSEMBLY.
  • Page 30 E78 - MONKEY BAR UPRIGHT - W102370 1 3/8"x3 3/8"x74 3/4" (36x86x1900) MONKEY BAR ASSEMBLY STEP 2 ASSEMBLE WITH HARDWARE AS SHOWN. REPEAT PROCESS FOR OTHER SIDE OF MONKEY BAR ASSEMBLY. BOLT WH 5/16x1-1/2 T-NUT 5/16...
  • Page 31 EC - METAL RUNG 559 - A100045 MONKEY BAR ASSEMBLY STEP 3 ASSEMBLE AS SHOWN INTO PRE-DRILLED HOLES. SCREW TAPPING 14x1-1/2...
  • Page 32 H81 - MONKEY BAR BRACE - W100993 1"x3 3/8"x53 1/4" (24x86x1352) H82 - MONKEY BAR GROUND BOARD - W100994 1"x3 3/8"x70 3/8" (24x86x1786) MONKEY BAR ASSEMBLY BOLT WH 5/16x1-1/2 LAG SCREW BOLT HEX WH 5/16x2 5/16x2-3/4 WASHER LOCK EXT WASHER 8x19 LOCK INT 8x15...
  • Page 33 EA - HAND GRIP YELLOW PLASTIC - A100043 MONKEY BAR ASSEMBLY LAG SCREW WH 1/4x1-1/2 WASHER LOCK EXT 6x15 STEP 5 ASSEMBLE WITH HARDWARE AS SHOWN.
  • Page 34 • (26) D - NUT BARREL WH 5/16x7/8 - H100005 • (1) E1 - FORT UPRIGHT - W101084 • (26) AD - WASHER LOCK EXT 12x19 - H100031 • (1 E2 - FORT UPRIGHT - W101104 • (30) AC - WASHER LOCK EXT 8x19 - H100030 •...
  • Page 35 • (24) Z - LAG SCREW WH 5/16x2 - H100027 • (3) K4 - WALL RAIL - W101093 • (24) AC - WASHER LOCK EXT 8x19 - H100030 • (1) K3 - DOUBLE ARCH RAIL - W101092 • (1) G1 - WALL RAIL - W102379 •...
  • Page 36 • (10) M4 - FLOOR BOARD - W102380 • (66) BP - SCREW PFH 8x1-1/2 - H100086 • (2) L1 - OUTER FLOOR BOARD - W101110 • (8) BS - SCREW PFH 8x1-3/4 - H100089 • (4) J1 - FLOOR SUPPORT - W101037 •...
  • Page 37 • (6) AC - WASHER LOCK EXT 8X19 - H100030 • (2) M17 - WALL RAIL - W101114 • (4) D - NUT BARREL WH 5/16X7/8 - H100005 • (1) M7 - WALL RAIL - W101099 • (4) AD - WASHER LOCK EXT 12X19 - H100031 •...
  • Page 38 • (2) AC - WASHER LOCK EXT 8x19 - H100030 • (1) M3 - ANGLE BRACE - W101121 • (2) AD - WASHER LOCK EXT 12x19 - H100031 • (1) H - BOLT WH 5/16x1-1/2 - H100010 • (1) B - NUT BARREL WH 5/16x5/8 - H100004 •...
  • Page 39 • (3) EJ - L BRACKET GREEN 54x67 - A100053 • (6) BL - SCREW TAPPING 14x3/4 - H100083 • (1) N1 - CENTER RAIL - W101113 • (54) BR - SCREW PFH 8x1-1/8 - H100088 • (13) M14 - WALL SLAT - W101115 •...
  • Page 40 • (2) CH - SCREW TAPPING 14x1-1/2 - H100109 • (2) EA - HAND GRIP YELLOW PLASTIC - A100043 • (4) CE - WASHER FLAT 9x18 - H100106 • (4) CG - WASHER LOCK INT 8x15 - H100108 • (2) BE - T-NUT 1/4" - H100072 •...
  • Page 41 • (7) AC - WASHER LOCK EXT 8x19 - H100030 • (2) M12 - TARP BRACE - W101089 • (7) D - NUT BARREL WH 5/16x7/8 - H100005 • (1) E5 - UPRIGHT - W101085 • (7) AD - WASHER LOCK EXT 12x19 - H100031 •...
  • Page 42 • (32) BR - SCREW PFH 8x1-1/8 - H100088 • (8) M15 - WALL SLAT - W101126 • Assemble with hardware as shown. Step 1: Attach one end of each Wall Slats 'M15' to the inside of 'K2' & 'M2' with Screws 'BR' , as shown.
  • Page 43 • (4) D1 - PICNIC TABLE SUPPORT BRACE - W101117 • (8) AC - WASHER LOCK EXT 8x19 - H100030 • (8) D - NUT BARREL WH 5/16x7/8 - H100005 • (8) AD - WASHER LOCK EXT12x19 - H100031 • (6) M - BOLT WH 5/16x2-1/2 - H100014 •...
  • Page 44 • (6) M10 - PICNIC TABLE BOARD - W101118 • (12) BP - SCREW PFH 8x1-1/2 - H100086 • (2) N3 - TIE SLAT - W101119 • (6) BR - SCREW PFH 8x1-1/8 - H100088 • Assemble with hardware as shown. Step 1: Attach 'N3' Tie Slate to 'M10' Picnic Table Board using Screws 'BR' , as shown.
  • Page 45 • (86) BR - SCREW PFH 8x1-1/8 - H100088 • (2) N2 - TIE SLAT - W101103 • (4) L2 - OUTER WALL SLAT - W101100 • (12) M13 - WALL SLAT - A101101 • (6) M16 - CENTER WALL SLAT - A101102 •...
  • Page 46 • (8) BC - SCREW PWH 8x3/4 - H100070 • (2) EB - WINDOW FRAME GREEN 343x444.5 - A100044 • (2) AC - WASHER LOCK EXT 8x19 - H100030 • (1) LADDER ASSEMBLY • (2) Z - LAG SCREW WH 5/16x2 - H100027 •...
  • Page 47 • (2) M23 - DOOR BOARD - W100922 • (4) BC - SCREW PWH 8x3/4 - H100070 • (1) M21 - DOOR BOARD - W100919 • (60) BR - SCREW PFH 8x1-1/8 - H100088 • (1) M20 - DOOR BOARD - W100920 •...
  • Page 48 • (8) BC - SCREW PWH 8x3/4 - H100070 • (1) JZ - PICNIC TARP - A100143 • Assemble with hardware as shown. Step 1: Attach 'JZ' Picnic Tarp to 'K4' Wall Rail using Screws 'BC', as shown. Step 2: Attach 'JZ' Picnic Tarp to 'M5' Tarp Support using Screws 'BC', as shown.
  • Page 49 • (4) L3 - RAFTER - W100913 • (10) BL - SCREW TAPPING 14x3/4 - H100083 • (2) N4 - HORIZONTAL SUNBURST - W100914 • (8) CY - SCREW PWH 8x5/8 - H100128 • (2) N5 - VERTICAL SUNBURST - W100915 •...
  • Page 50 • (24) K91 - ROOF SLAT - W100917 • (4) AC - WASHER LOCK EXT 8x19 - H100030 • (4) D - NUT BARREL WH 5/16x7/8 - H100005 • (4) AD - WASHER LOCK EXT 12x19 - H100031 • (4) H - BOLT WH 5/16x1-1/2 - H100010 •...
  • Page 51 • (3) B - NUT BARREL WH 5/16x5/8 - H100004 • (1) WAVE SLIDE ASSEMBLY • (3) AD - WASHER LOCK EXT 12x19 - H100031 • (3) CM - BOLT WH 5/16x1/2 - H100115 • Assemble with hardware as shown. To prevent board splitting, you must pre-drill each board with a 1/8"...
  • Page 52 • (4) BG - T-NUT 5/16 - H100074 • (1) SWING BEAM ASSEMBLY • (4) BX - WASHER SPLIT 5/16 - H100095 • (4) CD - WASHER FLAT 8x27 - H100105 • (4) AJ - BOLT HEX 5/16x1-1/4 - H100042 •...
  • Page 53 • (4) AD - WASHER LOCK EXT 12x19 - H100031 • (1) MONKEY BAR ASSEMBLY • (4) B - NUT BARREL WH 5/16x5/8 - H100004 • (4) CM - BOLT WH 5/16x1/2 - H100115 • Assemble with hardware as shown. Step 1: Attach the Monkey Bar Assembly to 'K5' monkey bar arch rail using Safe-T-Fuse hardware through...
  • Page 54 • (8) CK - SCREW PFH 8x2 - H100111 • (8) KD - PLASTIC GROUND STAKE - A100179 • (4) EZ - CHAIN GREEN 51.25" - A100068 • (4) FA - QUICK LINK - A100069 • (2) FB - SWING SEAT YELLOW - A100070 STAKE STAKE •...

  • Page 55: Limited Warranty

    Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
