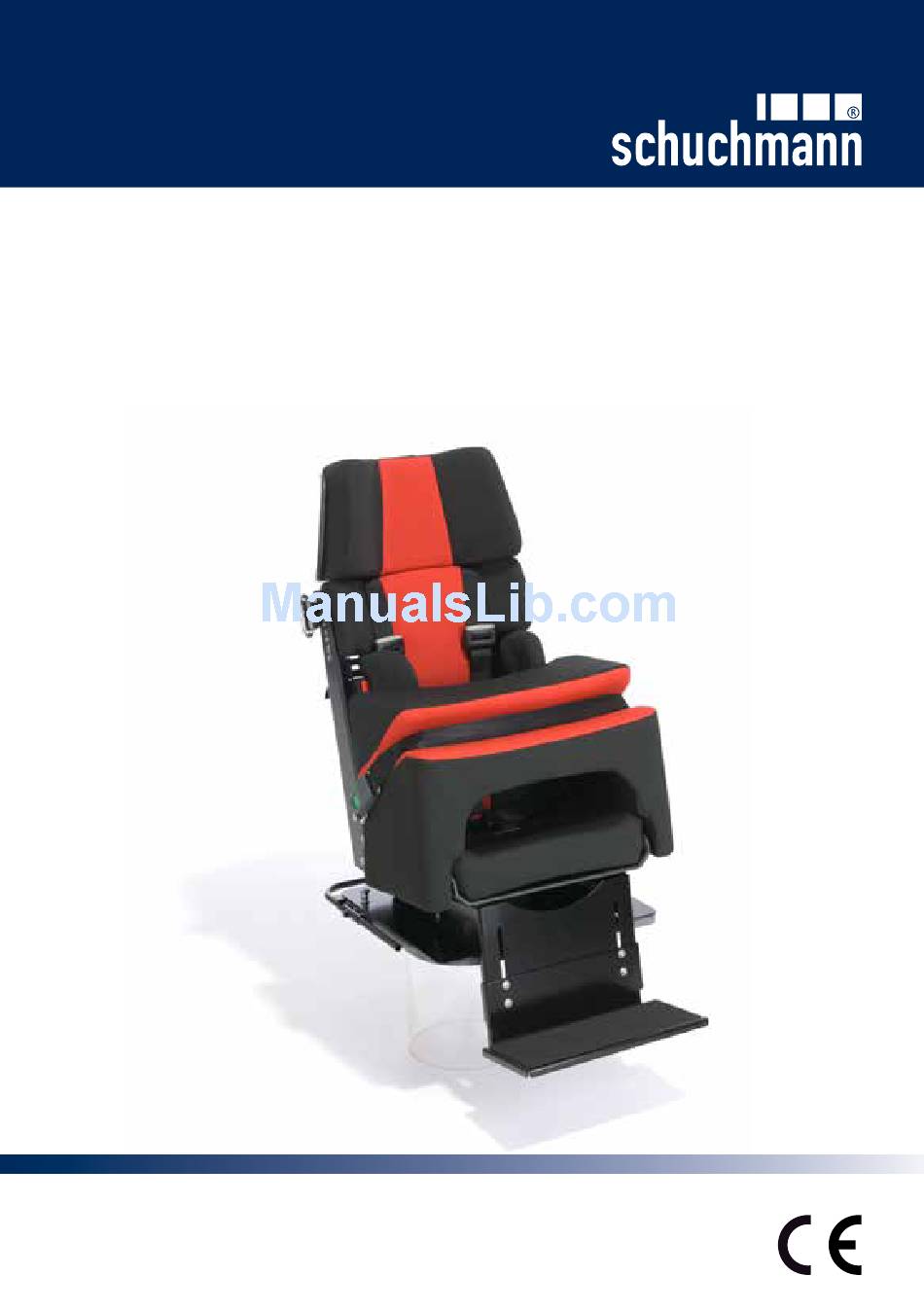

- Page 1 SASCHA The swivelling car seat and restraint system Instructions for use...
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...
-
Page 3: Table Of Contents
Contents Page 1. Preparation of the car seat for use 1.1 Transport....................2 1.2 Safety measures prior to use..............2 1.3 Safe disposal of the packaging material............ 2 1.4 Location of the instructions................ 2 2. Product description 2.1 Material information................... 3 2.2 Areas of application, use according to the intended purpose.... -
Page 4: Preparation Of The Car Seat For Use
1. Preparation of the car seat for use 1.1 Transport On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please cause an inventory (determination of the faults) to be made in the presence of the forwarder. -
Page 5: Product Description
2. Product description 2.1 Material information The seat unit and the individual elements are made of aluminium / steel which are non-corroding and powder-coated. All body supports (pelotte pads) are padded and covered. The covers consist to 100% of polyester. 2.2 Application areas, use according to the intended purpose The swivelling car seat and restraint system is available in three different sizes. -
Page 6: Use Not In Accordance With The Intended Purpose / Warning Guidelines
2.3 Use not in accordance with the intended purpose / warning guidelines CAUTION! • The swivelling car seat and restraint system may only be used in connection with a vehicle's own 3-point seat belt! • After an accident, the seat must be replaced. •... -
Page 7: Equipment For Basic Model
2.4 Equipment for basic model • Seat and back plate made of aluminium with back angle adjustment • Removable pads and fixed thorax pelotte pads • Incl. height-adjustable and padded headrest and 5-point shoulder harness • Three-point belt guide, frame colour: Black silk-matt, RAL 9005 •... -
Page 8: Installation And Operation In The Vehicle
3. Installation and operation in the vehicle 3.1 Back inclination The required inclination of the backrest can be adjusted through loosening and removal of the screws (A) (observe nuts on inside) and loosening of the screws (B) (on the left and right-hand sides respectively). The back inclination can be changed in 3°... -
Page 9: Belts
3.3 Belts Once the child has been placed in the swivelling car seat and restraint system and a favourable seating position has been established, the disability-specific belt sys- tem (shoulder belt or other fixations) are applied and fastened. Then the vehicle's own 3-point belt is fastened. -
Page 10: Installation And Operation In The Vehicle With Swivel Device
4. Installation and operation in the vehicle with swivel device 4.1 Placement on the vehicle seat Here, too - as described under 3.1 – adjust the required back inclination. Then place the seat onto the vehicle rear seat, whereby at the same time the bar (E) between the seat and back pad of the vehicle is pushed through. -
Page 11: Foot Bench
5.1 Removal and adjustment of the foot bench After pressing the two black pushbuttons (H) on the left and right-hand sides, the foot bench can be pulled away to the front. When inserting the foot bench, ensure that the pushbuttons re-engage audibly. After loosening the four screws, (I) the foot bench can be adjusted continuously in height. -
Page 12: Repairs And Cleaning
..Schuchmann excludes the purchase or sale of used child seats, because they may have invisible damages which can reduce the security of the child seat significantly. -
Page 13: Technical Data
7. Technical data Dimensions - basic model SASCHA Size 1 SASCHA Size 2 SASCHA Size 3 Seat depth 25 cm 30 cm 30 cm 35 cm 35 cm 40 cm Seat width 28 cm 32 cm 36 cm Back height... -
Page 14: Guarantee
8. Guarantee The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or de- liver a new product at our discretion. -
Page 15: Identification
Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 "SASCHA" – The swivelling car seat and restraint system Art. No.: 14 01 001 (Size 1a) 14 02 001 (Size 2a) -
Page 16: Serial Number / Date Of Manufacture
Date of manufacture www.schuchmann-reha.de · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 9.3 Product version The SASCHA seat system is available in three different sizes, and can be supple- mented through diverse accessories. 9.4 Issue of the document Instructions for use SASCHA - Change status A;...
