Item Standard
Journal–to–
0.020–0.040 mm
bearing clear-
(0.0008–0.0016 in.)
ance

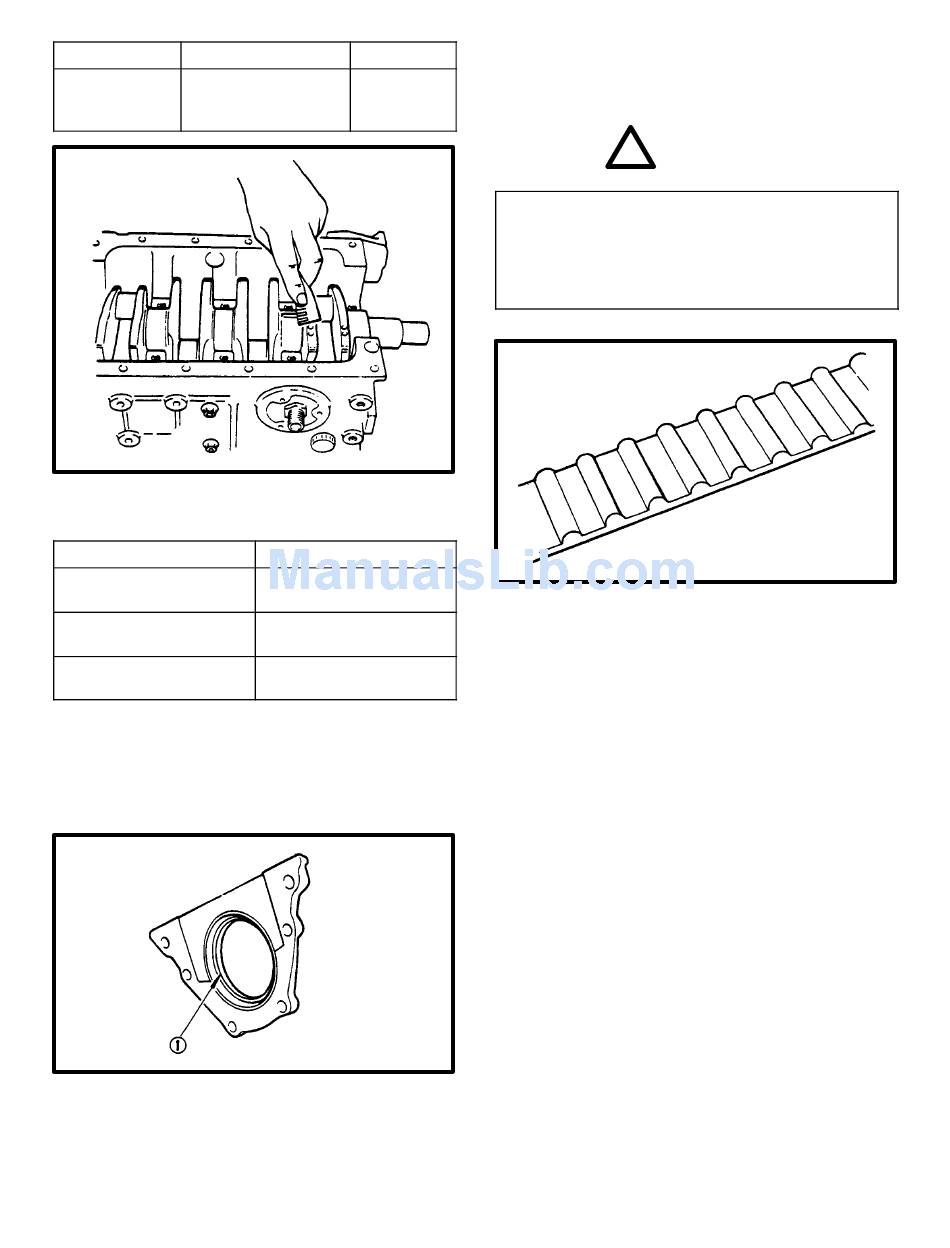

4) If the limit is exceeded, re–grind the journals to the
undersize and use the undersize bearing.
Bearing size
Standard
0.25 mm undersize
(0.0098 in.)
0.50 mm undersize
(0.0196 in.)

Oil Seals

Carefully inspect the oil seals removed in disassembly,
examining the lip portion (1) of each oil seal for wear and
damage. Use of new oil seals in reassembly is recom-
mended.
Limit
0.065 mm
(0.0026 in.)
Journal diameter
43.982–44.00 mm
(1.7316–1.7322 in.)
43.732–43.750 mm
(1.7218–1.7224 in.)
43.482–43.500 mm
(1.7119–1.7125 in.)

Timing Belt and Timing Pulleys

Inspect the belt and pulleys for wear, cracks and signs of
failure. Replace them as necessary.
!
CAUTION
Do not bend the belt. Keep away oil and
water from the belt. The belt must be kept
clean.
The pulleys and belt tensioner, too, must
be kept clean and free of oil and water.
75
