TIMING BELT/TIMING PULLEY/TIMING BELT TENSIONER

The timing drive system uses a quiet belt system.
The rotation of the crankshaft is transmitted via the crankshaft timing pulley to the camshaft timing pulley by means
of the timing belt.
Since timing marks are engraved or cast in the timing pulley, timing belt inside cover, and oil pump case, when attached,
adjustment is performed by matching each timing mark.
The timing belt is provided with a timing belt tensioner on the slack side.
The timing belt tensioner uses a sealed lubricant bearing system and is fixed by means of the bolt after the initial tension
of the timing belt has been fixed using a special tool.

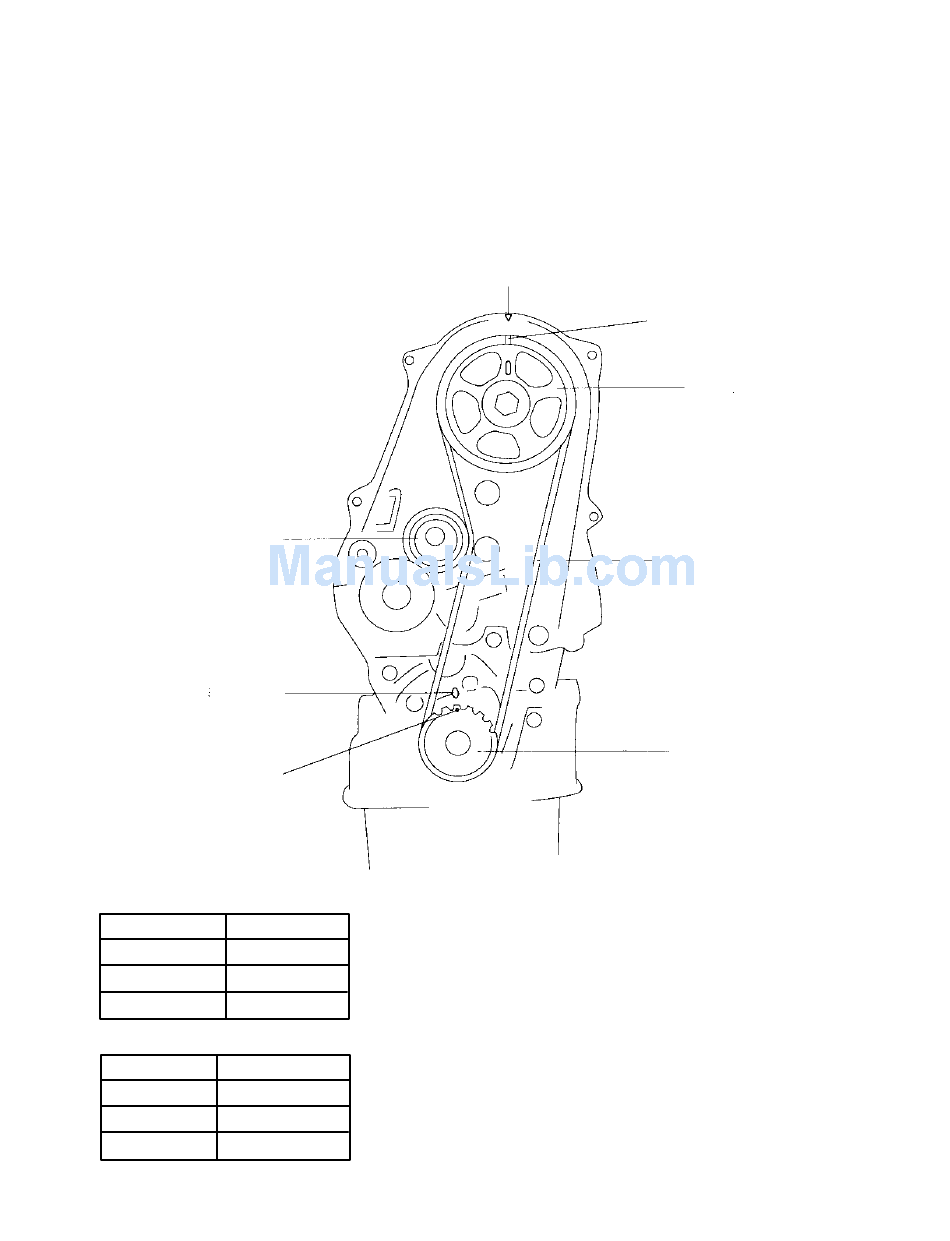

Tensioner
Timing mark
Punch mark
TIMING BELT SPECIFICATIONS
4–valve models
Gear tooth form
No. of teeth
Pitch
TIMING PULLEY SPECIFICATIONS
Camshaft timing
No. of teeth
50
YU
103
8.0 mm
44
Timing mark "Ï"
Notched part
Cam timing pulley
Timing belt
Crank timing pulley
