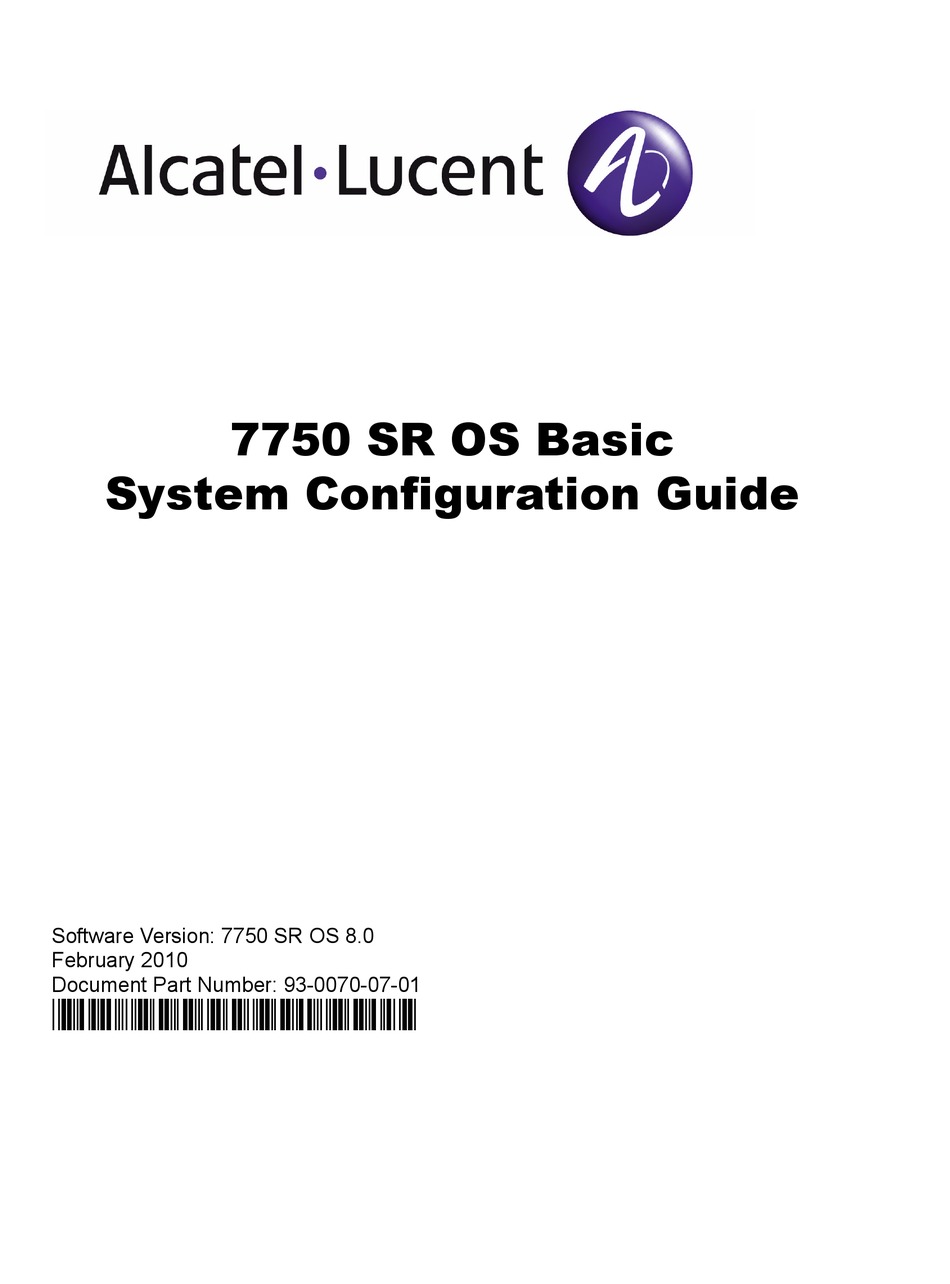

7750 SR OS Basic
System Configuration Guide
Software Version: 7750 SR OS 8.0
February 2010
Document Part Number: 93-0070-07-01
*93-0070-06-02*

Advertisement

Table of Contents
loading

Related Manuals for Alcatel-Lucent 7750 SR OS Basic

Summary of Contents for Alcatel-Lucent 7750 SR OS Basic

  • Page 1 7750 SR OS Basic System Configuration Guide Software Version: 7750 SR OS 8.0 February 2010 Document Part Number: 93-0070-07-01 *93-0070-06-02*...
  • Page 2 This document is protected by copyright. Except as specifically permitted herein, no portion of the provided information can be reproduced in any form, or by any means, without prior written permission from Alcatel-Lucent. Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Preface Alcatel-Lucent 7750 SR-Series System Configuration Process ....... . .15 CLI Usage CLI Structure.
  • Page 4 Nonstop Forwarding ............217 Page 4 7750 SR OS Basic System Configuration...
  • Page 5 Time Range ............. . .267 7750 SR OS Basic System Configuration Guide...
  • Page 6 ................483 Page 6 7750 SR OS Basic System Configuration...
  • Page 7 Show System Time Output Fields ..........430 Page 7 7750 SR OS Basic System Configuration Guide...
  • Page 8 Show Synchronization Output Fields ..........465 Page 8 7750 SR OS Basic System Configuration Guide...
  • Page 9 System Configuration and Implementation Flow ........242 7750 SR OS Basic System Configuration Guide...
  • Page 10 List of Figures Page 10 7750 SR OS Basic System Configuration Guide...

  • Page 11: Preface

    • Basic system management functions such as the system name, router location and coordinates, and CLLI code, time zones, Network Time Protocol (NTP), Simple Network Time Protocol (SNTP), and synchronization properties 7750 SR OS Basic System Configuration Guide Page 11...

  • Page 12: List Of Technical Publications

    Preface List of Technical Publications The 7750 SR documentation set is composed of the following books: • 7750 SR OS Basic System Configuration Guide This guide describes basic system configurations and operations. • 7750 SR OS System Management Guide This guide describes system security and access configurations as well as event logging and accounting logs.

  • Page 13: Technical Support

    If you purchased a service agreement for your 7750 SR router and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, contact your welcome center: Web: http://www1.alcatel-lucent.com/comps/pages/carrier_support.jhtml...
  • Page 14 Preface Page 14 7750 SR OS Basic System Configuration Guide...

  • Page 15: Alcatel-Lucent 7750 Sr-Series System Configuration Process

    CLI Monitor Commands on page 27 Operational functions Directory and file manage- File System Management on page 131 ment Boot options Configure boot option files Boot Options on page 157 (BOF) 7750 SR OS Basic System Configuration Guide Page 15...
  • Page 16 Configure system functions, System Management on page 203 including host name, address, domain name, and time parameters. Reference List of IEEE, IETF, and other Standards and Protocol Support on page 477 proprietary entities. Page 16 7750 SR OS Basic System Configuration Guide...

  • Page 17: Cli Usage

    The CLI Command Prompt on page 30 • Displaying Configuration Contexts on page 31 • EXEC Files on page 32 • Entering CLI Commands on page 33 • VI Editor on page 38 7750 SR OS Basic System Configuration Guide Page 17...

  • Page 18: Cli Structure

    CLI Structure CLI Structure Alcatel-Lucent’s SR-Series Operating System (OS) CLI is a command-driven interface accessible through the console, Telnet and secure shell (SSH). The CLI can be used for configuration and management of 7750 SR-Series routers. The 7750 SR OS CLI command tree is a hierarchical inverted tree. At the highest level is the ROOT level.

  • Page 19: Figure 1: Root Commands

    FILE attrib copy delete MONITOR ccag format cpm-filter filter move management-acc port repair router shutdown HELP service help type help edit version help globals PASSWORD Figure 1: Root Commands 7750 SR OS Basic System Configuration Guide Page 19...

  • Page 20: Figure 2: Operational Root Commands

    TOOLS dump tacplus srrp snmp perform vrrp subscriber-mgmt subscriber-mgmt system sync-if-timing test-oam system time trace uptime users version vrrp Figure 2: Operational Root Commands Page 20 7750 SR OS Basic System Configuration Guide...

  • Page 21: Navigating In The Cli

    Entering Numerical Ranges on page 46 CLI Contexts Use the CLI to access, configure, and manage Alcatel-Lucent’s SR-Series routers. CLI commands are entered at the command line prompt. Access to specific CLI commands is controlled by the permissions set by your system administrator. Entering a CLI command makes navigation possible from one command context (or level) to another.
  • Page 22 Navigating in the CLI The CLI returns an error message when the syntax is incorrect. *A:ALA-12>config# rooter Error: Bad command. Page 22 7750 SR OS Basic System Configuration Guide...

  • Page 23: Basic Cli Commands

    Changes the user CLI login password. The password can only be password changed at the ROOT level. Verifies the reachability of a remote host. ping Displays the present or previous working context of the CLI session. 7750 SR OS Basic System Configuration Guide Page 23...
  • Page 24 - Telnet to a host traceroute - Determine the route to a destination address tree - Display command tree structure from the context of execution write - Write text to another user *A:ALA-12>config>service# Page 24 7750 SR OS Basic System Configuration Guide...

  • Page 25: Table 3: Command Syntax Symbols

    Braces within square brackets indicates that you must choose one of the optional [{ }] parameters. • sdp sdp-id [{gre|mpls}] Commands in indicate commands and keywords. Bold bold Commands in indicate command options. Italic italics 7750 SR OS Basic System Configuration Guide Page 25...

  • Page 26: Cli Environment Commands

    Saves the indicator in the prompt. saved-ind- prompt Configures the terminal screen length for the current CLI terminal session. Specifies whether time should be displayed in local time or time-display UTC. Page 26 7750 SR OS Basic System Configuration Guide...

  • Page 27: Cli Monitor Commands

    Enables scheduler statistics monitoring per customer multi- service-site or on a per SAP basis. Enables virtual router instance monitoring at a configurable router interval until that count is reached. Monitors commands for a particular service. service 7750 SR OS Basic System Configuration Guide Page 27...

  • Page 28: Getting Help In The Cli

    The tree and tree detail system commands are help commands useful when searching for a command in a lower-level context. The following example displays a partial list of the tree and tree detail command output entered at the config level. Page 28 7750 SR OS Basic System Configuration Guide...
  • Page 29 | | +---description | | +---shutdown +---cron | +---action | +---expire-time | +---lifetime | +---max-completed | +---results | +---script | +---shutdown | +---schedule | +--day-of-month | +--description | +--hour | +--interval | +--minute 7750 SR OS Basic System Configuration Guide Page 29...

  • Page 30: The Cli Command Prompt

    ALA-1) indicating that the changes have not been saved. When an admin save command is executed the “*” disappears. This behavior is controlled in the saved-ind-prompt command in the environment context. Page 30 7750 SR OS Basic System Configuration Guide...

  • Page 31: Displaying Configuration Contexts

    100 10 unreachables 100 10 ttl-expired 100 10 exit no mac no ntp-broadcast no cflowd no shutdown ---------------------------------------------- *A:ALA-1>config>router>if# 7750 SR OS Basic System Configuration Guide Page 31...

  • Page 32: Exec Files

    Page 32 7750 SR OS Basic System Configuration Guide...

  • Page 33: Entering Cli Commands

    - [no] static-route {<ip-prefix/mask>|<ip-prefix> <netmask>} [preference <preference>] [metric <metric>] [tag <tag>] [enable|disable] indirect <ip-address> [ldp [disallow-igp]] - [no] static-route {<ip-prefix/mask>|<ip-prefix> <netmask>} [preference <preference>] [metric <metric>] [tag <tag>] [enable|disable] black-hole *A:ALA-12>config>router# static-route preference 1 10.1.0.0/16 metric 7750 SR OS Basic System Configuration Guide Page 33...

  • Page 34: Editing Keystrokes

    Convert rest of word to lowercase <Esc><l> Delete remainder of word <Esc><d> Delete word up to cursor <Ctrl-w> Transpose current and previous character <Ctrl-t> Enter command and return to root prompt <Ctrl-z> Refresh input line <Ctrl-l> Page 34 7750 SR OS Basic System Configuration Guide...

  • Page 35: Absolute Paths

    CLI Syntax: config>service>ies> /clear card 1 behaves the same as the following series of commands. Example config>service>ies>exit all clear card 1 (returns you to your starting point) configure service ies 4 config>service>ies 7750 SR OS Basic System Configuration Guide Page 35...
  • Page 36 Entering CLI Commands If the command takes you to a different context, the following occurs: CLI Syntax: config>service>ies>/configure service ies 5 create becomes Example config>service>ies>exit all configure service vpls 5 create config>service>vpls> Page 36 7750 SR OS Basic System Configuration Guide...

  • Page 37: History

    TiMOS-B-0.0.I2010 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2008 Alcatel-Luce All rights reserved. All use subject to applicable license agreements. Built on Mon Oct 6 19:42:02 PDT 2008 by builder in /rel0.0/I2010/panos/main A:ALA-48# 7750 SR OS Basic System Configuration Guide Page 37...

  • Page 38: Vi Editor

    Insert mode — Entered text is inserted into the file. In the insert mode, every character typed is added to the text in the file. Hitting the (Escape) key turns off the insert mode. Page 38 7750 SR OS Basic System Configuration Guide...

  • Page 39: Using The Vi Commands

    " Delete character under the cursor. A count tells how many characters to delete. The characters will be deleted after the cursor. Delete the character before the cursor. 7750 SR OS Basic System Configuration Guide Page 39...

  • Page 40: Table 8: Cutting And Pasting/Deleting Text In Vi

    Move the cursor down one line in the same column. A count moves that many lines down. Move to the first character on the next line. Move the cursor down one line in the same column. A count moves that many lines down. Page 40 7750 SR OS Basic System Configuration Guide...
  • Page 41 Move forward to the beginning of a word, skipping over punctuation. Move the cursor back one word. If the cursor is in the middle of a word, move the cursor to the first character of that word. 7750 SR OS Basic System Configuration Guide Page 41...

  • Page 42: Table 11: Moving The Cursor Around The Screen

    Change an entire line. Change until . changes the current line. A count changes that many lines. Replace one character under the cursor. Specify a count to replace a number of characters. Page 42 7750 SR OS Basic System Configuration Guide...

  • Page 43: Table 13: Searching For Text Or Characters

    Repeat last search given by Search the current line for the character specified after the command, and move to the column before the character if it's found. 7750 SR OS Basic System Configuration Guide Page 43...

  • Page 44: Table 14: Manipulating Character/Line Formatting

    Restore the current line to the previous state before the cursor entered the line. Mark the current position with the character specified after the 'm' command. Undo the last change to the file. Typing 'u' again will re-do the change. Page 44 7750 SR OS Basic System Configuration Guide...

  • Page 45: Ex Commands

    Write out the current file. :w filename Write the buffer to the filename specified. :w >> filename Append the contents of the buffer to the filename. Write the buffer and quit. 7750 SR OS Basic System Configuration Guide Page 45...

  • Page 46: Entering Numerical Ranges

    "A[1..10]" no shutdown creates a single router interface with the name “A[1..10]”. However, a command such as: configure router interface A[1..10] no shutdown creates 10 interfaces with names A1, A2 .. A10. Page 46 7750 SR OS Basic System Configuration Guide...
  • Page 47 <Tab> or spacebar, may cease to work. If the command line entered is correct and unambiguous, the command works properly; otherwise, an error is returned. 7750 SR OS Basic System Configuration Guide Page 47...

  • Page 48: Pipe/Match

    Bindings on SDP 101 has been updated." A:Dut-C# show log log-id 98 | match max-count 1 "service 1001" "Status of service 1001 (customer 1) changed to administrative state: up, operational state: up" Page 48 7750 SR OS Basic System Configuration Guide...

  • Page 49: Table 19: Regular Expression Symbols

    Matches m or more repetitions of the term {m,} The preceding item is optional and matched at most once. The preceding item is matched one or more times. Used between start and end of a range. 7750 SR OS Basic System Configuration Guide Page 49...

  • Page 50: Table 20: Special Characters

    [:alnum:] [A-Za-z0-9] digits [:digit:] [0-9] digits [0-9] hexadecimal digits [:xdigit:] [0-9A-Fa-f] punctuation [:punct:] [.,!?:...] space and TAB [:blank:] [ \t] blank characters [:space:] [ \t\n\r\f\v] blank characters [ \t\n\r\f\v] Page 50 7750 SR OS Basic System Configuration Guide...

  • Page 51: Redirection

    In some cases only part of the output might be applicable. The pipe/match and redirection commands can be combined: ping 10.0.0.1 | match expression “time.\d+” > cf3:/ping/time.txt This records only the RTT portion (including the word “time”). 7750 SR OS Basic System Configuration Guide Page 51...
  • Page 52 VI Editor Page 52 7750 SR OS Basic System Configuration Guide...

  • Page 53: Basic Command Reference

    — telnet [ip-address| dns-name] [port] [router router-instance] — traceroute {ip-address | dns-name}[ttl value] [wait milliseconds] [no-dns] [source ip-address] [tos type-of-service] — tree [detail] — write {user | broadcast} message-string 7750 SR OS Basic System Configuration Guide Page 53...

  • Page 54: Monitor Commands

    [ip-address...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] — virtual-link nbr-rtr-id area area-id [interval seconds] [repeat repeat] [absolute | rate] — virtual-neighbor nbr-rtr-id area area-id [interval seconds] [repeat repeat] [absolute | rate] — ospf3 Page 54 7750 SR OS Basic System Configuration Guide...
  • Page 55 [far-end] ip-address [interval seconds] [repeat repeat] [absolute | rate] — subscriber sub-ident-string sap sap-id sla-profile sla-profile-name [base | ingress-queue- id ingress-queue-id | egress-queue-id egress-queue-id] [interval seconds] [repeat repeat] [absolute | rate] 7750 SR OS Basic System Configuration Guide Page 55...
  • Page 56 — [no] create — [no] more — reduced-prompt [no. of nodes in prompt] — no reduced-prompt — [no] saved-ind-prompt — terminal — length lines — time-display {local | utc} Page 56 7750 SR OS Basic System Configuration Guide...

  • Page 57: Global Commands

    The following displays a password configuration example: A:ALA-1>config>system>security# info ---------------------------------------------- password aging 365 minimum-length 8 attempts 5 time 5 lockout 20 admin-password "rUYUz9XMo6I" hash exit ---------------------------------------------- A:ALA-1>config>system>security# 7750 SR OS Basic System Configuration Guide Page 57...
  • Page 58 — Clears IP, MAC, and log filter counters. lag — Clears LAG-related entities. log — Closes and reinitializes the log specified by log-id. mda — Reinitializes the specified MDA in a particular slot. Page 58 7750 SR OS Basic System Configuration Guide...
  • Page 59 This command executes the contents of a text file as if they were CLI commands entered at the con- sole. Exec commands do not have no versions. Parameters -echo — Echo the contents of the exec file to the session screen as it executes. Default Echo disabled. 7750 SR OS Basic System Configuration Guide Page 59...
  • Page 60 A:ALA-1# configure router ospf A:ALA-1>config>router>ospf# exit A:ALA-1# The exit all command moves the cursor all the way back to the root level. A:ALA-1# configure A:ALA-1>config# router A:ALA-1>config>router# ospf A:ALA-1>config>router>ospf# exit all A:ALA-1# Page 60 7750 SR OS Basic System Configuration Guide...
  • Page 61 - Exit to intermediate mode - use option all to exit to root prompt help - Display help history - Show command history info - Display configuration for the present node 7750 SR OS Basic System Configuration Guide Page 61...
  • Page 62 76 interface "test" 77 exit 78 reduced-prompt 79 info 80 interface "test" 81 icmp unreachables exit all 82 exit all 83 reduced-prompt 84 configure router 85 interface 86 info 87 interface "test" Page 62 7750 SR OS Basic System Configuration Guide...
  • Page 63 "secondary-path" hop 1 10.10.0.111 strict hop 2 10.10.0.222 strict hop 3 10.10.0.123 strict no shutdown exit path "to-NYC" hop 1 10.10.10.104 strict hop 2 10.10.0.210 strict no shutdown exit path "to-104" 7750 SR OS Basic System Configuration Guide Page 63...
  • Page 64 "to-104" no shutdown exit lsp "to-104" to 10.10.10.104 from 10.10.10.103 rsvp-resv-style ff adaptive cspf include "red" exclude "green" adspec fast-reroute one-to-one no bandwidth no hop-limit node-protect exit hop-limit 10 retry-limit 0 Page 64 7750 SR OS Basic System Configuration Guide...
  • Page 65 Description This command is used to print relevant multicast information from the target multicast router. Infor- mation displayed includes adjacency information, protocol, metrics, thresholds, and flags from the target multicast route 7750 SR OS Basic System Configuration Guide Page 65...
  • Page 66 — Specify the router name or service ID. Values router-name: Base, management service-id: 1 — 2147483647 Default Base wait-time wait-time — Specify the number of seconds to wait for the response. Values 1 — 60 Page 66 7750 SR OS Basic System Configuration Guide...
  • Page 67 (aging), then this command is automatically invoked. When invoked, the user is prompted to enter the old password, the new password, and then the new password again to verify the correct input. 7750 SR OS Basic System Configuration Guide Page 67...
  • Page 68 — The IP Time To Live (TTL) value to include in the ping request, expressed as a decimal integer. Values 0 —128 tos type-of-service — The type-of-service (TOS) bits in the IP header of the ping packets, expressed as a decimal integer. Values 0 — 255 Page 68 7750 SR OS Basic System Configuration Guide...
  • Page 69 — Specify the router name or service ID. Default Base Values router-name: Base, management service-id: 1 — 2147483647 timeout timeout — Specify the timeout in seconds. Default Values 1 — 10 7750 SR OS Basic System Configuration Guide Page 69...
  • Page 70 This command causes the console session to pause operation (sleep) for 1 second (default) or for the specified number of seconds. Parameters seconds — The number of seconds for the console session to sleep, expressed as a decimal integer. Page 70 7750 SR OS Basic System Configuration Guide...
  • Page 71 — Specify the DNS name (if DNS name resolution is configured). Values 128 characters maximum port — The TCP port number to use to Telnet to the remote host, expressed as a decimal integer. 7750 SR OS Basic System Configuration Guide Page 71...
  • Page 72 — The source IP address to use as the source of the probe packets in dotted decimal notation. If the IP address is not one of the device’s interfaces, an error is returned. Page 72 7750 SR OS Basic System Configuration Guide...
  • Page 73 — The message string to send. Allowed values are any string up to 250 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7750 SR OS Basic System Configuration Guide Page 73...
  • Page 74 The no form of the command displays the output all at once. If the output length is longer than one screen, the entire output will be displayed, which may scroll the screen. Page 74 7750 SR OS Basic System Configuration Guide...
  • Page 75 “*” appears in the prompt string indicating that the changes have not been saved. When an admin save command is executed the “*” disappears. *A:ALA-48# admin save Writing file to ftp://128.251.10.43/./sim48/sim48-config.cfg Saving configuration ..Completed. A:ALA-48# 7750 SR OS Basic System Configuration Guide Page 75...
  • Page 76 In general all time stamps are shown in the time selected. This includes log entries destined for con- sole/session, memory, or SNMP logs. Log files on compact flash are maintained and displayed in UTC format. Default time-display local — Displays time stamps based on the local time. Page 76 7750 SR OS Basic System Configuration Guide...
  • Page 77 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. cpm-filter Syntax cpm-filter Context monitor Description Displays monitor command output for CPM filters. 7750 SR OS Basic System Configuration Guide Page 77...
  • Page 78 When the keyword rate is specified, the "rate per second" for each statistic is displayed instead of the delta. Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Page 78 7750 SR OS Basic System Configuration Guide...
  • Page 79 Monitor statistics for IP filter 10 entry 1 =========================================================================== At time t = 0 sec (Base Statistics) --------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches --------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) --------------------------------------------------------------------------- 7750 SR OS Basic System Configuration Guide Page 79...
  • Page 80 — When the absolute keyword is specified, the raw statistics are displayed, without pro- cessing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Page 80 7750 SR OS Basic System Configuration Guide...
  • Page 81 At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------ Ing. Matches : 0 Egr. Matches ------------------------------------------------------------------------------ At time t = 9 sec (Mode: Rate) ------------------------------------------------------------------------------ Ing. Matches : 0 Egr. Matches ============================================================================== A:ALA-48# 7750 SR OS Basic System Configuration Guide Page 81...
  • Page 82 Egr. Matches ------------------------------------------------------------------------------ At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches Page 82 7750 SR OS Basic System Configuration Guide...
  • Page 83 1 — 200 interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 — 60 repeat repeat — Configures how many times the command is repeated. 7750 SR OS Basic System Configuration Guide Page 83...
  • Page 84 Context show>router>mpls Description This command displays MPLS LSP egress statistics information. lsp-ingress-stats Syntax lsp-ingress-stats lsp-ingress-stats ip-address lsp lsp-name Context show>router>mpls Description This command displays MPLS LSP ingress statistics information. Page 84 7750 SR OS Basic System Configuration Guide...
  • Page 85 Parameters entry entry-id — Specifies an existing IP MAF entry ID. Values 1 — 9999 interval seconds — Configures the interval for each display in seconds. Default Values 3 — 60 7750 SR OS Basic System Configuration Guide Page 85...
  • Page 86 When the keyword rate is specified, the "rate per second" for each statistic is displayed instead of the delta. Page 86 7750 SR OS Basic System Configuration Guide...
  • Page 87 ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- 7750 SR OS Basic System Configuration Guide Page 87...
  • Page 88 This command enables ATM port traffic monitoring. Parameters interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 — 60 repeat repeat — Configures how many times the command is repeated. Page 88 7750 SR OS Basic System Configuration Guide...
  • Page 89 1 — 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without pro- cessing. No calculations are performed on the delta or rate statistics. Default Default mode delta 7750 SR OS Basic System Configuration Guide Page 89...
  • Page 90 (#, $, spaces, etc.), the entire string must be enclosed within double quotes. root — Specify the scheduler to which this queue would be feeding. ingress — Displays scheduler-name statistics applied on the ingress SAP. Page 90 7750 SR OS Basic System Configuration Guide...
  • Page 91 — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7750 SR OS Basic System Configuration Guide Page 91...
  • Page 92 — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Page 92 7750 SR OS Basic System Configuration Guide...
  • Page 93 — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7750 SR OS Basic System Configuration Guide Page 93...
  • Page 94 This command enables the context to configure criteria to monitor statistical information for BGP, LDP, MPLS, OSPF, OSPF3, PIM, RIP, and RSVP protocols. Parameters router-instance — Specify the router name or service ID. Values router-name: Base, management service-id: 1 — 2147483647 Default Base Page 94 7750 SR OS Basic System Configuration Guide...
  • Page 95 Messages : 916 o/p Messages : 916 i/p Octets : 17510 o/p Octets : 17386 i/p Updates o/p Updates ------------------------------------------------------------------------------- At time t = 3 sec ------------------------------------------------------------------------------- Recd. Prefixes Sent Prefixes 7750 SR OS Basic System Configuration Guide Page 95...
  • Page 96 — Configures how many times the command is repeated. Default Values 1 — 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. Page 96 7750 SR OS Basic System Configuration Guide...
  • Page 97 ------------------------------------------------------------------------------- ISIS Instance SPF Runs Purge Initiated LSP Regens. : 11 CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- 7750 SR OS Basic System Configuration Guide Page 97...
  • Page 98 At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- ISIS Instance SPF Runs Purge Initiated LSP Regens. CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- CSNP Page 98 7750 SR OS Basic System Configuration Guide...
  • Page 99 Sample Output A:ALA-103>monitor>router>ldp# session 10.10.10.104 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for LDP Session 10.10.10.104 =============================================================================== Sent Received ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- 7750 SR OS Basic System Configuration Guide Page 99...
  • Page 100 At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- FECs Hello 5288 5290 Keepalive 8226 8226 Init Label Mapping Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw ======================================================================== A:ALA-12>monitor>router>ldp# Page 100 7750 SR OS Basic System Configuration Guide...
  • Page 101 Label Release Label Withdraw Label Abort Notification Address Address Withdraw ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Rate) ------------------------------------------------------------------------------- FECs Hello Keepalive Init Label Mapping Label Request Label Release Label Withdraw 7750 SR OS Basic System Configuration Guide Page 101...
  • Page 102 ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Addr FECs Sent Addr FECs Recv Serv FECs Sent Serv FECs Recv ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) Page 102 7750 SR OS Basic System Configuration Guide...
  • Page 103 "rate per second" for each statistic is displayed instead of the delta. Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. 7750 SR OS Basic System Configuration Guide Page 103...
  • Page 104 Monitor statistics for MPLS Interface "system" =============================================================================== ------------------------------------------------------------------------------- Transmitted : Pkts - 0 Octets - 0 Received : Pkts - 0 Octets - 0 ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) Page 104 7750 SR OS Basic System Configuration Guide...
  • Page 105 ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- LSP Name : sample ------------------------------------------------------------------------------- Collect Stats : Enabled Accting Plcy. : 5 Adm State : Up PSB Match : True 7750 SR OS Basic System Configuration Guide Page 105...
  • Page 106 OutProf Pkts InProf Octets : 590440 OutProf Octets: 0 ------------------------------------------------------------------------------- At time t = 20 sec (Mode: Absolute) ------------------------------------------------------------------------------- LSP Name : sample ------------------------------------------------------------------------------- Collect Stats : Enabled Accting Plcy. : 5 Page 106 7750 SR OS Basic System Configuration Guide...
  • Page 107 FC H1 InProf Pkts OutProf Pkts : 638 InProf Octets : 0 OutProf Octets: 649484 FC NC InProf Pkts : 638 OutProf Pkts InProf Octets : 649484 OutProf Octets: 0 =============================================================================== B:Dut-C-cpm2# 7750 SR OS Basic System Configuration Guide Page 107...
  • Page 108 OutProf Pkts InProf Octets : 1097404 OutProf Octets: 0 FC H2 InProf Pkts OutProf Pkts : 539 InProf Octets : 0 OutProf Octets: 548702 FC EF InProf Pkts : 539 OutProf Pkts Page 108 7750 SR OS Basic System Configuration Guide...
  • Page 109 OutProf Pkts InProf Octets : 0 OutProf Octets: 0 FC L1 InProf Pkts : 1194 OutProf Pkts InProf Octets : 1215492 OutProf Octets: 0 FC H2 InProf Pkts OutProf Pkts : 597 7750 SR OS Basic System Configuration Guide Page 109...
  • Page 110 Syntax ospf [ospf-instance] Context monitor>router>ospf Description This command enables the context to configure monitor commands for the OSPF instance. Parameters ospf-instance — Specifies the OSPF instance. Values 1 — 31 Page 110 7750 SR OS Basic System Configuration Guide...
  • Page 111 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Sample Output A:ALA-12>monitor>router>ospf# interface to-104 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for OSPF Interface "to-104" 7750 SR OS Basic System Configuration Guide Page 111...
  • Page 112 : 8369 Rx DBDs Tx DBDs : 12 Rx LSRs Tx LSRs Rx LSUs : 55 Tx LSUs : 95 Rx LS Acks : 91 Tx LS Acks : 52 Retransmits Discards Page 112 7750 SR OS Basic System Configuration Guide...
  • Page 113 Tx LSUs Rx LS Acks Tx LS Acks Retransmits Discards Bad Networks Bad Virt Links : 0 Bad Areas Bad Dest Addrs : 0 Bad Auth Types : 0 Auth Failures 7750 SR OS Basic System Configuration Guide Page 113...
  • Page 114 OPSF neighbor. Up to 5 IP addresses can be specified. interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 — 60 repeat repeat — Configures how many times the command is repeated. Page 114 7750 SR OS Basic System Configuration Guide...
  • Page 115 Bad Nbr States LSA Inst fails Bad Seq Nums Bad MTUs Bad Packets LSA not in LSDB Option Mismatches: 0 Nbr Duplicates ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) 7750 SR OS Basic System Configuration Guide Page 115...
  • Page 116 — Configures how many times the command is repeated. Default Values 1 — 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. Page 116 7750 SR OS Basic System Configuration Guide...
  • Page 117 — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7750 SR OS Basic System Configuration Guide Page 117...
  • Page 118 — The IP address of an multicast group that identifies a set of recipients that are interested in a particular data stream. source ip-address — The source IP address to use in the ping requests in dotted decimal notation. Page 118 7750 SR OS Basic System Configuration Guide...
  • Page 119 — Configures how many times the command is repeated. Default Values 1 — 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. 7750 SR OS Basic System Configuration Guide Page 119...
  • Page 120 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. service Syntax service Context monitor Description This command enables the context to configure criteria to monitor specific service SAP criteria. Page 120 7750 SR OS Basic System Configuration Guide...
  • Page 121 [port-id | bundle-id | bpgrp-id | lag-id]:qtag1.qtag2 [port-id | aps-id | bundle-id | bpgrp-id][:vpi/vci |vpi |vpi1.vpi2] frame [port-id | bundle-id]:dlci cisco-hdlc slot/mda/port.channel port-id slot/mda/port[.channel] aps-id aps-group-id[.channel] keyword group-id 1 — 64 bundle-type-slot/mda.bundle-num bundle keyword 7750 SR OS Basic System Configuration Guide Page 121...
  • Page 122 — Specifies the bundle protection group ID to be associated with this IP interface. The bpgrp keyword must be entered at the beginning of the parameter. The command syntax must be configured as follows: bpgrp-id: bpgrp-type-bpgrp-num type: bpgrp-num value range: 1 — 1280 For example: Page 122 7750 SR OS Basic System Configuration Guide...
  • Page 123 — Configures how many times the command is repeated. Default Values 1 — 999 absolute — When the absolute keyword is specified, the absolute rate-per-second value for each statistic is displayed. 7750 SR OS Basic System Configuration Guide Page 123...
  • Page 124 ------------------------------------------------------------------------------- At time t = 22 sec (Mode: Delta) ------------------------------------------------------------------------------- I. Fwd. Pkts. I. Dro. Pkts. E. Fwd. Pkts. E. Fwd. Octets ------------------------------------------------------------------------------- At time t = 33 sec (Mode: Delta) Page 124 7750 SR OS Basic System Configuration Guide...
  • Page 125 — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7750 SR OS Basic System Configuration Guide Page 125...
  • Page 126 A:Dut-A# monitor service subscriber alcatel_100 sap 1/2/1:101 sla-profile sla_default =============================================================================== Monitor statistics for Subscriber alcatel_100 =============================================================================== At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- SLA Profile Instance statistics ------------------------------------------------------------------------------- Packets Octets Off. HiPrio Off. LowPrio : 94531 30704535 Page 126 7750 SR OS Basic System Configuration Guide...
  • Page 127 Off. Uncolor Dro. HiPrio Dro. LowPrio For. InProf For. OutProf Egress Queue 1 Dro. InProf : 880 127660 Dro. OutProf For. InProf : 90862 12995616 For. OutProf Egress Queue 2 Dro. InProf 7750 SR OS Basic System Configuration Guide Page 127...
  • Page 128 Queueing Stats (Egress QoS Policy 1000) Dro. InProf 0.00 Dro. OutProf 0.00 For. InProf : 1469 209129 0.16 For. OutProf 0.00 =============================================================================== A:Dut-A# A:Dut-A# monitor service subscriber alcatel_100 sap 1/2/1:101 sla-profile sla_default Page 128 7750 SR OS Basic System Configuration Guide...
  • Page 129 ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Packets Octets Egress Queue 1 Dro. InProf : 880 127660 Dro. OutProf For. InProf : 164366 23506178 For. OutProf =============================================================================== A:Dut-A# 7750 SR OS Basic System Configuration Guide Page 129...

  • Page 130: Table 21: Show Alias Output Fields

    Alias-command-name ============================================================================== show router interface show service service-using epipe ssvpls show service service-using vpls ssvprn show service service-using vprn show service service-using ies ------------------------------------------------------------------------------ Number of aliases : 5 ============================================================================== A:ALA-103>config>system# Page 130 7750 SR OS Basic System Configuration Guide...

  • Page 131: File System Management

    Creating Directories on page 138 → Copying Files on page 139 → Moving Files on page 140 → Removing Files and Deleting Directories on page 140 → Displaying Directory and File Information on page 141 7750 SR OS Basic System Configuration Guide Page 131...

  • Page 132: The File System

    NOTE: To prevent corrupting open files in the file system, you should only remove a compact flash that is administratively shutdown. 7750 SR OS gracefully closes any open files on the device, so it can be safely removed. Page 132 7750 SR OS Basic System Configuration Guide...

  • Page 133: Urls

    SCP server. For example, a destination directory specified as “cf1:\dir1\file1” will be transmitted to the SCP server as “cf1:dir1file1” where the backslash escape characters are stripped by the SCP client 7750 SR OS Basic System Configuration Guide Page 133...
  • Page 134 On systems where the client treats the backslash like an “escape” character, a double backslash “\\” or the forward slash “/” can typically be used to properly delimit directories and the filename. Page 134 7750 SR OS Basic System Configuration Guide...

  • Page 135: Wildcards

    Another example of wildcard usage: A:21# show router mpls lsp l-63-8* =============================================================================== MPLS LSPs (Originating) =============================================================================== LSP Name Fastfail Config ------------------------------------------------------------------------------- l-63-8-cc 213.224.245.8 l-63-8-cw 213.224.245.8 ------------------------------------------------------------------------------- LSPs : 2 =============================================================================== A:21# 7750 SR OS Basic System Configuration Guide Page 135...

  • Page 136: Table 23: File Command Local And Remote File System Support

    Table 23: File Command Local and Remote File System Support Command local-url ftp-url tftp-url attrib copy delete move repair source only type version shutdown Page 136 7750 SR OS Basic System Configuration Guide...

  • Page 137: File Management Tasks

    [+r | -r] file-url The following displays an example of the command syntax: Example # file file cf3:\ # attrib file cf3:\ # attrib +r BOF.SAV file cf3:\ # attrib 7750 SR OS Basic System Configuration Guide Page 137...

  • Page 138: Creating Directories

    # md test1 file cf1:\ # cd test1 file cf1:\test1\ # md test2 file cf1:\test1\ # cd test2 file cf1:\test1\test2\ # md test3 file cf1:\test1\test2\ # cd test3 file cf1:\test1\test2\test3 # Page 138 7750 SR OS Basic System Configuration Guide...

  • Page 139: Copying Files

    The following displays an example of the copy command syntax: Example A:ALA-1>file cf1:\ # copy 104.cfg cf1:\test1\test2\test3\test.cfg A:ALA-1>file cf1:\ # scp file1 admin@192.168.x.x:cf1:\file1 A:ALA-1>file cf1:\ # scp file2 user2@192.168.x.x:/user2/file2 A:ALA-1>file cf1:\ # scp cf2:/file3 admin@192.168.x.x:cf1:\file3 7750 SR OS Basic System Configuration Guide Page 139...

  • Page 140: Moving Files

    A:ALA-1>file cf1:\test1\test2\test3\ # cd .. A:ALA-1>file cf1:\test1\test2\ # rd test3 A:ALA-1>file cf1:\test1\test2\ # cd .. A:ALA-1>file cf1:\test1\ # rd test2 A:ALA-1>file cf1:\test1\ # cd .. A:ALA-1>file cf1:\ # rd test1 A:ALA-1>file cf1:\ # Page 140 7750 SR OS Basic System Configuration Guide...

  • Page 141: Displaying Directory And File Information

    # Chassis Commands #------------------------------------------ card 2 card-type faste-tx-32 exit #------------------------------------------ # Interface Commands #------------------------------------------ # Physical port configuration interface faste 2/1 shutdown mode network exit interface faste 2/2 shutdown exit interface faste 2/3 7750 SR OS Basic System Configuration Guide Page 141...
  • Page 142 File Management Tasks shutdown exit interface faste 2/4 A:ALA-1>file cf1:\ # version boot.tim TiMOS-L-1.0.B3-8 A:ALA-1>file cf1:\ # Page 142 7750 SR OS Basic System Configuration Guide...

  • Page 143: Repairing The File System

    CLI Syntax: file repair [cflash-id] The following displays an example of the command syntax: A:ALA-1>file cf3:\ # repair Checking drive cf3: on slot A for errors... Drive cf31: on slot A is OK. 7750 SR OS Basic System Configuration Guide Page 143...
  • Page 144 File Management Tasks Page 144 7750 SR OS Basic System Configuration Guide...

  • Page 145: File Command Reference

    [force] — file-url [force] — repair [cflash-id] — local-file-url destination-file-url [router router-instance] [force] — [no] shutdown [active] [standby] — [no] shutdown cflash-id — type file-url — version file-url [check] — local-url 7750 SR OS Basic System Configuration Guide Page 145...
  • Page 146 File Command Reference Page 146 7750 SR OS Basic System Configuration Guide =...
  • Page 147 No compact flash present, drive shut down: If no compact flash is present and the drive is shut down the LED is unlit. State: admin = down, operational = down, equipped = no 7750 SR OS Basic System Configuration Guide Page 147...
  • Page 148 — If standby is selected, then all drives on the standby CPM are shutdown or enabled. Note: When both active and standby keywords are specified, then all drives on both CPM are shutdown. Page 148 7750 SR OS Basic System Configuration Guide...

  • Page 149: File Commands

    This command displays or changes the current working directory in the local file system. Parameters file-url — Syntax: [local-url | remote-url (255 chars max) local-url - [cflash-id/][file-path] remote-url - [{ftp://|tftp://}login:pswd@remote-locn/][file-path] cf1:,cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: 7750 SR OS Basic System Configuration Guide Page 149...
  • Page 150 The optional wildcard “*” can be used to delete multiple files that share a common (partial) prefix and/or (partial) suffix. When the wildcard is entered, the following prompt displays for each file that matches the wildcard: “Delete file <filename> (y/n)?” Page 150 7750 SR OS Basic System Configuration Guide...
  • Page 151 Syntax format cflash cflash-id [reliable] Context root>file Description This command formats the compact flash. The compact flash must be shutdown before starting the format. 7750 SR OS Basic System Configuration Guide Page 151...
  • Page 152 — The new destination to place the old-file-url. Values local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url [ftp://login:pswd@remote-locn/][file-path] cf1:, cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: force — Forces an immediate move of the specified file(s). Page 152 7750 SR OS Basic System Configuration Guide...
  • Page 153 This command copies a local file to a remote host file system. It uses ssh for data transfer, and uses the same authentication and provides the same security as ssh. The following prompt appears: “Are you sure (y/n)?” The destination must specify a user and a host. 7750 SR OS Basic System Configuration Guide Page 153...
  • Page 154 Parameters file-url — The file name of the target file. Values local-url | remote-url: 255 characters maximum local-url: [cflash-id/][file-path] remote-url: [{ftp://|tftp://}login:pswd@remote-locn/][file-path] cflash-id: cf1:, cf1-A:, cf1-B: check — Validates the .tim file. Page 154 7750 SR OS Basic System Configuration Guide...
  • Page 155 Context file Description Edit files using the vi editor. Refer to VI Editor on page Parameters local-url — Specifies the local source file or directory. Values [cflash-id>/]file-path cflash-id: cf1:, cf2:, cf3: 7750 SR OS Basic System Configuration Guide Page 155...
  • Page 156 File Commands Page 156 7750 SR OS Basic System Configuration Guide...

  • Page 157: Boot Options

    System Initialization on page 158 → Configuration and Image Loading on page 162 − Persistence on page 164 • Initial System Startup Process Flow on page 165 • Configuration Notes on page 166 7750 SR OS Basic System Configuration Guide Page 157...

  • Page 158: System Initialization

    When the bootstrap image is loaded, the BOF is read to obtain the location of the image and configuration files. The BOF must be located on the same compact flash drive as the boot.ldr file. Figure 3 displays the system initialization sequence. Page 158 7750 SR OS Basic System Configuration Guide...

  • Page 159: Figure 3: System Initialization - Part 1

    BOF FOUND? BOF OK? CLI USER CONNECTED? REQUEST REQUEST See Figure 4 on page LOCAL? IP ADDRESS & IMAGE AND ROUTING INFO CONFIG LOCATION Figure 3: System Initialization - Part 1 7750 SR OS Basic System Configuration Guide Page 159...

  • Page 160: Figure 4: Files On The Compact Flash

    Y: A — Alpha release B — Beta release M — Maintenance release R — Released software z — Version number → cpm.tim — CPM image file → iom.tim — IOM image file Page 160 7750 SR OS Basic System Configuration Guide...

  • Page 161: Figure 5: Files On The Compact Flash

    — Minor release number Y: A — Alpha release B — Beta release M — Maintenance release R — Released software z — Version number → both.tim — CPM and IOM image file 7750 SR OS Basic System Configuration Guide Page 161...

  • Page 162: Configuration And Image Loading

    GET FIRST/NEXT TERTIARY RUNTIME IMAGE Boot with defaults SNMP shutdown Issue trap NEED Issue log entry ALL CONFIGS CONFIG FOUND PERSISTENCE Issue console msg Figure 6: System Initialization - Part 2 Page 162 7750 SR OS Basic System Configuration Guide...
  • Page 163 The following displays an example of BOF output. A:ALA-1>bof# show bof ================================================================== Memory BOF ================================================================== no autonegotiate duplex full speed address 10.10.xx.xx/20 active wait primary-image cf3:\both.tim primary-config cf3:\test123.cfg primary-dns 192.168.xx.xx persist dns-domain test.alcatel.com ================================================================== A:ALA-1>bof# 7750 SR OS Basic System Configuration Guide Page 163...

  • Page 164: Persistence

    The interception capabilities are sought by various telecommunications providers. As lawful interception is subject to national regulation, requirements vary from one country to another. Alcatel-Lucent’s implementation satisfies most national standard’s requirements. LI is configurable for all service types. Page 164...

  • Page 165: Initial System Startup Process Flow

    ESTABLISH ROUTER CONNECTION (CONSOLE PORT) ASSIGN IP ADDRESS TO THE CPM PRIMARY IMAGE CONFIGURE/MODIFY BOF FILE LOCATIONS PRIMARY CONFIG SECONDARY IMAGE SECONDARY CONFIG TERTIARY IMAGE SAVE CONFIG CHANGES TERTIARY CONFIG Figure 7: System Startup Flow 7750 SR OS Basic System Configuration Guide Page 165...

  • Page 166: Configuration Notes

    For example, for services, if a VPRN service, service-id 272, is created first and then an Apipe service, service-id 2, created next, the VPRN 272 will be loaded first because it was created first. Page 166 7750 SR OS Basic System Configuration Guide...

  • Page 167: Configuring Boot File Options With Cli

    Viewing the Current Configuration on page 176 → Modifying and Saving a Configuration on page 178 → Saving a Configuration to a Different Filename on page 180 → Rebooting on page 180 7750 SR OS Basic System Configuration Guide Page 167...

  • Page 168: Bof Configuration Overview

    BOF Configuration Overview BOF Configuration Overview Alcatel-Lucent 7750 SR-Series routers do not contain a boot EEPROM. The boot loader code is loaded from the boot.ldr file. The BOF file performs the following tasks: 1. Sets up the CPM Ethernet port (speed, duplex, auto).

  • Page 169: Basic Bof Configuration

    A:SR-45# show bof =============================================================================== BOF (Memory) =============================================================================== primary-image cf3:/4.0.R20 primary-config cf3:/ospf_default.cfg addres 138.120.189.53/24 active static-route 138.120.0.0/16 next-hop 138.120.189.1 static-route 172.0.0.0/8 next-hop 138.120.189.1 autonegotiate duplex full speed wait persist console-speed 115200 =============================================================================== A:SR-45# 7750 SR OS Basic System Configuration Guide Page 169...

  • Page 170: Common Configuration Tasks

    Console Connection on page 173 • Configuring BOF Parameters on page 175 For details about hardware installation and initial router connections, refer to the specific 7750 SR- Series hardware installation guide. Page 170 7750 SR OS Basic System Configuration Guide...

  • Page 171: Searching For The Bof

    Press ENTER to keep it, or the word 'none' forno Config URL. Config File URL: Using: 'cf31:/config.cfg' Network Configuration --------------------- You specified a network location for either the software or the configuration file. You need to 7750 SR OS Basic System Configuration Guide Page 171...
  • Page 172 1.x.x.0/24 next-hop 192.168.xx.xxx autonegotiate duplex full speed wait persist Do you want to overwrite cf3:/bof.cfg with the new settings? (yes/no): y Successfully saved the new settings in cf3:/bof.cfg Page 172 7750 SR OS Basic System Configuration Guide...

  • Page 173: Accessing The Cli

    • A standard serial cable with a male DB9. Table 24: Console Configuration Parameter Values Parameter Value Baud Rate 115,200 Data Bits Parity None Stop Bits Flow Control None 7750 SR OS Basic System Configuration Guide Page 173...

  • Page 174: Figure 8: 7750 Sr-1 Front Panel Console Port

    Establish the connection by pressing the <Enter> key a few times on your terminal Step 3 keyboard. At the router prompt, enter the login and password. Step 4 The default login is admin The default password is admin Page 174 7750 SR OS Basic System Configuration Guide...

  • Page 175: Configuring Bof Parameters

    The following output displays a BOF configuration: A:ALA-1>bof# show bof ================================================================== Memory BOF ================================================================== no autonegotiate duplex full speed address 10.10.xx.xx/20 active wait primary-image cf3:\both.tim primary-config cf3:\test123.cfg primary-dns 192.168.xx.xx persist dns-domain test.alcatel.com ================================================================== A:ALA-1>bof# 7750 SR OS Basic System Configuration Guide Page 175...

  • Page 176: Service Management Tasks

    # Built on Tues Jan 21 21:39:07 2007 by builder in /rel1.0/xx/panos/main # Generated WED Jan 31 06:15:29 2007 UTC exit all configure #-------------------------------------------------- echo "System Configuration" #-------------------------------------------------- system name "7750-3" contact "Fred Information Technology" Page 176 7750 SR OS Basic System Configuration Guide...
  • Page 177 UTC exit thresholds rmon exit exit exit... #-------------------------------------------------- echo "Redundancy Configuration" #-------------------------------------------------- redundancy synchronize boot-env exit ...exit all # Finished FRI Nov 21 15:06:16 2008 UTC A:7750# 7750 SR OS Basic System Configuration Guide Page 177...

  • Page 178: Modifying And Saving A Configuration

    FTP sessions simultaneously open to the file-url FTP server. The FTP server must be configured to allow multiple sessions from the same login, otherwise, the configuration and index files will not be saved correctly. Page 178 7750 SR OS Basic System Configuration Guide...

  • Page 179: Deleting Bof Parameters

    7750 SR OS Basic System Configuration Guide Page 179...

  • Page 180: Saving A Configuration To A Different Filename

    A:DutA>admin# reboot Are you sure you want to reboot (y/n)? y Resetting...OK Alcatel 7xxx Boot ROM. Copyright 2000-2007 Alcatel-Lucent. All rights reserved. All use is subject to applicable license agreements..Page 180 7750 SR OS Basic System Configuration Guide...

  • Page 181: Bof Command Reference

    — no secondary-image — speed speed — [no] static-route ip-prefix/ip-prefix-length next-hop ip-address — tertiary-config file-url — no tertiary-config — [no] tertiary-dns ip-address — tertiary-image file-url — no tertiary-image — wait seconds 7750 SR OS Basic System Configuration Guide Page 181...
  • Page 182 BOF Command Reference Show Commands show — [cflash-id | booted] — boot-messages Page 182 7750 SR OS Basic System Configuration Guide...

  • Page 183: File Management Commands

    (typically the in slot A, but the in slot B could also be acting as the active The slot name is not case-sensitive. You can use upper or lowercase “A” or “B”. 7750 SR OS Basic System Configuration Guide Page 183...
  • Page 184 Saves must be explicitly executed. The BOF is saved to cf3: if a location is not specified. Parameters flash-id — The compact flash ID where the bof.cfg is to be saved. Values cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Default cf3: Page 184 7750 SR OS Basic System Configuration Guide...
  • Page 185 Only one wait command can be defined in the BOF. Default Parameters seconds — The time to pause at the start of the boot process, in seconds. Values 1 — 10 7750 SR OS Basic System Configuration Guide Page 185...
  • Page 186 The no form of the command reverts to the default value. Default 115200 — console configured for 115,200 bps operation Parameters baud-rate — The console port baud rate, expressed as a decimal integer. Values 9600, 19200, 38400, 57600, 115200 Page 186 7750 SR OS Basic System Configuration Guide...
  • Page 187 (30 second) check. Default Parameters on — Create when saving the configuration. off — Disables the system index saves between reboots. 7750 SR OS Basic System Configuration Guide Page 187...
  • Page 188 — The location-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 188 7750 SR OS Basic System Configuration Guide...
  • Page 189 — The file-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: 7750 SR OS Basic System Configuration Guide Page 189...
  • Page 190 — The location-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 190 7750 SR OS Basic System Configuration Guide...
  • Page 191 Boot Option File (BOF). When autonegotiation is enabled, the link attempts to automatically negotiate the link speed and duplex parameters. If autonegotiation is enabled, then the configured duplex and speed parameters are ignored. 7750 SR OS Basic System Configuration Guide Page 191...
  • Page 192 [no] li-local-save Context Description This command enables the lawful intercept (LI) configuration to be saved locally. li-separate Syntax [no] li-separate Context Description This command enables separate access to lawful intercept (LI) information. Page 192 7750 SR OS Basic System Configuration Guide...
  • Page 193 0 — 32 ipv6-prefix x:x:x:x:x:x:x:x (eight 16-bit pieces) x:x:x:x:x:x:d.d.d.d x: [0..FFFF]H d: [0..255]D ipv6-prefix-le 0 — 128 ip-address: ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x (eight 16-bit pieces) x:x:x:x:x:x:d.d.d.d x: [0..FFFF]H d: [0..255]D 7750 SR OS Basic System Configuration Guide Page 193...
  • Page 194 — The subnet mask, expressed as an integer or in dotted decimal notation. Values 1 — 32 (mask length), 128.0.0.0 — 255.255.255.255 (dotted decimal) next-hop ip-address — The next hop IP address used to reach the destination. Page 194 7750 SR OS Basic System Configuration Guide...
  • Page 195 — The IP or IPv6 address of the primary DNS server. Values ipv4-address - a.b.c.d ipv6-address: x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x: [0..FFFF]H d: [0..255]D interface - 32 chars max, for link local addresses 7750 SR OS Basic System Configuration Guide Page 195...
  • Page 196 — The IP or IPv6 address of the tertiary DNS server. Values ipv4-address - a.b.c.d ipv6-address: x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x: [0..FFFF]H d: [0..255]D interface - 32 chars max, for link local addresses Page 196 7750 SR OS Basic System Configuration Guide...

  • Page 197: Table 25: Show Bof Output Fields

    The IP address and mask associated with the CPM Ethernet port or the address secondary CPM port. The tertiary DNS server for resolution of host names to IP addresses. tertiary-dns 7750 SR OS Basic System Configuration Guide Page 197...
  • Page 198 A:ALA-1# show bof cf3: ===================================================================== BOF on cf3: ===================================================================== autonegotiate primary-image ftp://test:test@192.168.xx.xx/./both.tim primary-config ftp://test:test@192.168.xx.xx/./1xx.cfg secondary-image cf1:/i650/ secondary-config cf1:/config.cfg address 192.168.xx.xxx/20 active address 192.168.xx.xxx/20 standby primary-dns 192.168.xx.xxx dns-domain test.test.com autonegotiate duplex full speed Page 198 7750 SR OS Basic System Configuration Guide...
  • Page 199 System booted with BOF ===================================================================== primary-image ftp://test:test@192.168.xx.xx/./both.tim primary-config ftp://test:test@192.168.xx.xx/./103.cfg secondary-image cf1:/i650/ secondary-config cf1:/config.cfg address 192.168.xx.xxx/20 active address 192.168.xx.xxx/20 standby primary-dns 192.168.xx.xxx dns-domain test.test.com autonegotiate duplex full speed wait persist console-speed 115200 =============================================================================== A:ALA-1# 7750 SR OS Basic System Configuration Guide Page 199...
  • Page 200 Time from clock is THU AUG 14 08:39:03 2003 UTC Error: could not open boot messages file. Boot messages will not be stored. Looking for cf3:/bof.cfg ... OK, reading Contents of Boot Options File on cf3: primary-image ftp://vxworks:vxw0rks@192.168.15.1/./rel/0.0/I129 primary-config cf3:/config.cfg Page 200 7750 SR OS Basic System Configuration Guide...
  • Page 201 Attempting to exec configuration file: 'cf3:/config.cfg' ... System Configuration Log Configuration Card Configuration Port Configuration Router (Network Side) Configuration Service Configuration Router (Service Side) Configuration Executed 232 lines in 0.0 seconds from file cf3:\config.cfg ALA-1# 7750 SR OS Basic System Configuration Guide Page 201...
  • Page 202 Show Commands Page 202 7750 SR OS Basic System Configuration Guide...

  • Page 203: System Management

    High Availability Features on page 213 • Redundancy on page 214 • Nonstop Forwarding on page 217 • Nonstop Routing (NSR) on page 217 • CPM Switchover on page 218 • Synchronization on page 219 7750 SR OS Basic System Configuration Guide Page 203...
  • Page 204 Configuring the Chassis Mode on page 235 → Saving Configurations on page 238 → Specifying Post-Boot Configuration Files on page 238 → Network Timing on page 239 → Power Supplies on page 239 Page 204 7750 SR OS Basic System Configuration Guide...

  • Page 205: System Management Parameters

    ASCII printable text string of up to 80 characters. 7750 SR OS Basic System Configuration Guide Page 205...

  • Page 206: System Location

    The system location is the MIB II sysLocation object which is a text string conventionally used to describe the node’s physical location, for example, “Bldg MV-11, 1st Floor, Room 101”. The system location can be any ASCII printable text string of up to 80 characters. Page 206 7750 SR OS Basic System Configuration Guide...

  • Page 207: System Coordinates

    System Management System Coordinates The system coordinates is the Alcatel-Lucent Chassis MIB tmnxChassisCoordinates object. This text string indicates the Global Positioning System (GPS) coordinates of the location of the chassis. Two-dimensional GPS positioning offers latitude and longitude information as a four dimensional vector: 〈...

  • Page 208: System Time

    WEST Western Europe Summer Time UTC +1 Central Europe Time UTC +1 CEST Central Europe Summer Time UTC +2 Eastern Europe Time UTC +2 EEST Eastern Europe Summer Time UTC +3 Page 208 7750 SR OS Basic System Configuration Guide...
  • Page 209 Alaska Standard Daylight Saving Time UTC -8 Australia AWST Western Standard Time (e.g., Perth) UTC +8 ACST Central Standard Time (e.g., Darwin) UTC +9.5 AEST Eastern Standard/Summer Time (e.g., UTC +10 Canberra) 7750 SR OS Basic System Configuration Guide Page 209...

  • Page 210: Network Time Protocol (Ntp)

    (SAA)) can use the clock, and if determined that a major (128 ms or more) adjustment needs to be performed, the adjustment is performed by programmatically stepping the clock. If a minor (less than 128 ms) adjustment must be performed, then the adjustment is Page 210 7750 SR OS Basic System Configuration Guide...

  • Page 211: Sntp Time Synchronization

    In the 7750 SR OS, the SNTP client can be configured for either broadcast or unicast client mode. 7750 SR OS Basic System Configuration Guide Page 211...

  • Page 212: Cron

    SAPs require the same type of TOD changes. The TOD suite may be configured while using specific ingress or egress ACLs or QoS policies, and is an enhancement of the ingress and egress CLI trees. Page 212 7750 SR OS Basic System Configuration Guide...

  • Page 213: High Availability

    → Configuration Redundancy on page 215 → Component Redundancy on page 215 → Service Redundancy on page 216 → Accounting Configuration Redundancy on page 216 • Nonstop Forwarding on page 217 7750 SR OS Basic System Configuration Guide Page 213...

  • Page 214: Redundancy

    • BGP default session timeout is approximately 120 seconds. The timeout intervals are configurable. Therefore, router software has to recover faster than the specified time interval to maintain up time. Page 214 7750 SR OS Basic System Configuration Guide...

  • Page 215: Configuration Redundancy

    Redundant fan — Failure of a fan module without impacting traffic. • Hot swap — Components in a live system can be replaced or become active without taking the system down or affecting traffic flow to/from other modules. 7750 SR OS Basic System Configuration Guide Page 215...

  • Page 216: Service Redundancy

    (media present, etc.), the standby will be brought online and new accounting files will be created at that point. Users must manually copy the accounting records from the failed Page 216 7750 SR OS Basic System Configuration Guide...

  • Page 217: Nonstop Forwarding

    NSR is always up to date, which eliminates possible blackholes or forwarding loops. This is also called the Alcatel-Lucent Carrier Environment Internet System (ACEIS). NSR is a relatively new high availability technique. However, it is regarded the most promising to ensure IP packets continue to forward once a route processor fails and allows for in- service software upgrades.

  • Page 218: Cpm Switchover

    CLI commands. force-switchover now Note that with the 7750 SR-1 the CLI command does not cause a admin reboot[now] switchover but a reboot of the entire system. Page 218 7750 SR OS Basic System Configuration Guide...

  • Page 219: Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CPM by rebooting the standby by issuing the command admin reboot standby on the active or the standby CPM . 7750 SR OS Basic System Configuration Guide Page 219...

  • Page 220: Synchronization And Redundancy

    The following shows the output displayed during a manual synchronization of configuration files. A:ALA-12>admin>redundancy# synchronize config Syncing configuration..Syncing configuration..Completed. A:ALA-12# Page 220 7750 SR OS Basic System Configuration Guide...

  • Page 221: Active And Standby Designations

    The following console message displays when a CPM boots, sees an active CPM, and becomes the standby CPM. Slot A contains the Active CPM This CPM (Slot B) is the Standby CPM 7750 SR OS Basic System Configuration Guide Page 221...

  • Page 222: When The Active Cpm Goes Offline

    When the standby CPM comes online, the following output displays: Active CPM in Slot A has stopped Slot B is now active CPM Attempting to exec configuration file: 'cf3:/config.cfg' ... Executed 49,588 lines in 8.0 seconds from file cf3:\config.cfg Page 222 7750 SR OS Basic System Configuration Guide...

  • Page 223: Persistence

    2. DHCP message information is sent to the standby CPM and also there the DHCP informa- tion is logged on the Compact Flash. If persistency fails on the standby also, a trap is gener- ated. 7750 SR OS Basic System Configuration Guide Page 223...

  • Page 224: Network Synchronization

    • Uses reliable physical media to provide transport of the timing signal; it doesn't consume any bandwidth and requires limited additional processing. Page 224 7750 SR OS Basic System Configuration Guide...
  • Page 225 Synchronous Ethernet breaks the chain. Ethernet frames will still get through but downstream devices should not use the recovered line timing as it will not be traceable to an acceptable stratum source. 7750 SR OS Basic System Configuration Guide Page 225...

  • Page 226: Central Synchronization Sub-System

    This relative priority order is in addition to the user definable ref-order. For example, a ref-order of ‘bits-ref1-ref2’ would actually be BITS in (active CPM) followed by BITS in (standby CPM) followed by ref1 followed by ref2. Page 226 7750 SR OS Basic System Configuration Guide...

  • Page 227: Synchronous Ethernet

    The advantage of using Synchronous Ethernet, compared with methods that rely on sending timing information in packets over an unclocked physical layer, is that it is not influenced by 7750 SR OS Basic System Configuration Guide Page 227...
  • Page 228 The SSM of Synchronous Ethernet uses an Ethernet OAM PDU that uses the slow protocol subtype. For a complete description of the format and processing see ITU-T G.8264 Page 228 7750 SR OS Basic System Configuration Guide...

  • Page 229: Table 28: Synchronization Message Coding And Source Priorities (Value Received On A Port)

    00100010 11111111 (smc) 00101000 11111111 (st4) 1110 (pno) 01000000 11111111 (pno) 1111 (dnu) 1111 (dus) 1111 (dnu) 00110000 11111111 (dus) Any other Any other Any other 13. QL_INVALID 14. QL-FAILED 15. QL-UNC 7750 SR OS Basic System Configuration Guide Page 229...

  • Page 230: Table 29: Synchronization Message Coding And Source Priorities (Transmitted By Interface Of Type)

    1111 (dnu) 1111 (dus) 1111 (dnu) 00110000 11111111 (dus) 14. QL-FAILED 1111 (dnu) 1111 (dus) 1111 (dnu) 00110000 11111111 (dus) 15. QL-UNC 1011 (sec/eec1) 1010 (st3/eec2) 1011 (sec) 00010000 11111111 (st3) Page 230 7750 SR OS Basic System Configuration Guide...

  • Page 231: System-Wide Atm Parameters

    IES or VPRN service interface SAP atm oam atm>oam context and then enabled in the context. Refer to the IES and VPRN sections of the 7750 SR OS Services Guide for further information. 7750 SR OS Basic System Configuration Guide Page 231...

  • Page 232: Link Layer Discovery Protocol (Lldp)

    LLDPDU’s identifier is to be discarded immediately. Note that a TTL value of zero can be used, for example, to signal that the sending port has initiated a port shutdown procedure. Page 232 7750 SR OS Basic System Configuration Guide...

  • Page 233: Figure 10: Lldp Internal Architecture For A Network Node

    Figure 10: LLDP Internal Architecture for a Network Node Network operators must be able to discover the topology information in order to detect and address network problems and inconsistencies in the configuration. Moreover, standard-based 7750 SR OS Basic System Configuration Guide Page 233...

  • Page 234: Figure 11: Customer Use Example For Lldp

    QinQ switches, DSLAMs or customer equipment. IEEE 802.1ab LLDP running on each Ethernet interfaces in between all the above network elements may be used to discover the topology information. Page 234 7750 SR OS Basic System Configuration Guide...

  • Page 235: Administrative Tasks

    To support a particular chassis-mode, all provisioned IOMs must meet the corresponding IOM level. The chassis Mode corresponds to scaling and feature sets associated with a given card. The base mode is chassis mode A which supports all IOM card types. 7750 SR OS Basic System Configuration Guide Page 235...
  • Page 236 : abcdefg1234 Number of slots : 12 Number of ports : 246 Critical LED state : Off Major LED state : Off Minor LED state : Off Over Temperature state : OK Page 236 7750 SR OS Basic System Configuration Guide...
  • Page 237 : 01012003 Manufacturing string : Sim MfgString sim48 Manufacturing deviations : Sim MfgDeviation sim48 Time of last boot : 2007/09/24 08:15:17 Current alarm state : alarm cleared ------------------------------------------------------------------------------- Environment Information =============================================================================== *A:ALA-48# 7750 SR OS Basic System Configuration Guide Page 237...

  • Page 238: Saving Configurations

    For example, after a configuration file is successfully loaded, the specified URL can contain a nearly identical configuration file with certain commands enabled or disabled, or particular parameters specified and according to the script which loads that file. Page 238 7750 SR OS Basic System Configuration Guide...

  • Page 239: Network Timing

    LEDs on the Control Processor/Switch Fabric Module (CP/SFM) front panel, but the power supply information must be explicitly configured in order for a power supply alarm to be generated if a power source becomes operationally disabled. 7750 SR OS Basic System Configuration Guide Page 239...

  • Page 240: Automatic Synchronization

    CPM) are copied to the same compact flash on the standby CPM. Config Option option synchronizes configuration files by copying the files specified in the active config CPM BOF file to the same compact flash on the standby CPM. Page 240 7750 SR OS Basic System Configuration Guide...

  • Page 241: Manual Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CPM by rebooting the standby by issuing the command admin reboot standby on the active or the standby CPM. 7750 SR OS Basic System Configuration Guide Page 241...

  • Page 242: System Configuration Process Overview

    START CONFIGURE SYSTEM INFORMATION CONFIGURE HIGH AVAILABILITY PARAMETERS (RECOMMENDED) CONFIGURE TIME PARAMETERS CONFIGURE SYNCHRONIZATION PARAMETERS (RECOMMENDED) MODIFYING NETWORK TIMING PARAMETERS (OPTIONAL) Figure 12: System Configuration and Implementation Flow Page 242 7750 SR OS Basic System Configuration Guide...

  • Page 243: Configuration Notes

    Configuration Notes This section describes system configuration caveats. General • The 7750 SR-Series routermust be properly initialized and the boot loader and BOF files successfully executed in order to access the CLI. 7750 SR OS Basic System Configuration Guide Page 243...
  • Page 244 Configuration Notes Page 244 7750 SR OS Basic System Configuration Guide...

  • Page 245: Configuring System Management With Cli

    Set-time on page 286 → Display-config on page 286 → Tech-support on page 288 → Save on page 288 → Reboot on page 289 → Post-Boot Configuration Extension Files on page 290 7750 SR OS Basic System Configuration Guide Page 245...
  • Page 246 Using the Revert Command on page 295 → Other Editing Commands on page 295 → Forcing a Specific Reference on page 296 • Configuring System Monitoring Thresholds on page 297 • Configuring LLDP on page 299 Page 246 7750 SR OS Basic System Configuration Guide...

  • Page 247: System Management

    If the save attempt fails at the destination, an error occurs and is logged. The system does not try to save the file to the secondary or tertiary configuration sources unless the path and filename are explicitly named with the command. save 7750 SR OS Basic System Configuration Guide Page 247...

  • Page 248: Basic System Configuration

    "System Configuration " #------------------------------------------ name "ALA-12" coordinates "Unknown" snmp exit security snmp community "private" rwa version both exit exit time server 192.168.15.221 no shutdown exit sntp shutdown exit zone GMT exit ---------------------------------------------- A:ALA-12>config>system# Page 248 7750 SR OS Basic System Configuration Guide...

  • Page 249: Common Configuration Tasks

    Set-time on page 286 → Display-config on page 286 → Reboot on page 289 → Save on page 288 • System Timing on page 293 → Configuring Timing References on page 294 7750 SR OS Basic System Configuration Guide Page 249...

  • Page 250: System Information

    CLI Syntax: config>system name system-name Example alcatel>config>system# name ALA-12 The following example displays the system name: sysName@domain>config>system# info #------------------------------------------ echo "System Configuration " #------------------------------------------ name "ALA-12" . . . exit ---------------------------------------------- Page 250 7750 SR OS Basic System Configuration Guide...

  • Page 251: Contact

    7750 SR-Series router. Use the following CLI command syntax to define the CLLI code: CLI Syntax: config>system clli-code clli-code Example config>system# clli-code abcdefg1234 7750 SR OS Basic System Configuration Guide Page 251...

  • Page 252: Coordinates

    "System Configuration " #------------------------------------------ name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12" . . . exit ---------------------------------------------- A:ALA-12>config>system# Page 252 7750 SR OS Basic System Configuration Guide...

  • Page 253: System Time Elements

    [hh [:mm]] Example config>system>time# config>system>time# zone GMT The following example displays the zone output: A:ALA-12>config>system>time# info ---------------------------------------------- server 192.168.15.221 no shutdown exit sntp shutdown exit zone UTC ---------------------------------------------- A:ALA-12>config>system>time# 7750 SR OS Basic System Configuration Guide Page 253...

  • Page 254: Table 31: System-Defined Time Zones

    Central Standard Time (e.g., Darwin) UTC +9.5 hours ACST Eastern Standard/Summer Time (e.g., UTC +10 hours AEST Canberra) New Zealand Standard Time UTC +12 hours New Zealand Daylight Saving Time UTC +13 hours NZDT Page 254 7750 SR OS Basic System Configuration Guide...

  • Page 255: Summer Time Conditions

    The following example displays the configured parameters. A:ALA-48>config>system>time>dst-zone# info ---------------------------------------------- start second sunday april 02:00 end first sunday october 02:00 offset 0 ---------------------------------------------- A:ALA-48>config>system>time>dst-zone# offset 0 7750 SR OS Basic System Configuration Guide Page 255...

  • Page 256: Ntp

    CLI Syntax: config>system>time>ntp authentication-check Example config>system>time>ntp# config>system>time>ntp# authentication-check config>system>time>ntp# no shutdown Page 256 7750 SR OS Basic System Configuration Guide...
  • Page 257 The following example in the context shows NTP enabled with the system>time broadcast command configured. A:sim1>config>system>time# info detail ---------------------------------------------- no shutdown authentication-check ntp-server broadcast interface int11 version 4 ttl 127 7750 SR OS Basic System Configuration Guide Page 257...

  • Page 258: Broadcastclient

    A:ALA-12>config>system>time# info ---------------------------------------------- broadcastclient interface int11 no shutdown exit dst-zone PT start second sunday april 02:00 end first sunday october 02:00 offset 0 exit zone UTC ---------------------------------------------- A:ALA-12>config>system>time# Page 258 7750 SR OS Basic System Configuration Guide...
  • Page 259 [authenticate] Example config>system>time>ntp# config>system>time>ntp# multicastclient authenticate config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. multicastclient A:ALA-12>config>system>time# info ---------------------------------------------- server 192.168.15.221 multicastclient no shutdown ---------------------------------------------- A:ALA-12>config>system>time## 7750 SR OS Basic System Configuration Guide Page 259...
  • Page 260 192.168.1.1 key-id 1 config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. peer A:sim1>config>system>time>ntp# info ---------------------------------------------- no shutdown peer 192.168.1.1 key-id 1 ---------------------------------------------- A:sim1>config>system>time>ntp# Page 260 7750 SR OS Basic System Configuration Guide...
  • Page 261 192.168.1.1 key-id 1 config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. server A:sim1>config>system>time>ntp# info ---------------------------------------------- no shutdown server 192.168.1.1 key 1 ---------------------------------------------- A:sim1>config>system>time>ntp# 7750 SR OS Basic System Configuration Guide Page 261...

  • Page 262: Sntp

    The following example shows SNTP enabled with the broadcast-client command enabled. A:ALA-12>config>system>time# info ---------------------------------------------- sntp broadcast-client no shutdown exit dst-zone PT start second sunday april 02:00 end first sunday october 02:00 offset 0 exit zone GMT ---------------------------------------------- A:ALA-12>config>system>time# Page 262 7750 SR OS Basic System Configuration Guide...
  • Page 263 The following example shows SNTP enabled with the server-address command configured. A:ALA-12>config>system>time# info ---------------------------------------------- sntp server-address 10.10.0.94 version 1 preferred interval 100 no shutdown exit dst-zone PT start-date 2006/04/04 12:00 end-date 2006/10/25 12:00 zone GMT ---------------------------------------------- A:ALA-12>config>system>time# 7750 SR OS Basic System Configuration Guide Page 263...

  • Page 264: Cron

    The following example shows a script named “test” receiving an action to store its results in a file called “test-results”: A:sim1>config>cron# info ---------------------------------------------- script "test" location "ftp://172.22.184.249/./sim1/test.cfg" Page 264 7750 SR OS Basic System Configuration Guide...
  • Page 265 The following example schedules a script named “test2” to run every 15 minutes on the 17th of each month and every Friday until noon on July 17, 2007: *A:SR-3>config>cron# info ---------------------------------------------- schedule "test2" shutdown day-of-month 17 minute 0 15 30 45 weekday friday 7750 SR OS Basic System Configuration Guide Page 265...
  • Page 266 [owner script-owner] description description-string location file-url shutdown Example config>cron# script test config>cron>script# The following example names a script “test”: A:sim1>config>cron# info ---------------------------------------------- script "test" location "ftp://172.22.184.249/./sim1/test.cfg" no shutdown exit ---------------------------------------------- A:sim1>config>cron# Page 266 7750 SR OS Basic System Configuration Guide...

  • Page 267: Time Range

    Absolute The absolute command configures a start and end time that will not repeat. CLI Syntax: config>cron>time-range$ absolute absolute-time end absolute-time Example config>cron>time-range$ absolute start 2006/05/05,11:00 end 2006/05/06,11:01 config>cron>time-range$ 7750 SR OS Basic System Configuration Guide Page 267...
  • Page 268 The following example shows a daily time range beginning at 11:00 and ending at 12:00. A:sim1>config>cron>time-range# show cron time-range detail =============================================================================== Cron time-range details =============================================================================== Name Triggers Status : Inactive Periodic : daily Start 11:00 End 12:00 =============================================================================== A:sim1>config>cron>time-range# Page 268 7750 SR OS Basic System Configuration Guide...
  • Page 269 Saturday or Sunday accordingly. In addition, see the Schedule parameter to schedule oneshot or periodic events in the context. config>cron> A:sim1>config>cron>time-range# show cron time-range detail =============================================================================== Cron time-range details =============================================================================== Name Triggers 7750 SR OS Basic System Configuration Guide Page 269...
  • Page 270 The following command shows a weekly time range beginning on Friday at 1:01am ending Friday at 1:02am. A:sim1>config>cron>time-range$ info ---------------------------------------------- weekly start fri,01:01 end fri,01:02 ---------------------------------------------- A:sim1>config>cron>time-range$ Page 270 7750 SR OS Basic System Configuration Guide...

  • Page 271: Time Of Day

    If the multi-service-site has an egress aggregate rate limit configured, any egress scheduler policy assignment cannot be applied. While a TOD Suite is assigned to a multi-service-site, it is not possible to configure a scheduler to override it. 7750 SR OS Basic System Configuration Guide Page 271...

  • Page 272: Ancp (Access Node Control Protocol)

    SAPs may not have a TOD suite while belonging to an egress multicast group (EMG). Since all SAPs that belong to the same EMG must have the same egress filter, it is imperative to ensure that the TOD Suite does not modify the egress filter assignment. Page 272 7750 SR OS Basic System Configuration Guide...
  • Page 273 100 create A:sim1>config>filter>ip-filter$ entry 10 create A:sim1>config>filter>ip-filter>entry$ A:sim1>config>cron>tod-suite# egress filter ip 100 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description egress filter ip 100 exit ---------------------------------------------- A:sim1>config>cron>tod-suite# Example config>cron>tod-suite$ egress qos 101 config>cron>tod-suite$ 7750 SR OS Basic System Configuration Guide Page 273...
  • Page 274 The following command shows an association with an egress scheduler-policy called test1. A:sim1>config# qos scheduler-policy test1 create A:sim1>config>qos>scheduler-policy# A:sim1# configure cron tod-suite test1 create A:sim1>config>cron>tod-suite# egress scheduler-policy test1 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description egress scheduler-policy test1 exit ---------------------------------------------- A:sim1>config>cron>tod-suite$ Page 274 7750 SR OS Basic System Configuration Guide...
  • Page 275 The following command shows an ingress IP filter association with filter ID 100. sim1>config>filter# ip-filter 100 create A:sim1>config>filter>ip-filter$ entry 10 create A:sim1>config>filter>ip-filter>entry$ A:sim1>config>cron>tod-suite# ingress filter ip 100 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description ingress filter ip 100 exit ---------------------------------------------- A:sim1>config>cron>tod-suite# 7750 SR OS Basic System Configuration Guide Page 275...
  • Page 276 The following command shows an association with an ingress scheduler-policy named test1. A:sim1>config# qos scheduler-policy test1 create A:sim1>config>qos>scheduler-policy# A:sim1# configure cron tod-suite test1 create A:sim1>config>cron>tod-suite#ingress scheduler-policy test1 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description ingress scheduler-policy test1 exit ---------------------------------------------- A:sim1>config>cron>tod-suite# Page 276 7750 SR OS Basic System Configuration Guide...

  • Page 277: Configuring Synchronization And Redundancy

    The switchover-exec command specifies the location and name of the CLI script file executed following a redundancy switchover from the previously active CPM card. CLI Syntax: admin>redundancy synchronize {boot-env|config} CLI Syntax: config>system switchover-exec file-url 7750 SR OS Basic System Configuration Guide Page 277...

  • Page 278: Configuring Manual Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CPM by rebooting the standby by issuing the admin reboot standby command on the active or the standby CPM. Page 278 7750 SR OS Basic System Configuration Guide...

  • Page 279: Configuring Synchronization Options

    A:ALA-12>config>system# show system synchronization =================================================== Synchronization Information =================================================== Synchronize Mode : Configuration Synchronize Status : No synchronization Last Config Sync Time : 2006/06/27 09:17:15 Last Boot Env Sync Time : 2006/06/24 07:16:37 =================================================== A:ALA-12>config>system# 7750 SR OS Basic System Configuration Guide Page 279...

  • Page 280: Configuring Multi-Chassis Redundancy

    10.10.10.2 create config>redundancy>multi-chassis>peer# description "Mc-Lag peer 10.10.10.2" config>redundancy>multi-chassis>peer# mc-lag config>redundancy>mc>peer>mc-lag# lag 1 lacp-key 32666 system-id 00:00:00:33:33:33 system-priority 32888 config>redundancy>mc>peer>mc-lag# no shutdown config>redundancy>mc>peer>mc-lag# exit config>redundancy>multi-chassis>peer# no shutdown config>redundancy>multi-chassis>peer# exit config>redundancy>multi-chassis# exit config>redundancy# Page 280 7750 SR OS Basic System Configuration Guide...
  • Page 281 System Management The following displays the configuration: A:ALA-48>config>redundancy# info --------------------------------------------- multi-chassis peer 10.10.10.2 create description "Mc-Lag peer 10.10.10.2" mc-lag no shutdown exit no shutdown exit exit --------------------------------------------- A:ALA-48>config>redundancy# 7750 SR OS Basic System Configuration Guide Page 281...

  • Page 282: Configuring Power Supply Parameters

    "N 45 58 23, W 34 56 12" power-supply 1 dc power-supply 2 dc lacp-system-priority 1 sync-if-timing begin ref-order ref1 ref2 bits ref1 shutdown exit ref2 shutdown exit bits shutdown interface-type ds1 esf exit commit exit ----------------------------------------------------------------- Page 282 7750 SR OS Basic System Configuration Guide...

  • Page 283: Configuring Atm System Parameters

    30 config>system>atm>oam# retry-down 5 config>system>atm>oam# retry-up 3 config>system>atm>oam# exit The following example shows the ATM configuration. A:ALA-12>config>system>atm# info ---------------------------------------------- atm-location-id 03:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 retry-up 3 retry-down 5 loopback-period 30 exit ---------------------------------------------- A:ALA-12>config>system>atm# 7750 SR OS Basic System Configuration Guide Page 283...

  • Page 284: Configuring Backup Copies

    A:ALA-12>config>system>time# info #------------------------------------------ echo "System Configuration" #------------------------------------------ name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12" config-backup 7 ---------------------------------------------- A:ALA-12>config>system>time# Page 284 7750 SR OS Basic System Configuration Guide...

  • Page 285: System Administration Parameters

    [address ip-address |username user-name | {console|telnet|ftp|ssh}] Example admin# disconnect The following example displays the disconnect command results. ALA-1>admin# disconnect ALA-1>admin# Logged out by the administrator Connection to host lost. C:\> 7750 SR OS Basic System Configuration Guide Page 285...

  • Page 286: Set-Time

    # Built on Wed Mar 3 21:44:25 PST 2004 by builder in /rel0.0/I326/panos/main # Generated SAT MAR 06 03:20:06 2004 UTC exit all configure #------------------------------------------ echo "System Configuration" #------------------------------------------ system name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" Page 286 7750 SR OS Basic System Configuration Guide...
  • Page 287 "Mirror Configuration" #------------------------------------------ mirror mirror-dest 218 create fc be no remote-source sap 2/1/10:0 create egress qos 1 exit exit no slice-size no shutdown exit Finished SAT MAR 06 03:23:05 2004 UTC A:ALA-12>admin# 7750 SR OS Basic System Configuration Guide Page 287...

  • Page 288: Tech-Support

    System Administration Parameters Tech-support command creates a system core dump. NOTE: This command should only tech-support be used with explicit authorization and direction from Alcatel-Lucent’s Technical Assistance Center (TAC). Save command saves the running configuration to a configuration file. When the...

  • Page 289: Reboot

    Are you sure you want to reboot (y/n)? y Rebooting... Using preloaded VxWorks boot loader. If synchronization fails, the standby does not reboot automatically. The show redundancy command displays synchronization output information. synchronization 7750 SR OS Basic System Configuration Guide Page 289...

  • Page 290: Post-Boot Configuration Extension Files

    "N 45 58 23, W 34 56 12" config-backup 7 boot-good-exec "ftp://test:test@192.168.xx.xxx/./ok.cfg" boot-bad-exec "ftp://test:test@192.168.xx.xxx/./fail.cfg" power-supply 1 dc power-supply 2 dc lacp-system-priority 1 sync-if-timing begin ref-order ref1 ref2 bits ---------------------------------------------- A:ALA-12>config>system# Page 290 7750 SR OS Basic System Configuration Guide...

  • Page 291: Show Command Output And Console Messages

    Cfg-Fail Script Status : not used Management IP Addr : 192.168.xx.xxx/20 DNS Server : 192.168.1.254 DNS Domain : eng.timetra.com BOF Static Routes Next Hop 172.22.184.0/22 192.168.1.251 ATM Location ID : 01:00:00:00:00:11:00:00:00:00:00:00:00:00:00:00 =============================================================================== ALA-12>config>system# 7750 SR OS Basic System Configuration Guide Page 291...
  • Page 292 MAJOR: CLI #1009 An error occurred while processing a CLI command - File ftp://test:test@192.168.xx.xxx/./fail.cfg, Line 5: Command "abc log" failed. TiMOS-B-x.0.Rx both/hops ALCATEL SR 7750 Copyright (c) 2000-2009 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Thu Nov 207 19:19:11 PST 2008 by builder in /rel5x.0/b1/Rx/panos/main...

  • Page 293: System Timing

    A:ALA-12>config>system>sync-if-timing>ref1# source-port 2/1/1 MINOR: CLI The sync-if-timing must be in edit mode by calling begin before any changes can be made. MINOR: CLI Unable to set source port for ref1 to 2/1/1. A:ALA-12>config>system>sync-if-timing>ref1# 7750 SR OS Basic System Configuration Guide Page 293...

  • Page 294: Configuring Timing References

    The following displays a timing reference configuration example: ALA-12>config>system>sync-if-timing# info ---------------------------------------------- ref-order ref2 ref1 bits ref1 source-port 3/1/1 no shutdown exit ref2 source-port 6/1/2 no shutdown exit bits interface-type ds1 esf no shutdown exit ---------------------------------------------- ALA-12>config>system>sync-if-timing# Page 294 7750 SR OS Basic System Configuration Guide...

  • Page 295: Using The Revert Command

    Modifications are not persistent across system boots unless this command is entered. • — This command discards changes that have been made to the timing references abort during a session. CLI Syntax: config>system>sync-if-timing abort commit 7750 SR OS Basic System Configuration Guide Page 295...

  • Page 296: Forcing A Specific Reference

    On a CPM activity switch, the force command is cleared and normal reference selection is determined. Debug configurations are not saved between reboots. CLI Syntax: debug>sync-if-timing force-reference {ref1 | ref2 | bits} Example debug>sync-if-timing# force-reference Page 296 7750 SR OS Basic System Configuration Guide...

  • Page 297: Configuring System Monitoring Thresholds

    SNMP object identifier to be sampled. The preconfigured threshold configurations include memory warnings and alarms and compact flash usage warnings and alarms. 7750 SR OS Basic System Configuration Guide Page 297...
  • Page 298 The following example displays the command output: A:ALA-49>config>system>thresholds# info ---------------------------------------------- rmon event 5 description "alarm testing" owner "Timos CLI" exit cflash-cap-warn cf1-B: rising-threshold 2000000 falling-threshold 1999900 interval 240 trap memory-use-alarm rising-threshold 50000000 falling-threshold 45999999 interval ---------------------------------------------- A:ALA-49>config>system>thresholds# Page 298 7750 SR OS Basic System Configuration Guide...

  • Page 299: Configuring Lldp

    ---------------------------------------------- *A:ALA-48>config>port>ethernet>lldp# The following example shows a global system LLDP configuration. A:ALA-48>config>system>lldp# info ---------------------------------------------- tx-interval 10 tx-hold-multiplier 2 reinit-delay 5 notification-interval 10 ---------------------------------------------- A:ALA-48>config>system>lldp# 7750 SR OS Basic System Configuration Guide Page 299...
  • Page 300 Configuring LLDP Page 300 7750 SR OS Basic System Configuration Guide...

  • Page 301: System Command Reference

    — no boot-bad-exec — boot-good-exec file-url — no boot-good-exec — chassis-mode {chassis-mode} [force] — clli-code clli-code — no clli-code — config-backup count — no config-backup — contact contact-name — no contact 7750 SR OS Basic System Configuration Guide Page 301...
  • Page 302 — [no] enable-icmp-vse — lacp-system-priority lacp-system-priority — no lacp-system-priority — [no] l4-load-balancing — lsr-load-balancing {lbl-only | lbl-ip| ip-only} — no lsr-load-balancing — location location — no location — name system-name — no name Page 302 7750 SR OS Basic System Configuration Guide...

  • Page 303: System Management

    [sample-type] [startup-alarm alarm-type] [rising-event rmon-event-id rising-threshold threshold] [falling event rmon-event-id falling-threshold threshold] [owner owner-string] — no alarm rmon-alarm-id — event rmon-event-id [event-type] [description description-string] [owner owner-string] — no event rmon-event-id 7750 SR OS Basic System Configuration Guide Page 303...
  • Page 304 — system — persistence — dhcp-server — description description-string — no description — location cflash-id — no location — subscriber-mgmt — description description-string — no description — location cflash-id — no location Page 304 7750 SR OS Basic System Configuration Guide...
  • Page 305 — [no] dst-zone [std-zone-name | non-std-zone-name] — {end-week} {end-day} {end-month} [hours-minutes] — offset offset — start {start-week} {start-day} {start-month} [hours-minutes] — zone std-zone-name | non-std-zone-name [hh [:mm]] — no zone 7750 SR OS Basic System Configuration Guide Page 305...
  • Page 306 [time-range time-range-name] [pri- ority priority] — no scheduler-policy scheduler-policy-name [time-range time-range-name] — ingress — filter ip ip-filter-id [time-range time-range-name] [priority priority] — filter ipv6 ipv6-filter-id [time-range time-range-name] [priority priority] Page 306 7750 SR OS Basic System Configuration Guide...
  • Page 307 — no filtermac mac-filter-id [time-range time-range-name — policy-id [time-range time-range-name] [priority priority] — no policy-id [time-range time-range-name] — scheduler-policy scheduler-policy-name [time-range time-range-name] [pri- ority priority] — no scheduler-policy scheduler-policy-name [time-range time-range-name] 7750 SR OS Basic System Configuration Guide Page 307...
  • Page 308 — [no] enable-tech — radius-discovery — force-discover [svc-id service-id] — reboot [active | standby | upgrade] [now] — redundancy — save [file-url] [detail] [index] — synchronize [boot-env | config] — tech-support [file-url] Page 308 7750 SR OS Basic System Configuration Guide...
  • Page 309 — bits-interface-type {ds1 [{esf | sf}] | e1 [{pcm30crc | pcm31crc}]} — no bits-interface-type — [no] shutdown — source-bits slot/mda — no source-bits — source-port port-id — no source-port — [no] 7750 SR OS Basic System Configuration Guide Page 309...
  • Page 310 — interface ip-int-name — no interface — service-id service-id — no service-id — [no] path-b — [no] range vlan-range — [no] path-excl — [no] range vlan-range — ring-node ring-node-name [create] Page 310 7750 SR OS Basic System Configuration Guide...
  • Page 311 — no range encap-range — [no] shutdown — [no] srrp — [no] sub-mgmt — bgp-multi-homing — boot-timer seconds — no boot-timer — site-activation-timer seconds — no site-activation-timer — synchronize {boot-env | config} 7750 SR OS Basic System Configuration Guide Page 311...
  • Page 312 {nearest-bridge | nearest-non-tpmr | nearest-customer} — admin-status {rx | tx | tx-rx | disabled} — [no] notification — tx-mgmt-address [system] — no tx-mgmt-address — tx-tlvs [port-desc] [sys-name] [sys-desc] [sys-cap] — no tx-tlvs Page 312 7750 SR OS Basic System Configuration Guide...
  • Page 313 [address ip-address [interface interface-name]] [port port-number] [detail] — [sample-period seconds] — information — load-balancing-alg [detail] — memory-pools — — sntp — switch-fabric — sync-if-timing — thresholds — time — uptime 7750 SR OS Basic System Configuration Guide Page 313...
  • Page 314 Debug Commands debug — sync-if-timing — force-reference {ref1 | ref2 | bits} — no force-reference — [no] system — http-connections [host-ip-address/mask] — no http-connections — [router router-name] [interface ip-int-name] — persistence Page 314 7750 SR OS Basic System Configuration Guide...
  • Page 315 — mc-ring — mc-ring peer ip-address [ring sync-tag] — srrp-sync-database [instance instance-id] [peer ip-address] — sync-database [peer ip-address] [port port-id | lag-id] [sync-tag sync-tag] [application application] [detail] [type type] 7750 SR OS Basic System Configuration Guide Page 315...
  • Page 316 System Command Reference Page 316 7750 SR OS Basic System Configuration Guide...
  • Page 317 The description command associates a text string with a configuration context to help identify the content in the configuration file. The no form of this command removes the string from the configuration. Default No description associated with the configuration context. 7750 SR OS Basic System Configuration Guide Page 317...
  • Page 318 — The description character string. Allowed values are any string up to 80 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Page 318 7750 SR OS Basic System Configuration Guide...

  • Page 319: System Information Commands

    Invalid values include a location ID where the first octet is : 00, FF, 6A Acceptable location-ids include values where the first octet is: 01, 03 Other values are not accepted. Values 01:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 Syntax Context config>system>atm Description This command configures system-wide ATM parameters. 7750 SR OS Basic System Configuration Guide Page 319...
  • Page 320 This command specifies the number of consecutive OAM loopback attempts that must succeed after the periodic attempt before the endpoint will transition the state to up. Parameters retries — Specify the number of successful loopback replies before an ATM VC goes up. Page 320 7750 SR OS Basic System Configuration Guide...
  • Page 321 Syntax boot-good-exec file-url no boot-good-exec Context config>system Description Use this command to configure a URL for a CLI script to exec following the success of a boot-up configuration. 7750 SR OS Basic System Configuration Guide Page 321...
  • Page 322 This mode corresponds to scaling and feature set associated with iom-20g. b: This mode corresponds to scaling and feature set associated with iom-20g-b. c: This mode corresponds to scaling and feature set associated with iom2-20g. Page 322 7750 SR OS Basic System Configuration Guide...

  • Page 323: Table 32: Chassis Mode Behavior

    If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. If more than 11 characters are entered, the string is truncated. If less than 11 characters are entered the string is padded with spaces. 7750 SR OS Basic System Configuration Guide Page 323...
  • Page 324 — The contact name character string. The string can be up to 80 characters long. Any printable, seven-bit ASCII characters can be used within the string. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Page 324 7750 SR OS Basic System Configuration Guide...
  • Page 325 A-records only (address-preference is IPv4-only). If the address-preference is set to IPv6- first, the DNS server will be queried for AAAA-records (IPv6) first and if a successful replied is not received, then the DNS server is queried for A-records. 7750 SR OS Basic System Configuration Guide Page 325...
  • Page 326 • Packets of point-to-point services (Epipe) will be hashed based on the service ID. Use of Layer 4 information (TCP/UDP ports) will not be used in following cases: • Fragmented packets. • Packets received from a VPRN tunnel. Default no l4-load-balancing Page 326 7750 SR OS Basic System Configuration Guide...
  • Page 327 Only one location can be configured. If multiple locations are configured, the last one entered overwrites the previous entry. The no form of the command reverts to the default value. Default none — No system location is configured. 7750 SR OS Basic System Configuration Guide Page 327...
  • Page 328 When the file-url parameter is not specified, no CLI script file is executed. Default none Parameters file-url — Specifies the location and name of the CLI script file. Page 328 7750 SR OS Basic System Configuration Guide...
  • Page 329 System Management Values file url: local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url: [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id: cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: 7750 SR OS Basic System Configuration Guide Page 329...
  • Page 330 2147483647 - 1 during a single sampling interval. Care should also be taken not to set the interval value too low to avoid creating unnecessary processing overhead. Default None Values 1 — 2147483647 Page 330 7750 SR OS Basic System Configuration Guide...
  • Page 331 If the falling-event has a value of zero (0), no associated event exists. If a ’falling event’ is configured, the CLI requires a ’falling-threshold to also be configured. Default Values -2147483648 — 2147483647 7750 SR OS Basic System Configuration Guide Page 331...
  • Page 332 A single threshold crossing event will also be generated if the first sample taken is greater than or equal to this threshold and the associated ’startup-alarm’ is equal to ’rising’ or ’either’. Page 332 7750 SR OS Basic System Configuration Guide...
  • Page 333 If the first sample is less than or equal to the falling threshold value and startup-alarm is equal to falling or either, a single falling threshold crossing event is generated. Default either Values rising, falling, either Configuration example: 7750 SR OS Basic System Configuration Guide Page 333...
  • Page 334 — Specifies the polling period over which the data is sampled and compared with the rising and falling thresholds. Values 1 — 2147483647 rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Page 334 7750 SR OS Basic System Configuration Guide...
  • Page 335 Falling Alarm notification creates an entry in the TiMOS event logs and that is distributed to whatever TiMOS log destinations are configured: CONSOLE, session, memory, file, syslog, or SNMP trap destination. 7750 SR OS Basic System Configuration Guide Page 335...
  • Page 336 CLI users and can be a maximum of 80 characters long. Default TiMOS CLI Configuration example: Default event 5 rmon-event-type both description "alarm testing" owner "TiMOS CLI" Page 336 7750 SR OS Basic System Configuration Guide...
  • Page 337 CLI command. trap — In the case of trap, a TiMOS logger event is generated. The TiMOS logger utility then distributes the notification of this event to its configured log 7750 SR OS Basic System Configuration Guide Page 337...
  • Page 338 After a rising threshold crossing event is generated, another such event will not be generated until the sampled value falls below this threshold and reaches less than or equal the falling- threshold value. Default Values -2147483648 — 2147483647 Page 338 7750 SR OS Basic System Configuration Guide...
  • Page 339 Default either Values rising, falling, either Configuration example: memory-use-warn rising-threshold 500000 falling-threshold 400000 interval 800 rmon- event-type log start-alarm falling 7750 SR OS Basic System Configuration Guide Page 339...
  • Page 340 The configuration of an event controls the generation and notification of threshold crossing events configured with the alarm command. thresholds Syntax thresholds Context config>system Description This command enables the context to configure monitoring thresholds. Page 340 7750 SR OS Basic System Configuration Guide...
  • Page 341 — Specifies that one AC power supply unit is installed in the power supply slot. multiple — Specifies that more than one AC power supply unit is installed in the power supply slot. 7750 SR OS Basic System Configuration Guide Page 341...

  • Page 342: Date And Time Commands

    24 hour format (00=midnight, 12=noon) mm is the two-digit minute time Syntax time Context config>system Description This command enables the context to configure the system time zone and time synchronization parameters. Page 342 7750 SR OS Basic System Configuration Guide...
  • Page 343 NTP protocol. For authentication to work, the authentication key-id, type and key value must match. The no form of the command removes the authentication key. 7750 SR OS Basic System Configuration Guide Page 343...
  • Page 344 The no form of this command removes the address from the configuration. Parameters router — Specifies the router name used to transmit NTP packets. Base is the default. Select management to use the management port (Ethernet port on the Page 344 7750 SR OS Basic System Configuration Guide...
  • Page 345 — Specifies the local interface on which to receive NTP broadcast packets. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Values 32 character maximum 7750 SR OS Basic System Configuration Guide Page 345...
  • Page 346 — This optional parameter makes authentication a requirement. If authentication is required, the authentication key-id received must have been configured in the “authentication- key” command, and that key-id’s type and key value must also match. Page 346 7750 SR OS Basic System Configuration Guide...
  • Page 347 — Specify the NTP version number that is generated by this node. This parameter does not need to be configured when in client mode in which case all three nodes are accepted. Default 7750 SR OS Basic System Configuration Guide Page 347...
  • Page 348 — When configuring more than one peer, one remote system can be configured as the preferred peer. When a second peer is configured as preferred, then the new entry overrides the old entry. Page 348 7750 SR OS Basic System Configuration Guide...

  • Page 349: Sntp Commands

    NTP broadcasts are transmitted. SNTP must be shutdown prior to changing either to or from broadcast mode. The no form of the command disables broadcast client mode. Default no broadcast-client 7750 SR OS Basic System Configuration Guide Page 349...
  • Page 350 Only one server in the table can be a preferred server. Default normal interval seconds — Specifies the frequency at which this server is queried. Values 64 — 1024 Default Page 350 7750 SR OS Basic System Configuration Guide...
  • Page 351 — Specifies the maximum amount of time to keep the results from a script run. Values 1 — 21474836 Default 3600 (1 hour) forever — Specifies to keep the results from a script run forever. 7750 SR OS Basic System Configuration Guide Page 351...
  • Page 352 — Specifies the location where the system writes the output of an event script’s execution. Values file url: local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url: [{ftp://} login:pswd@remote-locn/][file-path] remote-locn [ hostname | ipv4-address | [ipv6- address] ] ipv4-address a.b.c.d ipv6-address - x:x:x:x:x:x:x:x[-interface] Page 352 7750 SR OS Basic System Configuration Guide...
  • Page 353 (seconds). The no form of the command removes the context from the configuration. Default none Parameters schedule-name — Name of the schedule. owner owner-name — Owner name of the schedule. 7750 SR OS Basic System Configuration Guide Page 353...
  • Page 354 Integer values must map to a valid day for the month in question. For example, February 30 is not a valid date. Values 1 — 31, -31 — -1 (maximum 62 day-numbers) all — Specifies all days of the month. Page 354 7750 SR OS Basic System Configuration Guide...
  • Page 355 — Specifies all hours. interval Syntax [no] interval seconds Context config>cron>sched Description This command specifies the interval between runs of an event. Parameters seconds — The interval, in seconds, between runs of an event. 7750 SR OS Basic System Configuration Guide Page 355...
  • Page 356 1 —12 (maximum 12 month-numbers) all — Specifies all months. month-name — Specifies a month by name Values january, february, march, april, may, june, july, august, september, october, novem- ber, december (maximum 12 month names) Page 356 7750 SR OS Basic System Configuration Guide...
  • Page 357 1 —7 (maximum 7 week-day-numbers) day-name — Specifies a day by name Values sunday, monday, tuesday, wednesday, thursday, friday, saturday (maximum 7 week- day names) all — Specifies all days of the week. 7750 SR OS Basic System Configuration Guide Page 357...
  • Page 358 Date and Time Commands script Syntax [no] script script-name [owner owner-name] Context config>cron>script Description This command configures the name associated with this script. Parameters script-name — Specifies the script name. Page 358 7750 SR OS Basic System Configuration Guide...
  • Page 359 [ hostname | ipv4-address | [ipv6- address] ] ipv4-address a.b.c.d ipv6-address - x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id: cf1:, cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: 7750 SR OS Basic System Configuration Guide Page 359...

  • Page 360: Time Range Commands

    — Specifies end parameters for the absolute time-range. Values absolute-time: year/month/day,hh:mm year: 2005 — 2099 month: 1 — 12 day: 1 — 31 0 — 23 mm: [ 0 — 59 Page 360 7750 SR OS Basic System Configuration Guide...
  • Page 361 — Specifies the starting time for the time range. Values Syntax: hh:mm 0 — 23 0 — 59 end-time-of-day — Specifies the ending time for the time range. Values Syntax: hh:mm 0 — 24 0 — 59 7750 SR OS Basic System Configuration Guide Page 361...
  • Page 362 0 — 59 end-time-in-week — Specifies the end day and time of the week. Values Syntax: day,hh:mm Values sun, mon, tue, wed, thu, fri, sat sunday, monday, tuesday, wednesday, thursday, friday, saturday Page 362 7750 SR OS Basic System Configuration Guide...
  • Page 363 The resolution must be at least one minute apart, for example, start at 11:00 and end at 11:01. A start time and end time of 11:00 is invalid. Values 00 — 23, 00 — 59 Default no time-range 7750 SR OS Basic System Configuration Guide Page 363...
  • Page 364 Only a single reference to a policy may be included without a time-range. Page 364 7750 SR OS Basic System Configuration Guide...
  • Page 365 Values Up to 32 characters Default "NO-TIME-RANGE" policy priority priority — Priority of the time-range. Only one time-range assignment of the same type and priority is allowed. 7750 SR OS Basic System Configuration Guide Page 365...
  • Page 366 Values Up to 32 characters priority priority — Specifies the time-range priority. Only one time-range assignment of the same type and priority is allowed. Values 1 — 10 Page 366 7750 SR OS Basic System Configuration Guide...
  • Page 367 {end-week} {end-day} {end-month} [hours-minutes] Context config>system>time>dst-zone Description This command configures start of summer time settings. Parameters end-week — Specifies the starting week of the month when the summer time will end. 7750 SR OS Basic System Configuration Guide Page 367...
  • Page 368 Default Values 0 — 60 start Syntax start {start-week} {start-day} {start-month} [hours-minutes] Context config>system>time>dst-zone Description This command configures start of summer time settings. Page 368 7750 SR OS Basic System Configuration Guide...
  • Page 369 For system-defined time zones, a different offset cannot be specified. If a new time zone is needed with a different offset, the user must create a new time zone. Note that some system- 7750 SR OS Basic System Configuration Guide Page 369...
  • Page 370 In these instances, the minutes-offset must be specified. For example, the time zone in Pirlanngimpi, Australia UTC + 9.5 hours. Default hours: 0 minutes: 0 Values hours: -11 — 11 minutes: 0 — 59 Page 370 7750 SR OS Basic System Configuration Guide...
  • Page 371 This command is required in order to enter the mode to create or edit the system synchronous interface timing configuration. Default No default bits Syntax bits Context config>system>sync-if-timing Description This command enables the context to configure parameters for the Building Integrated Timing Supply (BITS). Default disabled 7750 SR OS Basic System Configuration Guide Page 371...
  • Page 372 {ds1 [{esf | sf}] | e1 [{pcm30crc | pcm31crc}]} no bits-interface-type Context config>system>sync-if-timing>bits Description This command configures the Building Integrated Timing Source (BITS) timing reference. The no form of the command reverts to the default configuration. Default ds1 esf Page 372 7750 SR OS Basic System Configuration Guide...
  • Page 373 — Specifies the second timing reference to use in the reference order sequence. Values ref1, ref2, bits third — Specifies the third timing reference to use in the reference order sequence. Values ref1, ref2, bits 7750 SR OS Basic System Configuration Guide Page 373...
  • Page 374 7750 Model Ref2/Slots SR-1 Not enabled SR-7 3 — 5 SR-12 6 — 10 SR-c12 No restriction Note that ref1 and ref2 cannot be configured on the same MDA/CMA for the SR-c12. Page 374 7750 SR OS Basic System Configuration Guide...
  • Page 375 The only type of T1 or E1 that can be used as a reference is one that has adaptive timing. The timing reference for ref1 and ref2 must be specified for ports in the following chassis slots: 7750 SR OS Basic System Configuration Guide Page 375...
  • Page 376 SR-c12 No restriction No restriction Note that ref1 and ref2 cannot be configured on the same MDA/CMA for the SR-c12. Parameters port-id — Identify the physical port in the slot/mda/port format. Page 376 7750 SR OS Basic System Configuration Guide...
  • Page 377 This is an optional parameter and can be 80 characters long. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7750 SR OS Basic System Configuration Guide Page 377...
  • Page 378 Context admin Description This command saves existing debug configuration. Debug configurations are not preserved in configuration saves. Default none Parameters file-url — The file URL location to save the debug configuration. Page 378 7750 SR OS Basic System Configuration Guide...
  • Page 379 — The name of the user. console — Disconnects the console session. telnet — Disconnects the Telnet session. ftp — Disconnects the FTP session. ssh — Disconnects the SSH session. 7750 SR OS Basic System Configuration Guide Page 379...
  • Page 380 OS version running, the firmware on the card will be automatically upgraded before the card is brought online. Page 380 7750 SR OS Basic System Configuration Guide...
  • Page 381 - x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses 255 chars max, directory length 99 chars max each cflash-id: cf1:, cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: 7750 SR OS Basic System Configuration Guide Page 381...
  • Page 382 Syntax [no] enable-tech Context admin Description This command enables the shell and kernel commands. NOTE: This command should only be used with authorized direction from the Alcatel-Lucent Technical Assistance Center (TAC). radius-discovery Syntax radius-discovery Context admin Description This command performs RADIUS discovery operations.
  • Page 383 System Management NOTE: This command should only be used with authorized direction from the Alcatel-Lucent Technical Assistance Center (TAC). file-url — The file URL location to save the binary file. Values file url: local-url | remote-url: 255 chars max local-url:...
  • Page 384 Default no persistence dhcp-server Syntax dhcp-server Context config>system>persistence Description This command configures DHCP server persistence parameters. subscriber-mgmt Syntax subscriber-mgmt Context config>system>persistence Description This command configures subscriber management persistence parameters. Page 384 7750 SR OS Basic System Configuration Guide...
  • Page 385 The no form of this command returns the system to the default. If there is a change in file location while persistence is running, a new file will be written on the new flash, and then the old file will be removed. Default no location 7750 SR OS Basic System Configuration Guide Page 385...
  • Page 386 DF election algorithm. The boot-timer value should be configured to allow for the BGP sessions to come up and for the NLRI information to be refreshed/exchanged. The no form of the command reverts the default. Default no boot-timer Page 386 7750 SR OS Basic System Configuration Guide...
  • Page 387 If synchronization fails, alarms and log messages that indicate the type of error that caused the failure of the synchronization operation are generated. When the error condition ceases to exist, the alarm is cleared. 7750 SR OS Basic System Configuration Guide Page 387...
  • Page 388 — Synchronizes all files required for the boot process (loader, BOF, images, and configuration files. config — Synchronize only the primary, secondary, and tertiary configuration files. multi-chassis Syntax multi-chassis Context config>redundancy Description This command enables the context to configure multi-chassis parameters. Page 388 7750 SR OS Basic System Configuration Guide...
  • Page 389 This command enables the context to configure synchronization parameters. igmp Syntax [no] igmp Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether IGMP protocol information should be synchronized with the multi- chassis peer. Default no igmp 7750 SR OS Basic System Configuration Guide Page 389...
  • Page 390 — Specifies the LAG ID to be synchronized with the multi-chassis peer. sync-tag sync-tag — Specifies a synchronization tag to be used while synchronizing this port with the multi-chassis peer. Page 390 7750 SR OS Basic System Configuration Guide...
  • Page 391 Default no srrp sub-mgmt Syntax [no] sub-mgmt Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether subscriber management information should be synchronized with the multi-chassis peer. Default no sub-mgmt 7750 SR OS Basic System Configuration Guide Page 391...
  • Page 392 If the hash or hash2 parameter is not used, the key is assumed to be in a non-encrypted, clear text form. For security, all keys are stored in encrypted form in the configuration file with the hash or hash2 parameter specified. Page 392 7750 SR OS Basic System Configuration Guide...
  • Page 393 This is different from the keep-alives mechanism which is used just after the peer-peer communication was established. After this time interval passed all the mc-endpoints configured under services will revert to single chassis behavior, activating the best local PW. 7750 SR OS Basic System Configuration Guide Page 393...
  • Page 394 The no form of this command sets the interval to default value Default 5 (0.5s) Parameters interval — The time interval expressed in deci-seconds. Values 5 — 500 (tenths of a second) Page 394 7750 SR OS Basic System Configuration Guide...
  • Page 395 The no form of this command sets the system priority to default Default no system-priority Parameters value — Specifies the priority assigned to the local MC-EP peer. Values 1 — 255 7750 SR OS Basic System Configuration Guide Page 395...
  • Page 396 MC-LAG. These keep-alive messages are used to determine remote-node failure and the interval is set in deci-seconds. The no form of this command sets the interval to default value Default 1s (10 hundreds of milliseconds means interval value of 10) Page 396 7750 SR OS Basic System Configuration Guide...
  • Page 397 — Specifies the system priority to be used in the context of the MC- LAG. The partner system will consider all ports using the same lacp-key, system-id, and system- priority as part of the same LAG. Values 1 — 65535 7750 SR OS Basic System Configuration Guide Page 397...
  • Page 398 This command specifies the destination IP address used in the inband control connection. If the address is not configured, the ring cannot become operational. Parameters ip-address — Specifies the destination IP address. Page 398 7750 SR OS Basic System Configuration Guide...
  • Page 399 Syntax [no] range vlan-range Context config>redundancy>mc>peer>mcr>ring>path-b config>redundancy>mc>peer>mcr>ring>path-excl Description This command configures a MCR b-path VLAN range. Parameters vla-range — Specifies the VLAN range. Values 1 to 4094 — 1 to 4094 7750 SR OS Basic System Configuration Guide Page 399...
  • Page 400 Context config>redundancy>mc>peer>mcr>ring>ring-node>connectivity-verify Description This command configures the node cc destination IP address. Default no dst-ip Parameters ip-address — Specifies the destination IP address used in the inband control connection. Page 400 7750 SR OS Basic System Configuration Guide...
  • Page 401 This command specifies the source IP address used in the ring-node connectivity verification of this ring node. Default no src-ip Parameters ip-address — Specifies the address of the multi-chassis peer. 7750 SR OS Basic System Configuration Guide Page 401...
  • Page 402 It is only meaningful if the value of service ID is not zero. A zero value means that no VLAN tag is configured. Default no vlan Parameters [0..4094] — Specifies the set of VLAN IDs associated with the SAPs that are to be controlled by the slave peer. Page 402 7750 SR OS Basic System Configuration Guide...
  • Page 403 This command configures the number of LLDPDUs to send during the fast transmission period. Parameters count — Specifies the number of LLDPDUs to send during the fast transmission period. Values 1 — 8 Default 7750 SR OS Basic System Configuration Guide Page 403...
  • Page 404 Syntax tx-credit-max count no tx-credit-max Context config>system>lldp Description This command configures the maximum consecutive LLDPDUs transmitted. Parameters count — Specifies the maximum consecutive LLDPDUs transmitted. Values 1 — 100 Default Page 404 7750 SR OS Basic System Configuration Guide...
  • Page 405 Syntax tx-interval interval no tx-interval Context config>system>lldp Description This command configures the LLDP transmit interval time. Parameters interval — Specifies the LLDP transmit interval time. Values 1 — 100 Default 7750 SR OS Basic System Configuration Guide Page 405...
  • Page 406 — Specifies that the LLDP agent will not transmit or receive LLDP frames on this port. If there is remote systems information which is received on this port and stored in other tables, before the port's admin status becomes disabled, then the information will naturally age out. Page 406 7750 SR OS Basic System Configuration Guide...
  • Page 407 — Indicates that the LLDP agent should transmit system name TLVs. sys-desc — Indicates that the LLDP agent should transmit system description TLVs. sys-cap — Indicates that the LLDP agent should transmit system capabilities TLVs. 7750 SR OS Basic System Configuration Guide Page 407...
  • Page 408 LLDP Ethernet Port Commands Page 408 7750 SR OS Basic System Configuration Guide...
  • Page 409 Displays the remote address of the socket. The socket port is separated by a period. State Listen — The protocol state is in the listen mode. Established — The protocol state is established. 7750 SR OS Basic System Configuration Guide Page 409...
  • Page 410 : 0 (0 bytes) window probe window update packet packets received after close discarded for bad checksum discarded for bad header offset field discarded because packet too short Page 410 7750 SR OS Basic System Configuration Guide...

  • Page 411: Table 33: Show System Cpu Output Fields

    The sum of CPU usage of all the processes and protocols. CPU Usage Sample Output A:ALA-1# show system cpu sample-period 2 ========================================= CPU Utilization (Test time 2001135 uSec) ========================================= Name CPU Time CPU Usage (uSec) ----------------------------------------- 7750 SR OS Basic System Configuration Guide Page 411...
  • Page 412 — Specifies the state of the test to be run. Values executing, initializing, terminated Output The following table describes the show cron action output fields. Label Description Action Displays the name of the action. Page 412 7750 SR OS Basic System Configuration Guide...
  • Page 413 : 0d 00:05:15 Lifetime : 0d 00:00:00 State : terminated Run exit code : noError Result time : 2006/11/06 20:35:24 Keep history : 0d 00:49:57 Error time : never Results file : ftp://*:*@192.168.15.18/home/testlab_bgp/cron/_20061106-203008. 7750 SR OS Basic System Configuration Guide Page 413...
  • Page 414 : never Elapsed time : 0d 00:00:00 Lifetime : 0d 01:00:00 State : initializing Run exit code : noError Result time : never Keep history : 0d 01:00:00 Error time : never Page 414 7750 SR OS Basic System Configuration Guide...
  • Page 415 Displays the name of action owner. Script Displays the name of the script. Script owner Displays the name of the script. Script owner Displays the name of the of script owner. 7750 SR OS Basic System Configuration Guide Page 415...
  • Page 416 : test Action owner : TiMOS CLI Script : test Script Owner : TiMOS CLI Script source location : ftp://*****:******@192.168.15.1/home/testlab_bgp /cron/test1.cfg Script results location : ftp://*****:******@192.168.15.1/home/testlab_bgp /cron/res Schedule type : periodic Page 416 7750 SR OS Basic System Configuration Guide...
  • Page 417 Disabled — Operationally disabled. Script source Displays the location of scheduled script. location Last script error Displays the system time of the last error. Last change Displays the system time of the last change. 7750 SR OS Basic System Configuration Guide Page 417...
  • Page 418 SNMP Max Message The maximum SNMP packet size generated by this node. Size SNMP Admin State Enabled — SNMP is administratively enabled and running. Disabled — SNMP is administratively shutdown and not running. Page 418 7750 SR OS Basic System Configuration Guide...
  • Page 419 Header last rebooted. Last Saved Config The location and filename of the last saved configuration file. Time Last Saved The date and time of the last time configuration file was saved. 7750 SR OS Basic System Configuration Guide Page 419...
  • Page 420 A:Dut-F# show system information =============================================================================== System Information =============================================================================== System Name : Dut-F System Type : 7750 SR-7 7450 ESS-7 System Version : B-6.0.B1-6 System Contact System Location System Coordinates System Active Slot Page 420 7750 SR OS Basic System Configuration Guide...
  • Page 421 ATM OAM Retry Down ATM OAM Loopback Period: 10 =============================================================================== A:Dut-F# load-balancing-alg Syntax load-balancing-alg [detail] Context show>system Description This command displays system load balancing settings. Parameters detail — Displays port settings. 7750 SR OS Basic System Configuration Guide Page 421...

  • Page 422: Table 34: Show Memory Pool Output Fields

    Sample Output A:ALA-1# show system memory-pools =============================================================================== Memory Pools =============================================================================== Name Max Allowed Current Size Max So Far In Use ------------------------------------------------------------------------------- System No limit 24,117,248 24,117,248 16,974,832 8,388,608 1,048,576 1,048,576 85,200 Page 422 7750 SR OS Basic System Configuration Guide...
  • Page 423 Displays NTP server state of this node. Stratum Displays stratum level of this node. Oper Status — The operational state is enabled. — The operational state is disabled. Auth Check Displays the authentication requirement 7750 SR OS Basic System Configuration Guide Page 423...
  • Page 424 “.GPS.” For an NTP server or peer, if the client has not yet synchronized to a server/peer, the status cannot be determined and displays the following codes: Page 424 7750 SR OS Basic System Configuration Guide...
  • Page 425 No — The NTP peer or server has not been reached at least once in the last 8 polls. Offset The time between the local and remote UTC time, in milliseconds. 7750 SR OS Basic System Configuration Guide Page 425...
  • Page 426 Base bclnt management management 224.0.1.1 mclnt =============================================================================== A:pc-40>config>system>time>ntp# A:pc-40>config>system>time>ntp# show system ntp detail all =============================================================================== NTP Status =============================================================================== Enabled : Yes Stratum Admin Status : up Oper Status : up Page 426 7750 SR OS Basic System Configuration Guide...

  • Page 427: Table 35: Show System Sntp Output Fields

    Preferred — Indicates that this server has preference over another. The frequency, in seconds, that the server is queried. Interval Sample Output A:ALA-1# show system sntp =============================================================================== SNTP =============================================================================== 7750 SR OS Basic System Configuration Guide Page 427...
  • Page 428 Displays the owner of this alarm. Description Displays the event cause. Event Id Displays the identifier of the threshold event. Last Sent Displays the date and time the alarm was sent. Page 428 7750 SR OS Basic System Configuration Guide...
  • Page 429 Description: TiMOS CLI - cflash capacity alarm falling event Event Id Last Sent : 10/31/2006 08:48:00 Action Type : both Owner : TiMOS CLI Description: TiMOS CLI - cflash capacity warning rising event 7750 SR OS Basic System Configuration Guide Page 429...

  • Page 430: Table 36: Show System Time Output Fields

    Standard — The zone is system defined. The number of hours and minutes added to universal time for the zone, Offset from UTC including the DST offset for a DST zone Page 430 7750 SR OS Basic System Configuration Guide...
  • Page 431 Offset from UTC : -8:00 ------------------------------------------------------------------------------- Non-DST Zone : APA Offset from UTC : -8:00 Zone Type : non-standard ------------------------------------------------------------------------------- No DST zone configured =============================================================================== A:ALA-1# time Syntax time Context show 7750 SR OS Basic System Configuration Guide Page 431...

  • Page 432: Table 37: Show System Tod-Suite Output Fields

    State ------------------------------------------------------------------------------- Ingress Qos Policy 1160 Inact 1190 night Activ Ingress Scheduler Policy SchedPolCust1_Day Inact SchedPolCust1_Night night Activ Egress Qos Policy 1160 Inact 1190 night Activ Egress Scheduler Policy SchedPolCust1Egress_Day Inact Page 432 7750 SR OS Basic System Configuration Guide...
  • Page 433 Zooming in on one of the failed SAPs, the assignments of QoS and scheduler policies are shown as not as intended: A:kerckhot_4# show service id 1 sap 1/1/1:2 =============================================================================== Service Access Points(SAP) 7750 SR OS Basic System Configuration Guide Page 433...
  • Page 434 Intend I Sched Pol : SchedPolCust1_Night E. Sched Pol : SchedPolCust1Egress Intend E Sched Pol : SchedPolCust1Egress_Night Acct. Pol : None Collect Stats : Disabled Anti Spoofing : None Nbr Static Hosts =============================================================================== A:kerckhot_4# Page 434 7750 SR OS Basic System Configuration Guide...
  • Page 435 Filter Id : 160 Applied : No Scope : Template Def. Action : Drop Entries ------------------------------------------------------------------------------- Filter Association : IP ------------------------------------------------------------------------------- Tod-suite "english_suite" - ingress, time-range "day" (priority 5) =============================================================================== A:kerckhot_4# 7750 SR OS Basic System Configuration Guide Page 435...

  • Page 436: Table 38: Show Multi-Chassis Redundancy Output Fields

    Displays the source address used to communicate with the MC peer. Source IP Address Displays the administrative state of the peer. Admin State Sample Output B:Dut-B# show redundancy multi-chassis all =============================================================================== Multi-chassis Peer Table =============================================================================== Peer Page 436 7750 SR OS Basic System Configuration Guide...
  • Page 437 32768 3/2/2 active 32768 3/2/3 active 32768 3/2/4 active 32768 ------------------------------------------------------------------------------- Port-id Role Dist Aggr Timeout Activity ------------------------------------------------------------------------------- 3/2/1 actor 3/2/1 partner 3/2/2 actor 3/2/2 partner 3/2/3 actor 3/2/3 partner 7750 SR OS Basic System Configuration Guide Page 437...
  • Page 438 : 26099 Packets Tx Keepalive : 8221 Packets Tx Config Packets Tx Peer Config : 17872 Packets Tx State Packets Tx Failed =============================================================================== *A:Dut-B# *A:Dut-B# show redundancy multi-chassis mc-endpoint peer 3.1.1.3 statistics Page 438 7750 SR OS Basic System Configuration Guide...
  • Page 439 Number of Entries 1 =============================================================================== mc-lag Syntax mc-lag [lag lag-id] Context show>redundancy>multi-chassis Description This command displays multi-chassis LAG information. Parameters lag lag-id — Shows information for the specified LAG identifier. Values 1 — 200 7750 SR OS Basic System Configuration Guide Page 439...

  • Page 440: Table 39: Show Redundancy Multi-Chassis Mc-Lag Peer Output Fields

    Lag Id Lacp Key Remote Lag Id System Id Sys Prio Last Changed ------------------------------------------------------------------------------- 00:00:00:00:00:01 01/23/2007 18:20:13 00:00:00:00:00:02 01/24/2007 08:53:48 ------------------------------------------------------------------------------- Number of LAGs : 2 =============================================================================== A:subscr_mgt# A:subscr_mgt# show redundancy multi-chassis mc-lag peer 10.10.10.30 lag 1 =============================================================================== Page 440 7750 SR OS Basic System Configuration Guide...
  • Page 441 Indicates the number of packets that were dropped because the Packets Dropped Packets Too Short packet was too short. Indicates the number of packets that were dropped because the Packets Dropped Tlv Invalid Size packet size was invalid. 7750 SR OS Basic System Configuration Guide Page 441...
  • Page 442 Packets Tx Keepalive : 52519 Packets Tx Config Packets Tx Peer Config : 54 Packets Tx State Packets Tx Failed =============================================================================== A:subscr_mgt# B:Dut-B# show redundancy multi-chassis mc-lag peer 10.10.10.2 statistics =============================================================================== Page 442 7750 SR OS Basic System Configuration Guide...
  • Page 443 Displays the synchronization tag that was used while synchronizing this port Sync Tag with the multi-chassis peer. noPeer — The peer has no corresponding ring configured. Oper State connected — The inband control connection with the peer is operational. 7750 SR OS Basic System Configuration Guide Page 443...
  • Page 444 : 01/07/2008 21:40:24 Failure Reason : None ------------------------------------------------------------------------------ In Band Control Path ------------------------------------------------------------------------------ Service ID : 10 Interface Name : to_an1 Oper State : connected Dest IP : 10.10.0.2 : 10.10.0.1 ------------------------------------------------------------------------------ Page 444 7750 SR OS Basic System Configuration Guide...
  • Page 445 Sync Tag : ring11 Node Name : an1 Oper State Loc : connected Oper State Rem : notTested In Use : True Admin Change : 01/07/2008 21:40:07 Oper Change : 01/07/2008 21:40:25 7750 SR OS Basic System Configuration Guide Page 445...
  • Page 446 Displays the number of valid 'ring exists' requests were received Ring Exists Request from the peer. Displays the number of valid ring exists' responses were received Ring Exists Response from the peer. Page 446 7750 SR OS Basic System Configuration Guide...
  • Page 447 *A:ALA-48>show>redundancy>multi-chassis# mc-ring peer 192.251.10.104 statistics ============================================================================== MC Ring statistics for peer 192.251.10.104 ============================================================================== Message Received Transmitted ------------------------------------------------------------------------------ MCS ID Request MCS ID Response Ring Exists Request Ring Exists Response Keepalive ------------------------------------------------------------------------------ Total ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# 7750 SR OS Basic System Configuration Guide Page 447...
  • Page 448 Displays the number of MC-ring signalling packets were received by Rx Unknown Ring this system that were related to an unknown ring. Page 448 7750 SR OS Basic System Configuration Guide...
  • Page 449 Tx No Buffer Tx Transmission Failed Tx Unknown Destination Missed Configuration Events Missed BFD Events ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# sync Syntax sync [port port-id | lag-id] Context show>redundancy>multi-chassis Description This command displays synchronization information. 7750 SR OS Basic System Configuration Guide Page 449...

  • Page 450: Table 40: Show Redundancy Multi-Chassis Sync Output Fields

    Displays the number of locally deleting entries made by the remote Rem Lcl Deleted Entries router. Displays alarm entries on the remote router. Rem Alarm Entries Sample Output *A:subscr_mgt_2# show redundancy multi-chassis sync =============================================================================== Multi-chassis Peer Table =============================================================================== Peer ------------------------------------------------------------------------------- Page 450 7750 SR OS Basic System Configuration Guide...

  • Page 451: Table 41: Show Redundancy Multi-Chassis Sync Peer Output Fields

    Displays the list of client applications synchronized between SRs. Client Applica- tions Displays the administrative state of the synchronization. Sync Admin State Displays the operation state of the synchronization. Sync Oper State 7750 SR OS Basic System Configuration Guide Page 451...
  • Page 452 Rem Alarm Entries =============================================================================== MCS Application Stats =============================================================================== Application : igmp Num Entries Lcl Deleted Entries Alarm Entries ------------------------------------------------------------------------------- Rem Num Entries Rem Lcl Deleted Entries : 0 Rem Alarm Entries Page 452 7750 SR OS Basic System Configuration Guide...

  • Page 453: Table 42: Show Redundancy Multi-Chassis Sync Peer Detail Output Fields

    Description Displays the multi-chassis redundancy peer. Peer IP Address The text string describing the peer. Description If configured, displays the authentication key used between this node Authentication and the multi-chassis peer. 7750 SR OS Basic System Configuration Guide Page 453...
  • Page 454 Sync-status ------------------------------------------------------------------------------- Client Applications : SUBMGMT Sync Admin State : Up Sync Oper State : Up DB Sync State : inSync Num Entries Lcl Deleted Entries Alarm Entries Rem Num Entries Page 454 7750 SR OS Basic System Configuration Guide...
  • Page 455 Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== Ports synced on peer 10.10.10.20 =============================================================================== Port/Encap ------------------------------------------------------------------------------- lag-1 test123 =============================================================================== *A:subscr_mgt_2# synchronization Syntax synchronization Context show>redundancy Description This command displays redundancy synchronization times. 7750 SR OS Basic System Configuration Guide Page 455...

  • Page 456: Table 43: Show System Time-Range Output Fields

    : Start * * * * End * * * * The following example shows output for time-range associations with previously created IP and MAC filters. A:ala# show cron time-range day associations Page 456 7750 SR OS Basic System Configuration Guide...

  • Page 457: Table 44: System Timing Output Fields

    System Up Time hr:min:sec format. Sample Output A:ALA-1# show uptime System Up Time : 11 days, 18:32:02.22 (hr:min:sec) A:ALA-1# switch-fabric Syntax switch-fabric Context show>system Description This command displays switch fabric information. 7750 SR OS Basic System Configuration Guide Page 457...

  • Page 458: Table 45: Show System Switch-Fabric Output Fields

    A:ALA-12# show system switch-fabric ============================================================================== Switch Fabric ============================================================================== Slot/Mda Min. Forwarding Capacity Max. Forwarding Capacity ------------------------------------------------------------------------------ 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% Page 458 7750 SR OS Basic System Configuration Guide...
  • Page 459 (value) — The frequency offset of the currently selected timing Offset reference in parts per million. Reference Order ref1, ref2 bits — Indicates that the priority order of the tim- ing references. 7750 SR OS Basic System Configuration Guide Page 459...
  • Page 460 The line coding configured for the BITS port. Sample Output *A:SR7# show system sync-if-timing =============================================================================== System Interface Timing Operational Info =============================================================================== System Status CPM A : Master Locked Reference Input Mode : Non-revertive Reference Selected : ref1 Page 460 7750 SR OS Basic System Configuration Guide...
  • Page 461 : Yes Reference Input 1 Admin Status : up Qualified For Use : Yes Selected For Use : No Not Selected Due To on standby Source Port : 2/1/1 Reference Input 2 7750 SR OS Basic System Configuration Guide Page 461...
  • Page 462 N36*39.246' W121*40.121' CLLI Code The Common Language Location Identifier (CLLI) that uniquely iden- tifies the geographic location of places and certain functional catego- ries of equipment unique to the telecommunications industry. Page 462 7750 SR OS Basic System Configuration Guide...
  • Page 463 The ID for each power supply installed in the chassis. number AC power Within range — AC voltage is within range. Out of range — AC voltage is out of range. 7750 SR OS Basic System Configuration Guide Page 463...
  • Page 464 : alarm cleared Environment Information Number of fan trays Number of fans Fan tray number Status : up Speed : half speed Fan tray number Status : up Speed : half speed Page 464 7750 SR OS Basic System Configuration Guide...

  • Page 465: Table 46: Show Synchronization Output Fields

    CPM. If there is no redun- dant CPM card in this system or no failover has occurred since the sys- tem last booted, the value will be 0. 7750 SR OS Basic System Configuration Guide Page 465...
  • Page 466 Failover Reason : N/A Boot/Config Sync Mode : None Boot/Config Sync Status : No synchronization Last Config File Sync Time : Never Last Boot Env Sync Time : Never =============================================================================== A:ALA-1>show>redundancy# Page 466 7750 SR OS Basic System Configuration Guide...
  • Page 467 — The clock will use the external network interface on the active to be the highest priority input. system Syntax [no] system Context debug Description This command displays system debug information. 7750 SR OS Basic System Configuration Guide Page 467...
  • Page 468 — maximum 32 characters; must begin with a letter. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. persistence Syntax [no] persistence Context debug>system Description This command displays persistence debug information. Page 468 7750 SR OS Basic System Configuration Guide...
  • Page 469 : Up tlv peer mc admin state : Up reachable : Yes own sys priority : 50 own sys id : 00:03:fa:72:c3:c0 peer sys priority : 21 7750 SR OS Basic System Configuration Guide Page 469...
  • Page 470 [ring sync-tag] Context tools>dump>redundancy>multi-chassis Description This command dumpsmulti-chassis ring information. peer ip-address — Specifies the peer’s IP address. ring sync-tag — Specifies the ring’s sync-tag created in the config>redundancy>mc>peer>mcr> ring context. Page 470 7750 SR OS Basic System Configuration Guide...
  • Page 471 This command dumps SRRP database information. peer ip-address — Specifies the peer’s IP address. instance instance-id — Dumps information for the specified Subscriber Router Redundancy Protocol instance configured on this system. Values 1 — 4294967295 7750 SR OS Basic System Configuration Guide Page 471...
  • Page 472 Description This command clears completed CRON action run history entries. Parameters action-name — Specifies the action name. Values maximum 32 characters owner action-owner — Specifies the owner name. Default TiMOS CLI Page 472 7750 SR OS Basic System Configuration Guide...
  • Page 473 This command clears multi-chassis Link Aggregation Group (LAG) information. Parameters peer ip-address — Clears the specified address of the multi-chassis peer. lag lag-id — Clears the specified LAG on this system. Values 1 — 100 7750 SR OS Basic System Configuration Guide Page 473...
  • Page 474 — Clears ring statistics for the specified sync tag. statistics Syntax statistics Context clear>redundancy>multi-chassis>mcr Description This command clears multi-chassis ring global Syntax global Context clear>redundancy>multi-chassis>mcr>statistics Description This command clears multi-chassis ring global statistics. Page 474 7750 SR OS Basic System Configuration Guide...
  • Page 475 | lag-id sync-tag sync-tag application application Context clear>redundancy>multi-chassis Description This command clears multi-chassis sync database information. Parameters peer ip-address — Clears the specified address of the multi-chassis peer. 7750 SR OS Basic System Configuration Guide Page 475...
  • Page 476 An inherent behavior enables the revertive mode which causes a re-evaluation of all available references. trace Syntax trace log Context clear Description This command allows an operator to clear the trace log. Page 476 7750 SR OS Basic System Configuration Guide...

  • Page 477: Standards And Protocol Support

    Standards and Protocol Support Standards Compliance RFC 3630 Traffic Engineering (TE) RFC 2763 Dynamic Hostname Exchange Extensions to OSPF Version 2 for IS-IS IEEE 802.1ab-REV/D3 Station and RFC 4203 for Shared Risk Link Group RFC 2966 Domain-wide Prefix Media Access Control Connectivity (SRLG) sub-TLV Distribution with Two-Level IS-IS Discovery...
  • Page 478 Standards and Protocols draft-ietf-ipsec-isakmp-xauth-06.txt — RFC 5095 Deprecation of Type 0 Routing RFC 5332 MPLS Multicast Extended Authentication within Headers in IPv6 Encapsulations ISAKMP/Oakley (XAUTH) draft-ietf-isis-ipv6-05 draft-ietf-ipsec-isakmp-modecfg-05.txt draft-ietf-isis-wg-multi-topology-xx.txt — The ISAKMP Configuration RFC 1058 RIP Version 1 Method Multicast RFC 2082 RIP-2 MD5 Authentication RFC 1112 Host Extensions for IP RFC 2453 RIP Version 2 IPv6...
  • Page 479 Standards and Protocols RFC 3140 Per-Hop Behavior RFC 1989 PPP Link Quality Monitoring GR-1248-CORE - Generic Requirements Identification Codes for Operations of ATM Network RFC 1990 The PPP Multilink Protocol Elements (NEs). Issue 3 (MP) TCP/IP GR-1113-CORE - Bellcore, RFC 1994 PPP Challenge Handshake RFC 768 UDP Asynchronous Transfer Mode Authentication Protocol (CHAP)
  • Page 480 Standards and Protocols RFC 4619 Encapsulation Methods for SONET/SDH ITU-T G.8264 Telecommunication Transport of Frame Relay over Standardization Section of ITU, ITU-G.841 Telecommunication MPLS Networks (draft-ietf-pwe3- Distribution of timing information Standardization Section of ITU, frame-relay-07.txt) through packet networks, issued 10/ Types and Characteristics of 2008.
  • Page 481 Standards and Protocols RFC 2987 VRRP-MIB TIMETRA-NG-BGP-MIB.mib RFC 3014 NOTIFICATION-LOGMIB TIMETRA-OAM-TEST-MIB.mib RFC 3019 IP Version 6 Management TIMETRA-OSPF-NG-MIB.mib Information Base for The Multicast TIMETRA-OSPF-V3-MIB.mib Listener Discovery Protocol TIMETRA-PIM-NG-MIB.mib RFC 3164 Syslog TIMETRA-PORT-MIB.mib RFC 3273 HCRMON-MIB TIMETRA-PPP-MIB.mib RFC 3411 An Architecture for TIMETRA-QOS-MIB.mib Describing Simple Network TIMETRA-RIP-MIB.mib...
  • Page 482 Standards and Protocols Page 482 Standards and Protocols...

  • Page 483: Index

    CLI commands configuring environment commands basic exec command reference monitor commands administration commands navigating power supply commands structure synchronization commands system information commands system time commands power supplies File system revert overview 7750 SR OS Basic System Configuration Guide Page 483...
  • Page 484 Index system administration parameters system parameters system time elements timing Page 484 7750 SR OS Basic System Configuration Guide...

This manual is also suitable for:

7750 sr

Table of Contents
